Legion SKGL6-5 Skittle Braising Pans & Tilt Skillets
Legion SKGL6-5 Skittle Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Skittle® Multi-Function Cooker – 6-Pan / 4-Basket, Gas
Legion Model SKGL6-5 | 100,000 BTU | 10° Tilting PanGive your kitchen the power to steam, grill, boil, fry and roast in a single footprint. The Legion Skittle® brings unmatched versatility, rapid throughput and rock-solid stainless-steel durability—perfect for high-volume restaurants, commissaries, schools and correctional facilities that need to do it all.

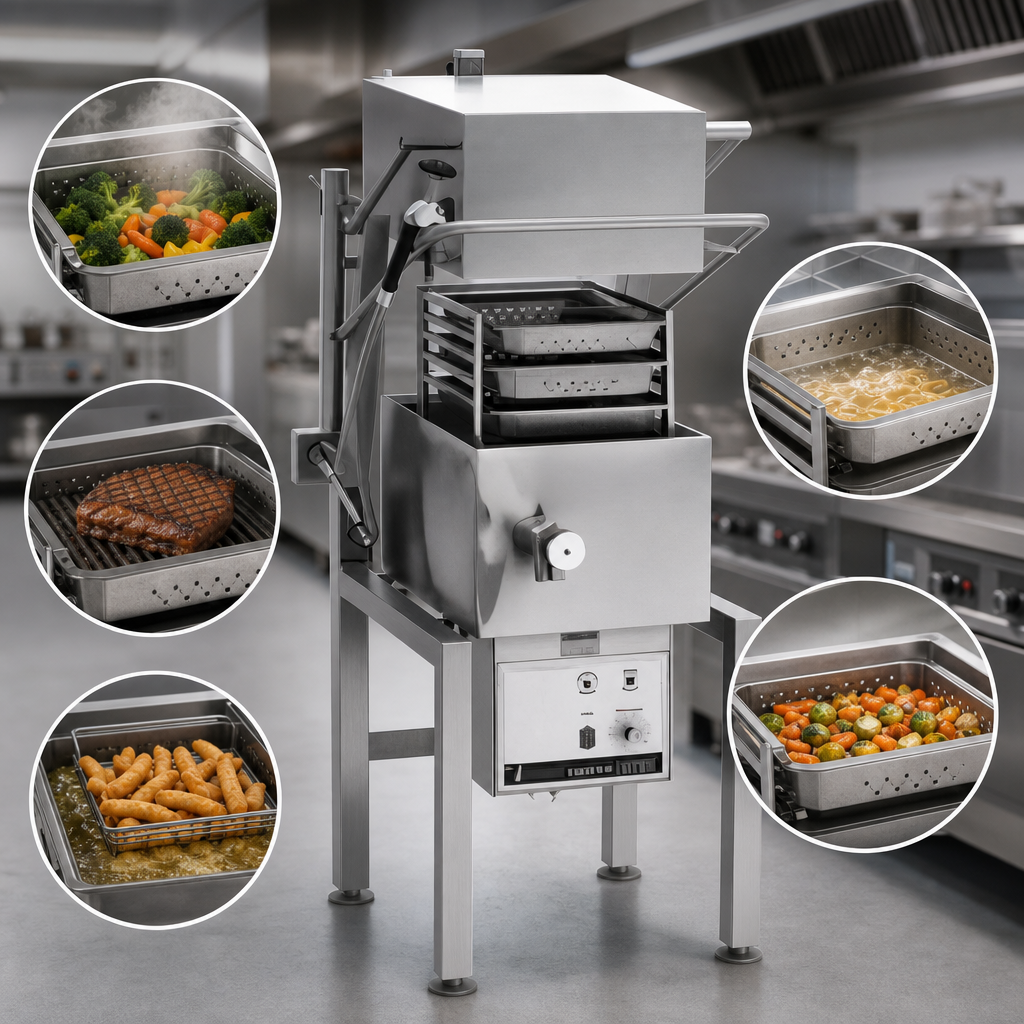

All-In-One Brilliance
- Six (6) 12 × 20 × 2.5 in hotel pans on cassette racks — swap from steaming veggies to roasting proteins in seconds.
- Four (4) perforated cooking/steaming baskets included for quick-lift frying or blanching.
- 15.2 gal / 70 lb oil-rated kettle handles everything from small-batch fries to high-volume simmering.
- Adjustable thermostat 175 °F – 400 °F with electronic ignition for precise, repeatable results.
- Patented Insulated for Safety™ capsule lid retains heat, contains condensate and opens with actuator-assist to any position.

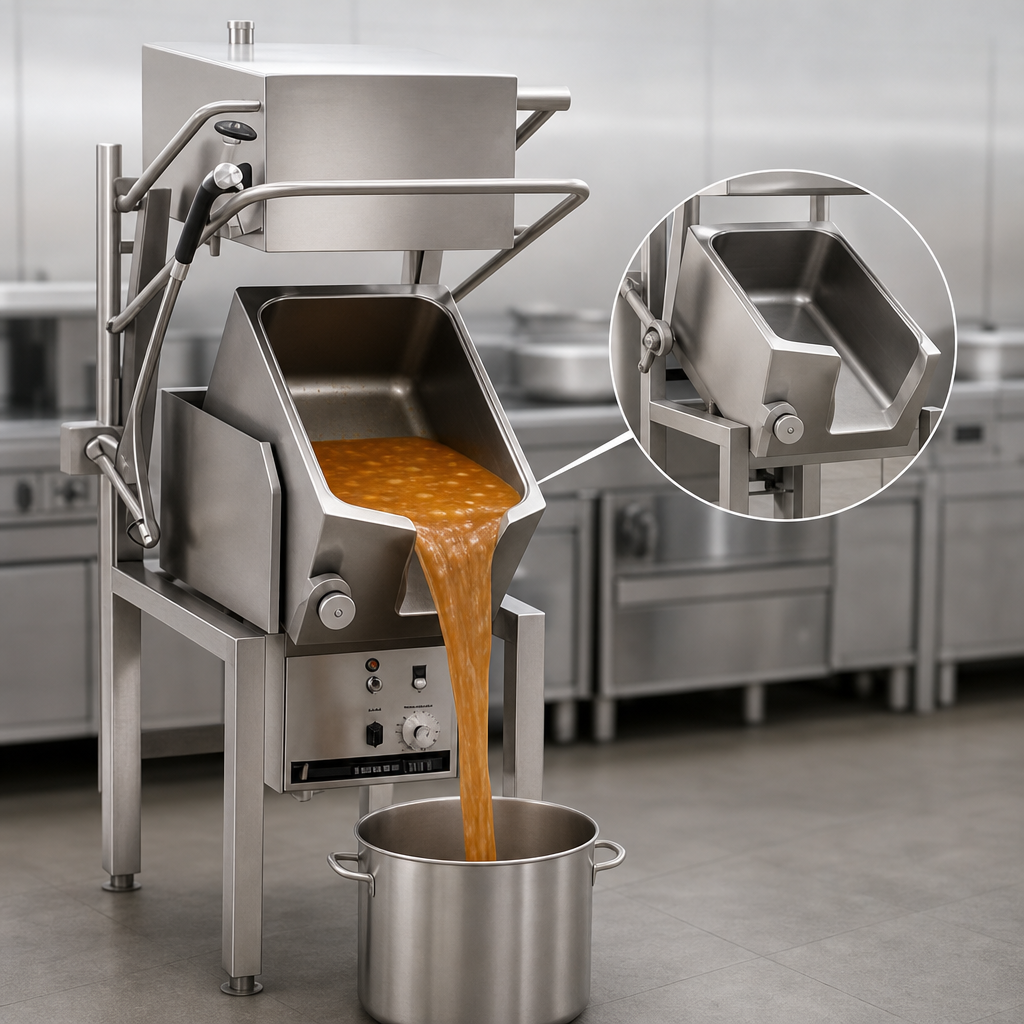

- 10° easy-pivot tilt drains liquids effortlessly into the 1 ½ in compression draw-off valve—no lifting heavy pans.
- Integrated 48 in stainless spray hose simplifies clean-down between batches.
- Entire food contact zone, frame and lid are welded 304 stainless steel for a lifetime of corrosion-free service.
Engineered to Out-Cook & Out-Last
- Heavy-duty 100,000 BTU burner system (Natural Gas) with full-length insulation for maximum thermal efficiency.
- High-limit safety thermostat shields against accidental over-temperature.
- 31 in working height and flanged feet mount securely to the floor for ADA-friendly, operator-safe ergonomics.
- Factory-preset for Natural Gas—LP or other gases available.
- 120 V, 1-phase electrical feed powers controls and ignition; no special wiring required.
Technical Specifications
Model | SKGL6-5 |
---|---|
Cooking Modes | Steam • Grill • Boil • Fry • Roast |
Insert Pan Capacity | 6 × 12 in × 20 in × 2.5 in |
Basket Capacity | 4 perforated baskets (11 × 20.5 × 5 in) |
Oil / Liquid Volume | 15.2 gal / 70 lb |
Thermostat Range | 175 °F – 400 °F |
Gas Input | 100,000 BTU/h (Natural) | 111,000 BTU/h (LP) |
Gas Connection | ¾ in NPT (IPS), 5–7 in w.c. Nat., 12–14 in w.c. LP |
Electrical | 120 V, 1 Ø, < 1 A (electronic ignition & controls) |
Working Height | 31 in |
Tilt | Manual 10° pivot with lock |
Draw-Off Valve | 1 ½ in compression, stainless steel |
Construction | Seam-welded 304 SS pan, capsule lid & tubular frame |
Included Hose | 48 in stainless flexible spray hose |
Origin | Made in the USA |
Agency Approvals | NSF • ASME • CSA (Gas) • UL (Electrical) |
Popular Options (Sold Separately)
- Automatic water-filling meter
- 2 in or 3 in draw-off valve kits
- Lockable control cover & security hardware
- Perforated or solid 12 × 20 pans – 4 in & 6 in depth
- Flexible gas hose / quick-disconnect set
Backed by Legion’s 12-month limited parts & labor warranty with optional extended coverage available.
