Legion SKGL6-11 Skittle Braising Pans & Tilt Skillets
Description

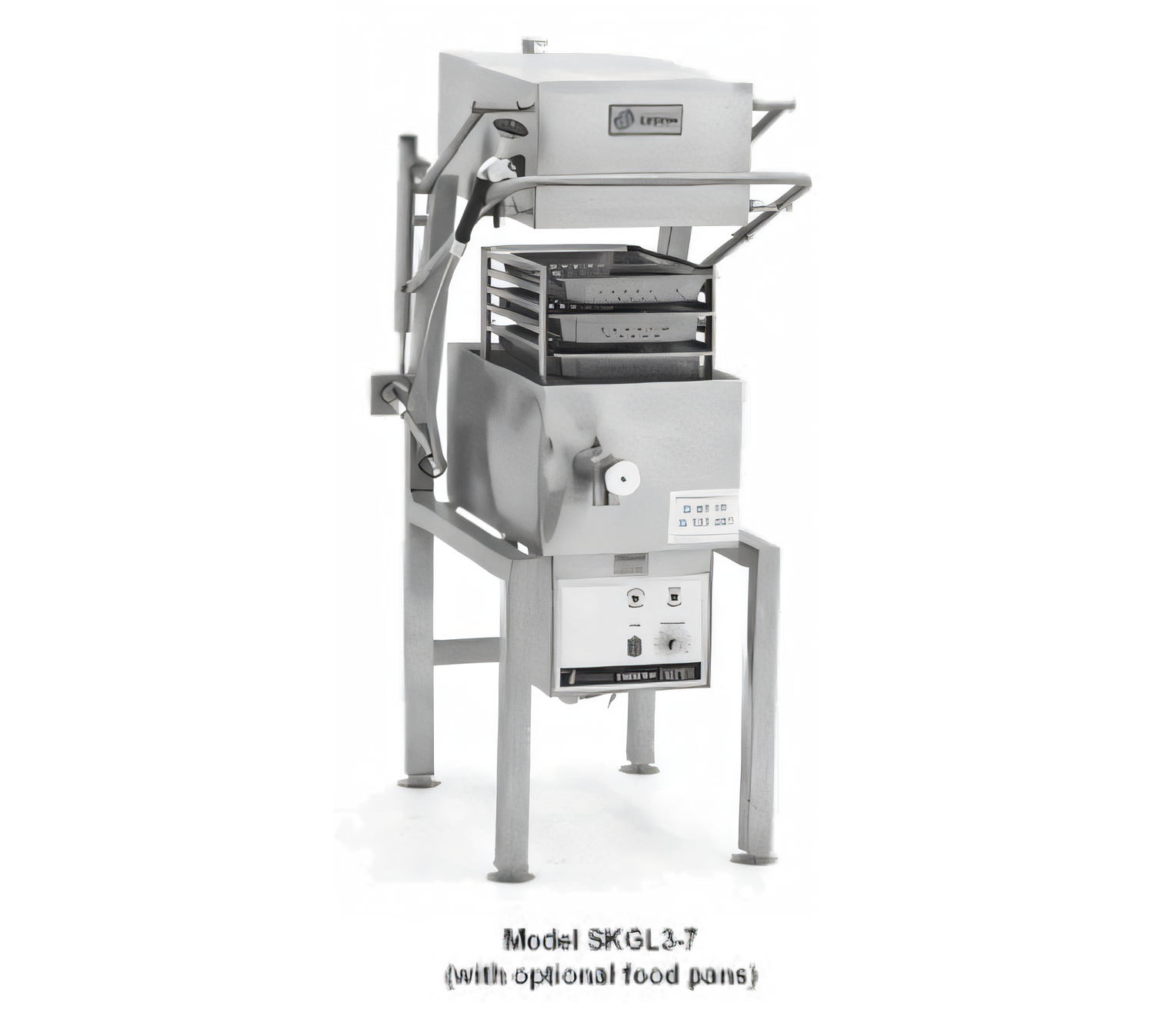

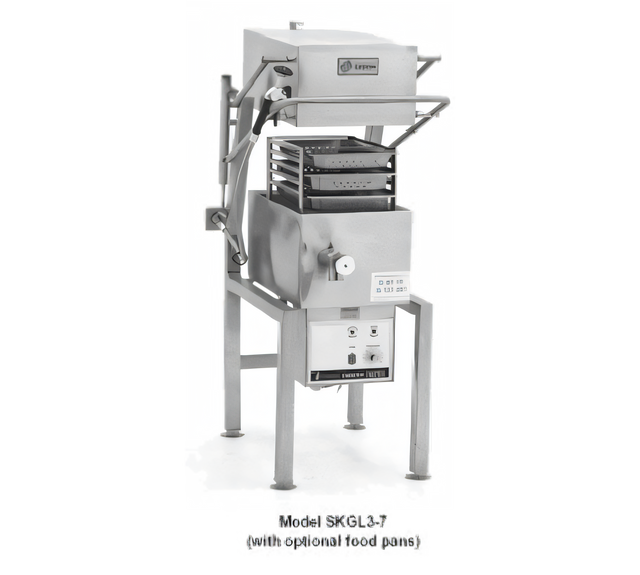

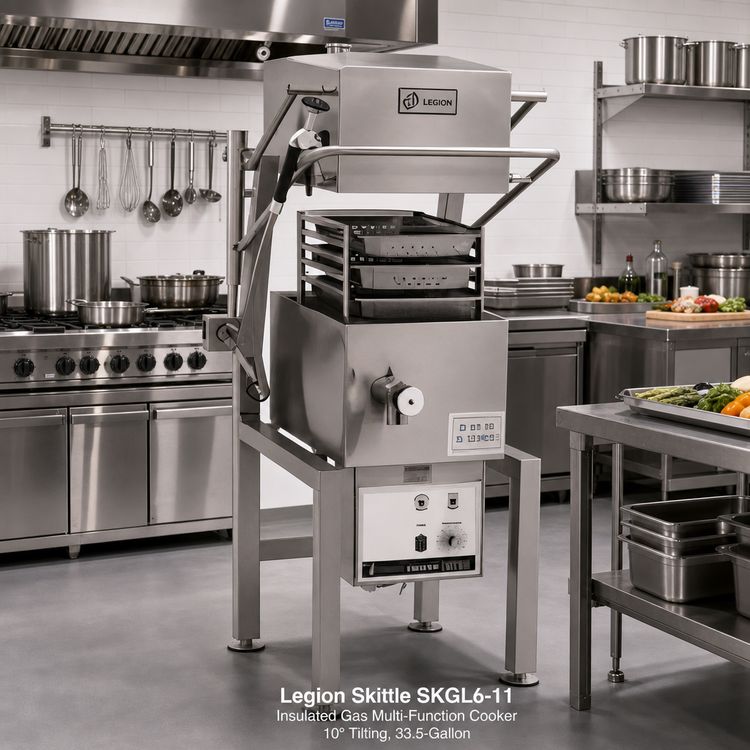

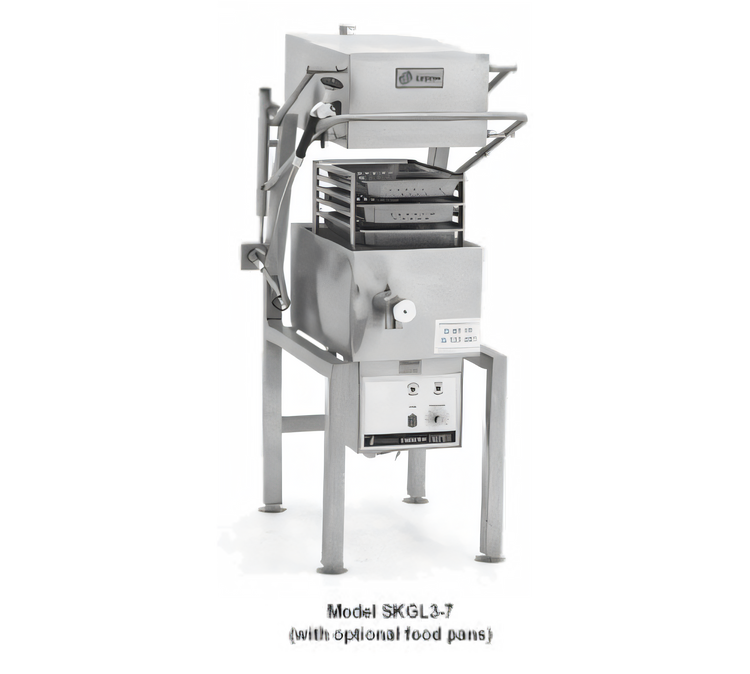

Legion Skittle® Multi-Function Cooker – Model SKGL6-11
Steam • Grill • Boil • Fry • Roast | Gas | 33.5 gal / 70 lb Oil | 100,000 BTUBuilt in the USA, the Skittle® Model SKGL6-11 replaces multiple pieces of equipment with one high-performance, gas-fired cooker. Six standard 12 × 20 × 2.5 in pans or baskets snap into the patented tilting pan, letting you crank out everything from flash-fried wings to slow-simmered soups without changing stations.
Why You’ll Love It

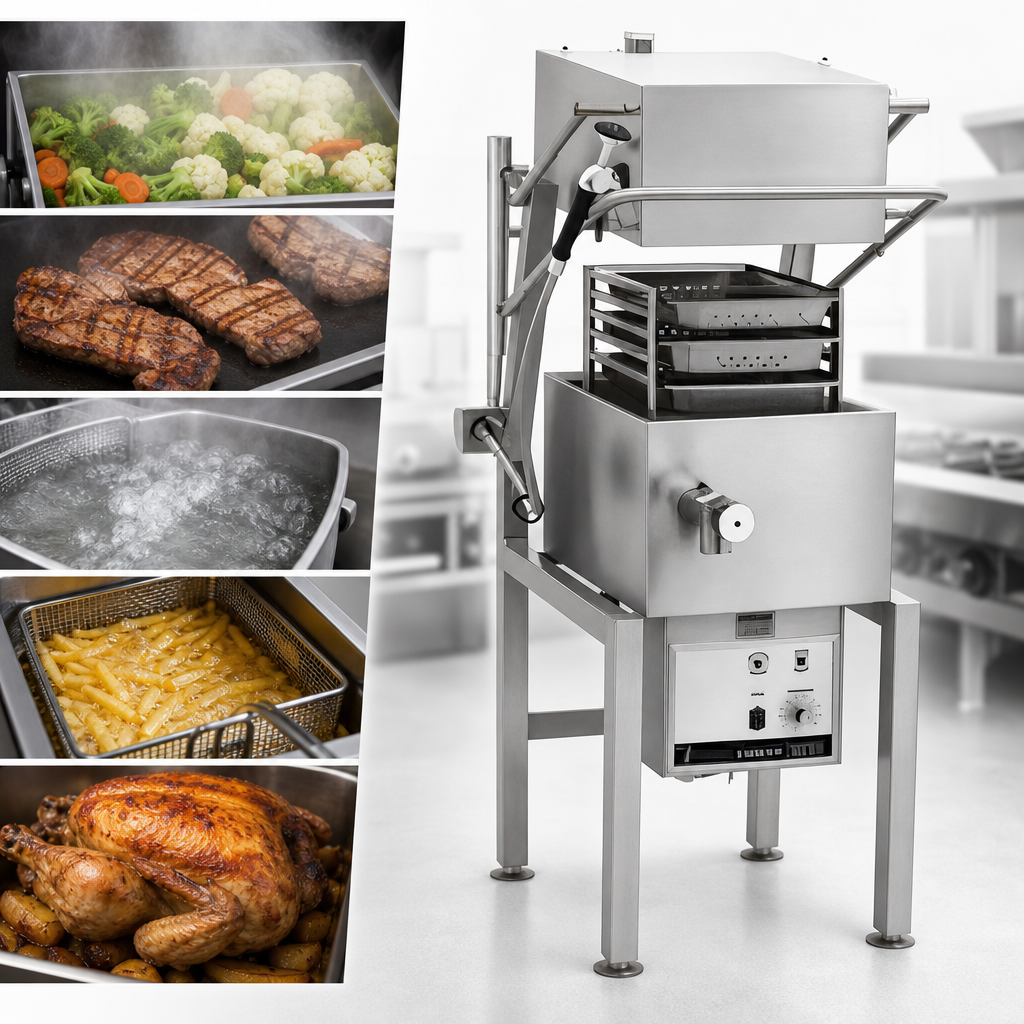

- Versatile 5-in-1 cooking: steam, grill, boil, fry and roast in the same vessel.
- Powerful 100,000 BTU natural-gas burner with electronic ignition.

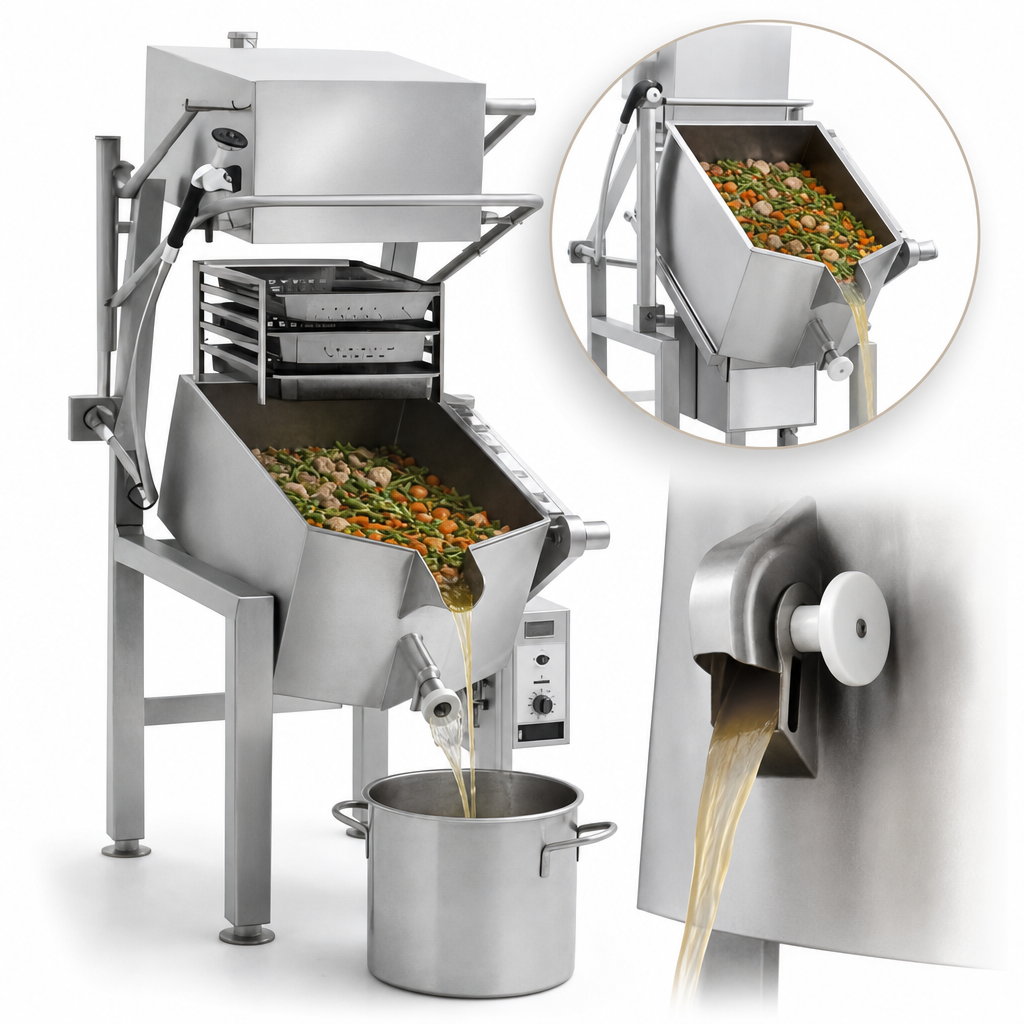

- 10° tilting pan at a 31 in working height for safe, controlled product transfer.
- Adjustable thermostat (175 – 400 °F) plus high-limit safety thermostat.
- 33.5 gal kettle / 70 lb oil capacity handles high-volume batches.
- Six cassette racks hold (6) 12 × 20 × 2.5 in pans or perforated baskets (included).
- 1½ in compression draw-off valve with integrated food-pan holder.
- 304 SS “Capsule” lid – insulated, counter-balanced & fitted with adjustable steam vent.
- Fully insulated pan sides & bottom reduce heat loss and keep the kitchen cooler.
- Rugged 304 SS frame with flanged feet for bolting to the floor.
- 48 in stainless spray hose with single ball valve makes cleanup fast.
- 120 V, 1-phase service powers ignition and controls – no special wiring required.
Batch Capacities
| Food Pans | (6) 12 × 20 × 2.5 in hotel pans – included |
|---|---|
| Perforated Baskets | (6) 11 × 20.5 × 5 in steaming / frying baskets – included |
| Kettle Volume | 33.5 gal (126.8 L) |
| Frying Oil | 70 lb (31.8 kg) |
| Cooking Surface Area | 703 in² (4,535 cm²) |
Technical Specifications
| Model | SKGL6-11 |
|---|---|
| Gas Input | 100,000 BTU/hr (Natural) | 111,000 BTU/hr (LP) |
| Gas Connection | ¾ in IPS, 5-7 in w.c. Natural | 12-14 in w.c. LP |
| Electrical | 120 V, 1 Ø, < 1 A (ignition & controls) |
| Pan Tilt | 10° manual tilt with positive stop |
| Draw-Off Valve | 1½ in compression-type, removable spout |
| Construction | All 304 stainless food contact & frame; seam-welded, insulated |
| Overall Dimensions (WxDxH) | 41 in × 34 in × 59 in (lid closed) |
| Certifications | NSF, ASME, AGA/CSA, UL listed components |
| Origin | Made in Waynesboro, GA, USA |
Popular Options & Accessories
- Automatic water-fill meter for pasta and blanching work.
- 2 in or 3 in draw-off valve upgrade.
- Flexible ¾ in gas quick-disconnect hose (60 in).
- Lockable control cover for high-security installations.
- Legion Skittle® care kit, fry scoops & draw-off strainers.
Backed by Legion’s 12-month parts & labor warranty, extendable up to three years.
