Legion SKG5-9 Skittle Braising Pans & Tilt Skillets
Description

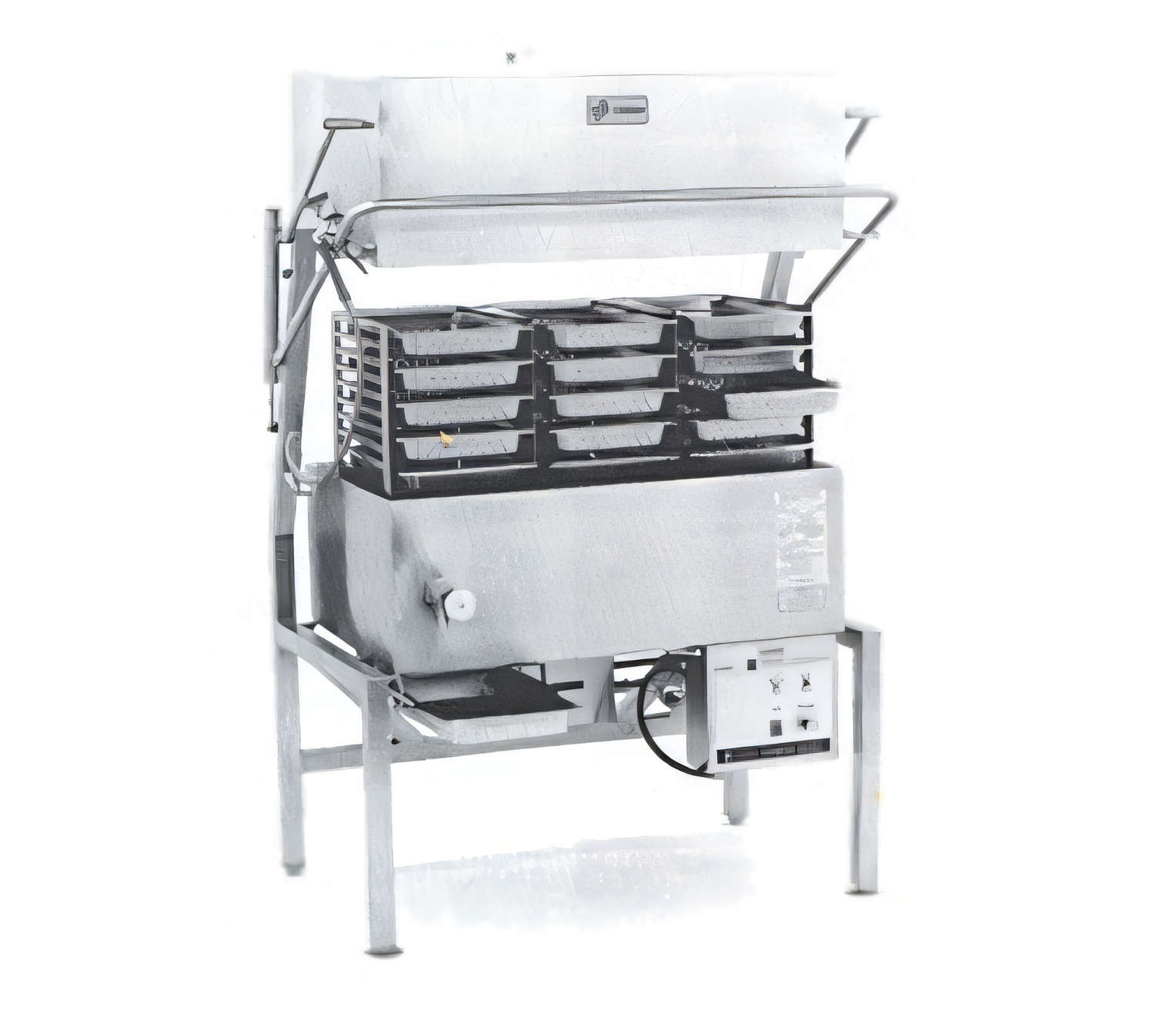

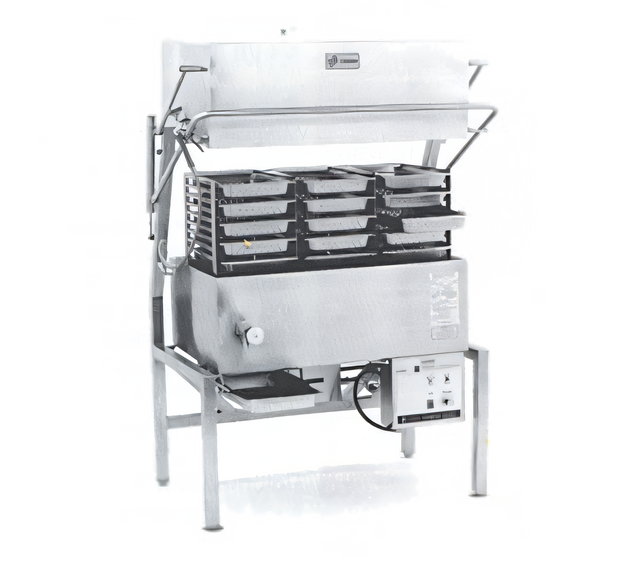

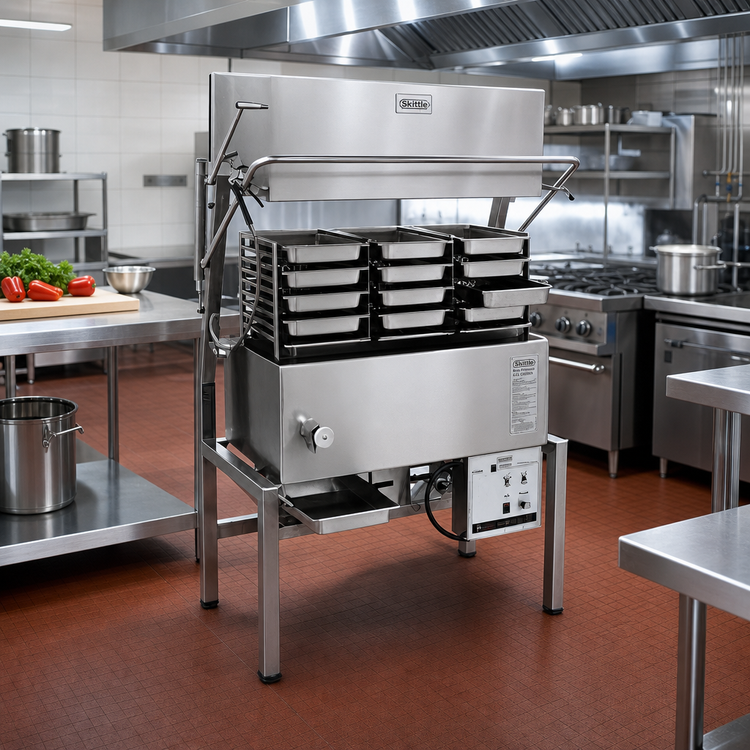

Legion Skittle® SKG5-9 Multi-Function Cooker
Steam • Grill • Boil • Fry • Roast — 34 000 BTU Gas-Fired VersatilityConsolidate five pieces of equipment into one sleek, USA-made workhorse. Legion’s Insulated for Safety™ Skittle® SKG5-9 delivers lightning-fast heat recovery, a smooth 10° tilting pan, and a fully-insulated 304 stainless body that protects operators while saving energy.
Key Features & Benefits

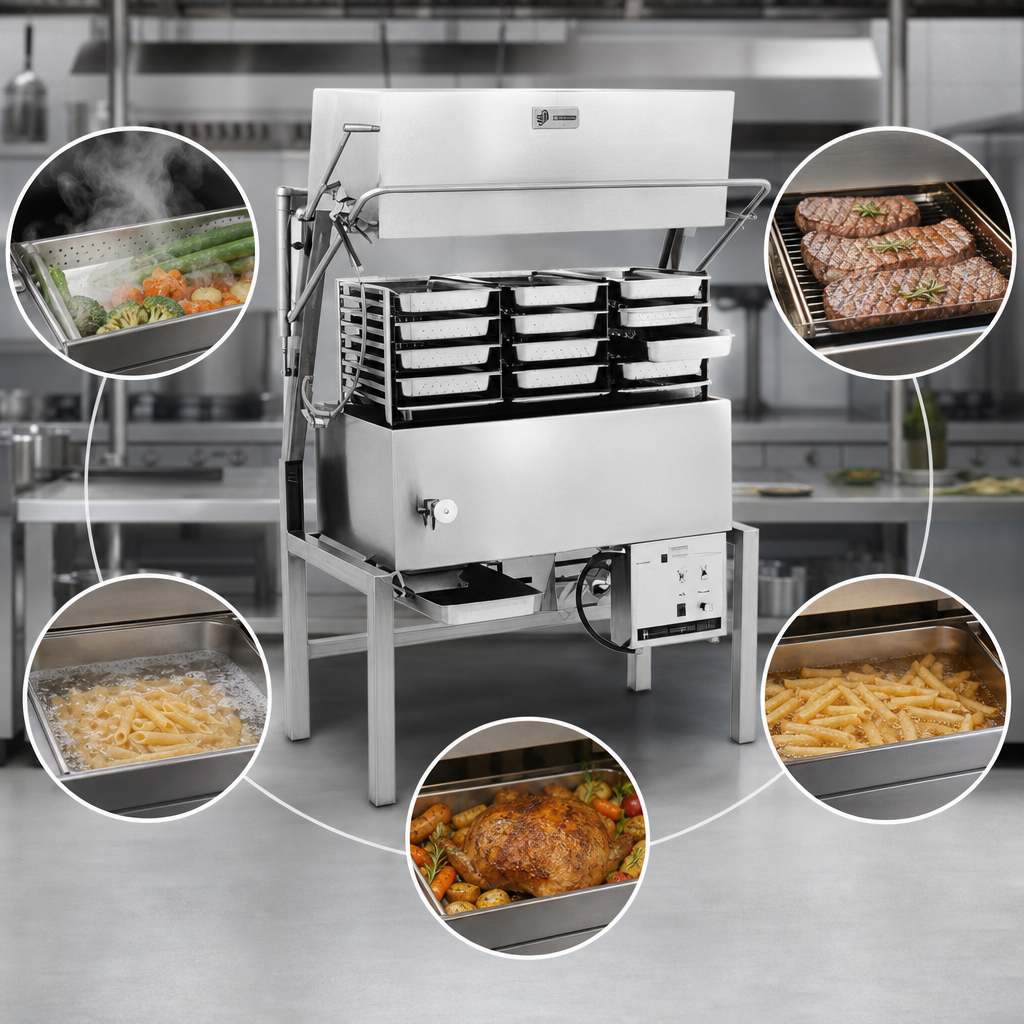

- 5-in-1 cooking: switch from steaming to grilling, boiling, frying or roasting in seconds.
- High-efficiency 34 000 BTU burner with electronic ignition for reliable starts every time.

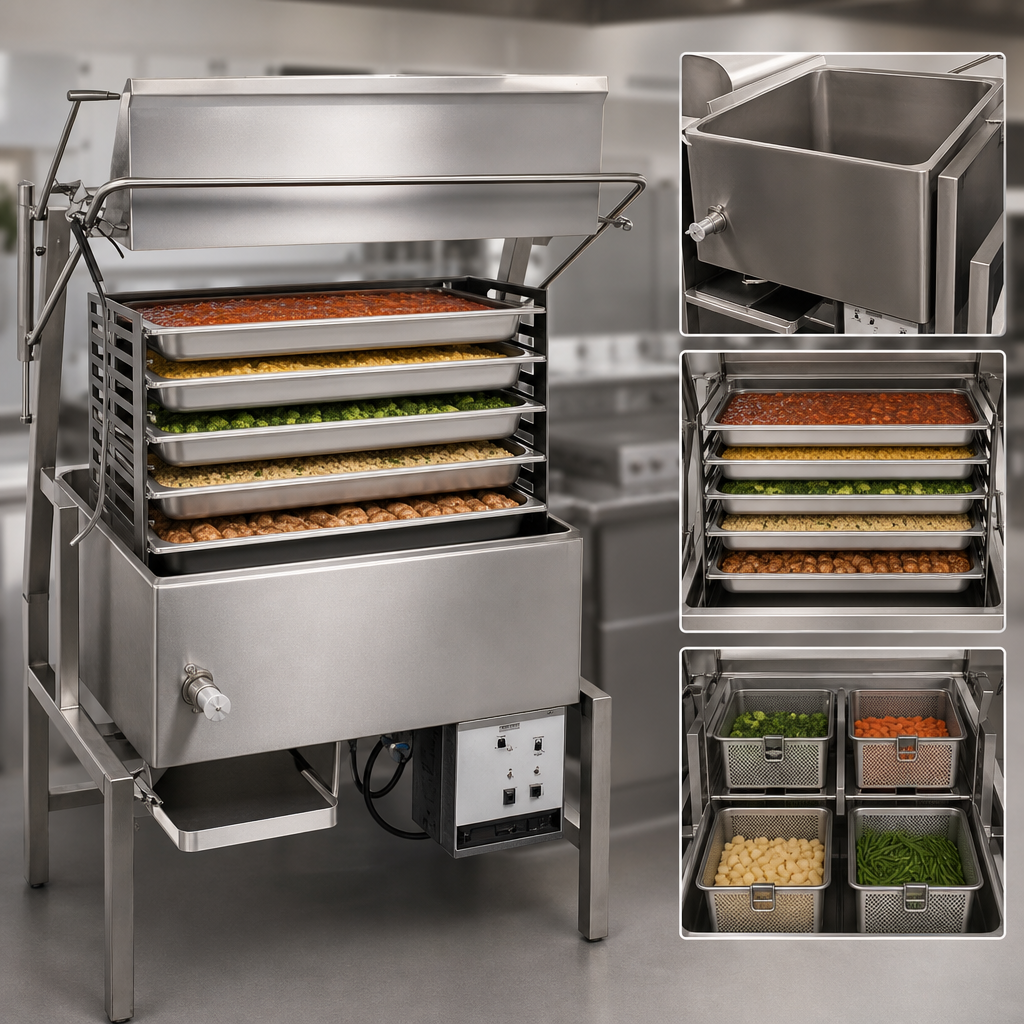

- Holds (5) 12 × 20 × 2.5 inch food pans or use the included (4) 11 × 20½ × 5 inch perforated baskets.
- 13.7 gal / 35 lb kettle capacity—ideal for soups, sauces and small-batch frying.
- Ergonomic 10° manual tilt for mess-free draining; 31 inch working height.
- 1-1/2 inch stainless compression draw-off valve with underside pan holder speeds portioning & cleanup.
- Patented capsule lid with actuator-assist lift, adjustable steam vent and condensate containment.
- Wide 175 °F – 400 °F thermostat plus independent high-limit safety protects product and staff.
- Leg-mounted frame with flanged feet bolts securely to the floor.
- All-304 stainless, seam-welded & fully insulated for durability, sanitation and operator safety.
- 120 V, single-phase control circuit—no transformer required.
- NSF, ASME & other applicable approvals; proudly manufactured in Waynesboro, GA USA.
Technical Specifications
| Model | SKG5-9 |
|---|---|
| Fuel / Input | Natural or Propane gas, 34 000 BTU hr |
| Gas Connection | ¾ inch NPT – 5-7 WC (Natural) / 12-14 WC (LP) |
| Electrical | 120 V, 1 Ø, electronic ignition |
| Thermostat Range | 175 °F – 400 °F with high-limit cut-off |
| Cooking Pan Capacity | (5) 12 × 20 × 2.5 in hotel pans (351 in²) |
| Basket Capacity | (4) perforated cook/steam baskets (included) |
| Kettle / Oil Volume | 13.7 gal / 35 lb oil |
| Pan Depth | 9 in |
| Overall Dimensions (W × D × H) | 25.5 × 20 × 83.8 in* |
| Working Height | 31 in |
| Draw-Off Valve | 1-1/2 in stainless compression type |
| Construction | Seam-welded 304 SS pan, lid, enclosure & tubular frame |
*Height shown with lid fully open.
Included & Optional Accessories
- 48 in stainless flexible spray hose with fill valve (included)
- Perforated cooking/steaming baskets (4) (included)
- Solid or perforated food pans – 2½", 4" or 6" deep (optional)
- Automatic water fill meter (optional)
- Draw-off drain hose, spout or strainer (optional)
- Lockable control cover & security fasteners (optional)
- Gas quick-disconnect & 60 in flexible gas hose kits (optional)
- Skittle care & cleaning tools (optional)
Warranty
Comes standard with Legion’s 12-month parts & labor warranty from installation (15 months from ship date). Multi-year extended coverage available.
Installation Note: Requires ¾ inch gas supply, 120 V outlet and floor anchoring. Follow all local codes. Professional installation strongly recommended.
Upgrade your kitchen’s versatility with the Legion Skittle® SKG5-9—one compact station, endless menu possibilities.
