Legion SKG5-7 Skittle Braising Pans & Tilt Skillets
Legion SKG5-7 Skittle Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Legion SKG5-7 Skittle Braising Pans & Tilt Skillets
Description

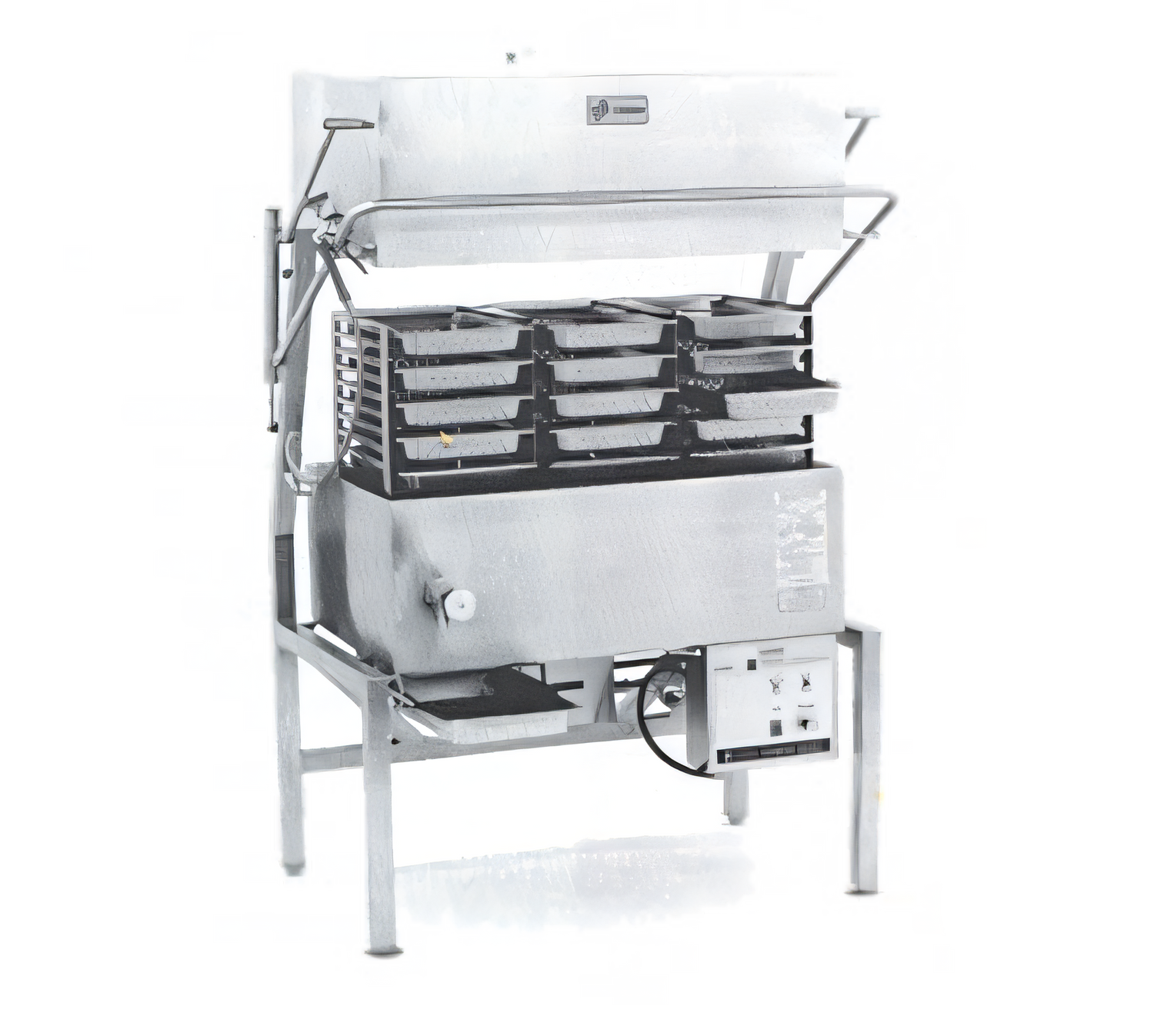

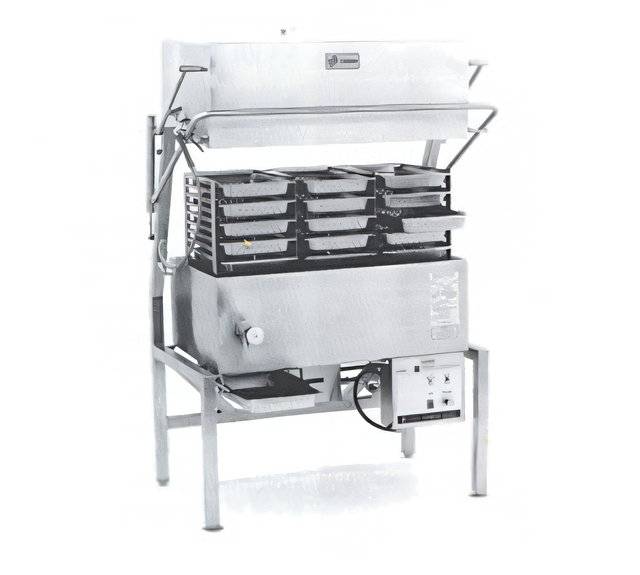

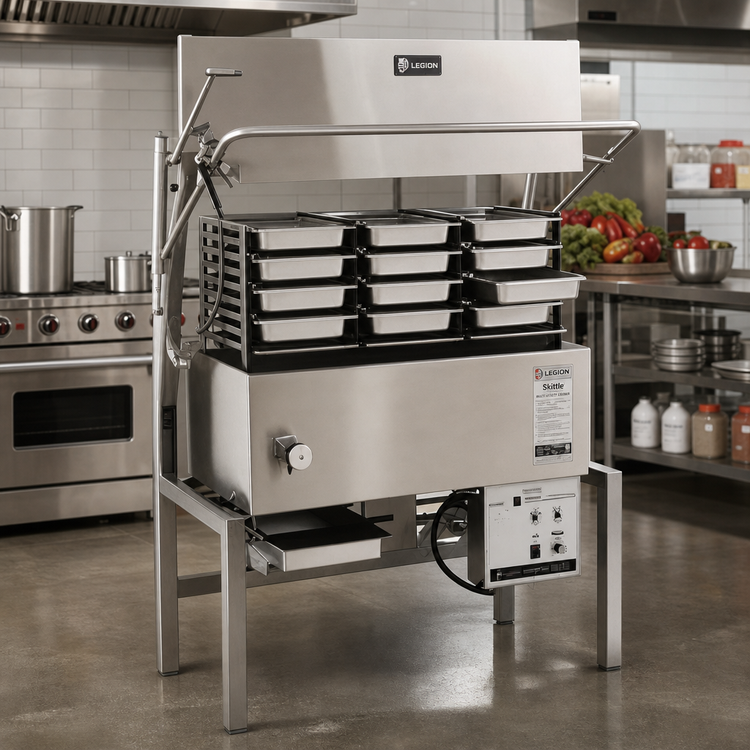

Legion Skittle® Multi-Function Cooker – Model SKG5-7
Steam • Grill • Boil • Fry • Roast | Gas-Fired • 10° Tilt • 34,000 BTUBuilt for kitchens that demand maximum versatility from a single, rock-solid appliance, the Skittle® SKG5-7 combines a 10.6-gallon kettle, 351 in² griddle surface and integrated pan/basket system in one compact, gas-fired unit. 10° forward tilt, fast electronic ignition and precise 175 °F–400 °F thermostat control let your staff switch from steaming vegetables to frying chicken—or anything in-between—without missing a beat.
Key performance advantages

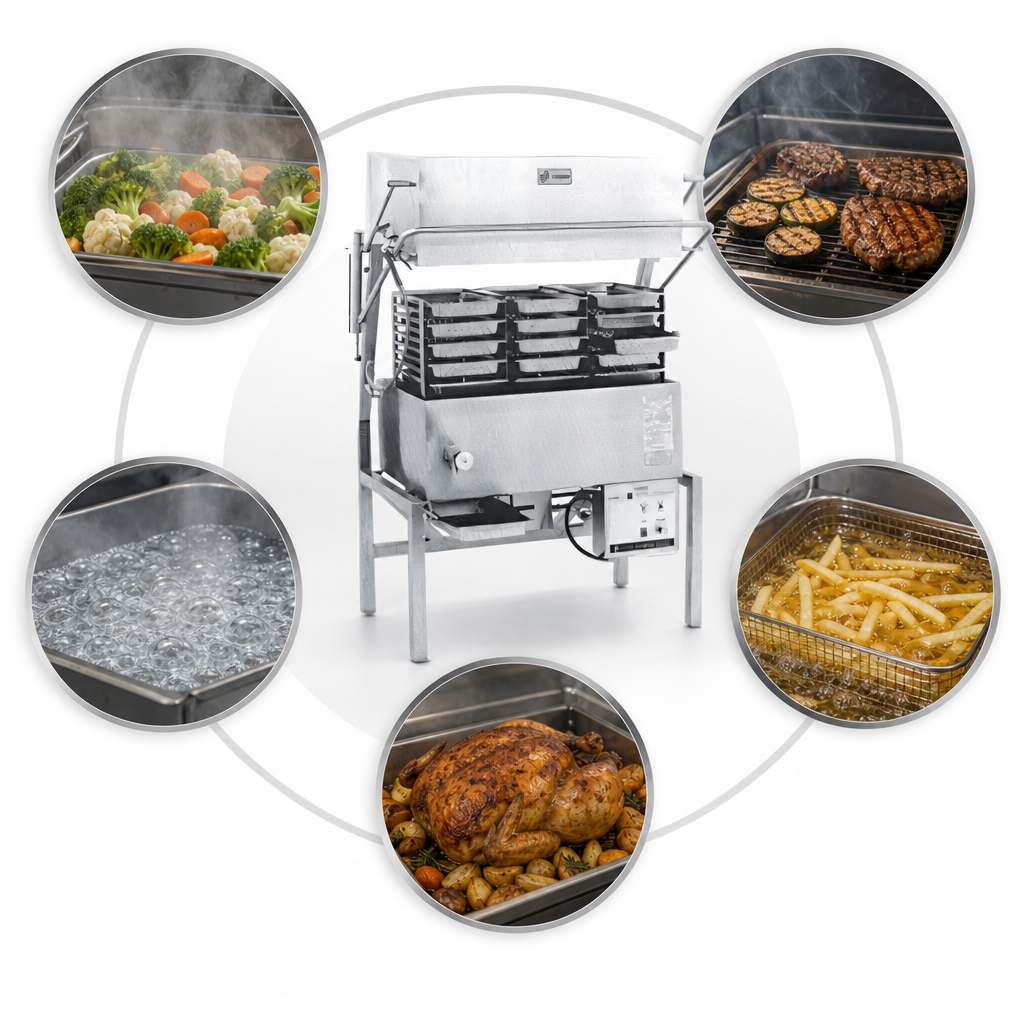

- True 5-in-1 cooking: steam, grill, boil, fry & roast in one footprint

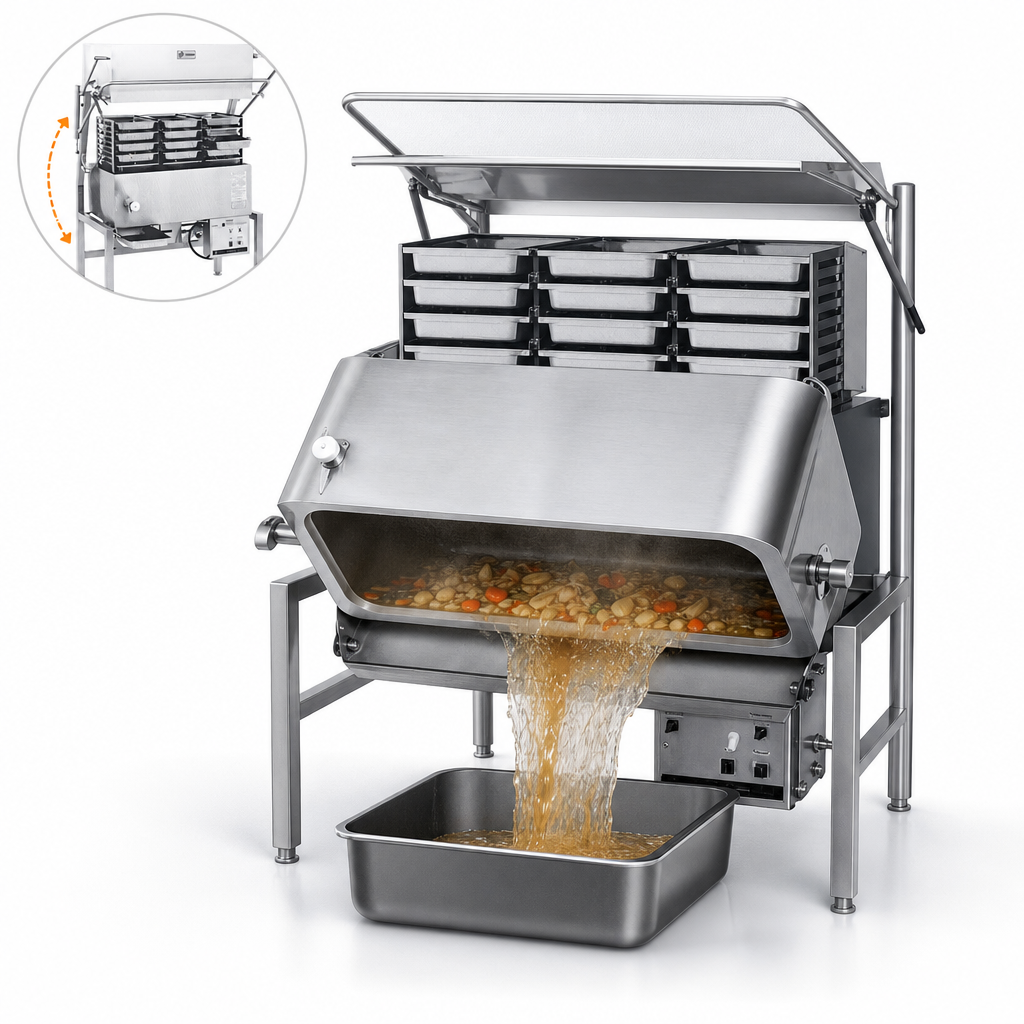

- 10° actuator-assisted tilting pan for safe, fast product transfer & cleanup
- 34,000 BTU atmospheric burner with electronic ignition (natural or LP gas)
- Adjustable thermostat 175 °F–400 °F plus independent high-limit safety
- Patented, fully insulated Capsule Lid with variable-position hold-open and adjustable steam vent
- 1.5" compression draw-off valve & 48" stainless spray hose for effortless draining/rinsing
- All-welded 304 SS food zone & frame—no rivets, seams or hidden crevices
- 31" working height and flanged feet for secure, ergonomic installation
- Made in the USA; NSF & ASME compliant
Built-in capacities
- (5) 12" × 20" × 2.5" hotel pans (cassette rack included)
- (4) 11" × 20½" × 5" perforated cooking/steaming baskets
- 10.6 gal kettle / 35 lb frying-oil capacity
- 351 in² griddle area • 4.3 ft³ oven/roast volume
Technical specifications
| Model | SKG5-7 (leg mounted) |
|---|---|
| Gas input | 34,000 BTU/h (natural) | 35,000 BTU/h (LP) |
| Gas connection | ¾" NPT (inlet pressure 5–7" w.c. natural, 12–14" w.c. LP) |
| Electrical | 120 V, 1 Ø, 0.5 A |
| Temperature range | 175 °F – 400 °F, adjustable |
| Tilt | 10° manual / actuator-assisted |
| Working height | 31" |
| Body construction | Seam-welded 304 stainless steel, insulated sides & bottom |
| Draw-off valve | 1.5" compression-type, 304 SS |
| Footprint (W × D) | 25.5" × 20" (excluding fittings) |
| Shipping weight | ≈ 305 lb / 138 kg |
What ships in the crate
- Skittle® SKG5-7 cooker with Capsule Lid & flanged feet
- (5) 2.5"-deep 12 × 20 stainless food pans
- (4) perforated cooking/steaming baskets
- 48" stainless flexible spray-hose assembly
- Owner’s manual & warranty registration card
Popular factory options (sold separately)
- Automatic water-fill meter
- Dual or single swing-spout fill faucet kits
- 2" or 3" draw-off valve upgrade
- Flexible gas quick-disconnect & hose set
- Lockable control cover for correctional facilities
- Timer with loud buzzer
Legion backs every Skittle® with a 12-month parts & labor warranty from the date of installation (or 15 months from shipment). Extended-term coverage is available—ask your sales representative for details.
