Legion SKG15-7 Skittle Braising Pans & Tilt Skillets
Description

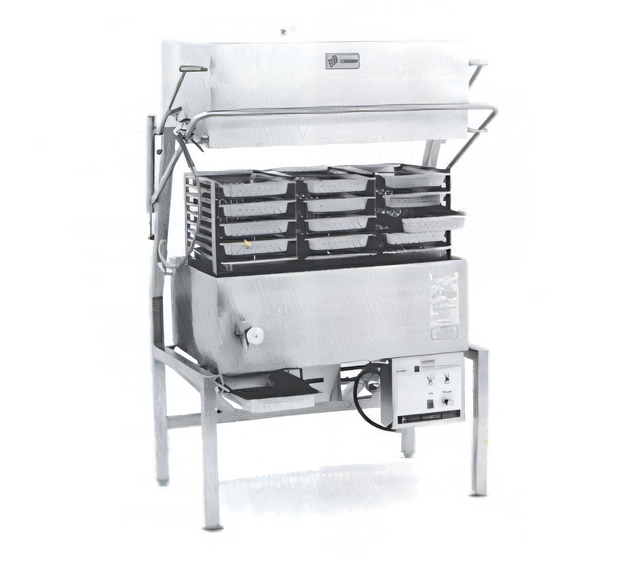

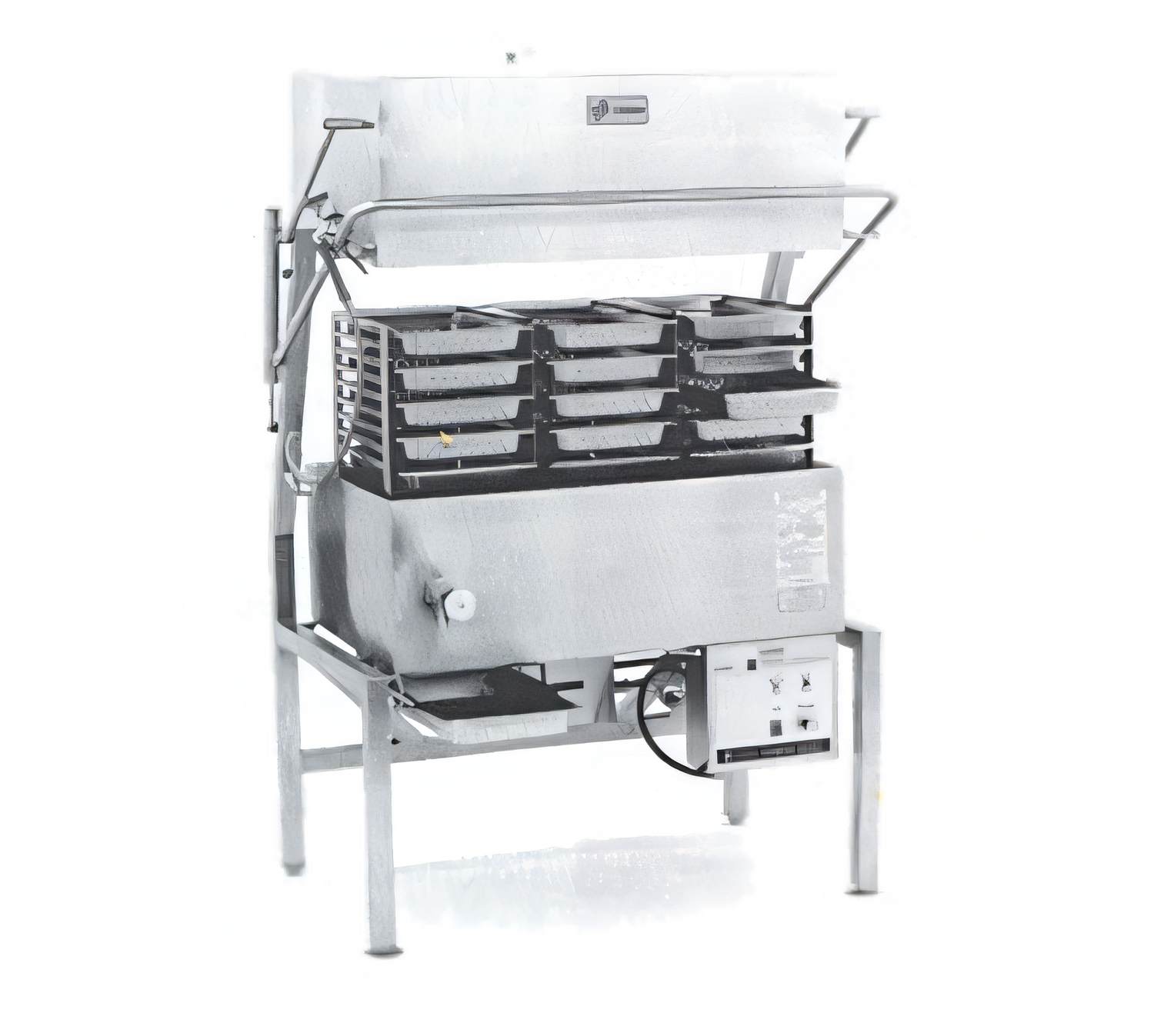

Legion Skittle® SKG15-7 Multi-Function Cooker
Steam • Grill • Boil • Fry • Roast — Gas, 132,000 BTUReplace bulky kettles, tilt-skillets, steamers and fryers with one space-saving powerhouse. The Skittle® SKG15-7 lets you switch from simmering sauces to small-batch frying or high-volume steaming in seconds—all inside a 7-inch-deep, electronically-controlled pan that tilts 10° for effortless product transfer and cleanup.
Highlights

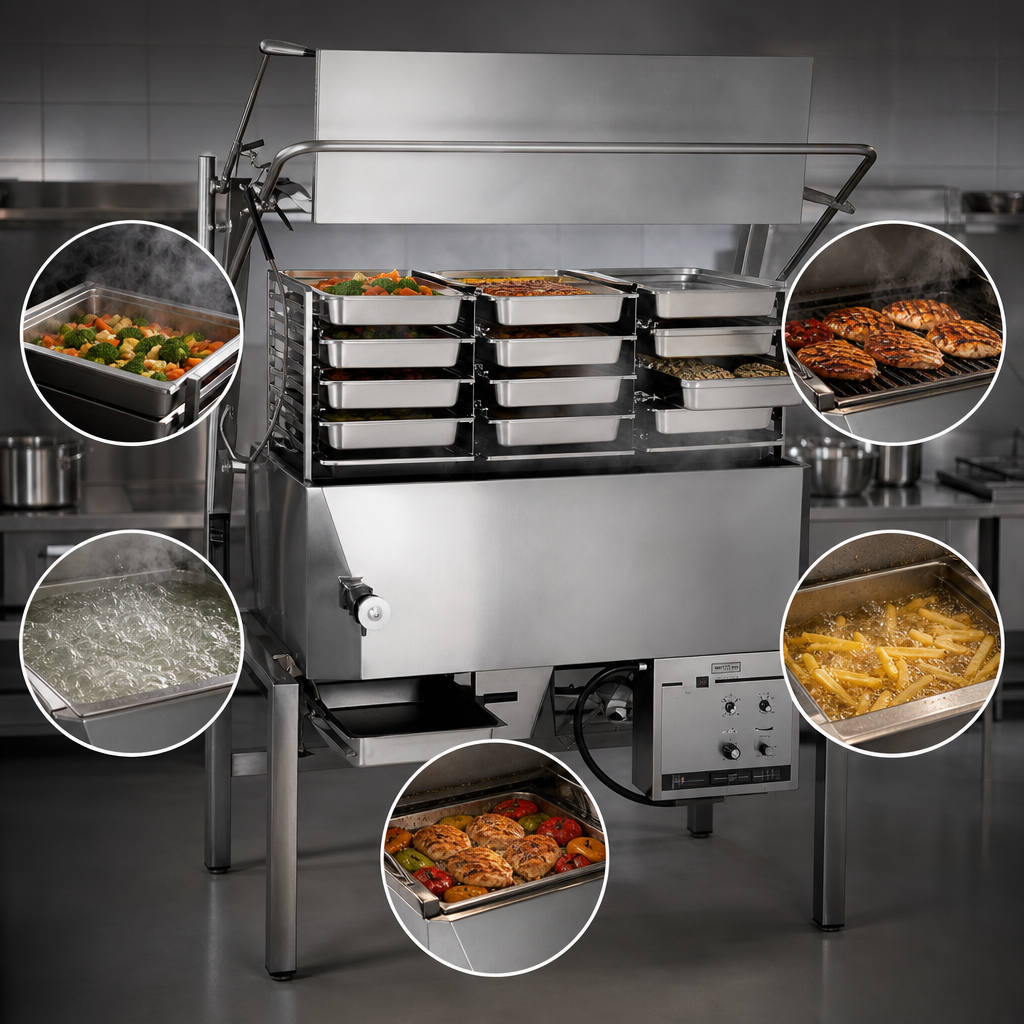

- True multi-cook capability: steam, grill, boil, fry, roast & hold in a single unit.
- 31.2 gal / 105 lb oil capacity and 1,029 in² cooking surface handle peak production.
- Accepts up to (15) 12" × 20" × 2.5" hotel pans or (12) 11" × 20½" × 5" baskets (sold separately).

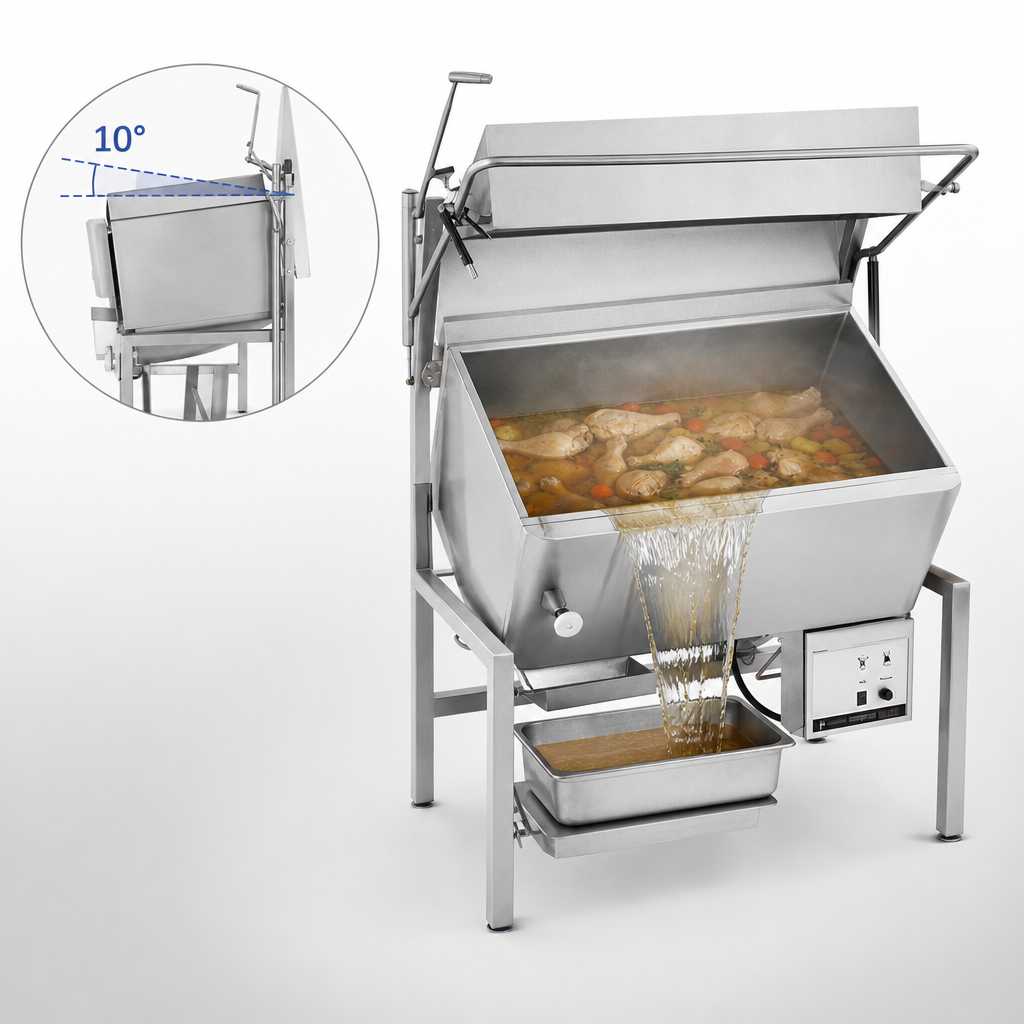

- 10° manual tilt plus 1-1/2" compression draw-off valve for safe, precise draining.
- Adjustable thermostat 175 °F – 400 °F with electronic ignition & high-limit safety cutoff.
- Patented, actuator-assisted capsule lid—insulated, vented, and variable-position.
- 304 stainless steel, seam-welded pan & frame with full side/bottom insulation.
- Single ball valve with 48" stainless flexible spray hose speeds rinse-down.
- Flanged feet for secure floor mounting; built & approved in the USA.
Specifications
| Model | SKG15-7 |
|---|---|
| Fuel / Input | Natural or Propane Gas, 132,000 BTU hr |
| Cooking Modes | Steam, Grill, Boil, Fry, Roast, Hold |
| Pan Depth & Tilt | 7" deep, 10° forward tilt (manual) |
| Capacity | (15) 12" × 20" × 2.5" pans • (12) baskets • 31.2 gal liquid • 105 lb oil |
| Cooking Surface Area | 1,029 in² (0.66 m²) |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Electrical | 120 V, 1-phase (controls & ignition) |
| Gas Connection | 3/4" NPT; Natural 5–7" w.c. / Propane 12–14" w.c. |
| Manifold Pressure | Natural 3.5" w.c. / Propane 10" w.c. |
| Draw-off Valve | 1-1/2" compression (2" & 3" options available) |
| Overall Dimensions (W × D × H) | 41" × 52.5" × 38"† †Height to pan rim; lid-open height 79.8" |
| Construction | 304 SS pan, lid, enclosure & tubular frame; fully seam-welded |
| Certifications | NSF, ASME & other applicable approvals |
| Origin | Made in USA |
Popular Accessories (sold separately)
- Perforated or solid 12 × 20 hotel pans (2.5", 4" or 6" deep)
- 11 × 20½ × 5 perforated cooking/steaming baskets
- Draw-off extras: hose, strainer, #10 can holder, spout guard
- Lockable control cover for correctional installations
- Flexible gas or water hose kits, automatic water fill meter
Need another size? Skittle® models are also available in 5- and 10-pan capacities, or up to 11" pan depth. Contact us for custom quotes and lead times.
