Legion SKG10-9 Skittle Braising Pans & Tilt Skillets
$21,874.80
Unit price
/
Unavailable
Description

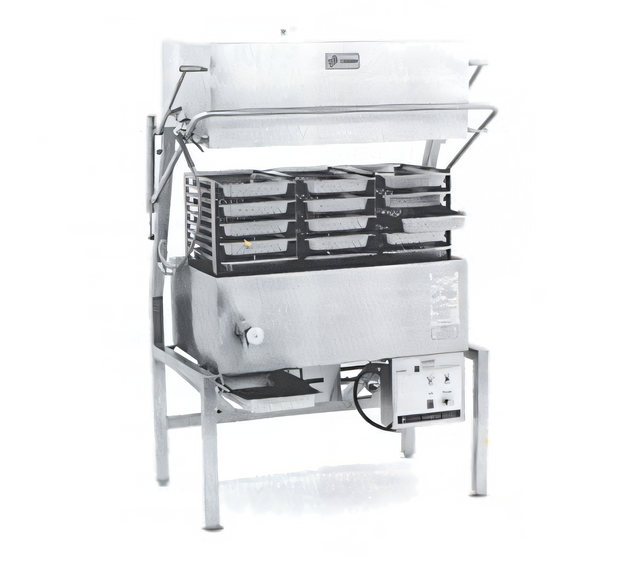

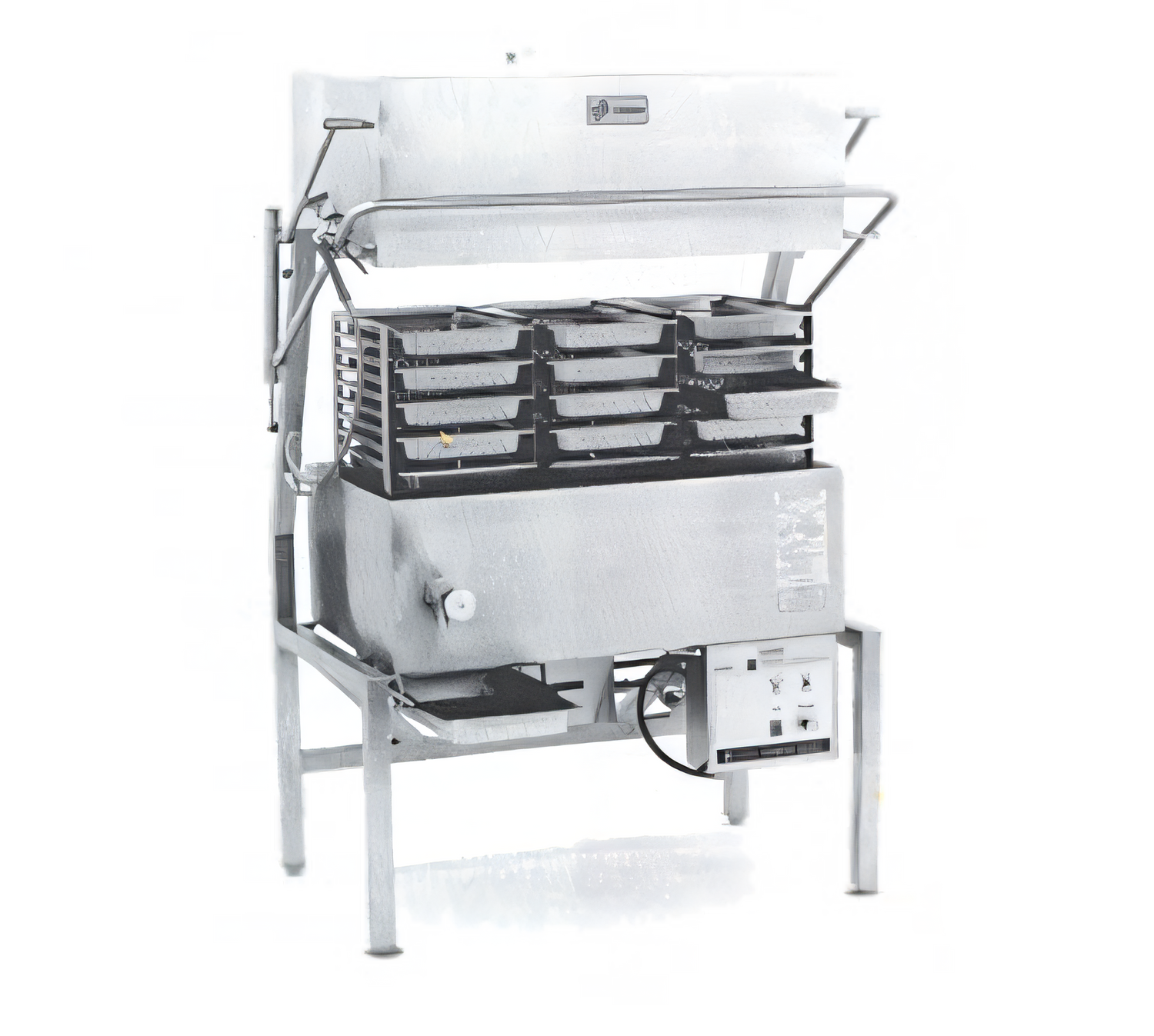

Legion Skittle® Multi-Function Cooker
Model SKG10-9 — Gas-Fired • 10° Tilting • Leg MountedReplace up to five pieces of equipment with one powerhouse. Built for high-volume kitchens, the Skittle® lets you steam, grill, boil, fry, sauté, braise and roast in a single 9 in. deep chamber, all while saving space, energy and labor.
Key Advantages

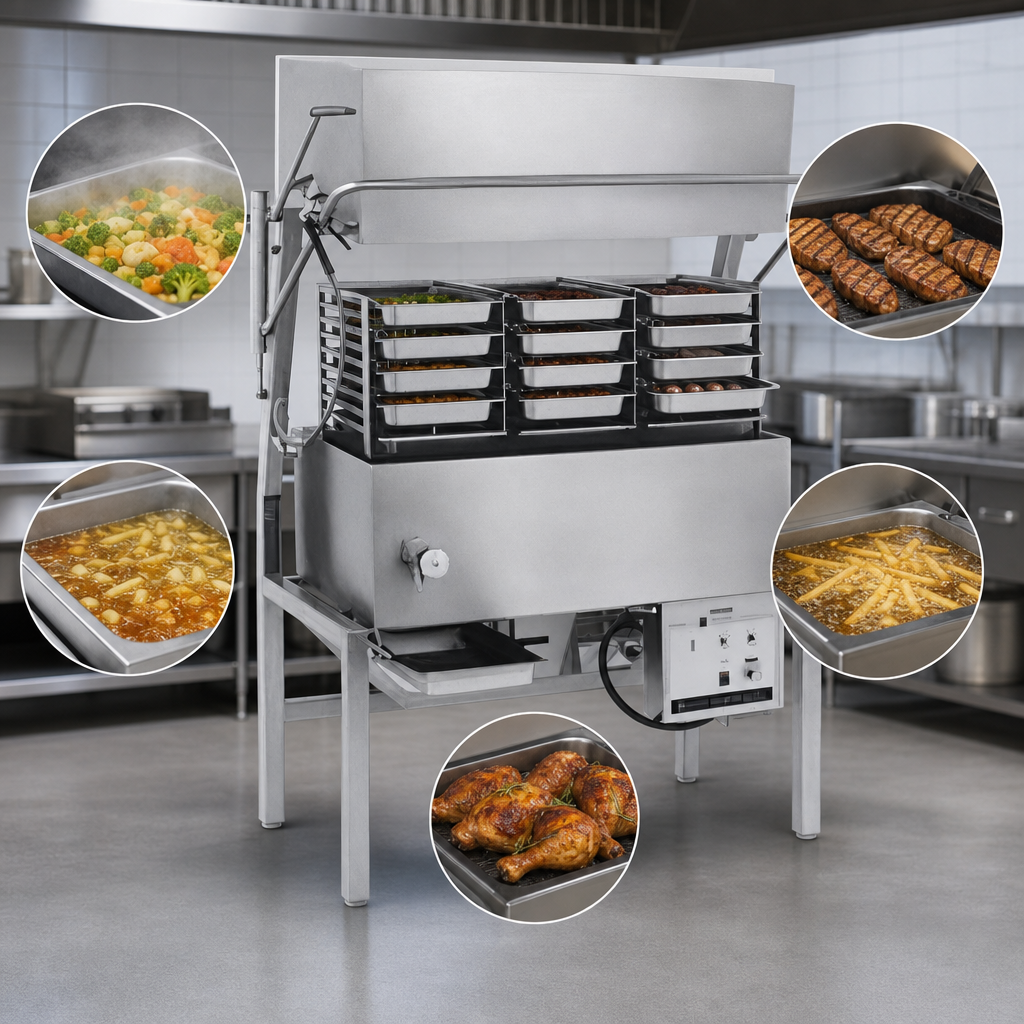

- 10-function versatility: steam, grill, boil, braise, shallow- & deep-fry, roast, retherm and more.

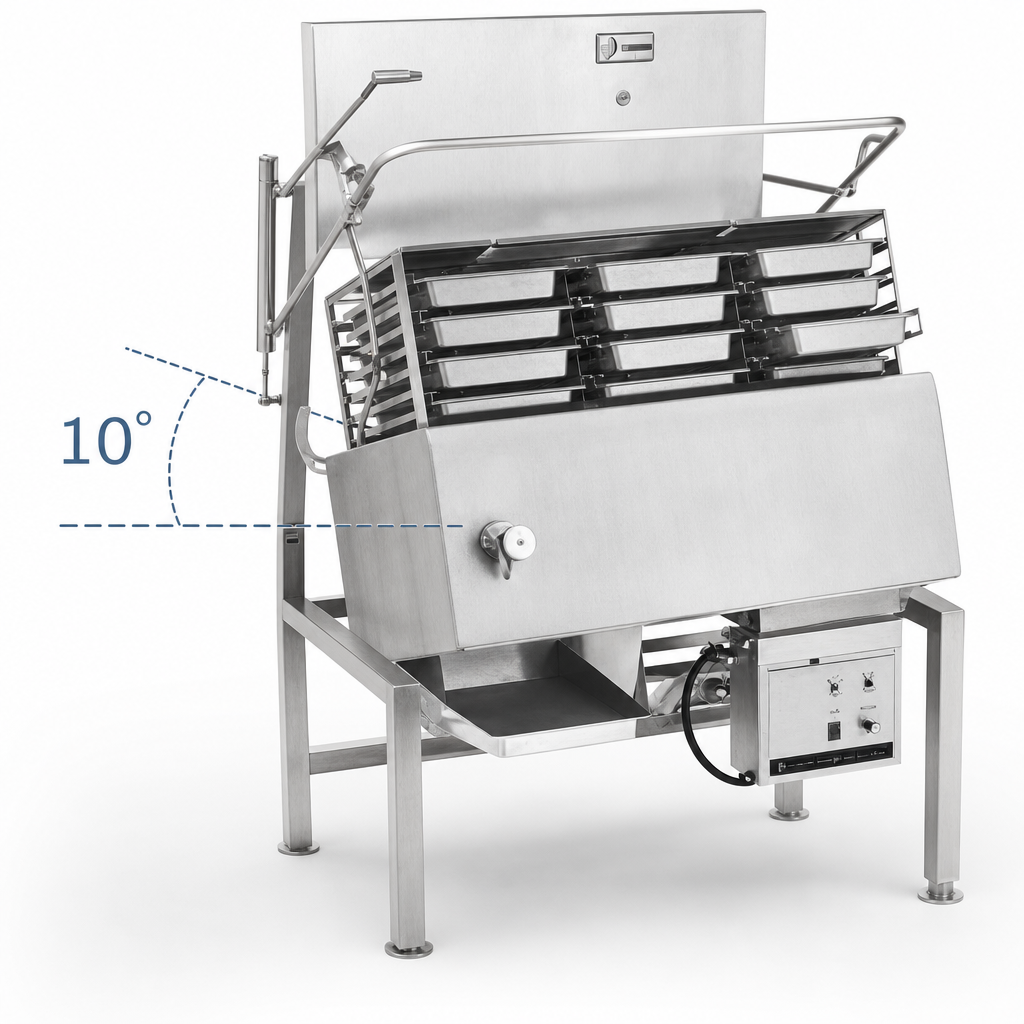

- Ergonomic 10° tilting pan at a 31 in. working height for safe loading and effortless pour-off.
- Handles (10) 12"×20"×2.5" hotel pans, (8) cooking baskets or 27.4 gal of liquid.
- Rugged 304 stainless steel shell, fully seam-welded and insulated for operator safety.
- Patented Capsule Lid™ with actuator-assisted lift, condensate containment and adjustable steam vent.
- 100,000 BTU electronic-ignition burners paired with a 175–400 °F thermostat and high-limit safety.
- 1 ½ in. compression draw-off valve and 48" stainless spray hose speed cleanup and portioning.
- Made in the USA to NSF, UL, ASME & CSA standards.
Capacities
| Hotel Pans (12"×20"×2.5") | 10 |
|---|---|
| Cooking / Fry Baskets | 8 |
| Kettle Volume | 27.4 gal (104 L) |
| Frying Oil | 70 lb (31.8 kg) |
| Usable Oven Volume | 9.4 ft³ (0.27 m³) |
| Pan Depth | 9 in. |
Technical Specifications
| Model | SKG10-9 |
|---|---|
| Fuel | Natural Gas (LP option) |
| Input Rating | 100,000 BTU / h |
| Gas Connection | ¾" NPT — 5–7 in. w.c. inlet (Nat), 12–14 in. w.c. inlet (LP) |
| Electrical | 120 V, 1 Ø (electronic ignition & controls) |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Overall Dimensions (W × D × H) | 28" × 39.5" × 34" |
| Tilt Angle | 10° |
| Draw-Off Valve | 1 ½" compression type |
| Construction | 304 stainless pan, lid, frame & enclosure |
| Origin | Waynesboro, GA USA |
What’s in the Box
- Cassette rack for (10) 12"×20" pans
- (8) perforated cooking/steaming baskets
- Capsule Lid™ with insulated handle & steam vent
- 1 ½" draw-off valve with 48" stainless spray hose
- Owner’s manual & 1-year limited warranty
Popular Add-Ons (sold separately)
- Automatic water-fill meter
- Perforated or solid hotel pans (2", 4" or 6" deep)
- Draw-off strainers, drain hose & #10 can holder
- Flat-bottom or fry scoops
- Lockable control cover for correctional facilities
Installation Note: Unit requires a ¾" gas supply line, 120 V/1-phase electrical
connection and a level, non-combustible floor surface. Always consult local codes and the
installation manual before ordering.
Skittle® and Capsule Lid™ are registered trademarks of Legion Industries, Inc.
Features & Specs
Features & Specs
Manufacturer
Legion
Brand_name
Skittle
Shipping Weight
633.0lbs
Capacity
(1) 21.3 gal
Construction
stainless steel
Controls
thermostatic controls
Pan Capacity
(10) 12" x 20" x 2.5"
Specifications
Skittle® Multi-Function Cooker, Steam/Grill/Boil/Fry/Roast, Gas; 10° tilt; capacities: (10) 12"x20"x2.5" pan, (8) cooking baskets, 27.4 gallon kettle/70 lb. oil, adjustable thermostat; 1-1/2" draw-off valve; stainless steel construction; flanged feet, 100,000 BTU
