Legion SKG10-7 Skittle Braising Pans & Tilt Skillets
Description

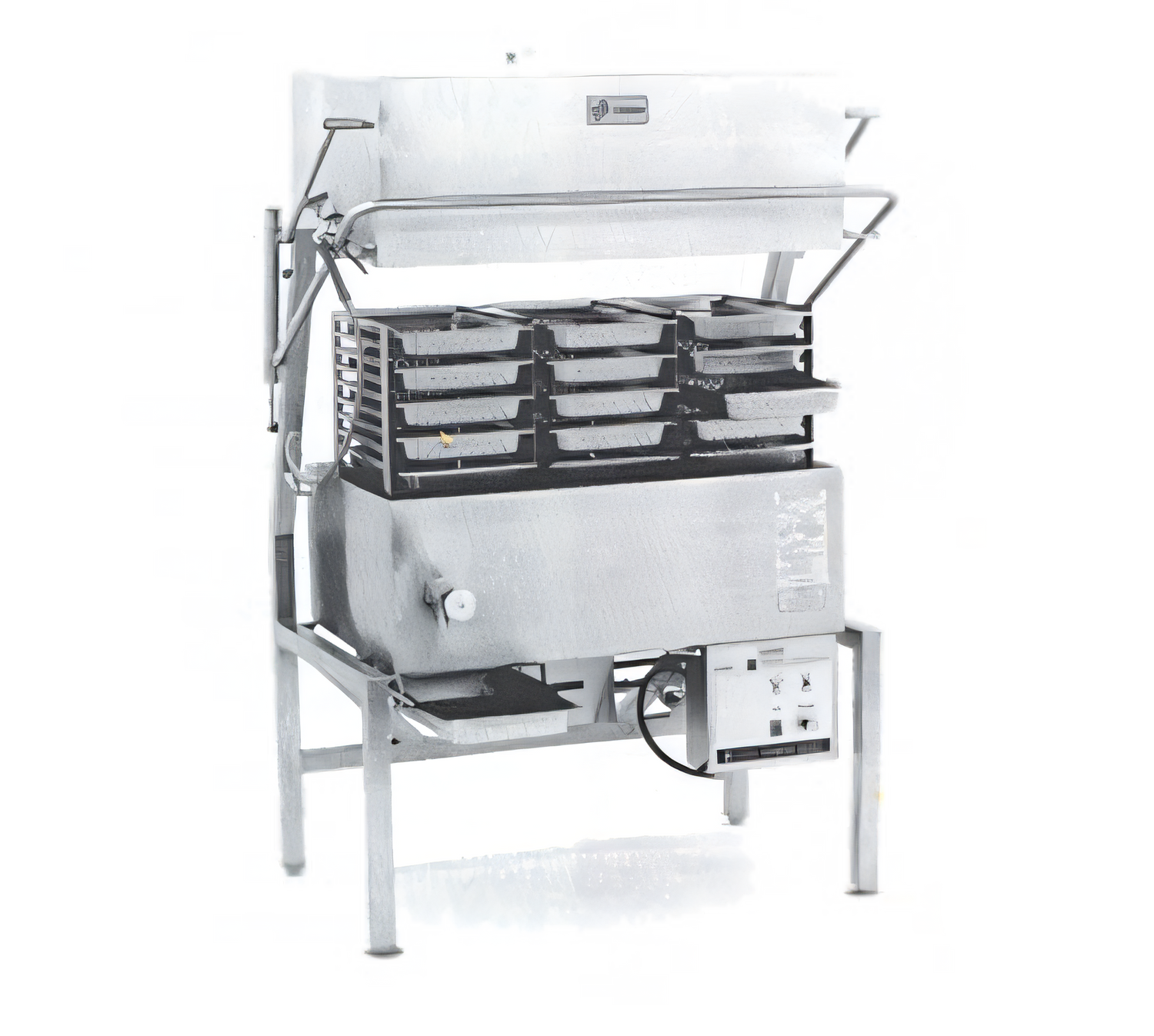

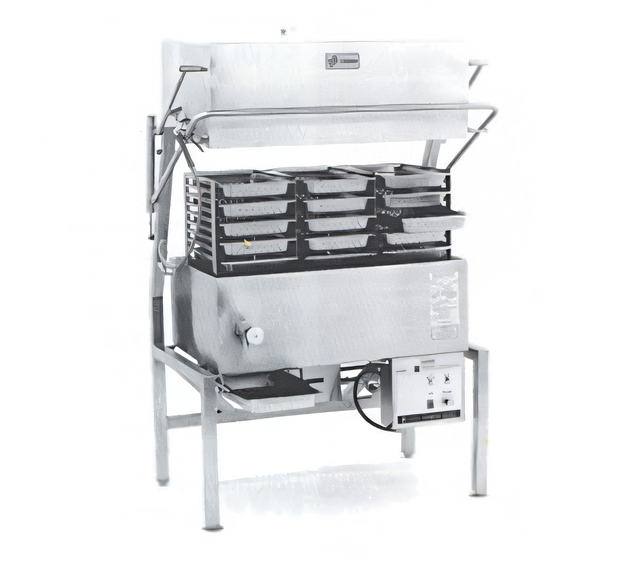

Skittle® Multi-Function Cooker – Model SKG10-7

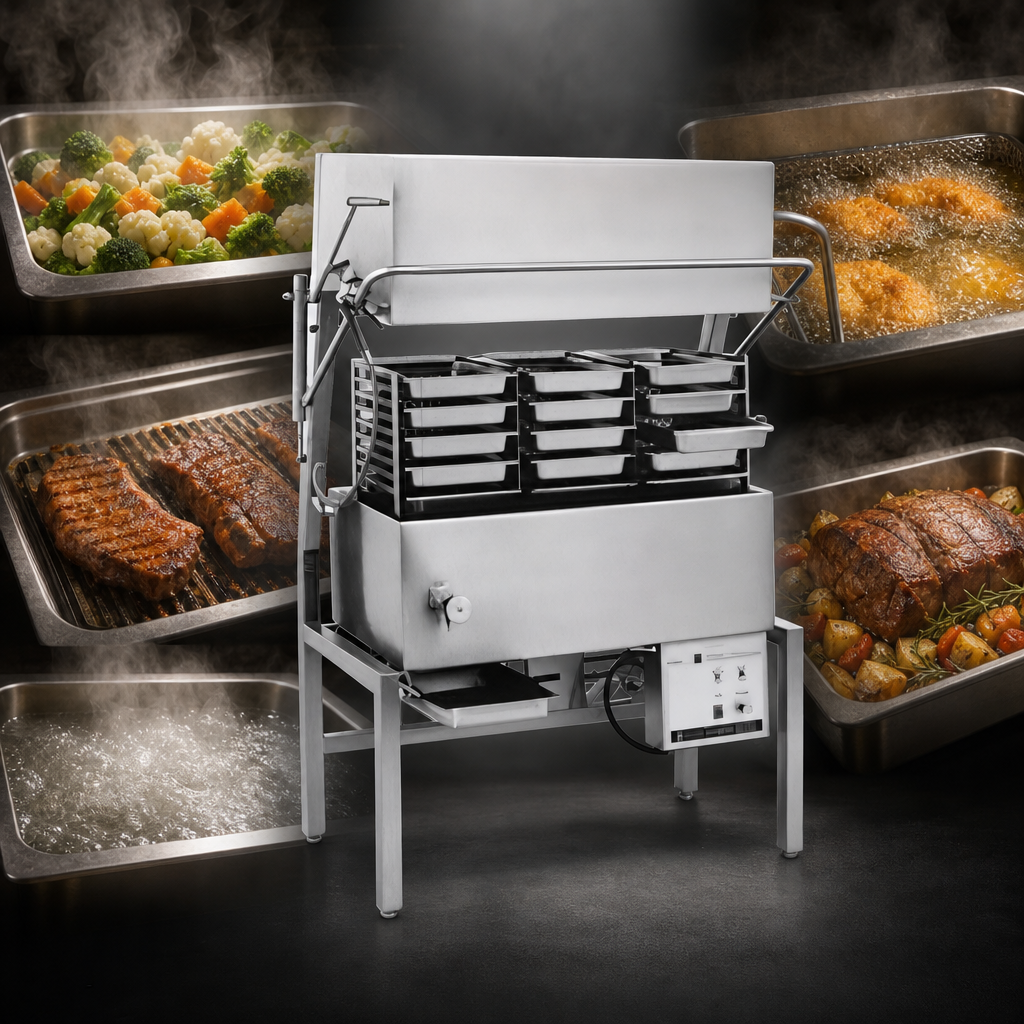

Steam • Grill • Boil • Fry • Roast | Gas-Fired • 10° Tilting • Made in USAReplace multiple pieces of equipment with one powerhouse. The Legion Skittle® SKG10-7 delivers the throughput of a steamer, grill, kettle, fryer and oven in a single, leg-mounted footprint—perfect for high-volume kitchens that refuse to compromise on speed, versatility or food quality.
Key Performance Advantages
- Multi-zone 304 SS cook surface handles steam, grill, boil, fry & roast without flavor transfer.

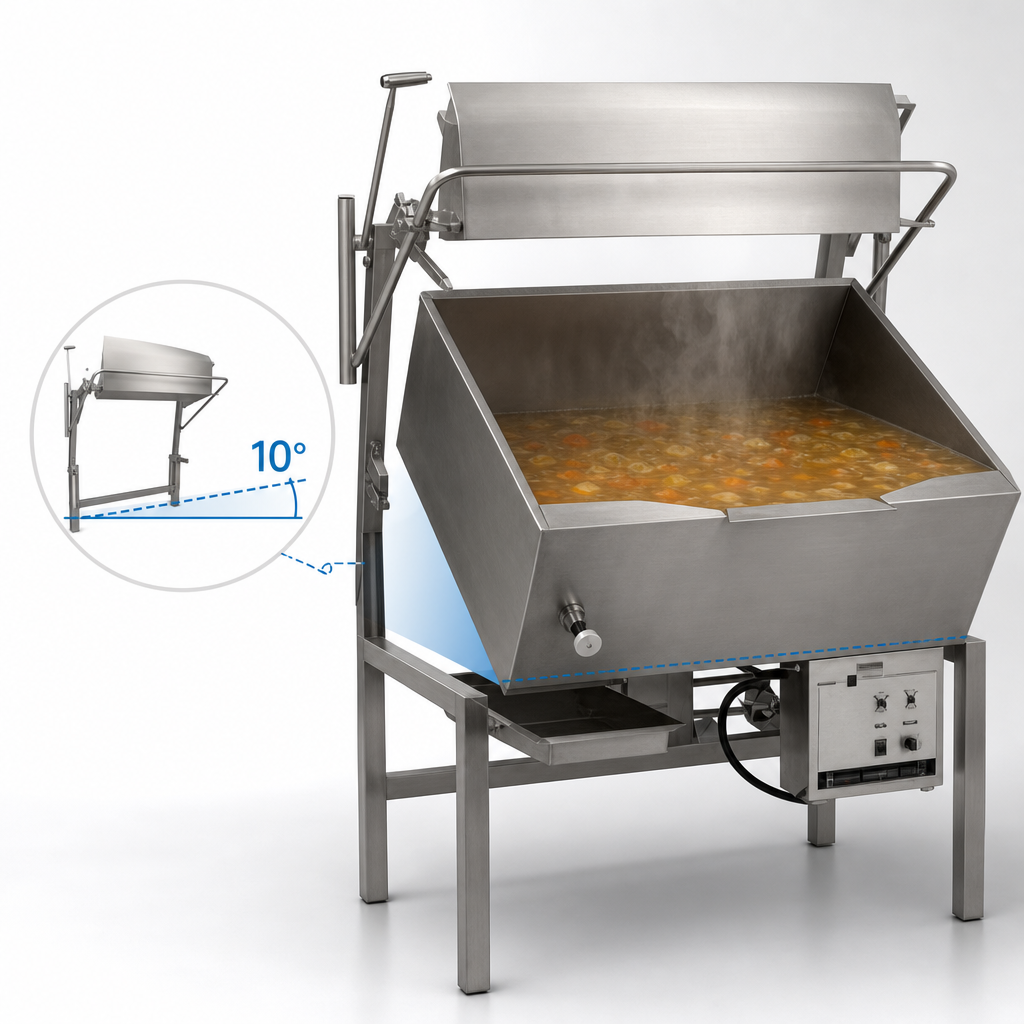

- 10° tilting pan (31" working height) speeds unloading and cleanup.
- Generous (10) 12 × 20 × 2.5" pan capacity or (8) cooking baskets at once.
- Integrated 21.3 gal kettle / 70 lb oil well for stocks, soups & frying.
- Rapid-response 100,000 BTU burner with electronic ignition (Natural Gas).*
- Precise 175 – 400 °F adjustable thermostat with high-limit safety cutoff.
- Patented, insulated Capsule Lid keeps heat in—opens easily with actuator assist.
- Seam-welded, Insulated for Safety™ construction protects operators & lowers energy use.
- 1 ½" compression draw-off valve plus built-in food-pan holder for mess-free draining.
- Stainless spray-hose assembly (48") and flanged feet ship standard.
Included with Your Skittle®
- (10) 12 × 20 × 2.5" stainless food pans & cassette rack
- (8) perforated cooking/steaming baskets
- Stainless 48" flexible spray hose & single ball-type fill valve
- Comprehensive operator’s/maintenance manual
Technical Specifications
| Model | SKG10-7 |
|---|---|
| Functions | Steam, Grill, Boil, Fry, Roast, Oven |
| Pan Depth | 7 in / 178 mm |
| Cooking Capacity | (10) 12 × 20 × 2.5" pans | (8) baskets |
| Kettle / Fry Volume | 21.3 gal (80.7 L) kettle | 70 lb (31.8 kg) oil |
| Heat Input | 100,000 BTU/hr (Natural) / 111,000 BTU/hr (Propane) |
| Temperature Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Gas Connection | ¾" NPT, 5-7" w.c. Nat Gas / 12-14" w.c. LP |
| Electrical | 120 V, 1 Ø, 0.6 A (electronic ignition & controls) |
| Material | All 304 stainless food zone & frame; fully seam-welded |
| Dimensions (W × D × H) | Approx. 28" × 39.5" × 34" to pan rim (81.8" w/ lid open) |
| Weight | ≈ 703 lb (shipping) |
Popular Factory Options
- Automatic water-fill meter
- 2" or 3" draw-off valve sizes
- Flexible gas quick-disconnect hose (¾" × 60")
- Lockable control cover (security applications)
- Electric timer with buzzer
- Perforated or solid food pans in 4" & 6" depths
Options ship from the factory installed. Contact us for lead times and pricing.
*Natural gas rating shown; propane units are factory-configured at 111,000 BTU/hr. Legion Industries reserves the right to modify specifications without notice.
