Legion SKG10-5 Skittle Braising Pans & Tilt Skillets
Description

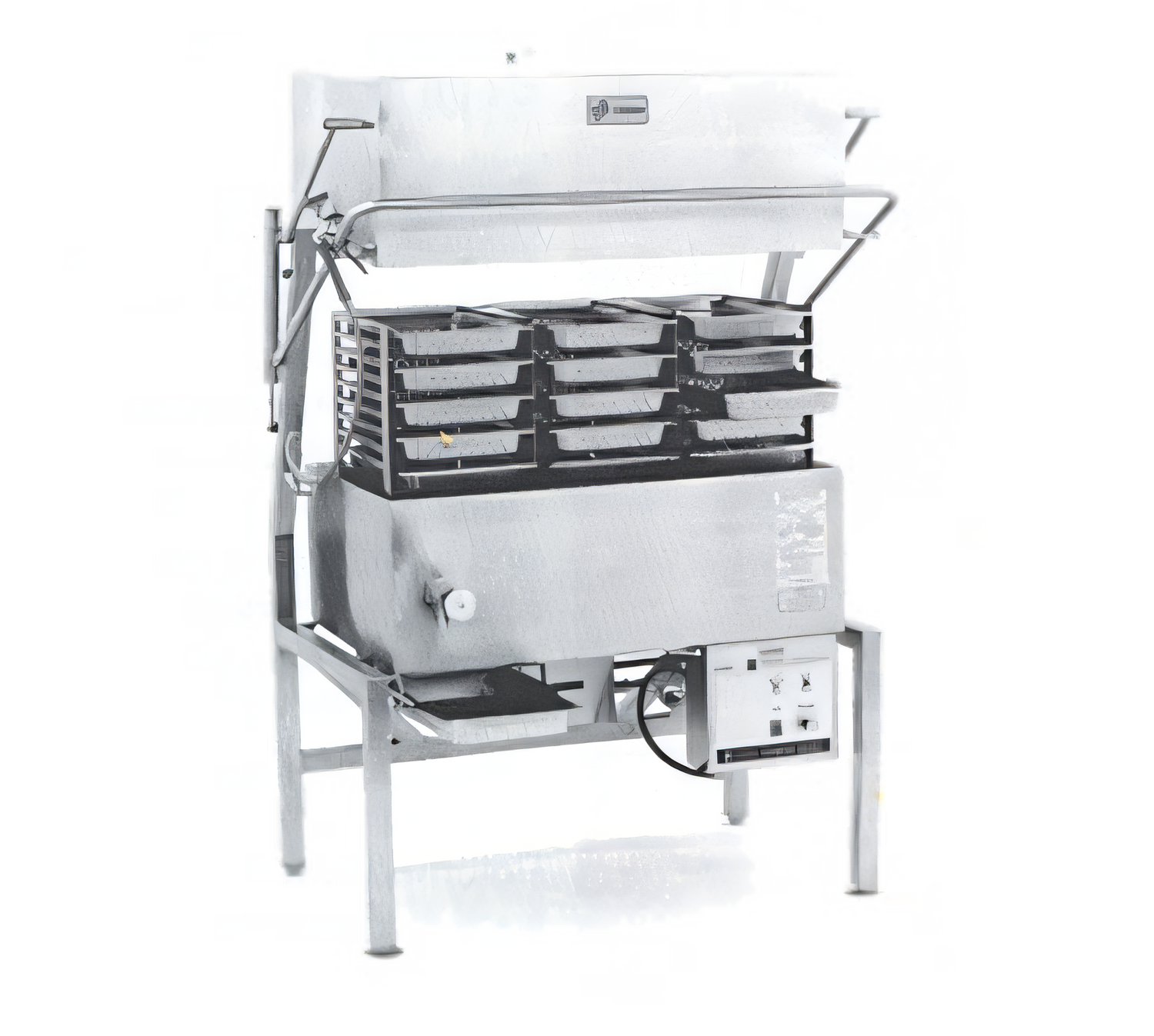

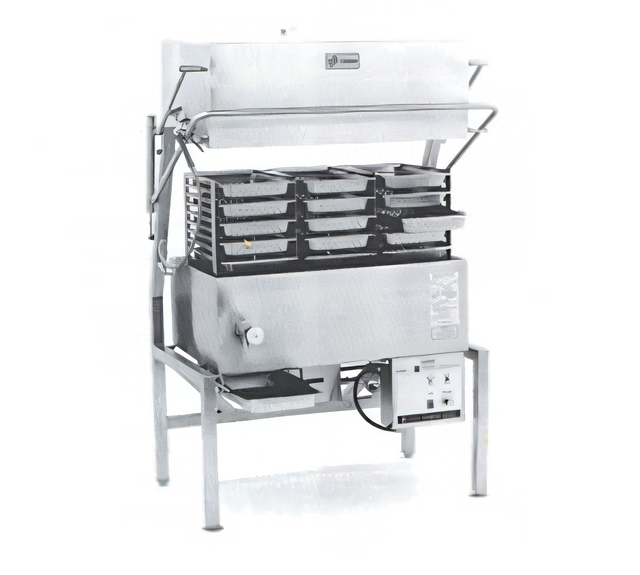

Legion Skittle® Multi-Function Cooker – Model SKG10-5
Steam • Grill • Boil • Fry • Roast • SautéConsolidate your line and boost throughput with the gas-fired Skittle®. One vessel replaces a kettle, griddle, fryer, steamer and oven—saving space, labor and up to 30 % in energy compared with separate appliances.
Key Features
- 100,000 BTU burner with electronic ignition for rapid heat-up

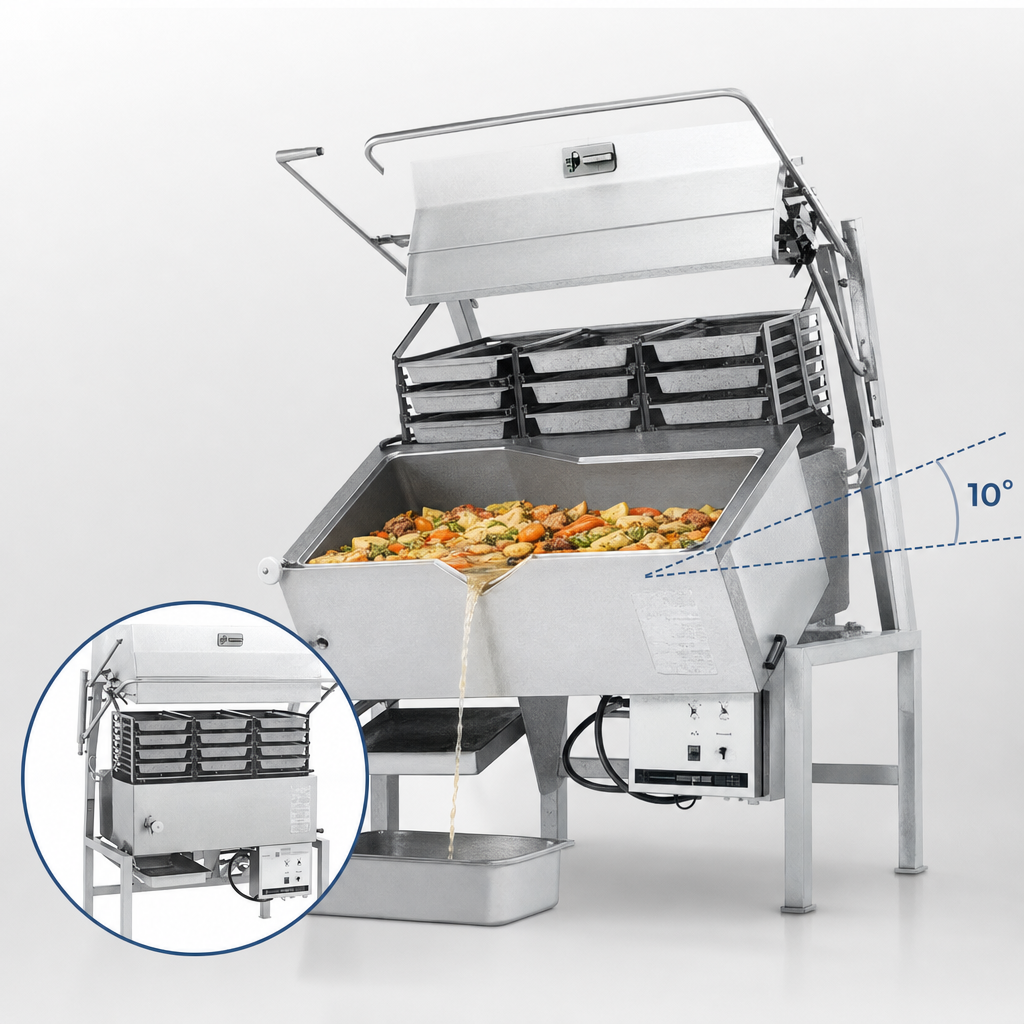

- 10° manual tilt for effortless draining and quick change-overs
- Holds (10) 12 × 20 × 2.5 in hotel pans or (8) full-size cooking/fry baskets
- 15.2 gal / 70 lb frying-oil capacity for high-volume service
- Adjustable thermostat 175 °F – 400 °F plus high-limit safety cut-out
- Patented insulated Capsule Lid with variable-position assist & adjustable steam vent
- 1.5 in food-grade stainless compression draw-off valve with built-in pan holder
- 304 SS food zone, frame & component enclosure—durable, easy to sanitize
- Flanged stainless legs; ergonomic 31 in working height
- 120 V, 1-phase controls—no special electrical run required
- Made in the USA and certified to NSF, ASME, and CSA standards

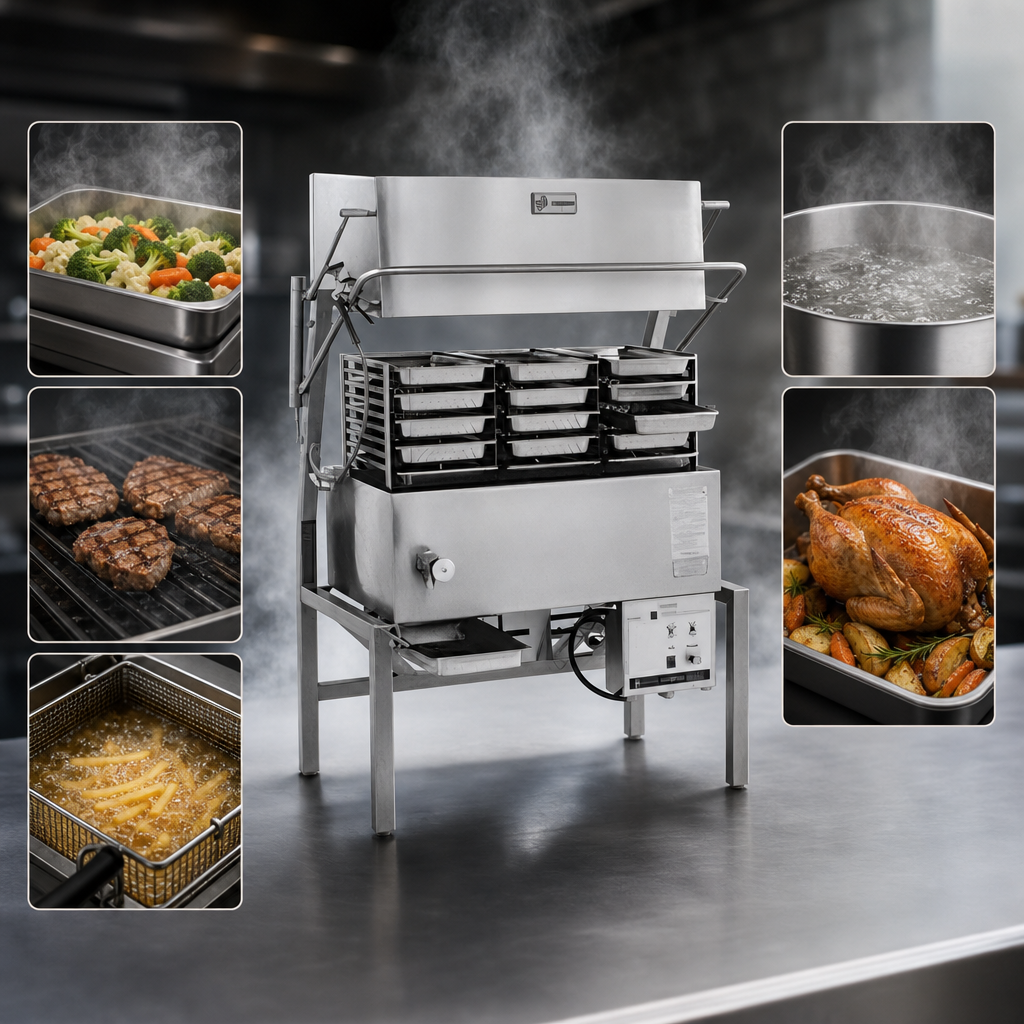

Multi-Mode Cooking in One Vessel
| Steam | Insert perforated pans or baskets for gentle convection cooking. |
|---|---|
| Grill / Griddle | 703 in² of surface area handles burgers, chicken, veggies & more. |
| Boil | 15.2 gal capacity brings pasta or stocks to a rolling boil in minutes. |
| Fry | 70 lb oil well with eight baskets—ideal for wings, fries and seafood. |
| Roast / Braise | 7.7 ft³ oven volume delivers even, surround heat for ribs, roasts or casseroles. |
Technical Specifications
| Model | SKG10-5 |
|---|---|
| Heat Source | Natural or LP gas, 100 kBTU (¾ in NPT) |
| Pan Capacity | (10) 12 × 20 × 2.5 in pans |
| Basket Capacity | (8) stainless cooking/fry baskets |
| Kettle Volume | 15.2 gal (57.5 L) |
| Frying Oil | 70 lb (31.8 kg) |
| Griddle Area | 703 in² |
| Oven Volume | 7.7 ft³ |
| Tilt Angle | 10° |
| Draw-off Valve | 1.5 in compression type, 304 SS |
| Construction | 304 SS, insulated sides & bottom |
| Electrical | 120 V, 1 Ø, <1 A (controls & ignition) |
| Certifications | NSF • ASME • CSA |
What’s in the Box
- Legion Skittle® unit with Capsule Lid & flanged feet
- 1.5 in draw-off valve & pan holder
- Cassette rack for 12 × 20 pans
- 48 in stainless flexible spray-hose assembly
Need additional baskets, food pans, or a quick-disconnect gas hose? Shop Skittle accessories or chat with our team.
Important: Installation and gas hookup must be performed by a licensed professional in accordance with local codes.
