Legion SKG10-11 Skittle Braising Pans & Tilt Skillets
Legion SKG10-11 Skittle Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Legion SKG10-11 Skittle Braising Pans & Tilt Skillets
Description

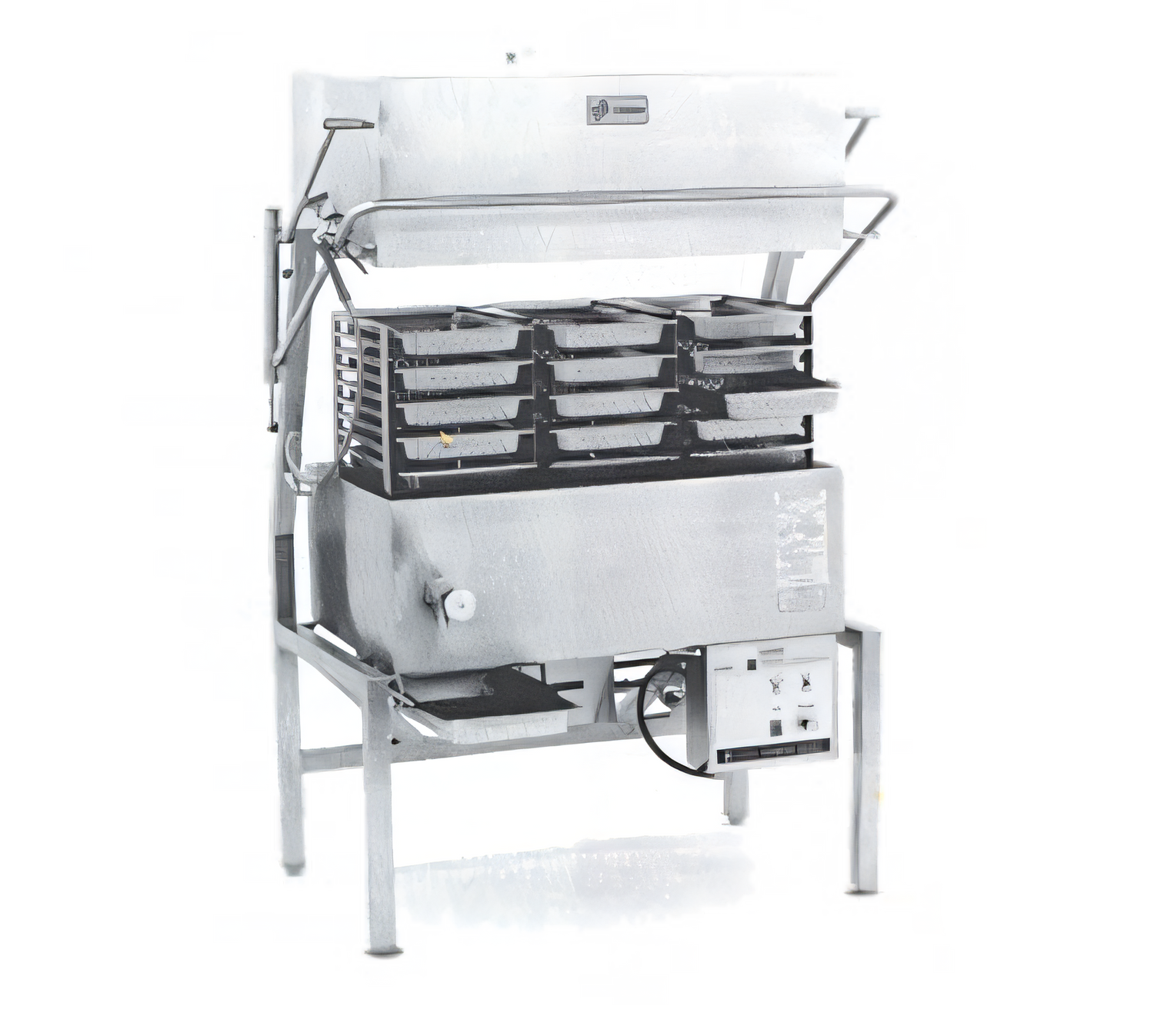

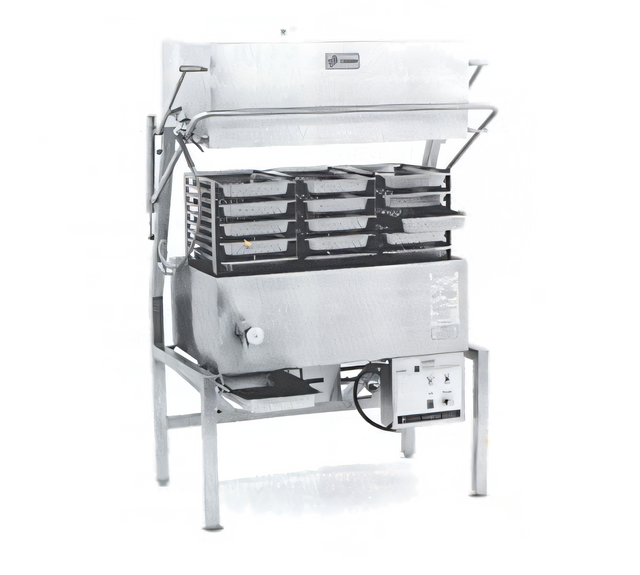

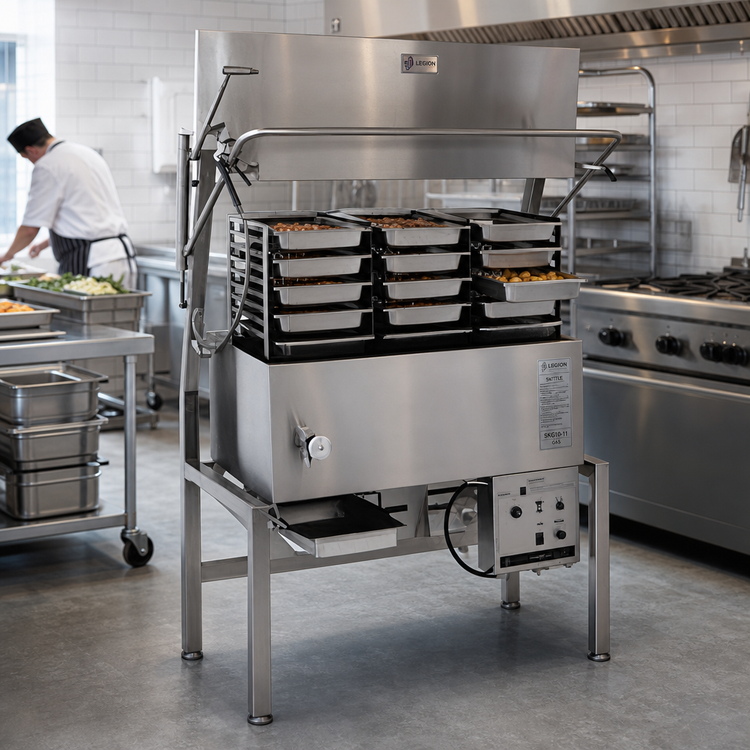

Legion Skittle® Multi-Function Cooker – 33.5 gal / 10-Pan Gas Tilt
Steam • Grill • Boil • Fry • Roast | Model SKG10-11Replace your kettle, tilt skillet, fryer and griddle with one powerful, space-saving unit. Delivering 100,000 BTU of gas heat, the Skittle® gives kitchens unmatched versatility, faster turnaround and easier cleanup—all in a footprint of just 39.5 × 34 inches.
Why You’ll Love It

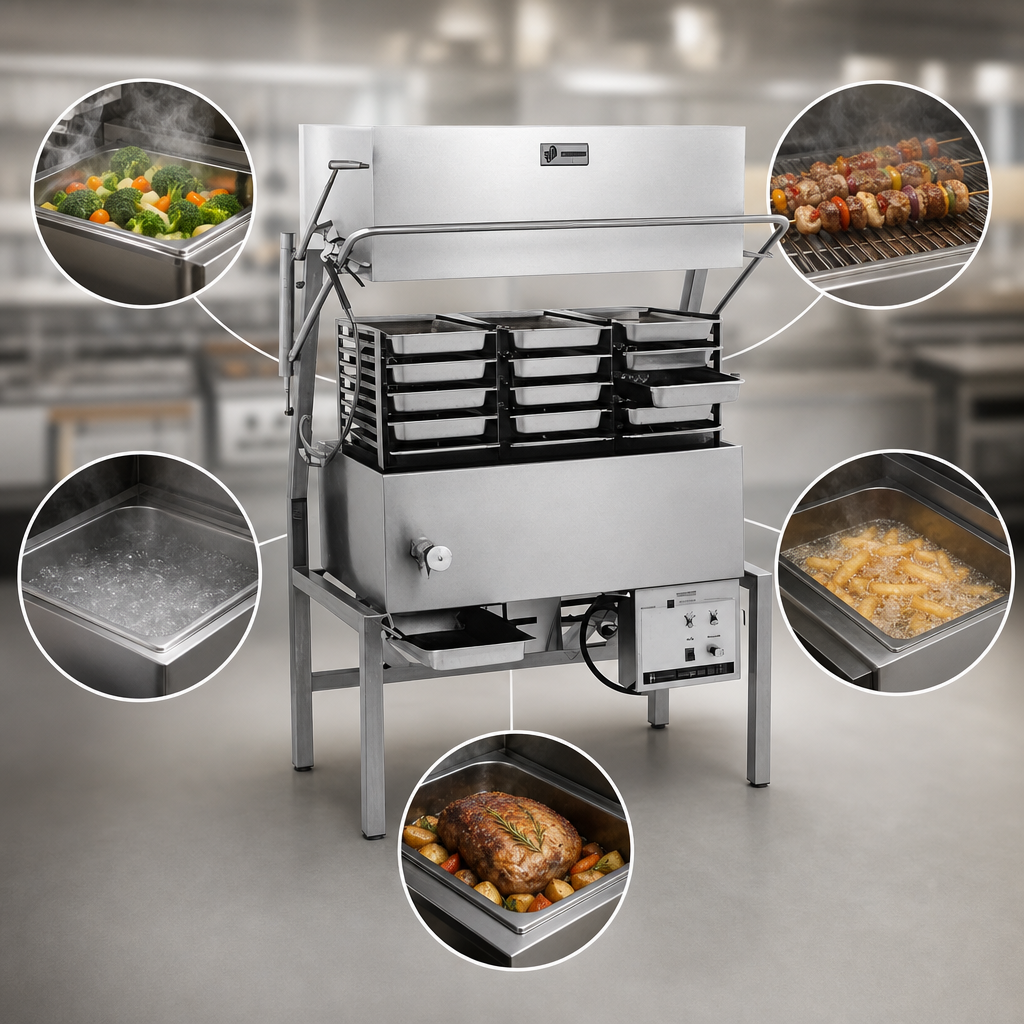

- Five cooking modes in one appliance—steam, grill, boil, fry and roast.

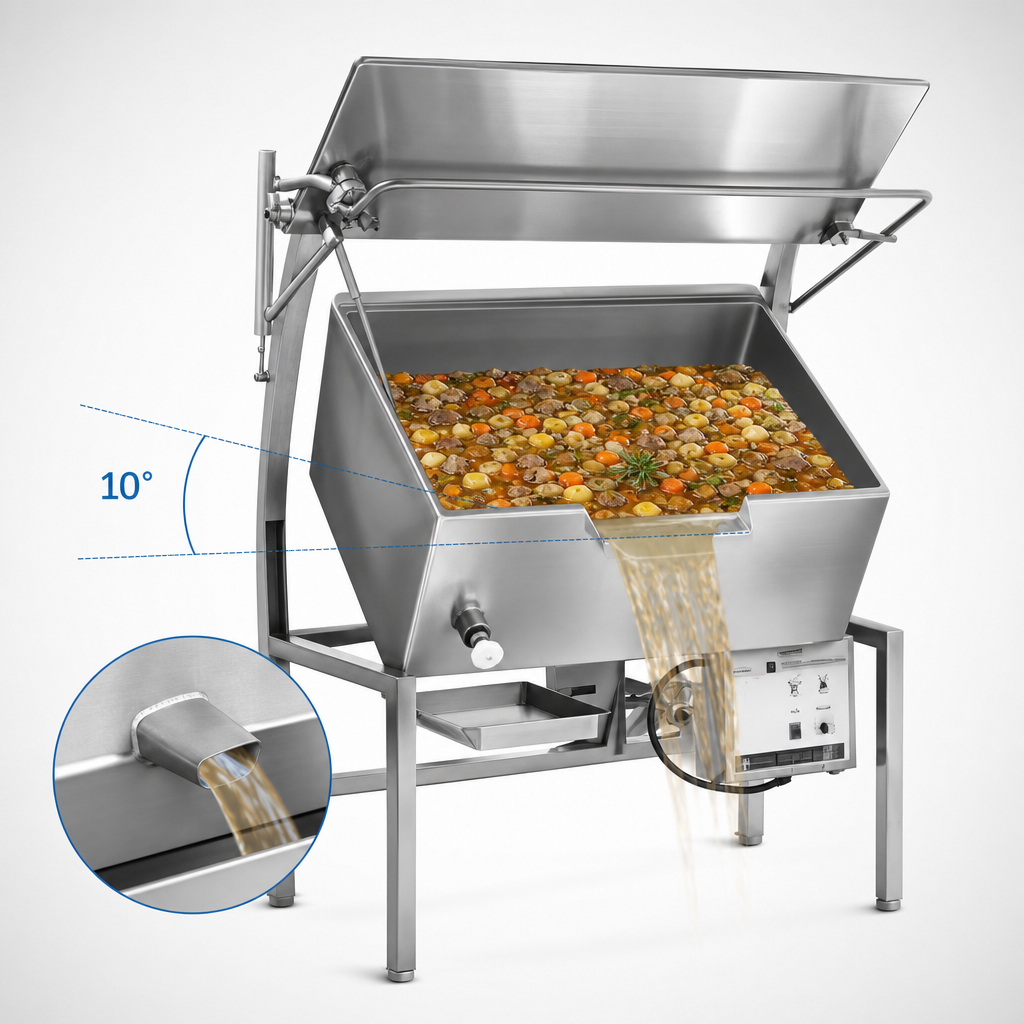

- 10° manual tilt pan at a comfortable 31" working height for effortless product transfer and wash-down.
- Holds (10) full-size 12 × 20 × 2.5" steam-table pans or (8) stainless cooking baskets (included).
- 33.5 gal liquid capacity / 70 lb frying-oil capacity—ideal for large batch production.
- High-output 100,000 BTU burner with electronic ignition (natural gas standard, LP optional).
- Adjustable thermostat 175 °F – 400 °F plus factory-set high-limit safety cut-off.
- Patented insulated capsule lid with actuator-assisted lift, adjustable steam vent and “L” style condensate containment.
- 1½" 304 SS compression draw-off valve, food-pan holder and 48" flexible spray hose for rapid draining & rinsing.
- Fully insulated 304 stainless pan, sides and bottom—cooler kitchen, lower energy cost.
- Leg-mounted 304 stainless tubular frame with flanged feet for secure, code-compliant installation.
- Operates on a simple 120 V, single-phase connection for controls and ignition.
- Made in the USA; NSF, ASME and other agency compliant.
At-a-Glance Capacities
| Steam-table pans | (10) 12" × 20" × 2.5" |
|---|---|
| Cooking baskets | (8) heavy-duty stainless (included) |
| Liquid/kettle volume | 33.5 gal / 126 L |
| Frying-oil volume | 70 lb / 31.8 kg |
| Usable griddle area | 703 in² (≈ 25" × 28") |
Technical Specifications
| Model | SKG10-11 (leg-mounted, insulated) |
|---|---|
| Gas input | 100,000 BTU/hr (natural gas) | 111,000 BTU/hr (propane) |
| Gas pressure (NG / LP) | 5–7" w.c. / 12–14" w.c. |
| Thermostat range | 175 °F – 400 °F (79 °C – 204 °C) |
| Electrical | 120 V, 1 Ø, < 1 A (ignition & controls) |
| Draw-off valve | 1½" 304 stainless compression type |
| Footprint (W × D) | 39.5" × 34" |
| Working height | 31" |
| Height – lid open | Approx. 85.8" |
| Construction | All-welded 304 stainless steel, fully insulated |
What’s in the Crate
- (8) perforated stainless cooking/steaming baskets
- Capsule lid with adjustable vent
- 48" stainless spray hose & single ball-valve faucet
- Operator’s manual & start-up guide
- 12-month parts & labor warranty
Need extras such as food pans, draw-off strainers or a lockable control cover? Reach out and we’ll configure the Skittle® to match your exact workflow.
