Legion SK15-9 Skittle Braising Pans & Tilt Skillets
Legion SK15-9 Skittle Braising Pans & Tilt Skillets is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

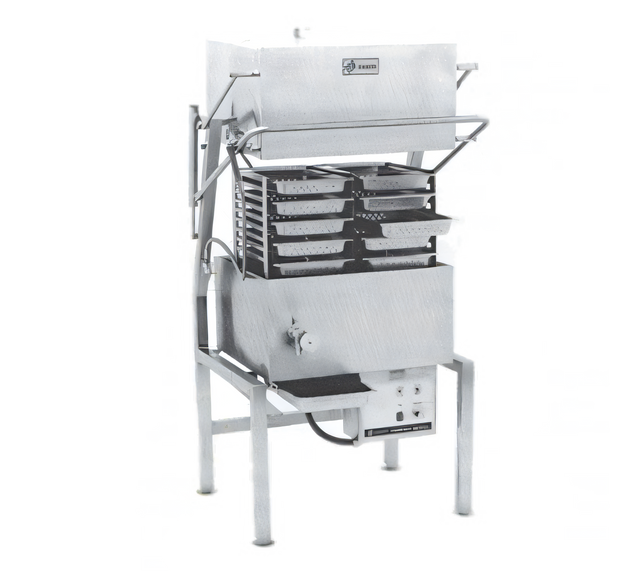

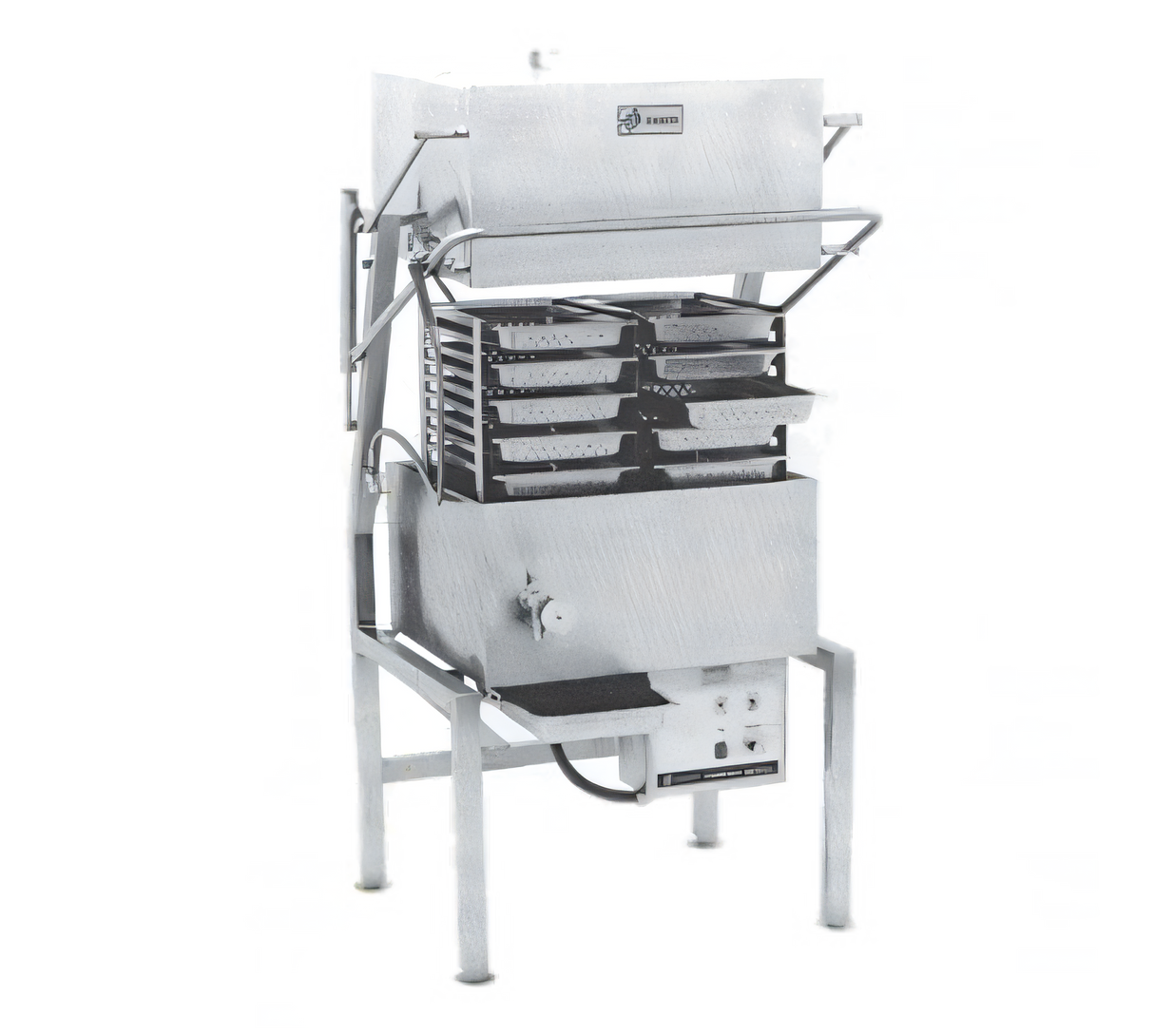

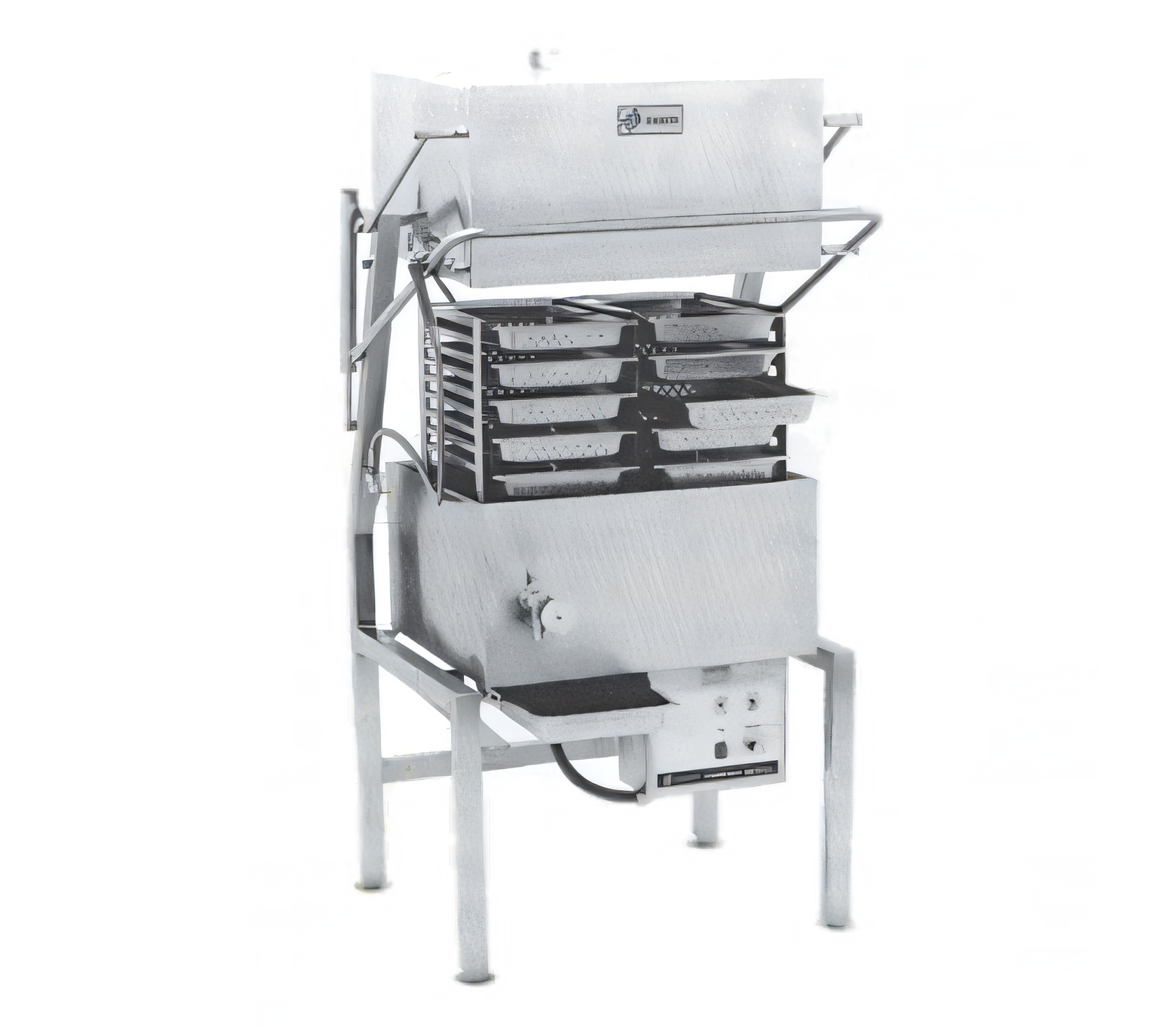

Legion Skittle® Multi-Function Cooker – Model SK15-9
Steam • Grill • Boil • Fry • Roast — 17.7 kW Electric PowerhouseReplace a line-up of single-purpose appliances with one high-volume workhorse. The USA-made Skittle® SK15-9 tackles every wet or dry cooking task and keeps service moving with lightning-fast change-overs and easy, 10° powered tilt for safe product transfer.
Key Features
- True multi-function design handles steaming, grilling, boiling, frying, roasting & holding.
- 10° power-tilt, 304 SS pan with 1½″ compression draw-off valve for mess-free draining.
- 17.7 kW electric heat, adjustable thermostat 175 °F – 400 °F & high-limit safety cutoff.
- Holds up to (15) 12″ × 20″ × 2.5″ hotel pans—or (12) full-size cooking baskets.
- Massive 40.1 gal kettle / 105 lb fry-oil capacity for batch production.
- Patented insulated Capsule Lid: actuator-assisted, variable-position with adjustable steam vent.
- Seam-welded, fully insulated 304 SS body for operator safety & energy efficiency.
- 31″ working height on heavy-duty tubular frame with adjustable flanged feet for floor mounting.
- Built-in cassette rack & under-pan holder keep pans organized and within reach.
- Includes 48″ stainless-steel spray hose for fast rinse-down.
- Engineered & manufactured in the USA; meets NSF, UL, ASME and other major approvals.
Capacity Snapshot
Hotel Pans (2.5″ deep) | 15 × 12″ × 20″ |
---|---|
Cooking/Steaming Baskets | 12 |
Kettle Volume | 40.1 gal (152 L) |
Fryer Oil Capacity | 105 lb (47.6 kg) |
Griddle Surface Area | 1,029 in² (0.66 m²) |
Oven / Holding Cabinet | 13.7 ft³ (0.39 m³) |
Electrical Requirements
Power Rating | 17.7 kW |
---|---|
Standard Connection | 240 V, 3-phase, 42.7 A |
Alternate Voltages | 208 V, 380 V, 415 V, 440 V, 480 V (1 φ or 3 φ – consult factory) |
Construction & Safety
- All food-contact zones are 304 stainless steel—non-reactive & easy to sanitize.
- Seam-welded, insulated sides & bottom reduce heat loss and exterior temperatures.
- Tapered access rim minimizes drips during loading/unloading.
- High-limit thermostat automatically shuts unit down if temperature exceeds safe range.
- Optional 2″ or 3″ draw-off valves, automatic water fill, security fasteners and more.
Need baskets, extra pans or a spray hose kit? Add them from the Accessories section before checkout.
