Legion SK15-7 Skittle Braising Pans & Tilt Skillets
Description

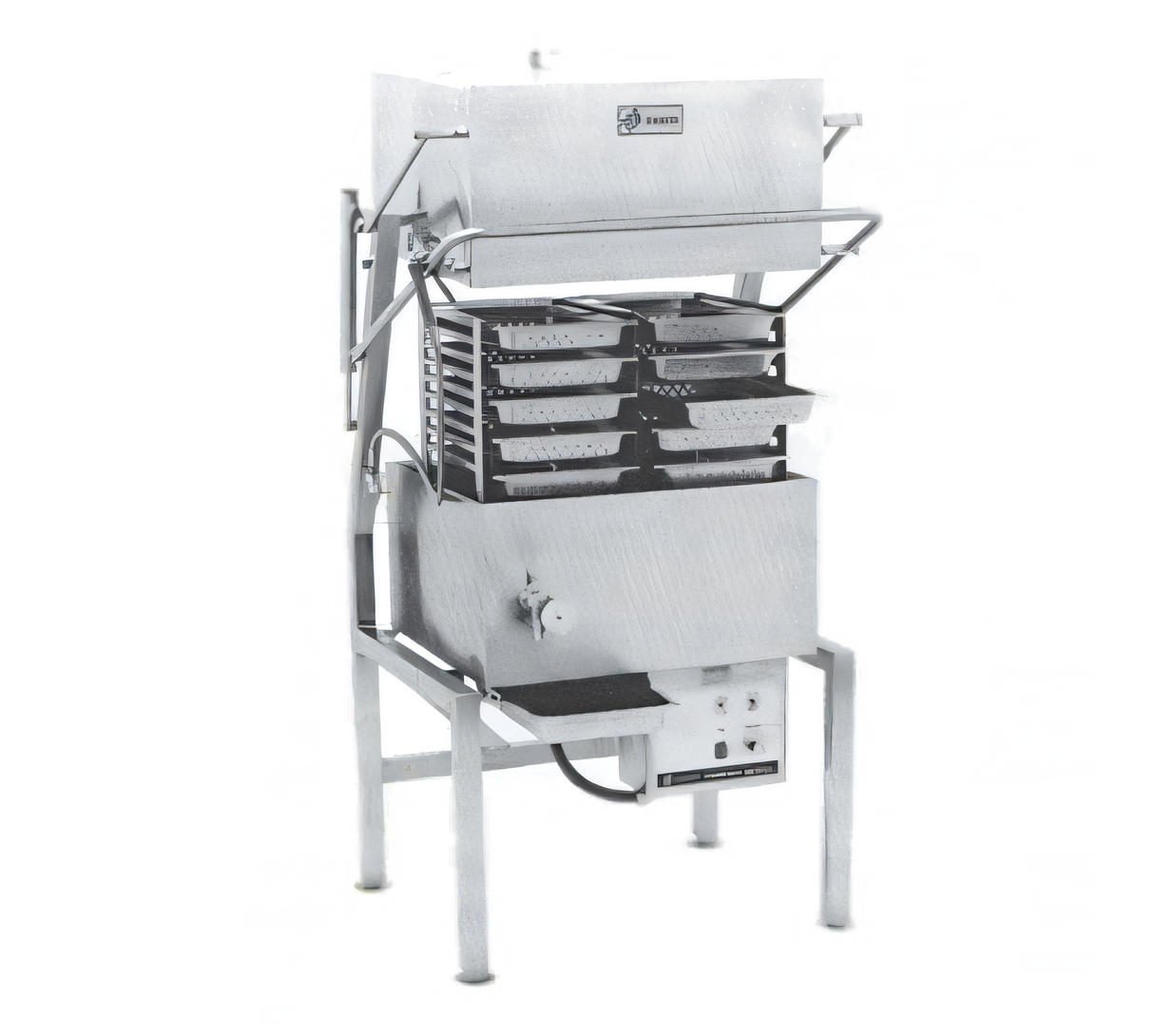

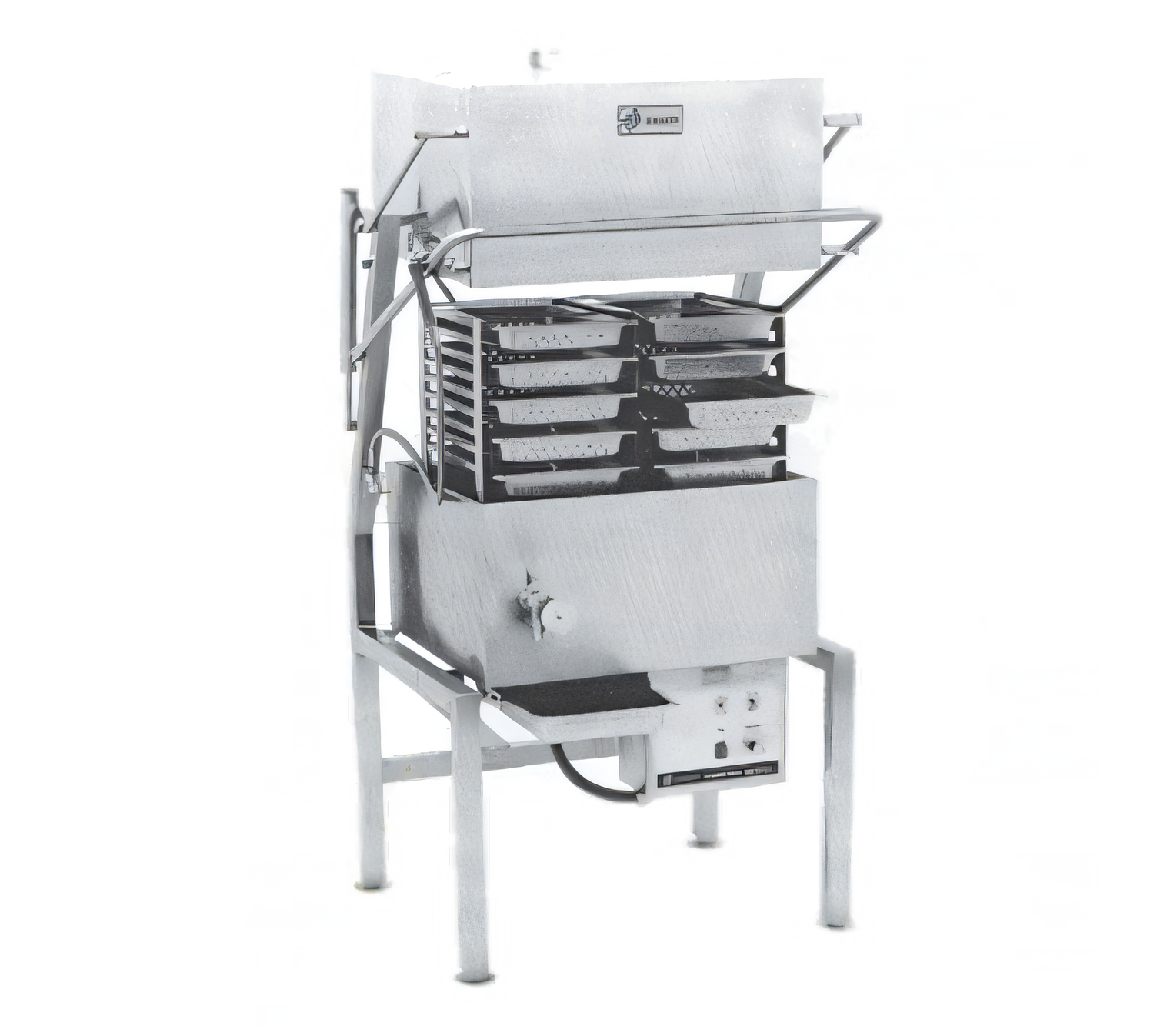

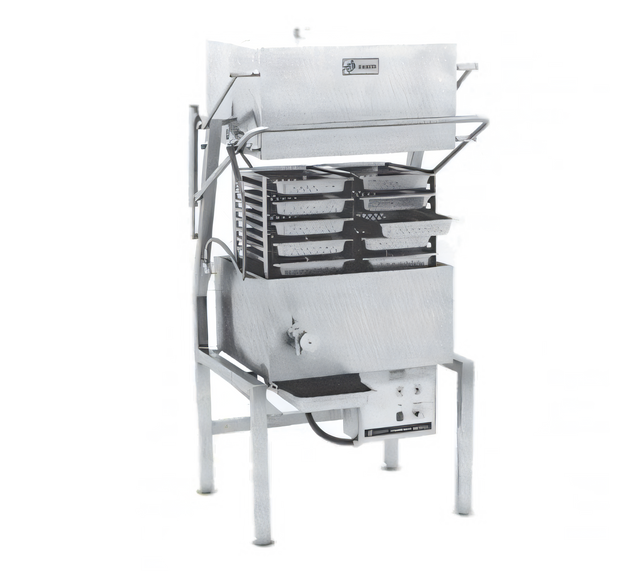

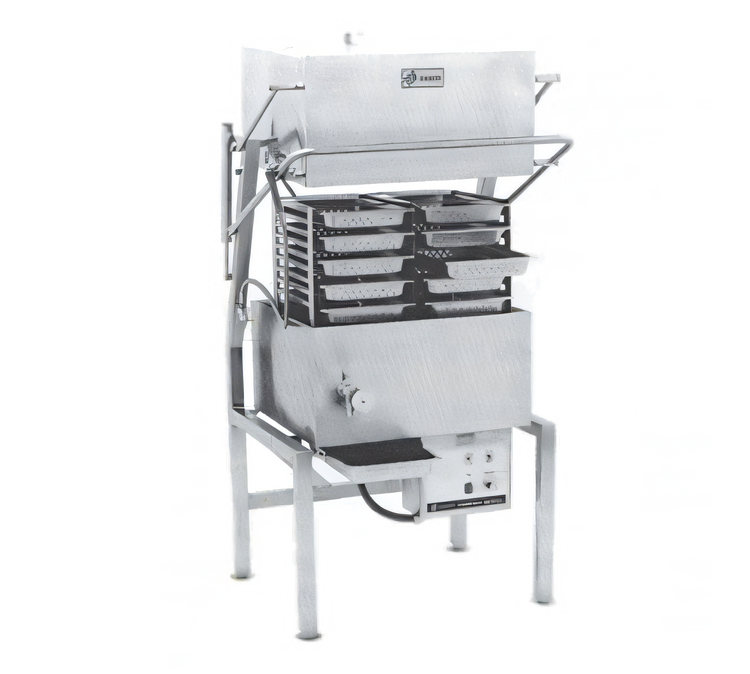

Legion Skittle® Multi-Function Cooker – Model SK15-7
Steam • Grill • Boil • Fry • Roast | 10° Tilting Electric CookerBuilt for the high-volume commercial kitchen, the Skittle® SK15-7 combines the output of a steamer, griddle, kettle, fryer and roaster in one compact, leg-mounted unit. A patented 10° sloped pan, powerful 17.7 kW heating system and fully insulated 304 stainless body deliver speed, safety and the versatility you need for an ever-changing menu—all in a footprint that fits through a standard 26" x 66" doorway.
Key Performance Features
- Handles full-service production with (15) 12" x 20" x 2½" hotel pans or (12) 11" x 20½" x 5" cooking baskets.
- 31.2 gal kettle / 105 lb oil capacity lets you batch soups, sauces, pasta, stocks and deep-fry menu favorites without changing vessels.

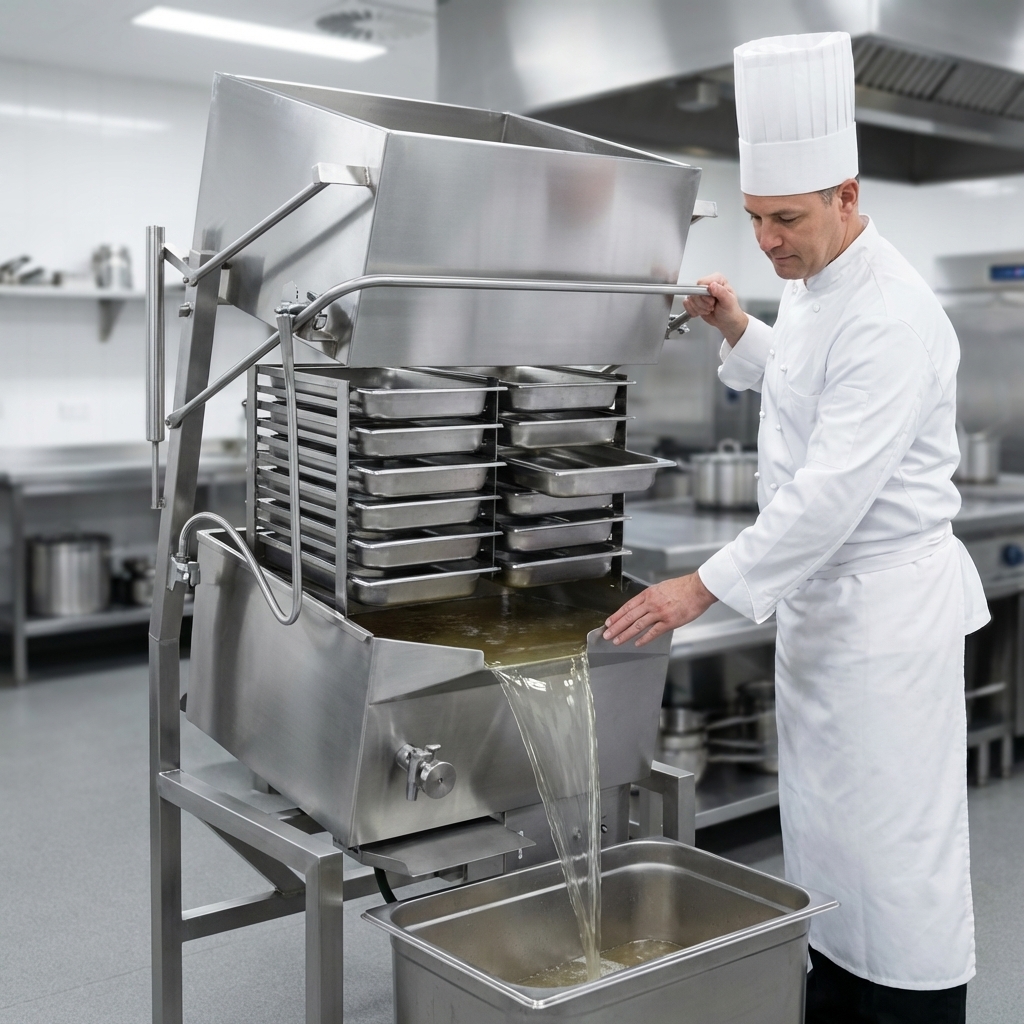

- 10° permanently tilted pan speeds drainage and improves access while retaining a full flat cooking surface.
- 175 – 400 °F adjustable thermostat with high-limit safety for precise low-temp simmering up to high-heat searing.
- Patented Capsule Lid provides actuator-assisted opening, adjustable steam vent and “L” condensate containment—cutting energy use and keeping the line dry.
- 1½" compression draw-off valve plus 48" stainless spray hose make transferring product or cleaning a breeze.
- Seam-welded, fully insulated 304 stainless pan, enclosure and tubular frame—NSF compliant and Made in USA.
- Leg-mounted with adjustable flanged feet for quick, code-compliant floor anchoring.
Capacities at a Glance
| Insert Pans (12" x 20" x 2½") | 15 |
|---|---|
| Cooking / Steaming Baskets | 12 included |
| Cooking Surface Area | 1,029 in² |
| Kettle Volume | 31.2 gal |
| Frying Oil Capacity | 105 lb |
| Oven / Roast Chamber Volume | 12.5 ft³ |
| Pan Depth | 7" |
Technical Specifications
| Model | SK15-7 |
|---|---|
| Power Rating | 17.7 kW |
| Standard Electrical | 240 V, 3 Ø (other voltages 208-480 V available) |
| Thermostat Range | 175 °F – 400 °F |
| Working Height | 31" to cooking surface |
| Footprint (W × D) | 41" × 52.5" |
| Draw-Off Valve | 1½" compression type (2" & 3" optional) |
| Construction | Seam-welded 304 stainless; insulated sides & bottom |
| Water Connection | Single ball-valve fill with 48" s/s flexible hose |
| Origin | Made in USA |
Construction & Safety Highlights
- Insulated for Safety™ design keeps exterior surfaces cooler and lowers energy costs.
- High-limit thermostat automatically disrupts power if temperatures exceed safe limits.
- Tapered access rim prevents spills and directs condensate back into the pan.
- Cassette rack system organizes hotel pans for fast change-outs and staging.
- NSF, UL and ASME compliant manufacturing for worry-free inspection approvals.
Popular Accessories (Sold Separately)
- Perforated or solid 12 × 20 pans – 2½", 4" or 6" deep
- Draw-off strainer, hose or #10 can holder
- Electric timer with buzzer
- Lockable control cover for correctional facilities
Legion Industries provides a standard 12-month parts & labor warranty from the date of installation (90 days on some wear parts). Extended plans are available—see warranty terms for full details.
