Legion SK10-9 Skittle Braising Pans & Tilt Skillets
Description

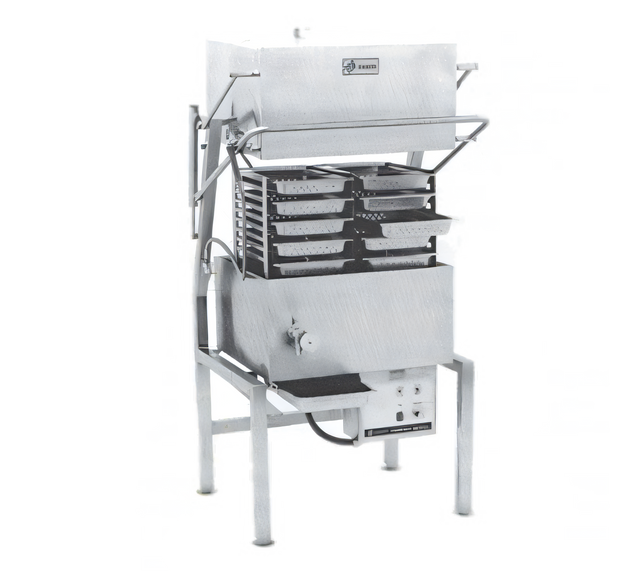

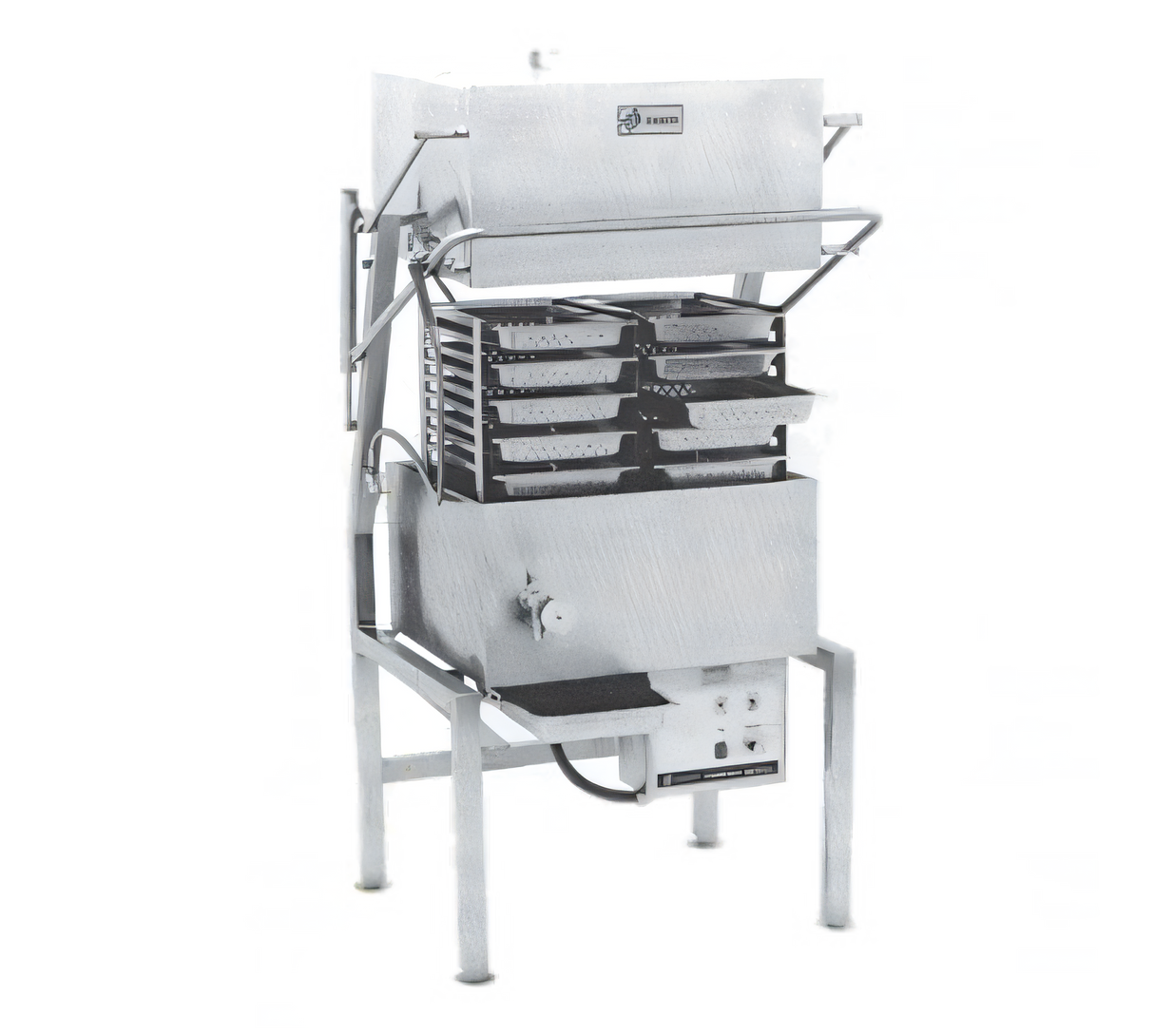

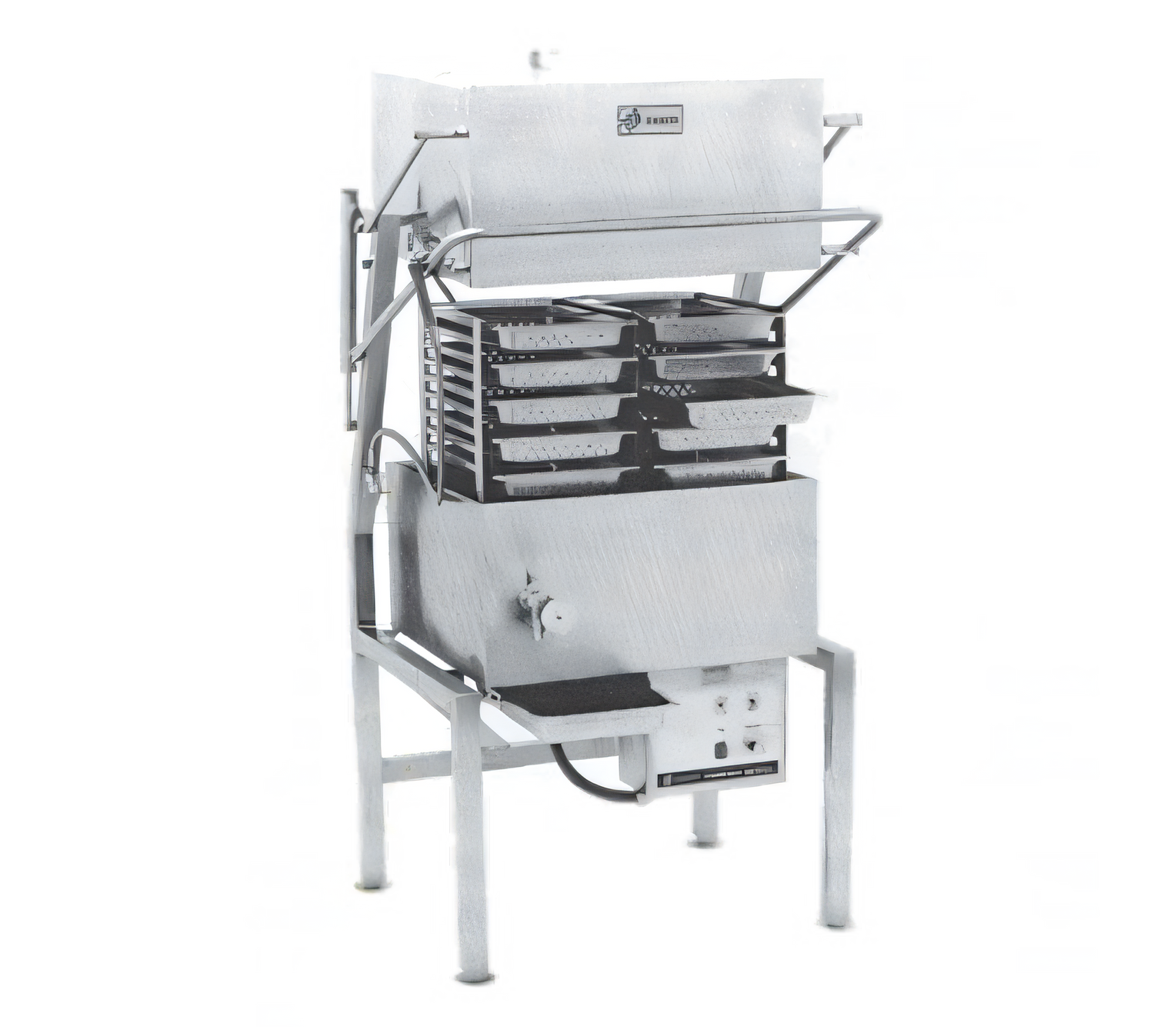

Legion Skittle® SK10-9 Multi-Function Cooker
Steam • Grill • Boil • Fry • Roast — all from one 10°-tilt stainless platformConsolidate your kettle, braising pan, steamer and fryer into a single, floor-mounted workhorse. Built in Waynesboro, GA from seam-welded 304 stainless steel, the electric Skittle® SK10-9 delivers 11.8 kW of power while holding ten full-size hotel pans or 27.4 gallons of product. Fewer pieces of equipment, more menu flexibility.
Performance highlights
- True multi-function design — steam, grill, boil, fry, roast, braise & hold.
- 9 in-deep pan with 10° tilt for effortless loading & complete drainage.
- Adjustable thermostat 175 °F – 400 °F with independent high-limit safety.
- Patented insulated Capsule Lid with actuator-assisted opening & adjustable vent.
- 1 ½″ compression draw-off valve plus 48″ stainless spray-hose clean-up station.
- Cassette rack stores (10) 12 × 20 × 2.5″ pans right inside the cooker.
- Insulated pan sides & bottom reduce energy use and operator touch-temperature.
- Rugged, all-welded 304 stainless frame with adjustable flanged feet for secure bolting.
- Complies with NSF, UL, ASME and other major sanitation & safety standards.
Capacities
| Insert pans (12″ × 20″ × 2.5″) | 10 |
|---|---|
| Cooking / steaming baskets | 8 |
| Kettle volume | 27.4 gal (103.7 L) |
| Frying oil capacity | 70 lb (31.8 kg) |
| Griddle surface | 703 in² (4 539 cm²) |
| Oven cavity | 9.4 ft³ (0.27 m³) |
Technical specifications
| Model | SK10-9 |
|---|---|
| Power | Electric, 11.8 kW |
| Standard electrical | 240 V, 3-phase (other voltages & phases available) |
| Thermostat range | 175 °F – 400 °F (79 °C – 204 °C) |
| Pan depth | 9″ (229 mm) |
| Tilt angle | 10° manual |
| Draw-off valve | 1 ½″ compression type (2″ & 3″ optional) |
| Construction | Seam-welded 304 stainless, insulated sides & bottom |
| Working height | 31″ (787 mm) |
| Footprint (W × D) | 36 ¾″ × 34″ approx. |
Popular accessories
- Perforated or solid hotel pans — 2½″, 4″ & 6″ deep
- Perforated cooking/steaming baskets (11″ × 20½″ × 5″)
- Draw-off strainers, spouts & 48″ hoses
- Automatic water-filling meter
- Lockable control cover & security fasteners
- Skittle care & cleaning kit
Custom voltages, phases and valve sizes are factory-available. Please contact us prior to ordering for any non-standard configuration.
