Legion RES-2418 Braising Pans & Tilt Skillets
Description
Legion Classic Countertop Tilting Skillet – 13 gal (Model RES-1824)
6 kW Electric • Manual Tilt • 24" x 18" Pan • Made in the USAReplace stock pots, braising pans and griddles with one heavy-duty workhorse. The Legion Classic RES-1824 delivers 13 gallons of cooking capacity in a compact, countertop design—perfect for schools, healthcare kitchens, hotels and caterers that need big production without sacrificing space.
Key Performance Features
- 304 stainless steel, seam-welded pan with 304 stainless clad cooking surface for fast, even heat and easy cleanup

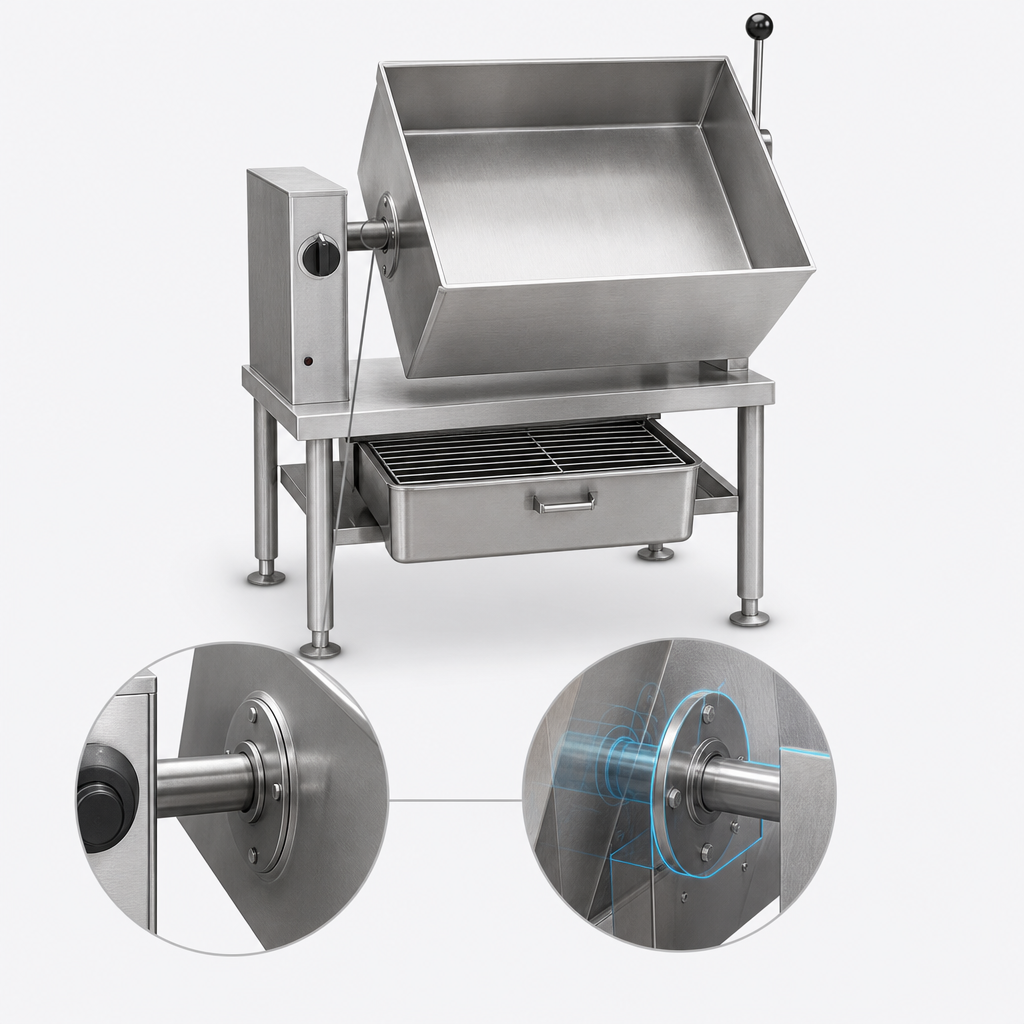

- Center trunnion mounting and balanced hand crank for smooth, controlled pouring up to 90°
- Adjustable thermostat 175 °F – 400 °F (79 °C – 204 °C) with built-in high-limit safety
- Field-replaceable, incoloy 625 heating elements rated at 6.0 kW
- Reinforced, water-resistant control console and base—built entirely from 304 stainless steel
- NSF, UL and ASME compliant construction for commercial kitchens
Versatility in Every Service
- Sauté, braise or pan-fry up to 55 lb. of meat

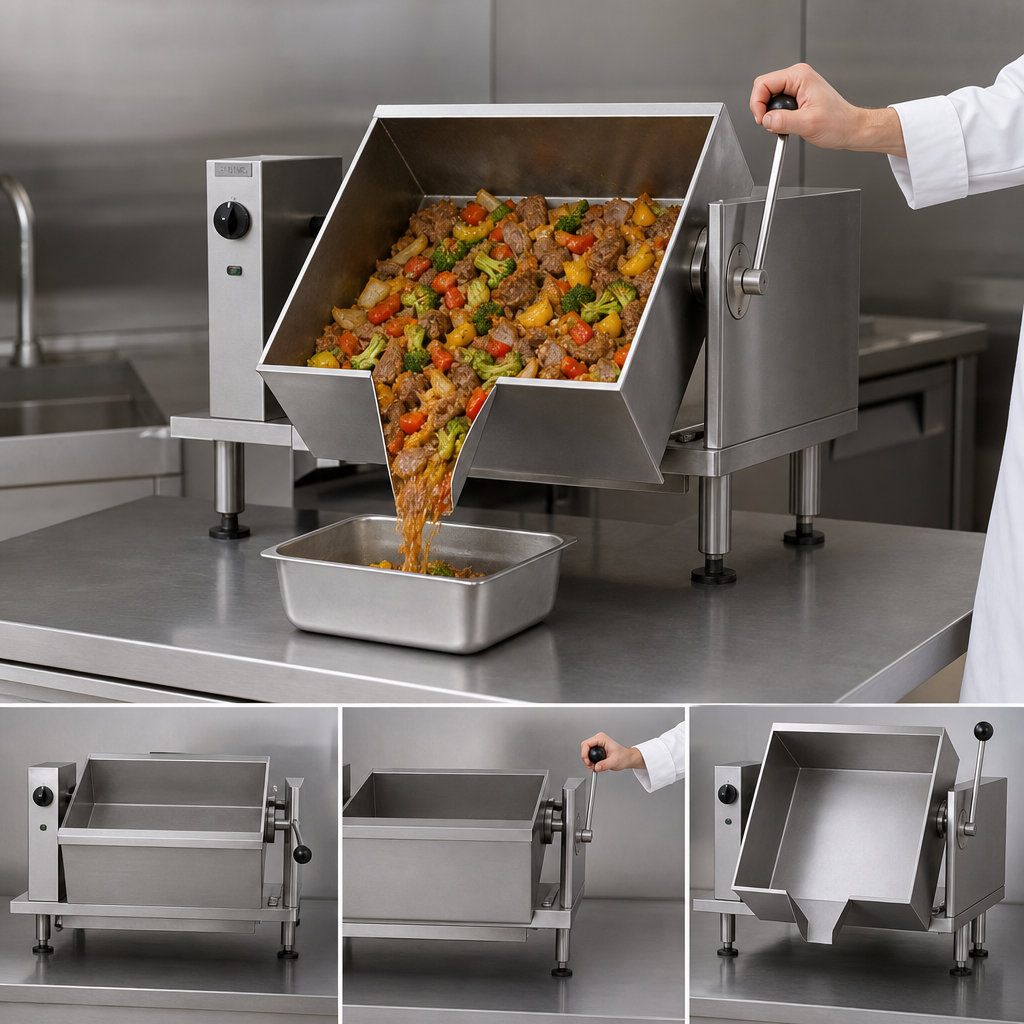

- Batch-cook soups, sauces or chili—then tilt to pour directly into hotel pans
- Grill French toast, burgers, eggs or quesadillas on the large 432 in² surface
- Finish pastas, stir-fries or steamed vegetables with consistent, controllable heat
Technical Specifications
| Capacity | 13 gal (49 L) / 432 in² cooking surface |
|---|---|
| Pan Dimensions (inside) | 24" L × 18" W × 8" D (610 × 457 × 203 mm) |
| Construction | All 304 stainless steel – pan, support frame, console & base plate |
| Mounting / Tilt | Center trunnion, manual hand crank, 90° emptying |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Heating Power | 6.0 kW electric, incoloy elements |
| Safety | High-limit safety thermostat & water-resistant controls |
| Standard Warranty | 12 months parts & labor |
| Electrical Data – Model RES-1824 (6 kW) | ||
|---|---|---|
| Voltage | 1-Phase Amps | 3-Phase Amps |
| 208 V | 28.8 A | 16.7 A |
| 240 V | 25.0 A | 14.4 A |
| 380 V | 15.8 A | 9.1 A |
| 415 V | 14.5 A | 8.3 A |
| 440 V | 13.6 A | 7.9 A |
| 480 V | 12.5 A | 7.2 A |
Alternate voltages (208, 240, 380, 415, 440 or 480 V) and 1- or 3-phase wiring must be specified at time of order.
What’s Included
- Legion RES-1824 countertop tilting skillet
- Factory-installed thermostat & safety limit
- Owner’s/installation manual
- One-year parts & labor warranty

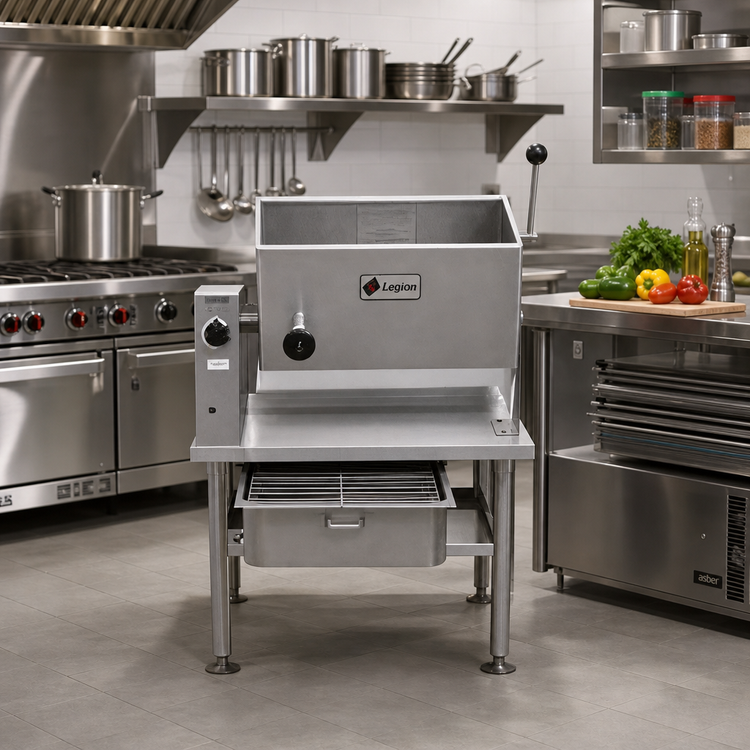

Photo may show optional draw-off valve, fill faucets and table stand—each sold separately.
