Legion RES-1824 Braising Pans & Tilt Skillets
Description

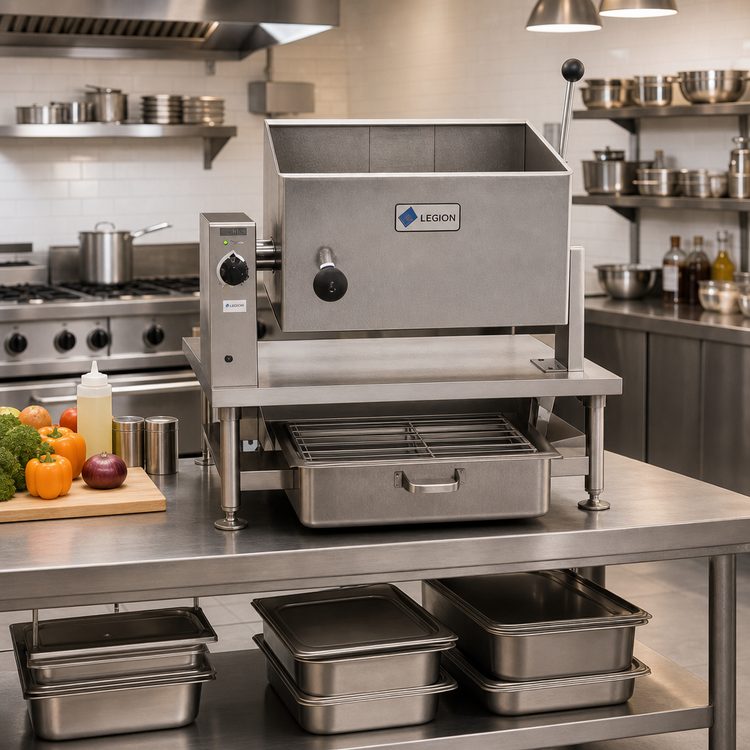

Legion Classic Countertop Tilting Skillet – 13 Gal, Electric
Model RES-1824 | 18 in × 24 in Pan | 6 kWThe Legion Classic RES-1824 delivers the productivity of a full-size braising pan in a space-saving table-top design. Sear, sauté, braise, shallow-fry, simmer or hold – then tilt a full 90° for effortless, drip-free transfer. Hand-built in the USA from 304 stainless steel, this skillet is ready for years of high-volume service.
Key Features
- 13 gal (49 L) capacity – 432 in² cooking surface fits up to 130 servings.

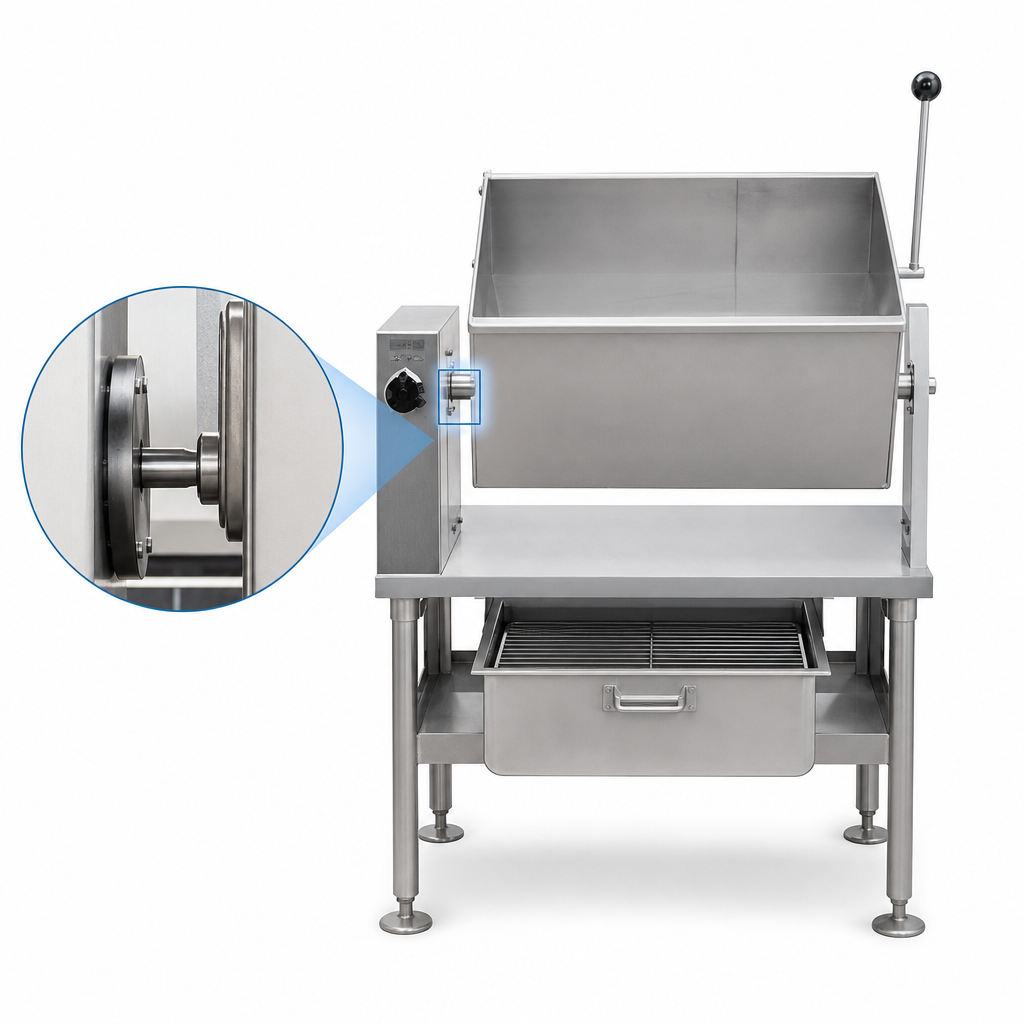

- Seam-welded 304 stainless steel pan, center trunnion mounted for smooth, balanced pouring.
- Adjustable thermostat 175 °F – 400 °F with high-limit safety cutoff.
- 6.0 kW incoloy-sheathed elements are field-replaceable and provide even heat across the entire pan.

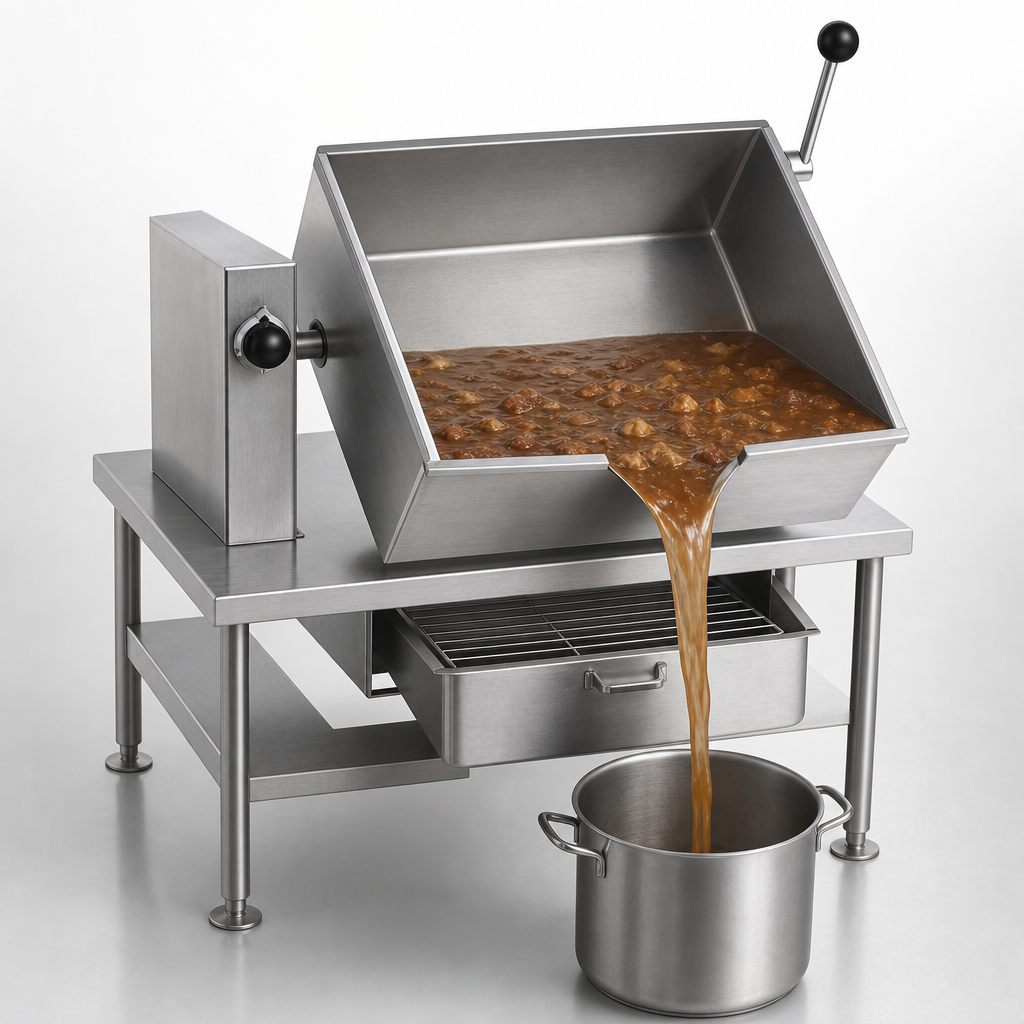

- Manual hand-tilt mechanism rotates a full 90° for complete product removal and easy wash-down.
- Water-resistant control console, heavy 304-SS support frame and reinforced base plate.
- NSF listed, UL classified and fabricated in Dallas, Pennsylvania, USA.
Specifications
| Model | RES-1824 |
|---|---|
| Pan (inside) | 24 in L × 18 in W × 10 in D |
| Working Capacity | 13 gal / 49 L |
| Cooking Surface Area | 432 in² |
| Heating Power | 6.0 kW electric |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Electrical Options | 208, 240, 380, 415, 440 or 480 V – 1-phase or 3-phase |
| Amperage @ 208 V | 28.8 A (1-Ø) / 16.7 A (3-Ø) |
| Amperage @ 240 V | 25.0 A (1-Ø) / 14.4 A (3-Ø) |
| Overall Footprint | 35 in W × 26.5 in D × 20 in H* |
| Construction | All 304 stainless steel pan, frame, console & base |
| Origin | Made in USA |
*Refer to spec sheet for exact clearances and service connections.
Popular Options & Accessories
- Single or dual swing-nozzle fill faucets with bracket.
- 1 ½ in draw-off valve for rapid liquid decanting.
- 48 in flexible spray hose (vinyl or stainless).
- One-piece lift-off cover to retain heat and moisture.
- Electric indicating timer with audible buzzer.
- Security package: tamper-resistant fasteners & lockable control cover.
Benefits at a Glance
- Versatility – replaces braising pans, stock pots, steamers and griddles.
- Labor savings – cook, hold and pour from a single vessel.
- Energy efficiency – elements are fused directly to the pan bottom for rapid, even heat transfer.
- Operator safety – balanced center-mounted trunnion reduces strain during pour-off.
Includes 1-year parts & labor warranty. Extended coverage available – ask your equipment specialist.
