Legion LTWT-80 Steam Kettles
Description

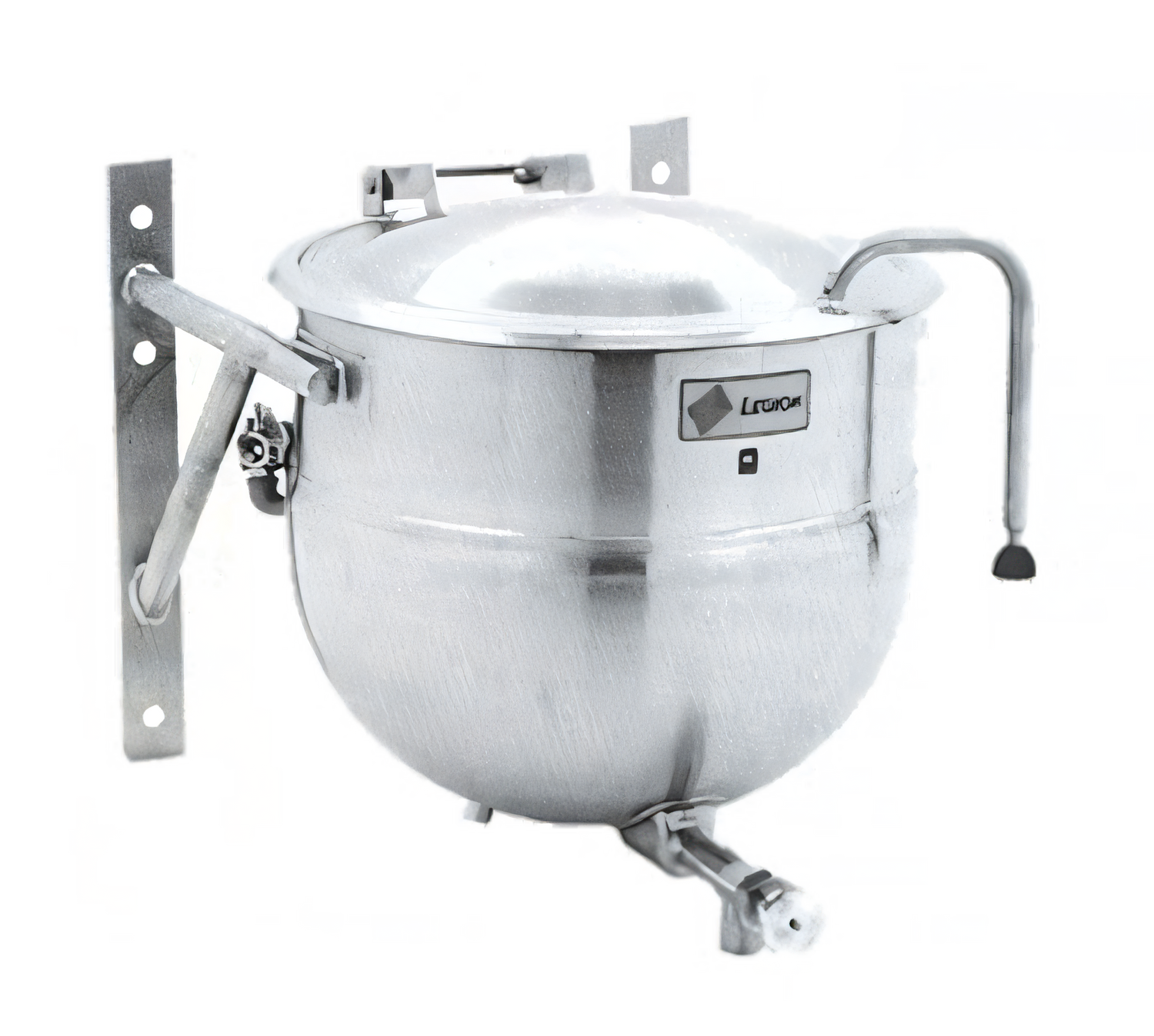

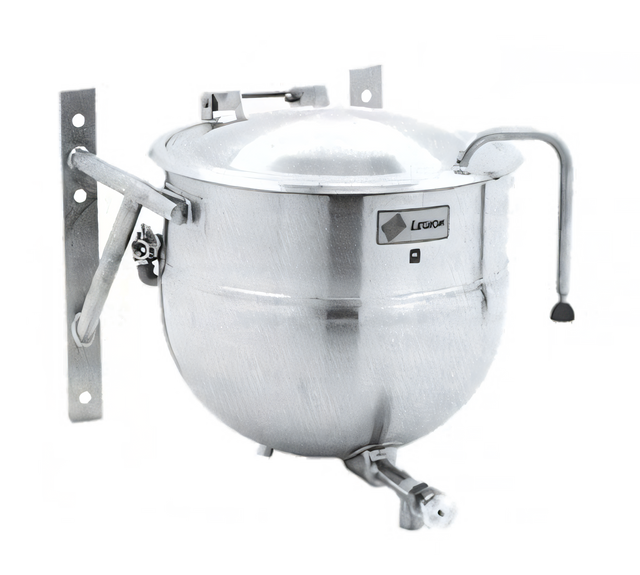

Legion LTWT-80 | 80-Gallon Direct Steam Kettle

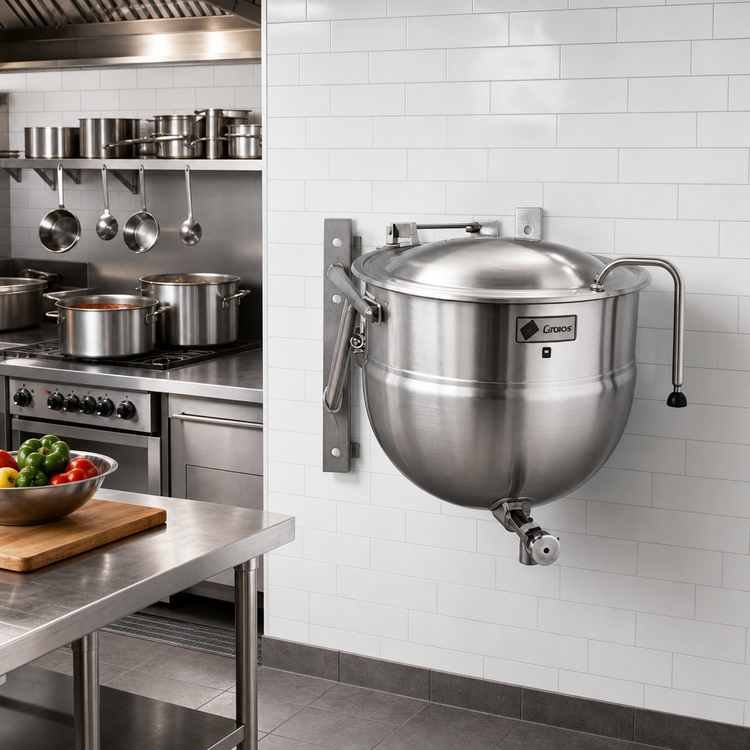

2/3 Jacketed • Wall-Bracket Mounted • 30 PSI • Made in USABuilt for serious volume and absolute reliability, the Legion LTWT-80 delivers 80 gallons (303 litres) of even, steam-powered heat in a space-saving wall-mount format—ideal for commissaries, schools, correctional facilities, and high-output foodservice operations.
Key Features

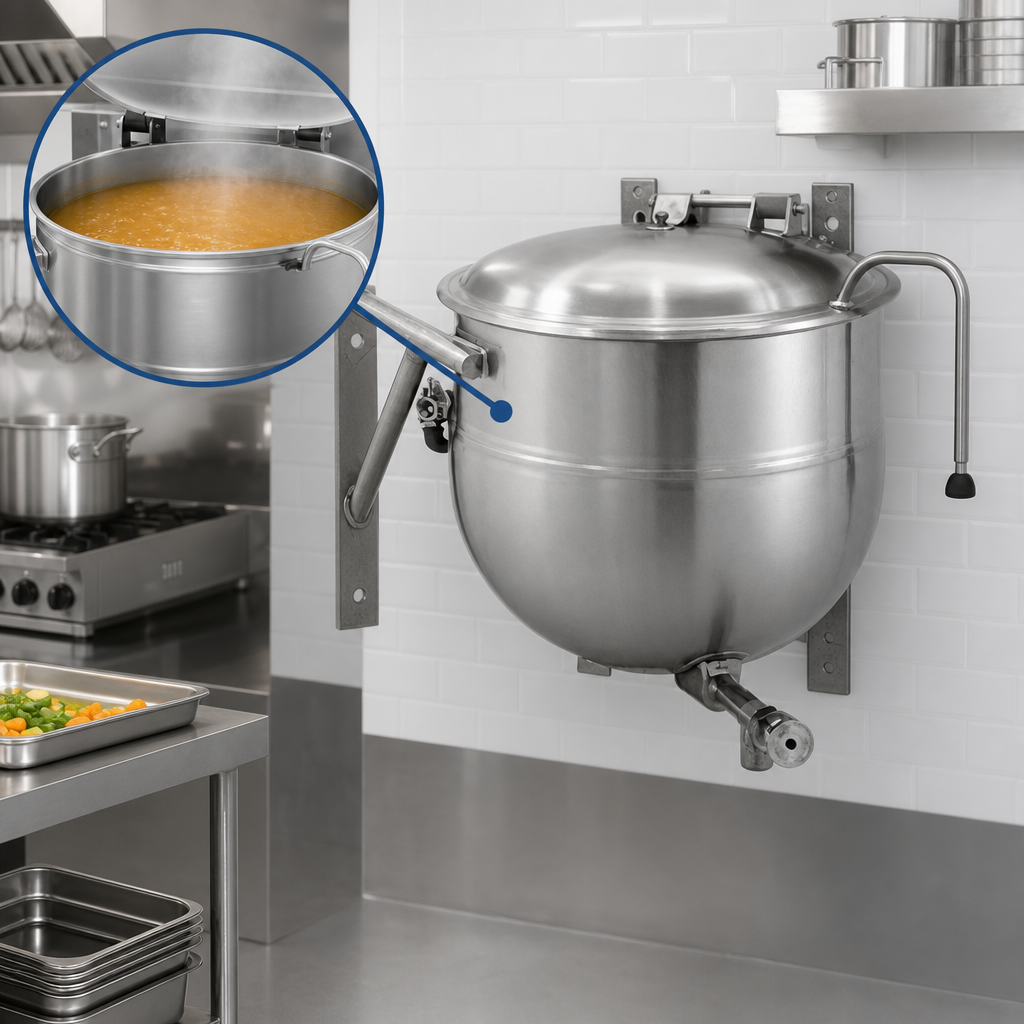

- Generous 80 gal (303 L) working capacity for soups, sauces, stews, pasta, and stocks.
- Seamless deep-drawn 304 stainless steel kettle liner for superior sanitation and long life.
- 2/3 jacketed stainless steel shell provides fast, uniform heating up the sidewall.
- Rated 30 psi operating pressure to handle high-temperature production runs.
- 2″ stainless compression draw-off valve for controlled portioning and easy clean-out.
- Removable perforated disk strainer (¼″ holes) keeps solids clear of the draw-off port.
- One-piece domed stainless cover with actuator assist—opens effortlessly and stays in position.
- Heavy-duty stainless support arms seam-welded to jacket; mounts directly to wall bracket.
- All-stainless exterior wipes clean quickly and resists corrosion; NSF & ASME compliant.
- Proudly manufactured in Waynesboro, GA, USA.

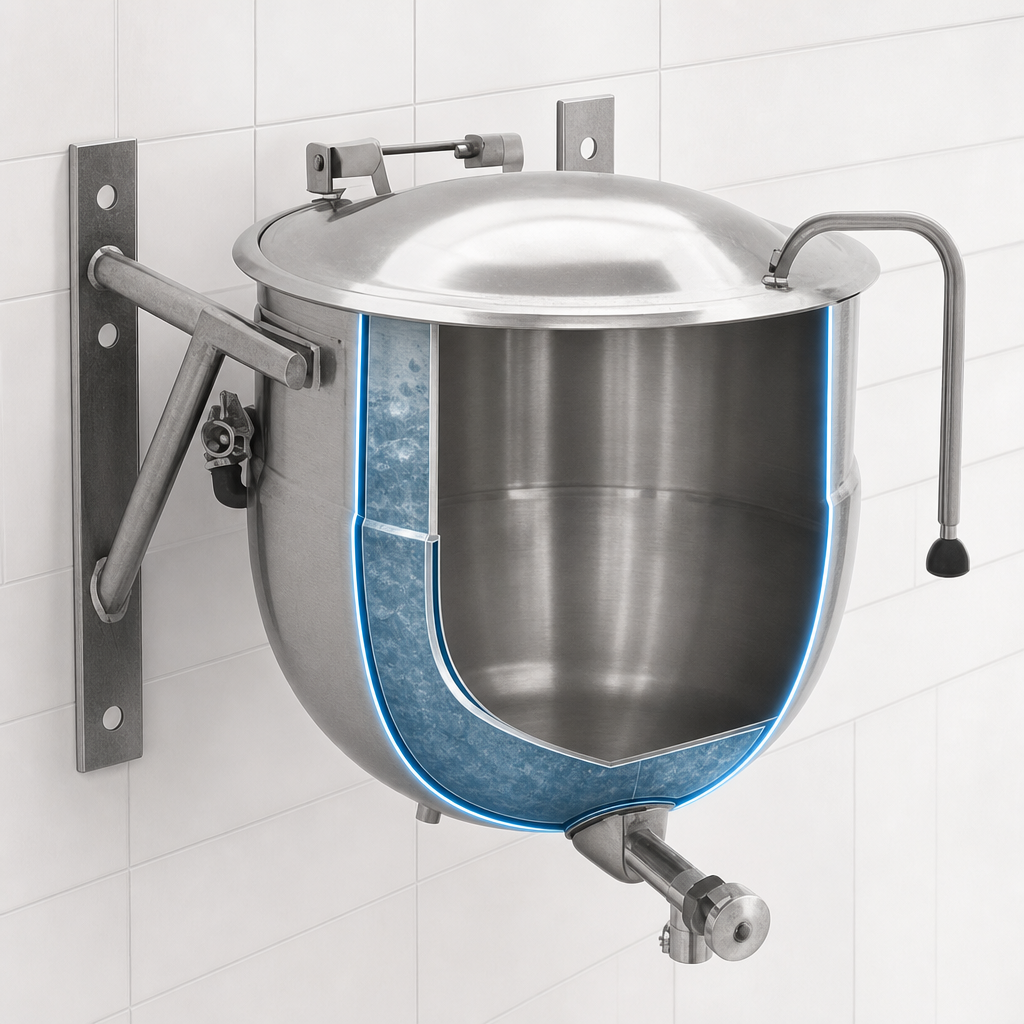

Why Direct Steam & 2/3 Jacketing?
- Side-wall heating eliminates hot spots and scorching—no constant stirring required.
- Leverages your existing boiler; no internal burners or elements to maintain.
- Rapid heat-up and recovery slash batch times and boost throughput.
- Precise temperature control through your facility’s steam regulation.
Technical Specifications
| Model | LTWT-80 (stationary, wall-mounted) |
|---|---|
| Capacity | 80 gal / 303 L (to rim) |
| Operating Pressure | 30 psi (207 kPa) |
| Construction | 304 & 304L stainless liner, jacket, cover, and support arms |
| Jacket Coverage | Two-thirds (bottom & sidewall) |
| Inside Diameter (A) | 32.5 in / 826 mm |
| Inside Depth (B) | 27.6 in / 701 mm |
| Overall Height (J1) | Approx. 78.2 in / 1,986 mm (varies with mount height) |
| Support-Arm Width (Z) | 33.0 in / 838 mm |
| Steam Connections | ¾″ NPT inlet & ¾″ NPT return |
| Draw-Off Valve | 2″ stainless compression type, removable handle |
| Included Strainer | ¼″ perforated stainless disk, quick-fit removal |
| Cover | One-piece domed, actuator-assisted stainless steel |
| Mounting | Wall bracket (in-wall carrier available) |
| Certifications | ASME-coded, NSF-listed |
| Country of Origin | USA |
*H dimension (clearance beneath draw-off) varies with valve size. Dimensions subject to change without notice.
Popular Options & Accessories (sold separately)
- 3″ draw-off valve upgrade
- Single or double fill faucets with 12″ or 18″ swing nozzle
- 48″ flexible spray hose assembly (vinyl or stainless)
- Two-speed mixer/agitator
- Automatic water-fill meter
- Tri-basket or nylon bag inserts for pasta & stock production
- In-wall carrier for additional wall support
Need a different size? LTWT kettles are available in 10, 20, 30, 40, 60, 80, and 100 gallon capacities—ask us for details.
