Legion LTWT-60 Steam Kettles
Description

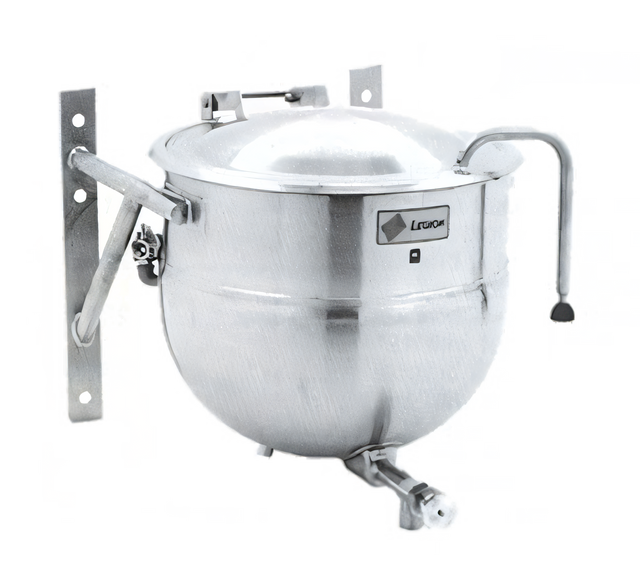

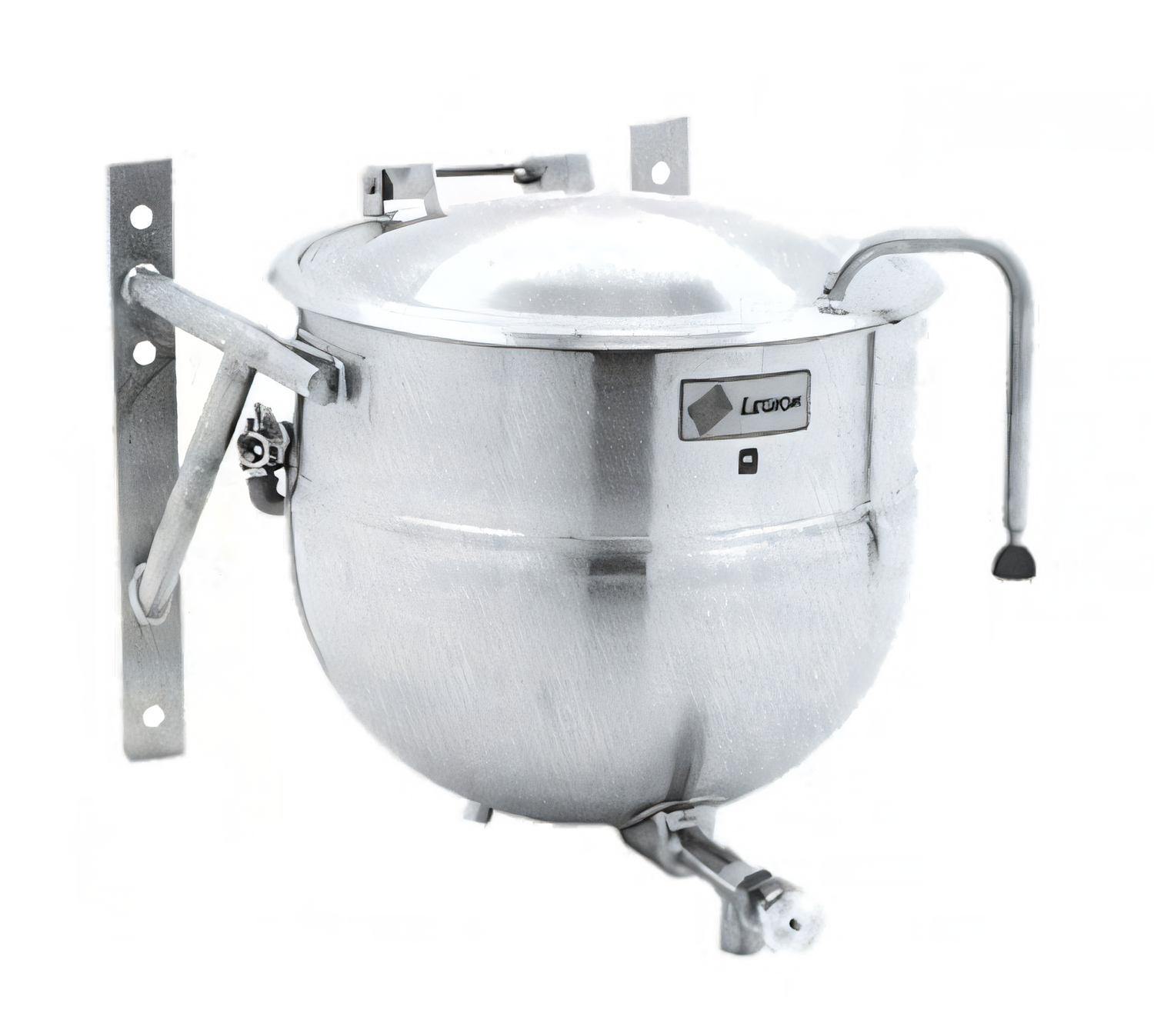

Legion LTWT-60 Stationary Direct Steam Kettle
60 gal / 227 L • Wall-Bracket Mounted • Made in USABuilt for high-volume, high-precision cooking, the Legion LTWT-60 delivers 60 gallons of consistent, even heat with the efficiency of a 2/3 jacketed direct-steam system. From scratch stocks to small-batch sauces, this deep-drawn stainless kettle is the dependable workhorse every production kitchen needs.
Key Features

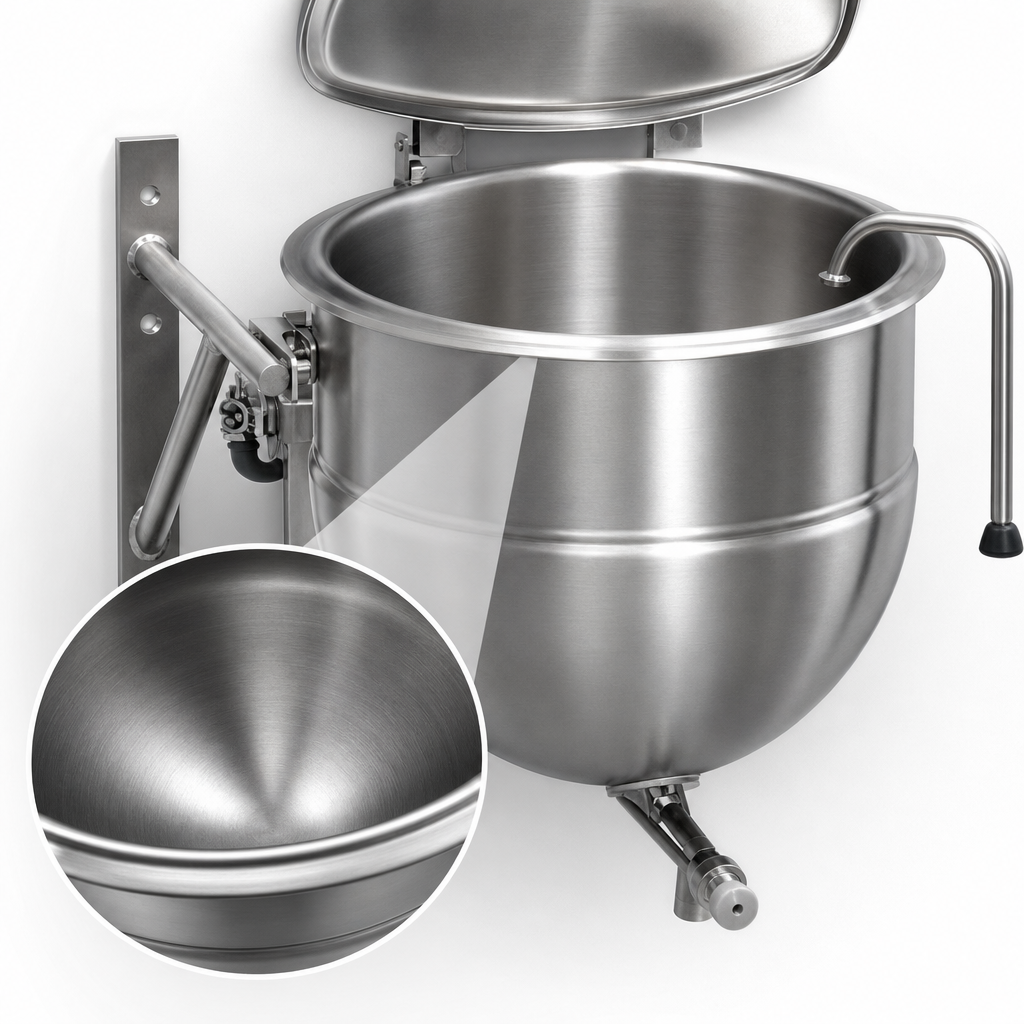

- Seamless deep-drawn 304 stainless steel kettle liner for superior sanitation and durability

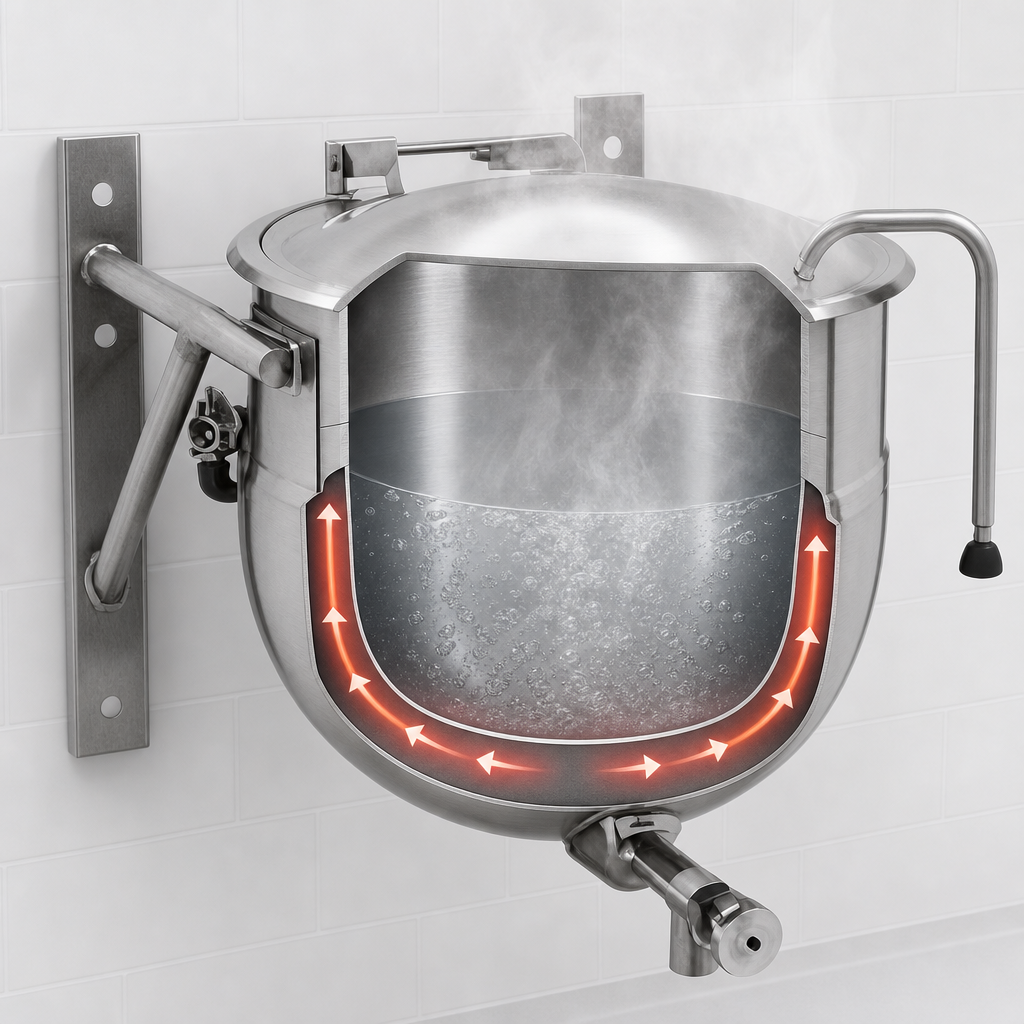

- 2/3 jacketed design heats faster and more evenly than stock pots—no hot spots
- 30 psi operating pressure handles rapid boil-ups and long simmers with ease
- 2″ compression draw-off valve with 1/4″ perforated disk strainer for smooth, clog-free product transfer
- Actuator-assisted, one-piece domed cover (304 stainless) reduces operator fatigue
- Stainless wall-mount support arms are seam-welded directly to the jacket for a rock-solid, space-saving installation
- All-304 stainless tubing, welds and fasteners—no dissimilar metals to corrode
- NSF & ASME compliant; handcrafted in the USA
What’s Included
- 60-gallon (227 L) stationary kettle body
- Stainless wall-mount bracket set
- Actuator-assisted domed cover
- 2″ compression draw-off valve with removable perforated strainer
- Operator’s manual & mounting template
Technical Specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Operating Pressure | 30 psi (2.07 bar) |
| Jacket Coverage | 2/3 of kettle body |
| Construction | 304 & 304L stainless steel, deep-drawn seamless liner and jacket |
| Draw-off Valve | 2″ compression type, 304 stainless, removable 1/4″ perforated strainer |
| Cover | One-piece domed, actuator-assisted, 304 stainless |
| Mounting | Wall-bracket, stainless support arms seam-welded to jacket |
| Inside Diameter (A) | 29.5 in / 750 mm |
| Inside Depth (B) | 25.0 in / 635 mm |
| Steam Connections | R — NPT steam return, Q — NPT steam inlet (3/4″) |
| Warranty | 12-month parts & labor (extended coverage available) |
Perfect For
- Central kitchens & commissaries
- Universities, hospitals & correctional facilities
- Sauce, soup and stock production
- Batch cooking in high-volume restaurants and caterers
Need a different draw-off valve, spray hose or automatic water fill? Legion offers a full line of factory options and accessories—contact us for details.
