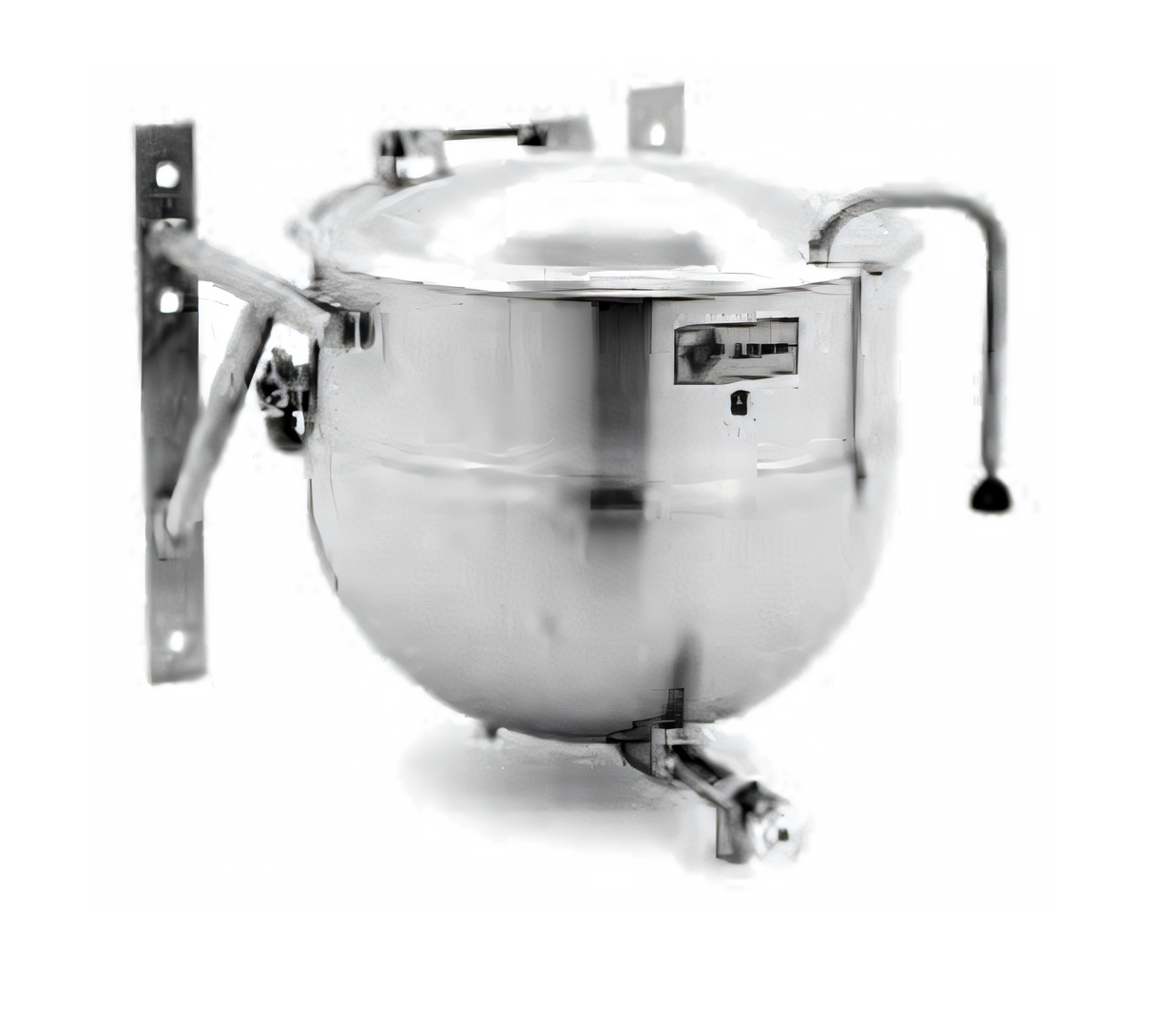

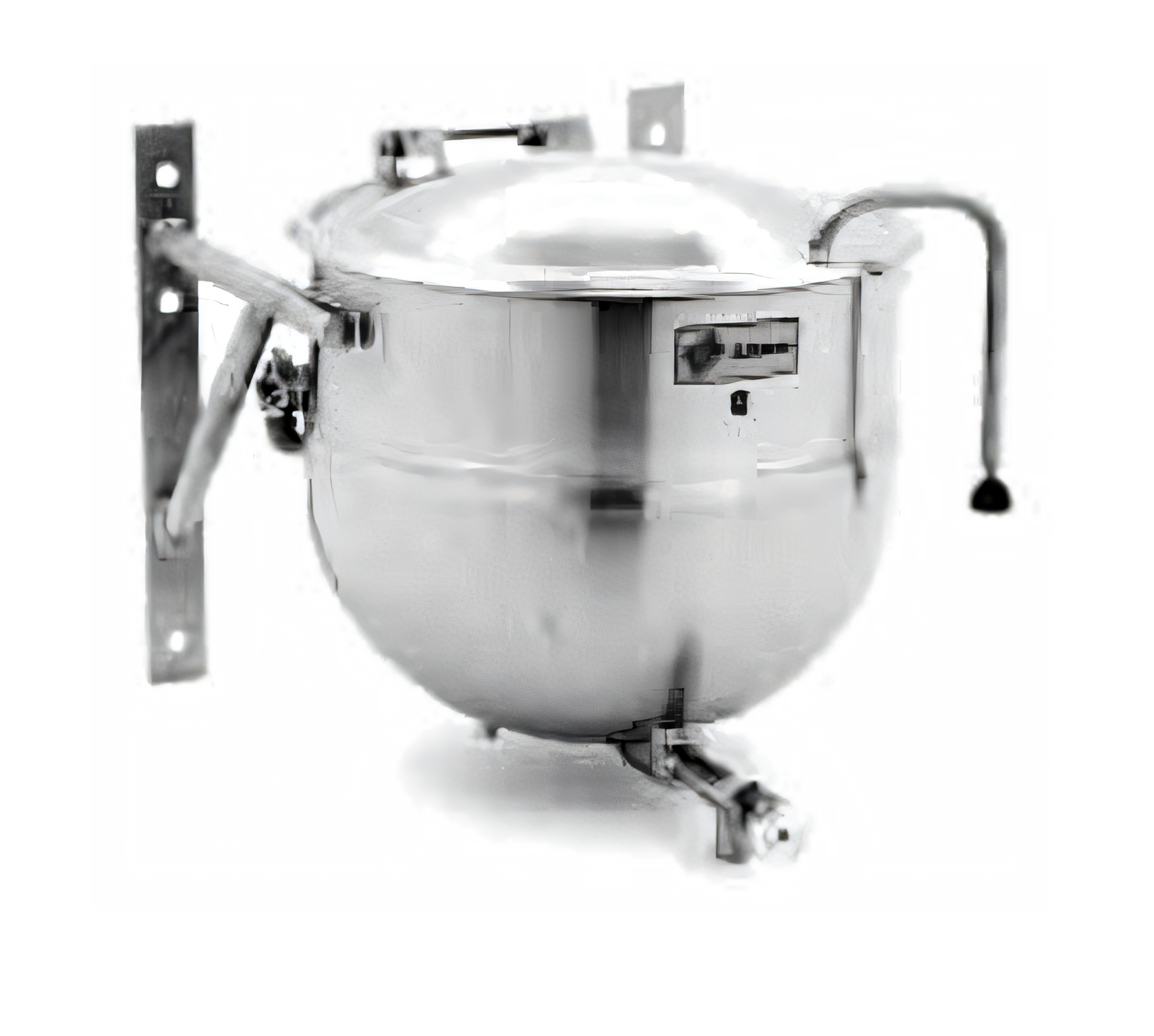

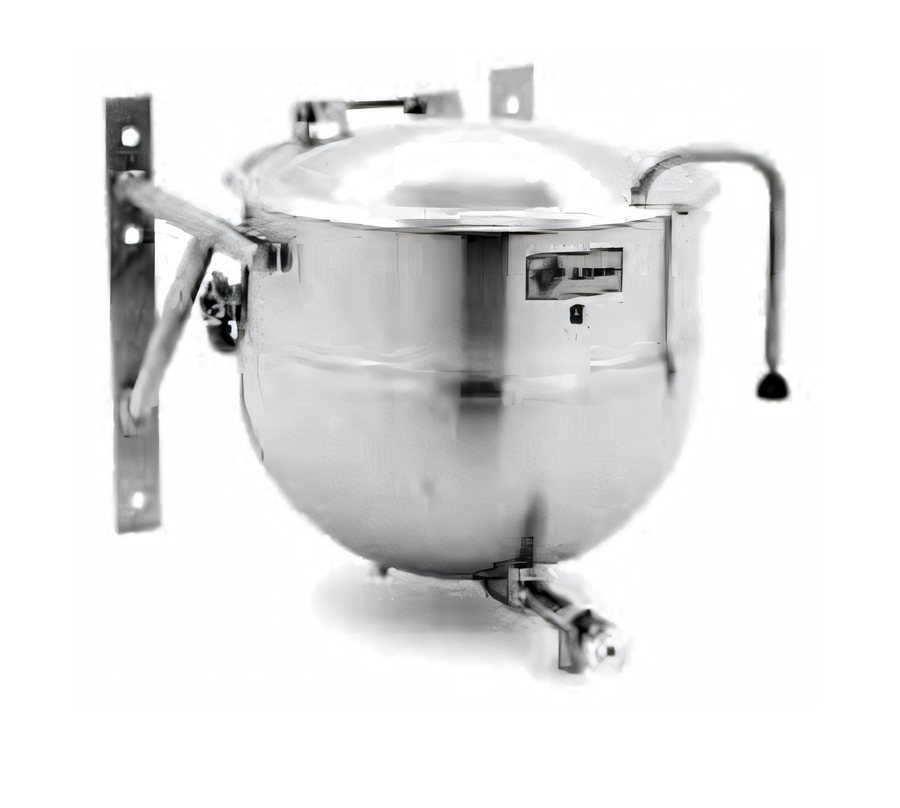

Legion LTWT 50-Gallon Direct Steam Kettle with MV Mixer
Wall-Bracket Mounted • 2/3 Jacket • 304 Stainless Steel ConstructionBuilt in the USA for high-volume, high-precision food production, the Legion LTWT series pairs a seamless deep-drawn kettle with a powerful twin-shaft agitator. The result is faster cook times, superior product consistency and the rugged durability chefs have trusted for decades.
Key Features
- 50-gallon (189 L) stationary kettle with 2/3 steam jacket for rapid, even heat transfer.
- Seamless 304 stainless steel liner resists pitting and is NSF-easy to clean.
- 304L stainless steel jacket rated 30 psi operating pressure.
- Stainless support arms seam-welded to jacket for secure wall-mount installation—frees up valuable floor space.
- 2 in. compression draw-off valve with 304 stainless tube and welds.
- Included perforated disk strainer (¼ in. holes) protects the valve from food particles.
- MV mixer package:
- Twin-shaft, fixed-mount agitator with two-speed gear motor (high & low).
- Anchor-style main agitator hugs the kettle wall; removable nylon blades constantly scrape the surface.
- Counter-rotating secondary beater improves particle suspension for perfectly blended sauces, soups and fillings.
- Quick-release, bayonet-mounted shafts for tool-free removal and cleaning.
- Actuator-assisted lift raises the entire mixer bridge for unobstructed kettle access.
- Built-in safety interlock prevents high-speed starts when agitators are raised.
- Dished, one-piece stainless cover keeps heat and moisture in; actuator assist makes lifting effortless.
- All wetted parts are food-grade 304 stainless—no coatings to chip or flake.
Performance Benefits
- Up to 30 % faster heat-up versus non-jacketed kettles.
- Consistent, lump-free results thanks to counter-rotating agitation.
- Wall mount design simplifies floor cleaning and optimizes workflow.
- Deep-drawn liner and fully welded seams eliminate crevices where food soil can hide.
- Made, assembled and quality-tested in Waynesboro, Georgia, USA.
Technical Specifications
| Capacity | 50 gal | 189 L |
|---|---|
| Operating Pressure | 30 psi (2/3 jacket) |
| Liner Material | Seamless 304 stainless steel |
| Jacket Material | 304L stainless steel |
| Mounting | Wall-bracket, stainless arms seam-welded to jacket |
| Draw-Off Valve | 2 in. 304 SS compression type & ¼ in. hole strainer |
| Cover | One-piece domed, actuator assisted |
| Mixer Type | MV twin-shaft, fixed-mount, tilt-out |
| Motor Power | High: 2 HP | Low: 1 HP |
| Agitator RPM (Main / Secondary) | High: 46 / 120 RPM | Low: 23 / 60 RPM |
| Electrical | Totally enclosed gear motor – selectable voltage & phase |
| Certifications | ASME, NSF and other applicable agency approvals |
Popular Options & Accessories
- Single or double fill faucet with 12 in./18 in. swing nozzle
- 48 in. spray-hose assembly (vinyl or stainless)
- Automatic water-fill meter
- In-wall carrier for concealed mounting
- Tri-basket or single basket inserts for steaming
- Perforated disk strainers with ⅛ in. holes
- Kettle care & cleaning kits
Need a different capacity, pressure rating or control package? Contact us for custom configurations straight from the factory.
Product Weight:
675.0 lbFrequently Asked Questions
