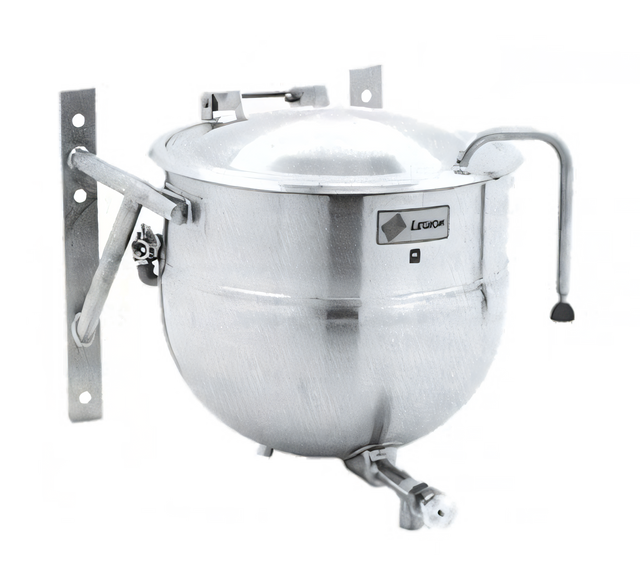

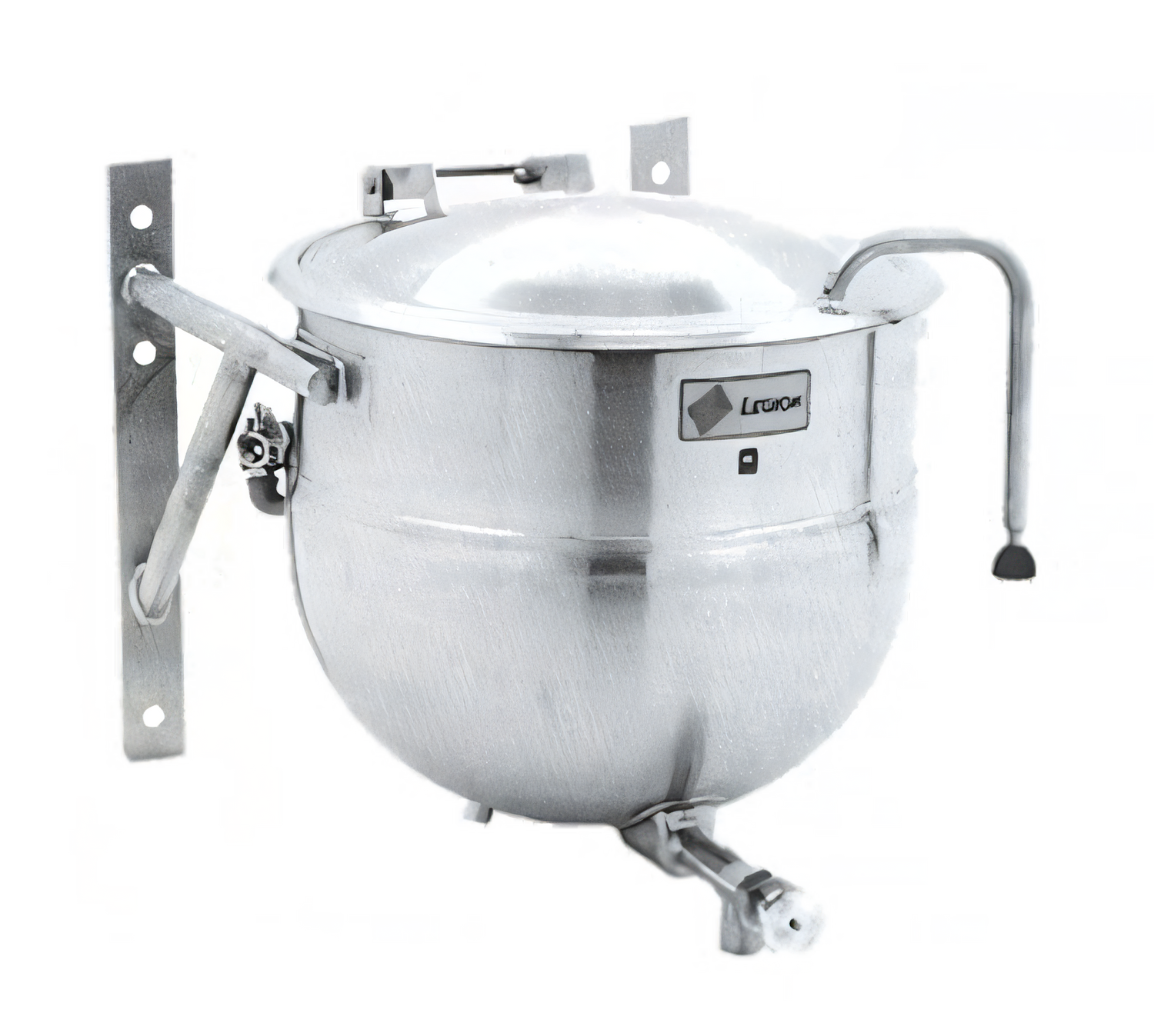

Legion LTWT-50 Steam Kettles
Description
Legion LTWT Series – 50 Gallon Stationary Direct Steam Kettle
Deep-drawn 304 stainless • 2/3 jacket • Wall-mounted • 30 psiBuilt in the USA for high-volume commercial kitchens, the 50-gallon Legion LTWT stationary kettle delivers rapid, even steam-jacketed cooking while freeing up valuable floor space. Its seamless 304 stainless steel liner and heavy-duty wall brackets are engineered to handle the toughest production schedules with rock-solid reliability and easy cleanup.
Key features & benefits
- 50 gal. (≈189 L) working capacity—perfect for stocks, soups, sauces, pasta & more.

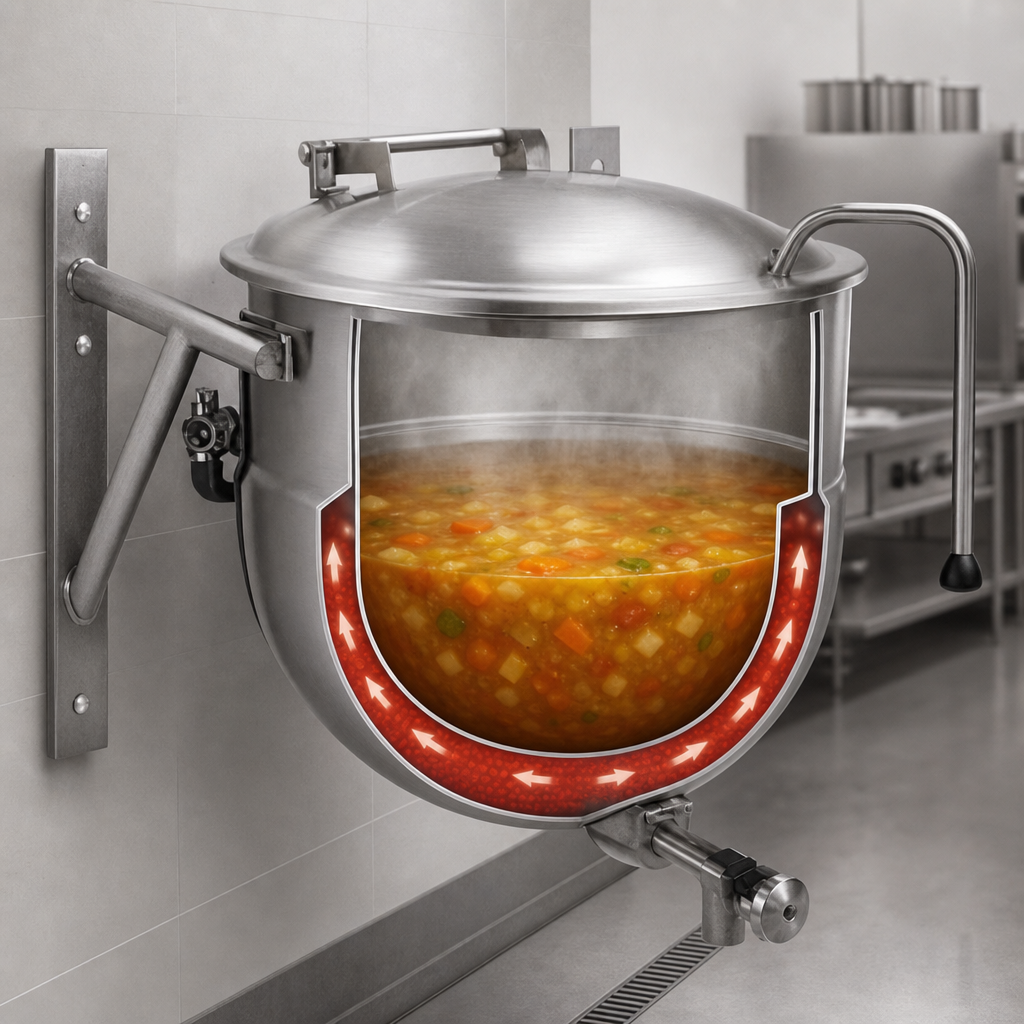

- 2/3 jacket design maximizes heat transfer for faster heat-up and consistent simmering.

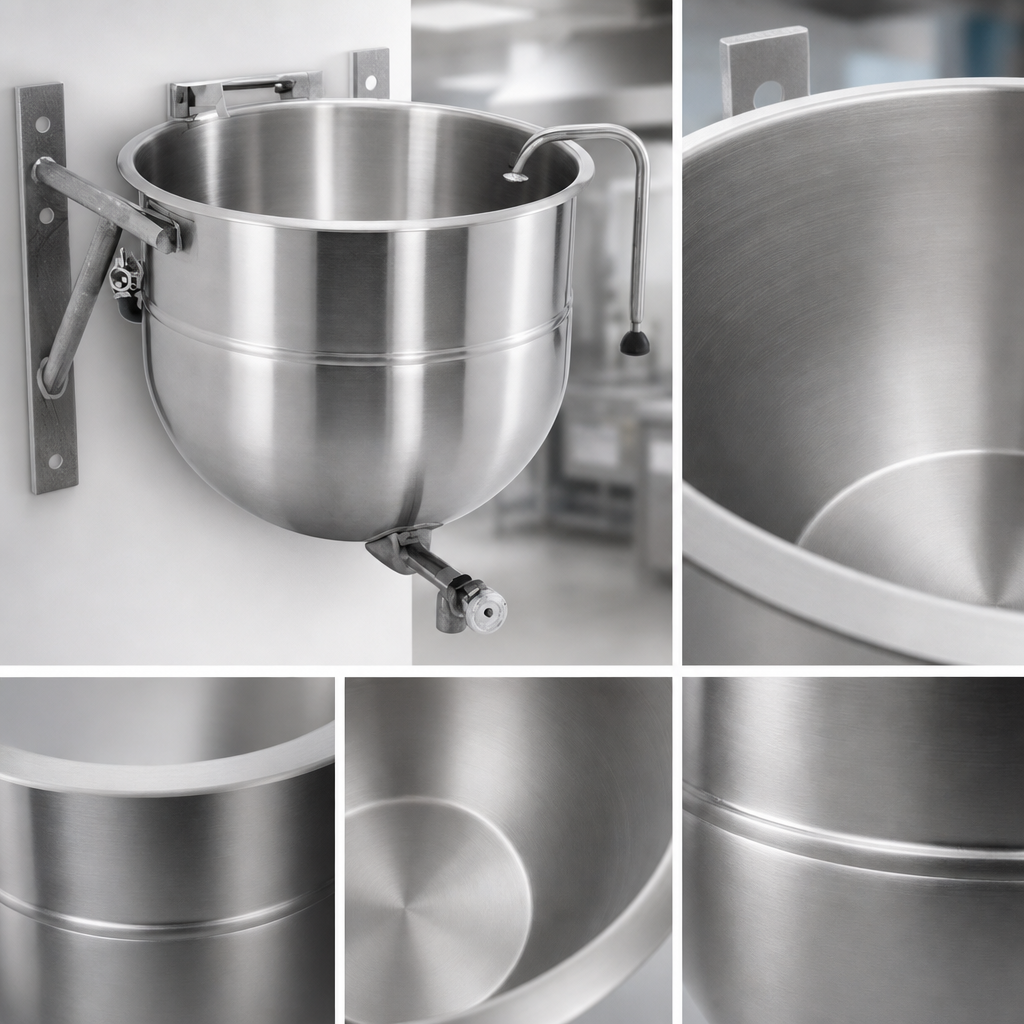

- Seamless 304 stainless steel liner resists corrosion and eliminates product “hang-ups.”
- 304L stainless steam jacket rated to 30 psi for high-energy efficiency.

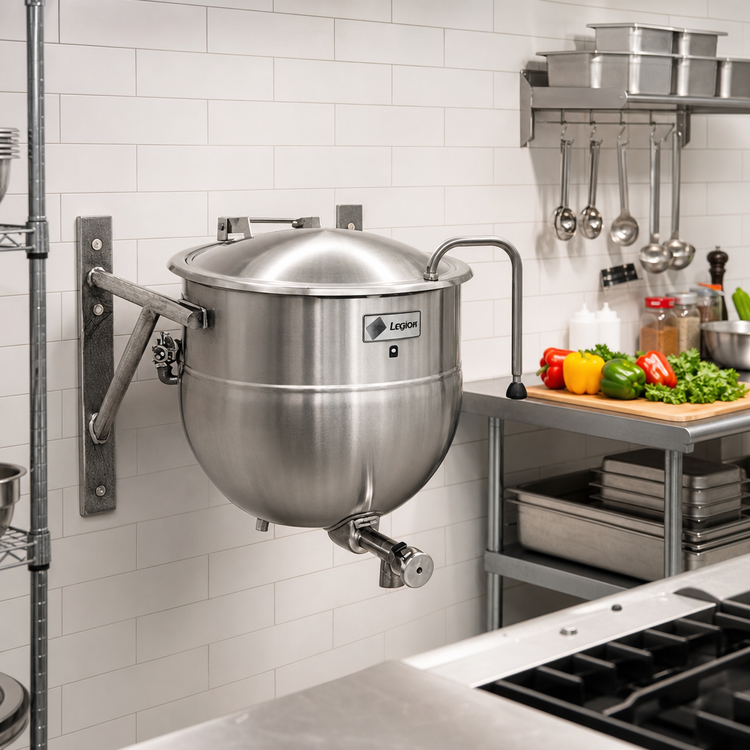

- Factory-welded stainless support arms mount directly to a wall (in-wall carrier optional)— saves floor space and simplifies cleaning under the kettle.
- 2 in. compression-style draw-off valve with 1/4 in. perforated disk strainer for quick, clog-free portioning of finished product.
- One-piece domed stainless cover with actuator assist (holds at any position, reduces lift effort).
- All welded 304 stainless construction inside and out for a lifetime of commercial service.
- Conforms to all applicable ASME & NSF standards; built in an ISO-registered U.S. facility.
Specifications
| Capacity | 50 gal. / 189 L (working) |
|---|---|
| Operating Pressure | 30 psi (207 kPa) max. steam jacket pressure |
| Liner Material | Seamless deep-drawn 304 stainless steel |
| Jacket Material | 304L stainless, seamless & deep-drawn |
| Jacket Coverage | 2/3 of kettle body |
| Draw-off Valve | 2 in. compression type, 304 stainless, with 1/4 in. perforated disk strainer |
| Cover | One-piece domed stainless, actuator-assisted |
| Mounting | Wall-mount stainless support arms, seam-welded to jacket (in-wall carrier optional) |
| Steam Connections | 3/4 in. NPT inlet & 3/4 in. NPT condensate return (field supplied) |
| Agency Compliance | ASME, NSF; manufactured to meet UL, ETL, CSA & other applicable standards |
| Country of Origin | Made in USA |
Need accessories? Ask about single or dual fill faucets, automatic water meters, basket inserts, mixer/agitator options, and more.
