Legion LTWT-40 Steam Kettles
Description

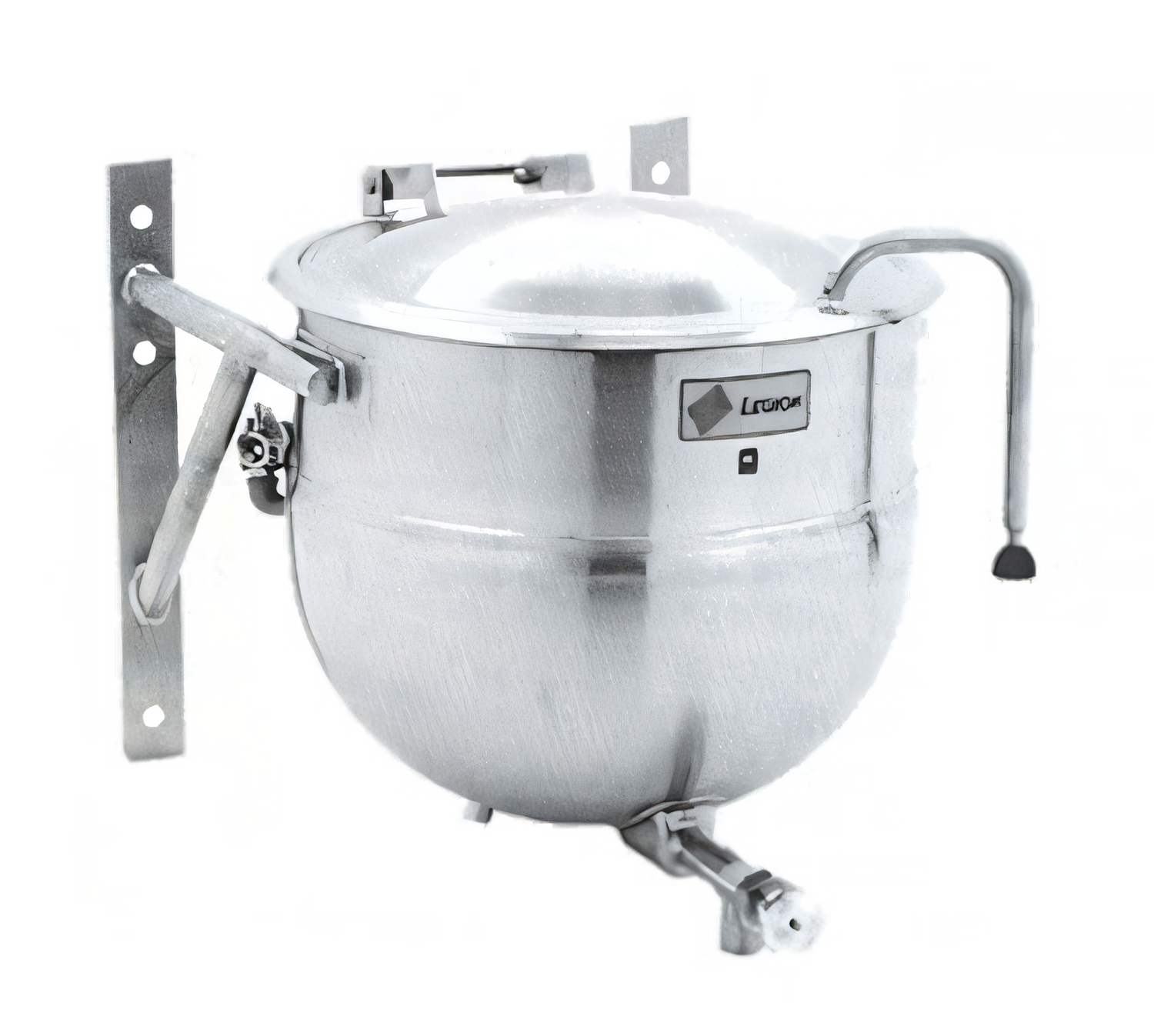

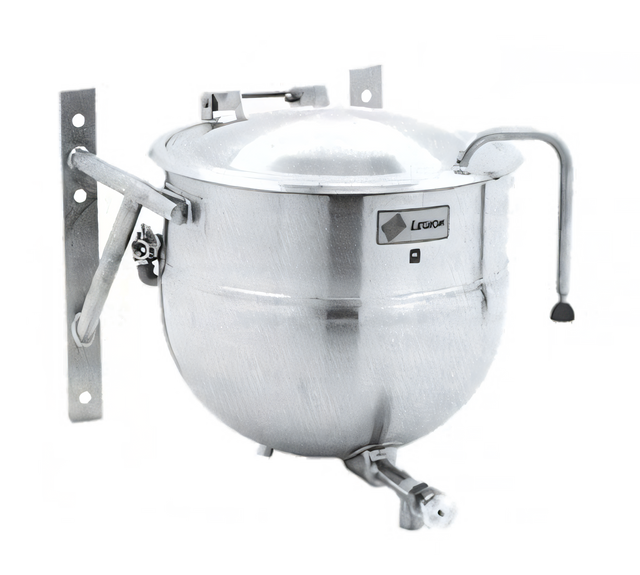

Legion LTWT-40 Stationary Direct-Steam Kettle – 40 gal
2/3 Jacketed • 304 Stainless Steel • Wall-Mount • 2 in. Draw-Off ValveEngineered and built in Waynesboro, GA, the LTWT-40 puts 40 gallons (151 L) of high-performance, energy-efficient cooking power right on your kitchen wall. Its seamless 2/3-jacketed design heats faster and more evenly than stock pots, while the wall-mount configuration frees up valuable floor space for a cleaner, safer work area.
Key Advantages

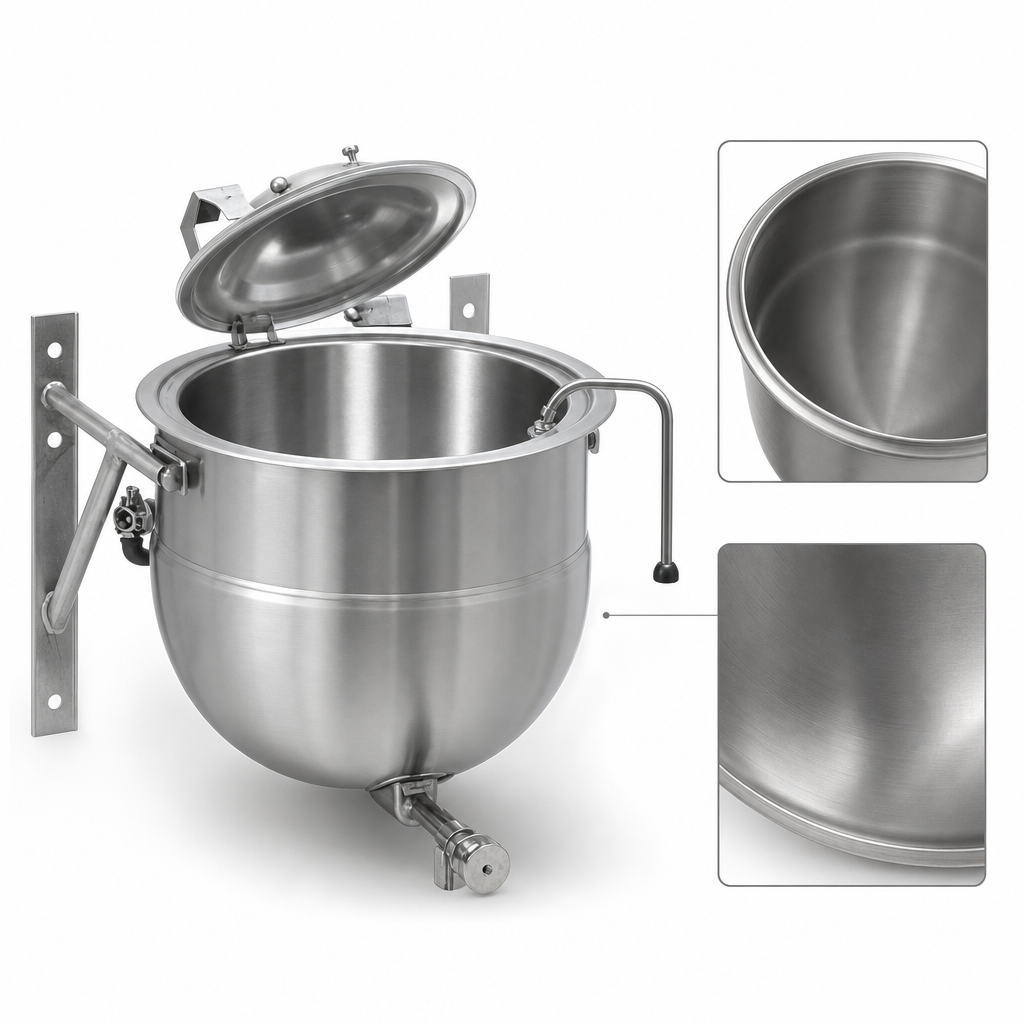

- Seamless deep-drawn 304 stainless steel kettle liner – smooth, easy-to-sanitize, and corrosion-resistant.

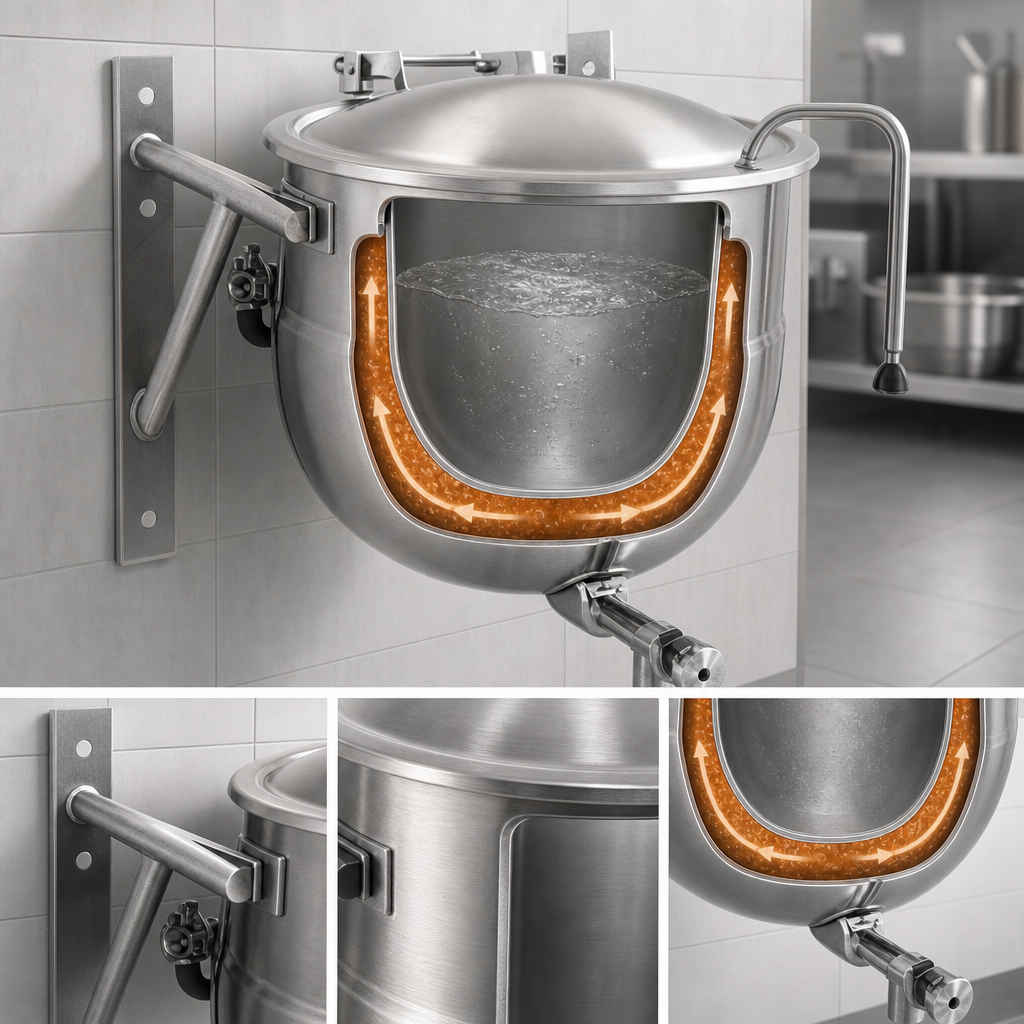

- 2/3 steam jacket for rapid heat-up and gentle, uniform cooking.
- 30 psi operating pressure delivers exceptional thermal efficiency from your existing steam supply.
- 2 in. 304 SS compression draw-off valve with ¼ in. perforated disk strainer – dispense stocks, soups, and sauces without clogging.
- One-piece domed stainless cover with actuator assist (standard on 40–100 gal models) for effortless opening and closing.
- Heavy-duty stainless support arms are seam-welded directly to the jacket for a rock-solid wall installation.
- Deep-drawn 304L stainless jacket, 304 stainless welds and fittings for long service life.
- Made in the USA and built to meet or exceed ASME & NSF requirements.
Technical Specifications
| Capacity | 40 gal | 151 L |
|---|---|
| Operating pressure | 30 psi (2.1 bar) |
| Kettle interior diameter (A) | 25.5 in. (648 mm) |
| Interior depth (B) | 22.3 in. (566 mm) |
| Overall width (C) | 36.8 in. (935 mm) |
| Overall depth (D) | 24.6 in. (625 mm) |
| Recommended mounting height (T) | 14.0 in. (356 mm) from finished floor to bracket centerline |
| Steam inlet | ¾ in. NPT |
| Steam condensate return | ½ in. NPT |
| Draw-off valve | 2 in. 304 SS compression type (included) |
| Strainer | Perforated disk, ¼ in. (6 mm) holes |
| Construction | All 304/304L stainless steel – liner, jacket, support arms, fittings, and cover |
| Country of origin | USA |
| Warranty | 1-year parts & labor (12 months from installation / 15 months from ship date) |
Steam source required: This is a direct-steam kettle and must be connected to an external 30 psi steam supply. It does not generate steam on its own.
Popular Options & Accessories (sold separately)
- 3 in. draw-off valve
- Two-piece hinged cover
- Single or dual fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. flexible spray hose (vinyl or stainless)
- 2-speed mixer/agitator
- Nylon bag or perforated basket inserts for pasta & vegetables
- In-wall carrier for flush-mount installations
From sauces and soups to chili, oatmeal, and pasta, the Legion LTWT-40 is the reliable workhorse your high-volume kitchen needs. Mount it, hook up your steam line, and start cooking smarter today.
