Legion LTWT-30 Steam Kettles
Description

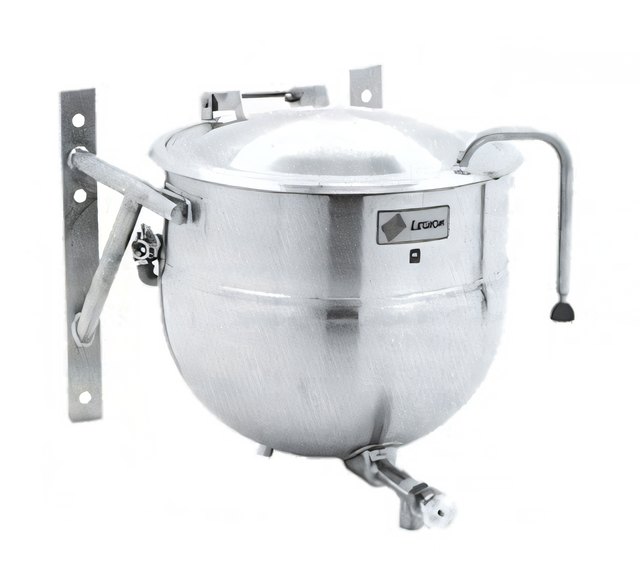

Legion LTWT-30 Stationary Direct Steam Kettle – 30 gal.
Wall-Bracket Mounted • 2/3 Jacket • Seamless 304 Stainless SteelPurpose-built for high-volume, scratch cooking, the LTWT-30 delivers the legendary durability of Legion’s deep-drawn construction in a space-saving wall-mount design. Its 30 gallon capacity and 30 psi jacket rating give you rapid heat-up, precise simmer control and all-day efficiency for soups, sauces, stocks and more.
Why Choose the LTWT-30
- 30 gallon (114 L) working capacity – perfect mid-range size for commissaries, schools and restaurants.
- Seamless 304 stainless steel kettle liner for superior sanitation and easy clean-up.

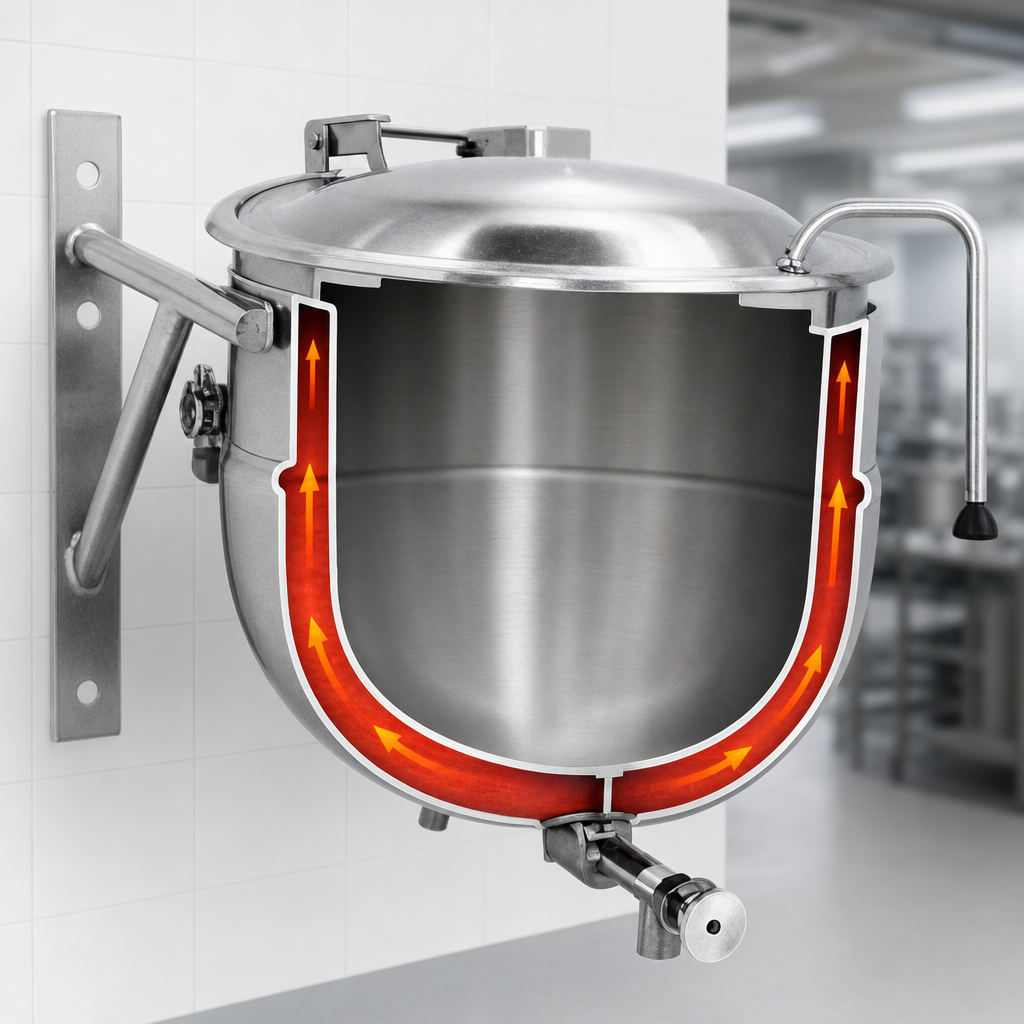

- 2/3 jacketed design surrounds the product zone for faster, even heating with no hot spots.
- 30 psi ASME-coded jacket handles high pressure steam for quick batch turnover.
- 2 in. 304 SS compression draw-off valve with removable perforated 1/4 in. strainer – ideal for straining stocks or dispensing chunky foods.
- Heavy-duty 304 SS wall-mount support arms are seam-welded directly to the jacket – no frame to clean or maintain.
- Made in the USA and engineered to meet or exceed ASME, NSF and other applicable standards.
Technical Specifications
| Model | LTWT-30 (Stationary, Direct Steam) |
|---|---|
| Capacity | 30 gal. / 114 L |
| Operating Pressure | 30 psi (2.07 bar) maximum jacket pressure |
| Jacket Coverage | 2/3 kettle height |
| Liner Material | Seamless 304 stainless steel |
| Jacket Material | 304L seamless stainless steel |
| Mounting Style | Wall-bracket, stationary (support arms welded to jacket) |
| Draw-off Valve | 2 in. compression type, 304 SS, with 1/4 in. perforated strainer disk |
| Interior Diameter (A) | 23.0 in. / 584 mm |
| Interior Depth (B) | 20.3 in. / 516 mm |
| Overall Projection (C) | 35.6 in. / 904 mm from wall |
| Steam Inlet Connection | 3/4 in. NPT |
| Condensate Return | 1/2 in. NPT |
Popular Options & Accessories (sold separately)
- Actuator-assisted one-piece cover (fits 20-30 gal. models)
- 2-piece hinged cover
- Single or double fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. flexible spray hose (vinyl or stainless)
- Automatic water-filling meter
- Mixer/agitator, 2-speed
- Tri-basket or single basket inserts
- Perforated disk strainers in alternate hole sizes (e.g., 1/8 in.)
- Kettle care & cleaning kit
Direct-steam kettles require an external steam supply (not included). Verify boiler capacity and steam quality before installation.
