Legion LTWT-20 Steam Kettles
Legion LTWT-20 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Legion LTWT-20 Steam Kettles
Description

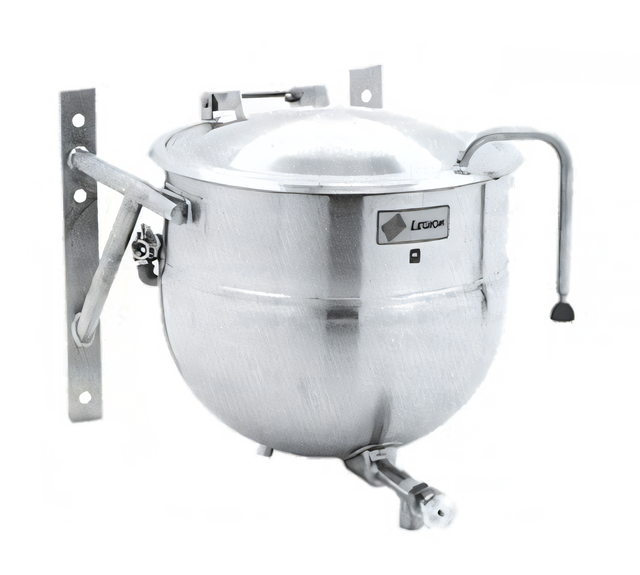

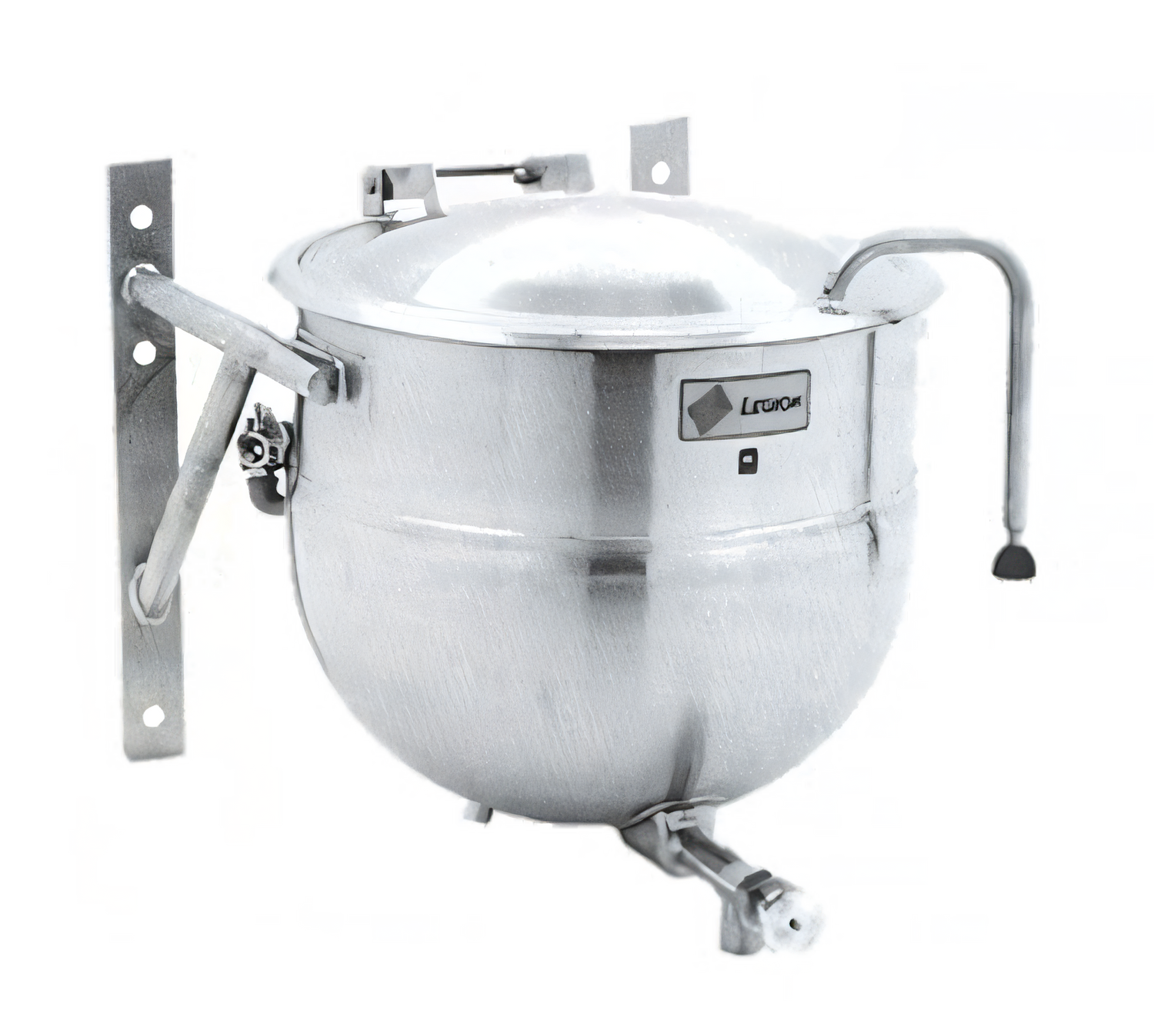

Legion LTWT-20 Stationary Direct Steam Kettle – 20 Gal.

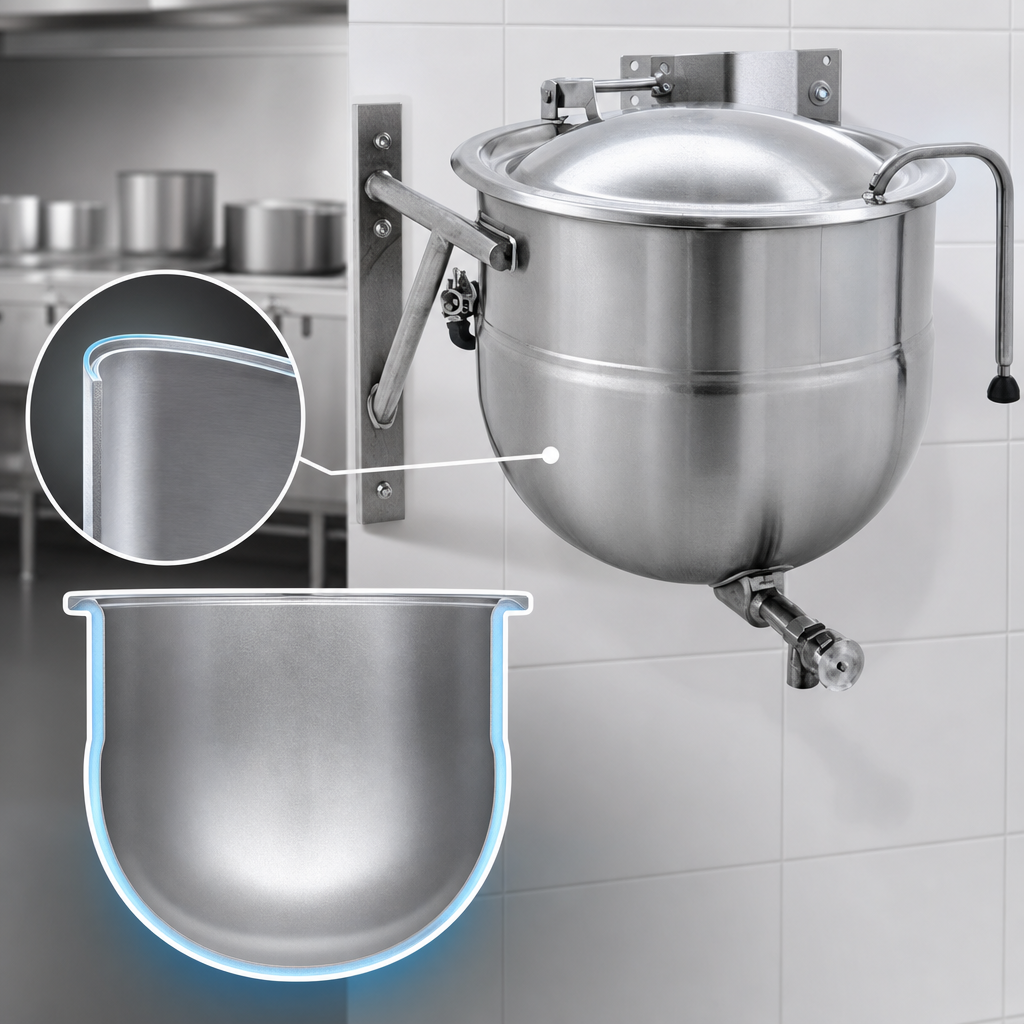

Wall-Mounted • 2/3 Jacket • 304 Stainless Steel • 30 psiIncrease production, improve consistency, and free up valuable floor space with Legion’s LTWT-20 20-gallon direct steam kettle. Deep-drawn from 304 stainless steel and supported by heavy-duty seam-welded wall brackets, this USA-made workhorse is designed for decades of dependable performance in high-volume kitchens, commissaries, and institutions.
Why Choose the LTWT-20
- Rapid, even heating – 2/3 steam jacket transfers heat across 68 % of the kettle surface for faster, more uniform results than stock pots.

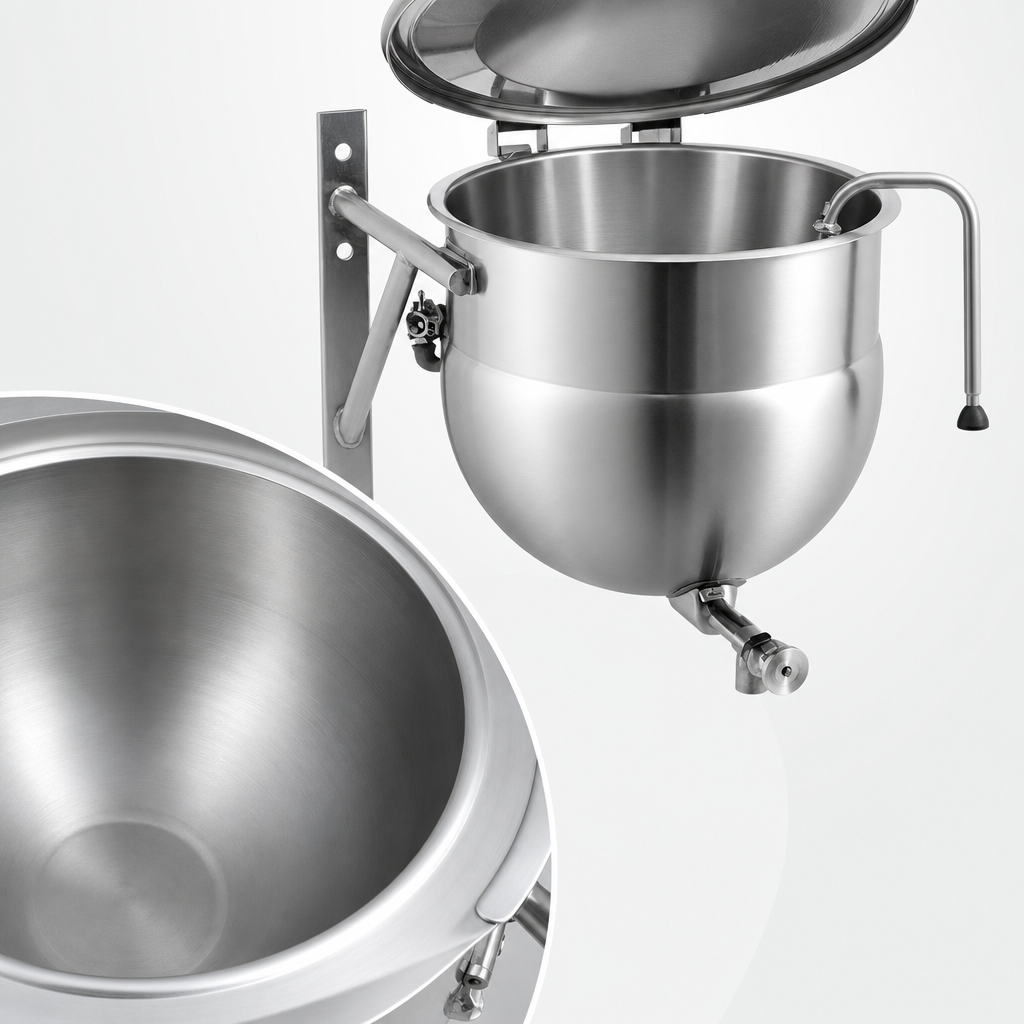

- Sanitary 304 construction – Seamless deep-drawn kettle liner, jacket, draw-off tube, and support arms are all food-grade stainless steel.
- Hassle-free dispensing – 2 in. compression draw-off valve with removable ¼ in. perforated disk strainer handles everything from soups to stews.

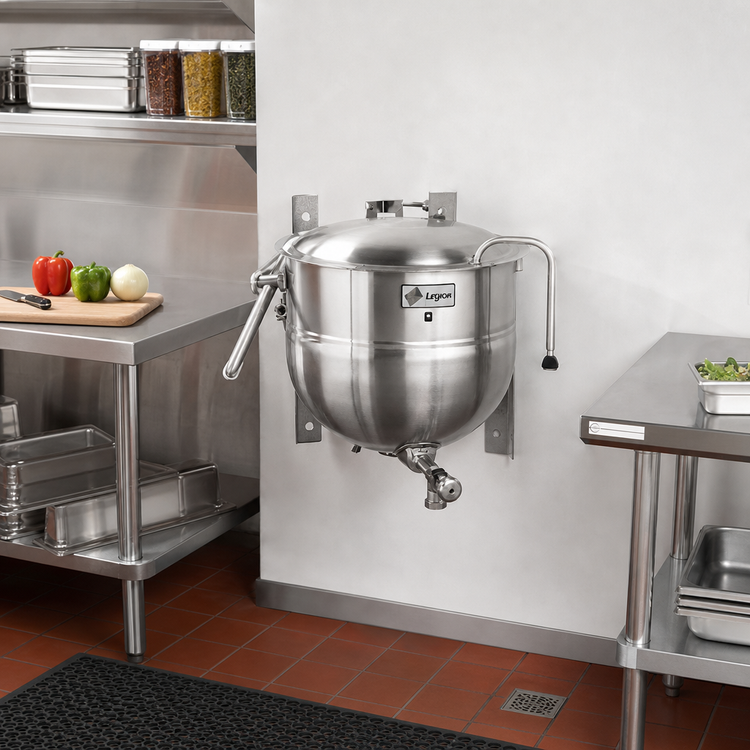

- Space-saving wall mount – Stainless steel support arms let you mount the kettle off the floor for easier cleaning and ergonomic access.
- 30 psi rating – Higher operating pressure means higher cooking temperatures and shorter batch times.
- One-piece domed cover (optional) – Keeps heat and moisture in while reducing energy use and kitchen humidity.
- Made in the USA – Built to ASME, NSF, and other applicable standards for total peace of mind.
Technical Specifications
| Capacity | 20 gal / 76 L (usable volume) |
|---|---|
| Operating Pressure | 30 psi (2.07 bar) |
| Kettle Interior (A × B) | Ø 22 in. × 16 in. deep (559 mm × 406 mm) |
| Wall-to-Spout Projection (C) | 31 in. (787 mm) |
| Recommended Mount Height (T) | 16.5 in. (419 mm) below bracket top |
| Steam Connections | ¾ in. NPT inlet (O) | ½ in. NPT return (R) |
| Draw-off Valve | 2 in. compression with ¼ in. perforated disk strainer |
| Construction | 304/304L stainless steel kettle & jacket, seam-welded arms |
| Country of Origin | Made in Waynesboro, Georgia USA |
Popular Factory Options
- Single or double fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. flexible spray-rim rinse hose (vinyl or all stainless)
- Automatic water-meter fill system
- 1-piece actuator-assisted cover (recommended for 20 gal size)
- Tri-basket or single basket insert for pasta & blanching
- In-wall carrier for hidden bracket support
Need a custom configuration? Contact our team for additional valve sizes, security hardware, or higher-pressure models.
Warranty
Legion backs every kettle with a 12-month parts & labor warranty from the date of installation (extended coverage available). Registration within 10 days of start-up is required.
