Legion LTWT-100MV Steam Kettles
Description
Legion LTWT-100 | 100-Gallon Stationary Direct Steam Kettle with MV Twin-Shaft Mixer
Wall-Bracket Mounted • 2/3 Jacket • 304 SS Construction • 30 psiEngineered for high-volume production kitchens, the LTWT-100 combines Legion’s seamless, deep-drawn kettle body with a robust two-speed MV agitator. The result is a space-saving, wall-mounted system that heats fast with direct steam, mixes consistently, and delivers dependable, repeatable results batch after batch.
Why you’ll love it
- Full 100 gal (379 L) working capacity—ideal for soups, sauces, confectionery & more.
- 2/3-jacketed body rated to 30 psi for rapid, even heat transfer and gentle simmering.
- 304 SS seamless liner & jacket resist pitting, corrosion and flavor carry-over.
- MV twin-shaft mixer (high 46 RPM / low 23 RPM) keeps particulates in suspension and scrapes the entire kettle surface with removable nylon blades.
- Heavy-duty 2 HP (high) / 1 HP (low) gear motor with safety interlock prevents high-speed starts.
- Actuator-assisted bridge lifts clear for effortless product loading, sampling and sanitation.
- 2" 304 SS compression draw-off valve with ¼" perforated disk strainer speeds draining while keeping solids out of the plumbing.
- Wall-mount stainless support arms seam-welded to the jacket—no legs to clean around.
- Made in the USA and built to ASME & NSF standards.
Technical specifications
| Model / Capacity | LTWT-100 • 100 gal (379 L) |
|---|---|
| Kettle Type | Stationary, wall-bracket mounted, direct-steam, 2/3 jacketed |
| Liner & Jacket Material | Seamless 304 & 304L stainless steel |
| Operating Pressure | 30 psi (207 kPa) |
| Draw-off Valve | 2" 304 SS compression-type, with ¼" perforated disk strainer |
| Mixer Type | MV twin-shaft agitator, two-speed (Low 23 RPM / High 46 RPM main agitator) |
| Mixer Motor Power | Low 1 HP • High 2 HP, totally enclosed gear motor |
| Inside Diameter (A) | 39 in (991 mm) |
| Inside Depth (B) | 25.9 in (658 mm) |
| Recommended Wall Mount Height (T) | 21.5 in (546 mm) below top support plate |
| Utilities | Steam inlet & condensate return (NPT); electrical supply sized for mixer motor (specify voltage/phase at order) |
| Standard Inclusions | One-piece domed cover, perforated disk strainer, actuator-assisted mixer lift, rim lock & latch, ASME code stamp |
Popular factory-installed options
- 3" draw-off valve
- Automatic water fill meter
- 48" flexible spray hose assembly (vinyl or stainless)
- Two-piece hinged cover
- In-wall carrier for concealed mounting
- Security package: lockable lid & tamper-resistant draw-off fastener

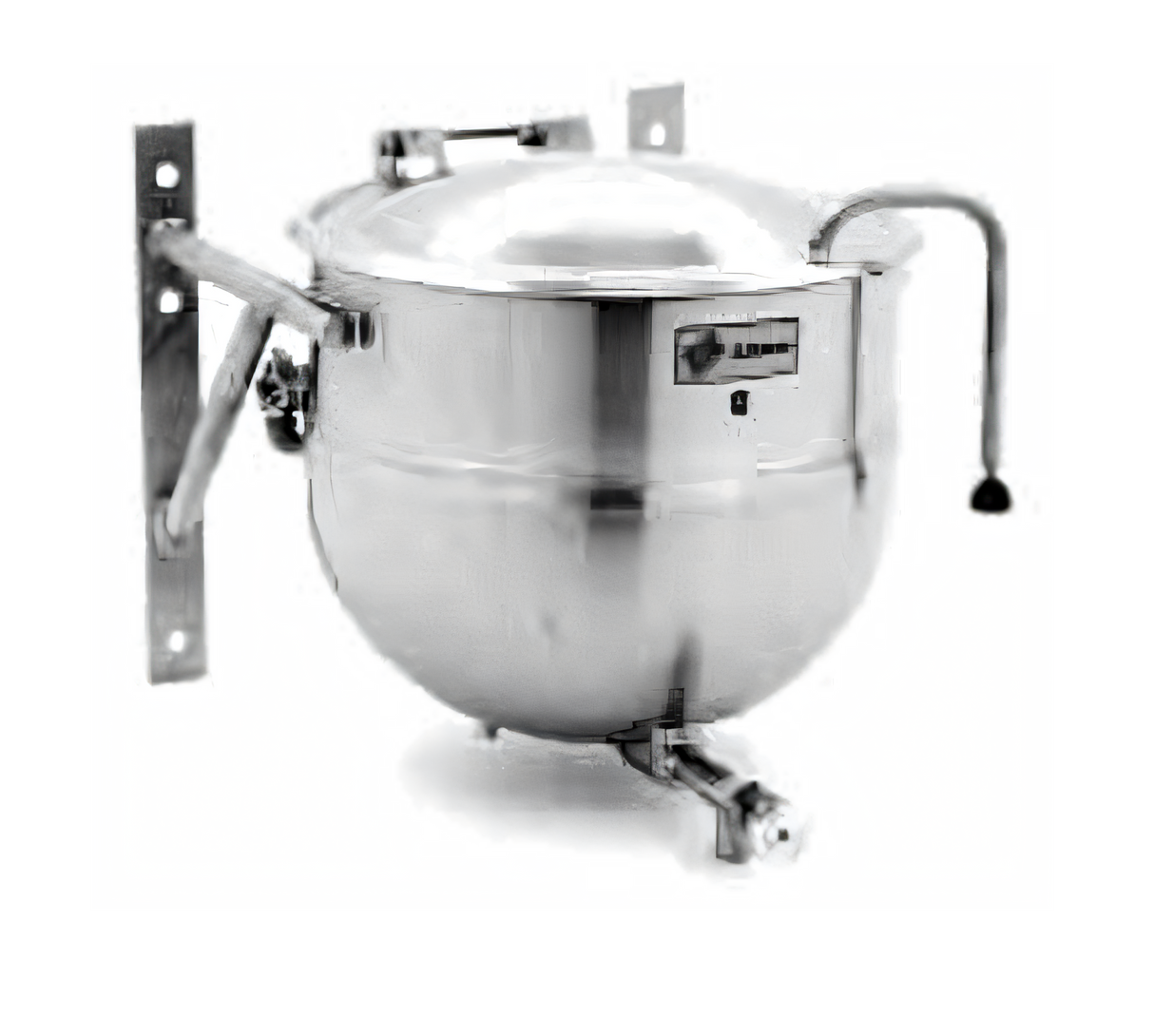

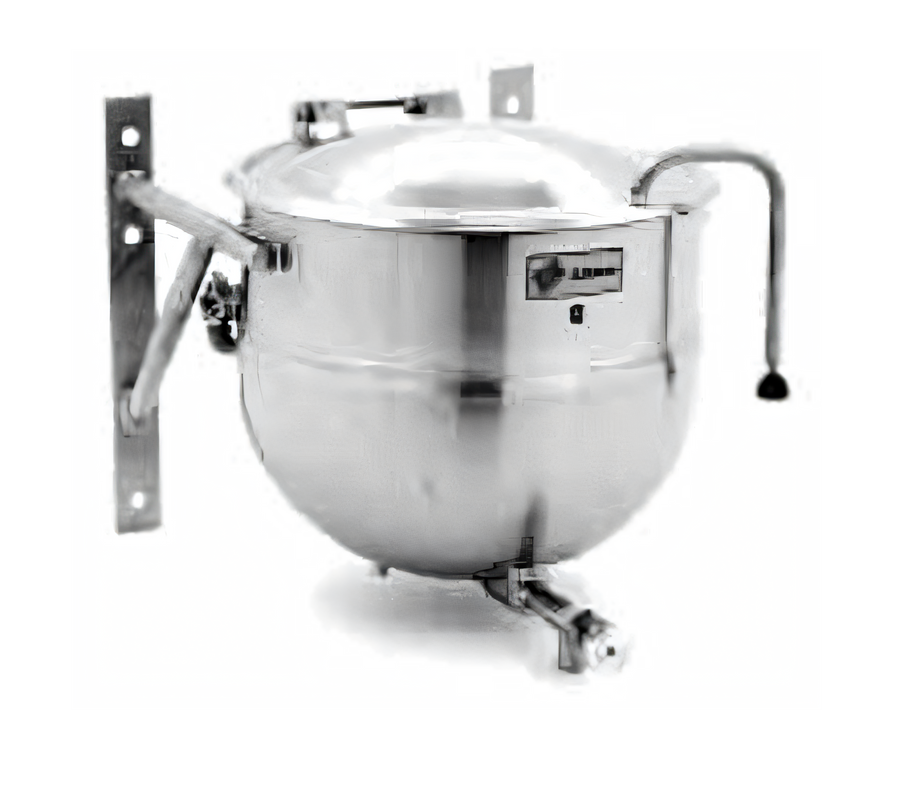

Photos may show larger or optional configurations. Contact us for CAD blocks, utility rough-ins or to discuss custom options.
