Description

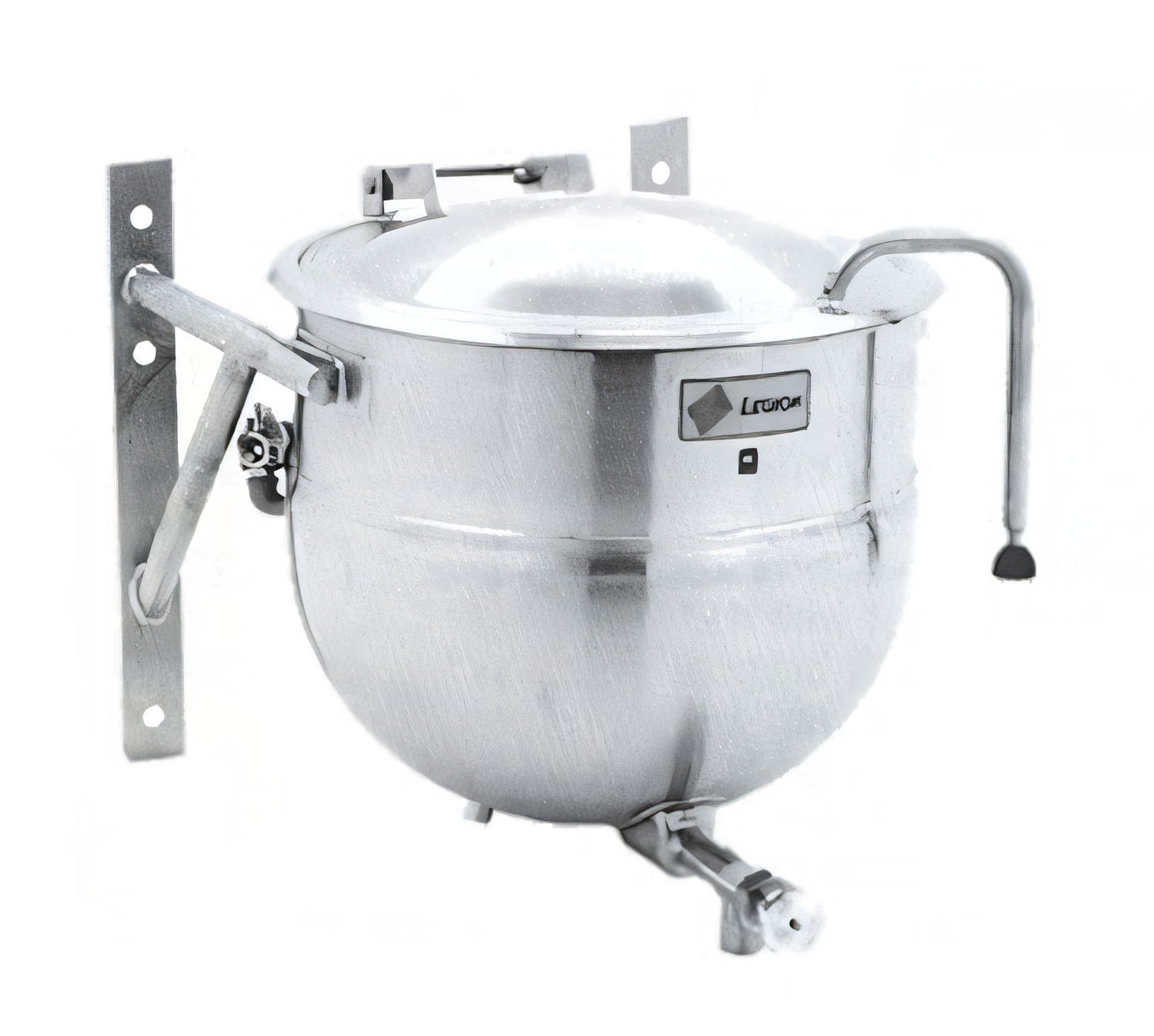

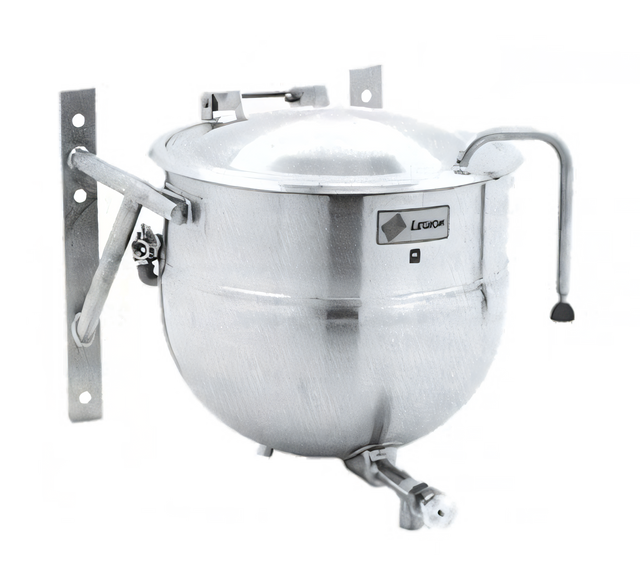

Legion LTWT-100 Stationary Direct Steam Kettle – 100 Gal.

Deep-Drawn 2/3 Jacket • 304 SS • Wall-Mounted • 30 psi

Engineered for the heaviest production loads, the LTWT-100 brings Legion’s legendary build quality to a massive 100-gallon (379 L) capacity. Seamless 304 stainless construction, a full 2/3 steam jacket and an actuator-assisted cover deliver rapid, even heating with effortless operation—perfect for soups, sauces, stocks and large-batch menu items that keep your service line moving.

Why This Kettle Stands Out

  • 100-gallon capacity handles high-volume production with fewer batches.

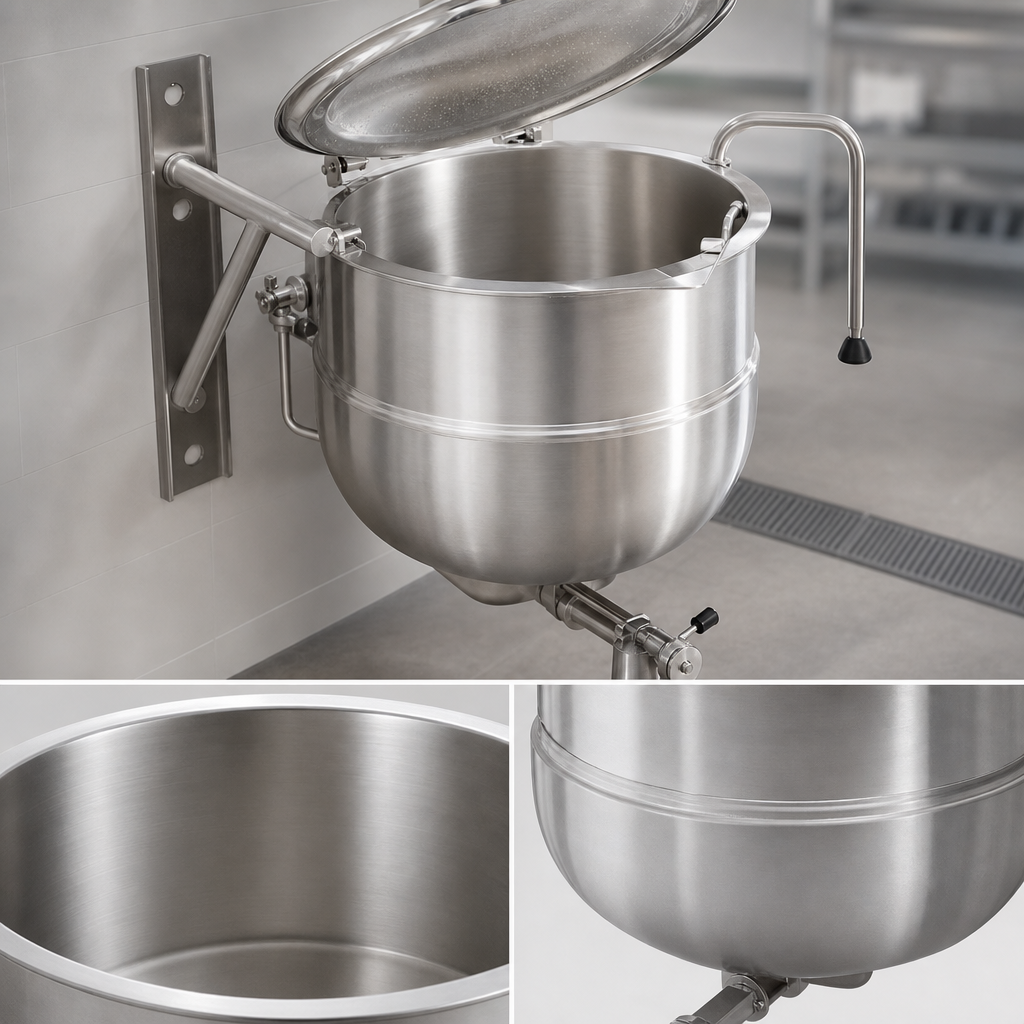

  • Seamless deep-drawn 304 stainless liner eliminates interior weld seams for superior sanitation and easy cleaning.
  • 2/3 steam jacket surrounds product with even, consistent heat—no hot spots.

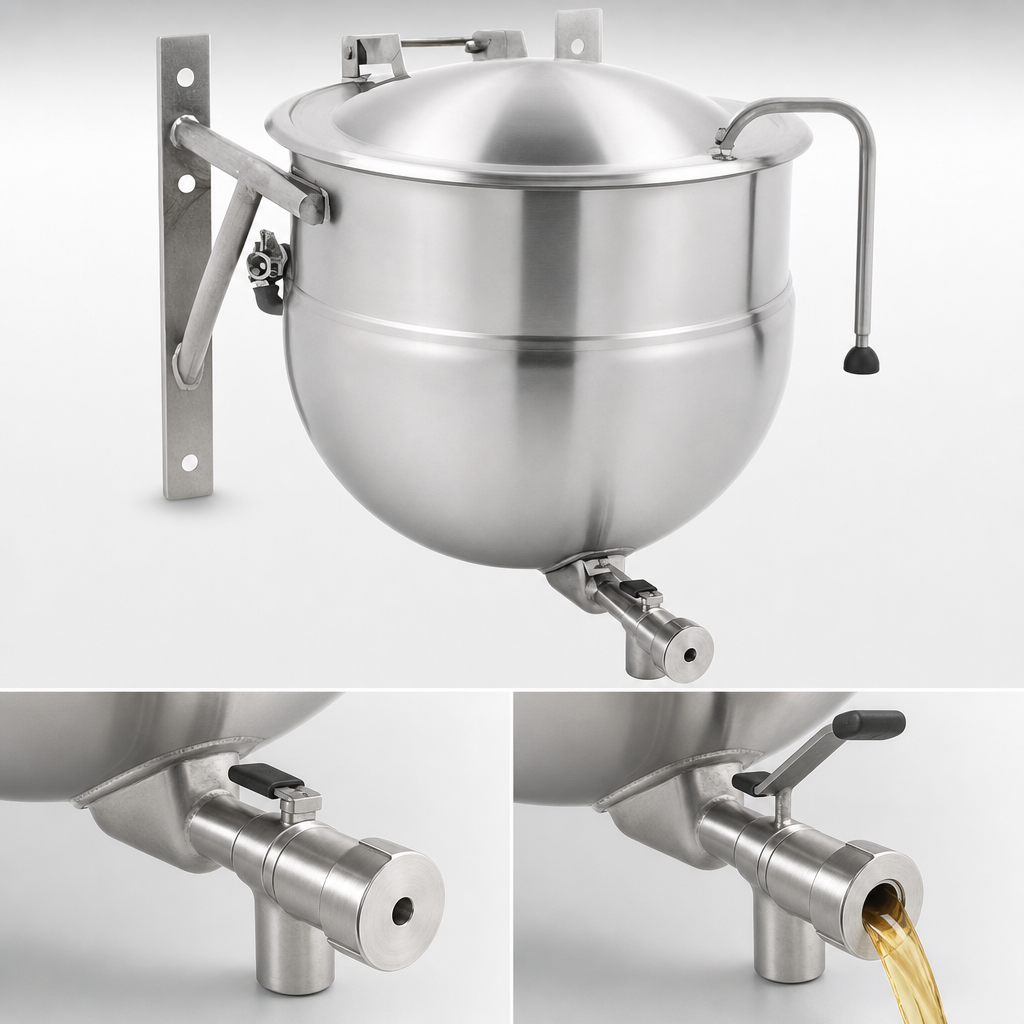

  • 2" compression draw-off valve (304 SS) for fast, controlled portioning; supplied with a removable 1/4" perforated disk strainer to catch solids.
  • Actuator-assisted domed cover (one-piece stainless) lifts with minimal effort and helps retain heat and moisture.
  • Wall-mount stainless support arms are seam-welded directly to the jacket for a rock-solid, space-saving installation.
  • Rated 30 psi operating pressure for rapid cook times and energy efficiency.
  • Made in the USA and built to applicable ASME & NSF standards.

Technical Specifications

Model LTWT-100 (wall-bracket mounted)
Capacity 100 gal / 379 L
Jacket Coverage 2/3 of kettle body
Operating Pressure 30 psi (207 kPa) max.
Liner & Jacket Material Seamless 304 & 304L stainless steel
Interior Diameter (A) 39.0 in  (991 mm)
Interior Depth (B) 25.9 in  (658 mm)
Overall Height (J1) 82.7 in  (2 102 mm) *
Bracket Width (Z) 39.5 in  (1 003 mm)
Draw-Off Valve 2" 304 SS compression, with 1/4" perforated strainer
Cover One-piece domed, actuator-assisted, 304 SS
Steam Connection Direct steam (customer-supplied boiler)
Mounting Wall-bracket, stainless arms seam-welded to jacket
Origin Waynesboro, GA USA

*Height varies slightly with draw-off configuration.

What’s Included

  • LTWT-100 stationary 2/3-jacket kettle
  • Actuator-assisted cover (factory-installed)
  • 2" compression draw-off valve & 1/4" perforated disk strainer
  • Stainless wall-mount bracket set
  • Installation & operation manual
  • 12-month parts & labor warranty
Important: This model is stationary and direct-steam. It must be mounted to a structurally sound wall and connected to an external 30 psi (max) steam supply by a qualified installer in accordance with local codes.

Boost capacity, speed and consistency in one step—choose the Legion LTWT-100 and keep your high-volume kitchen running at full steam.

Features & Specs

Manufacturer

Legion

Shipping Weight

539.0lbs

Kettle Jacket

partial jacket

Capacity

80 - 150 gallon

Base

wall mount

Kettle Liner

304 stainless steel

Specifications

Stationary Direct Steam Kettle, 100-gallon, 304 stainless steel liner, 2/3 jacket, 2" draw-off valve with perforated 1/4" hole strainer, actuator-assisted cover, stainless steel construction, wall mounting stainless steel support arms seam welded to jacket, 30 psi
