Legion  |  SKU: LTWT-10

Legion LTWT-10 Steam Kettles

$6,534.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

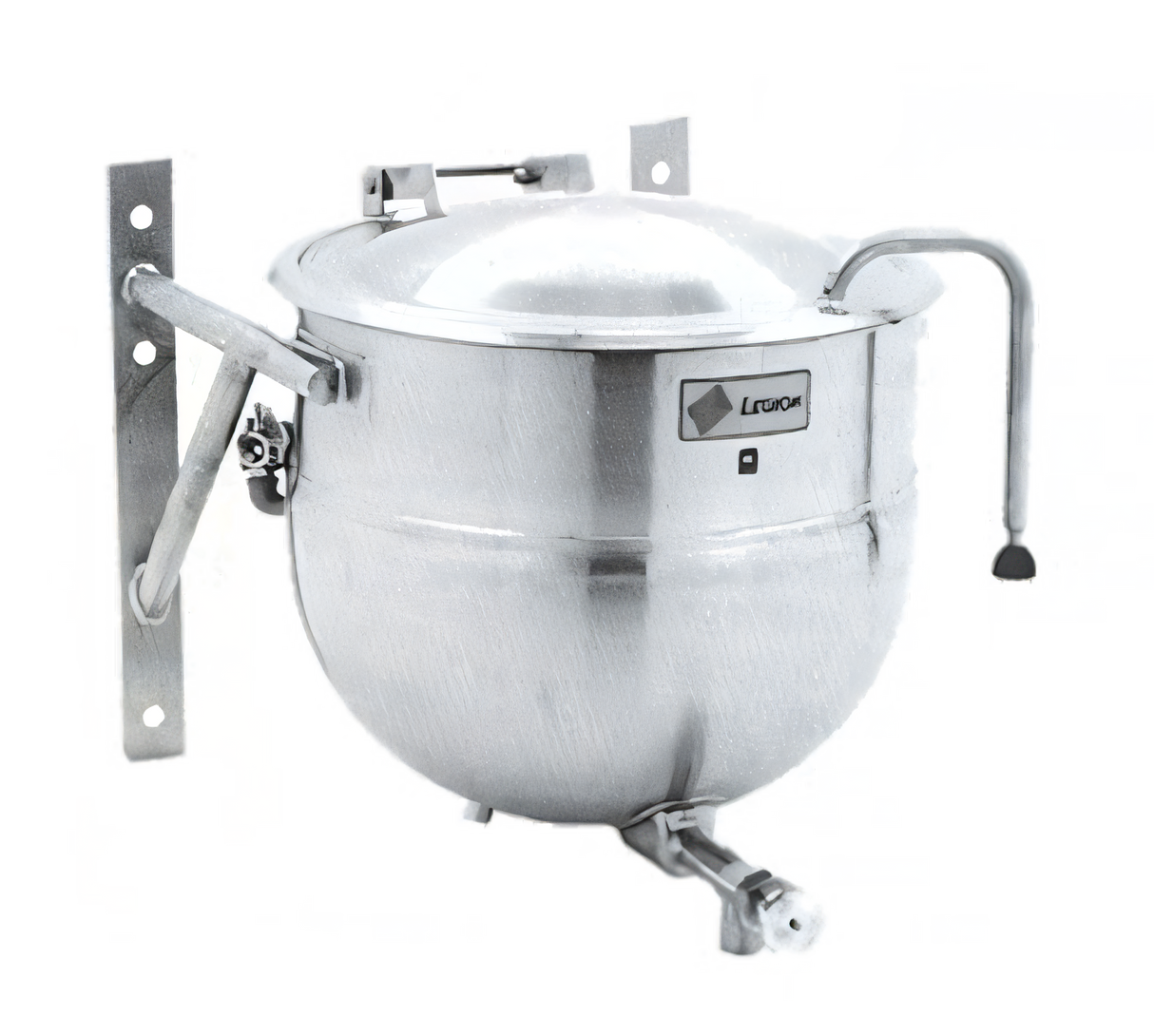

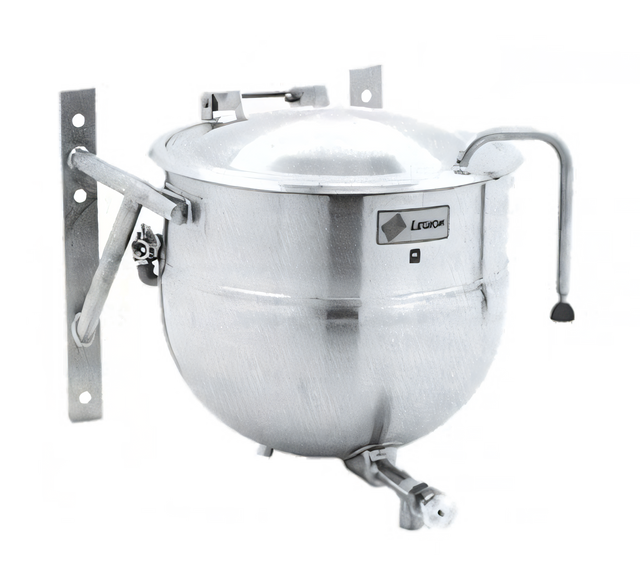

Legion LTWT-10 Stationary Direct Steam Kettle

10 gal (38 L) • Wall-Mounted • 2/3 Jacketed • 30 psi

Built in the USA for demanding commercial kitchens, the LTWT-10 delivers the speed, efficiency, and durability of a full-size steam kettle in a space-saving wall-bracket design.

Key Features

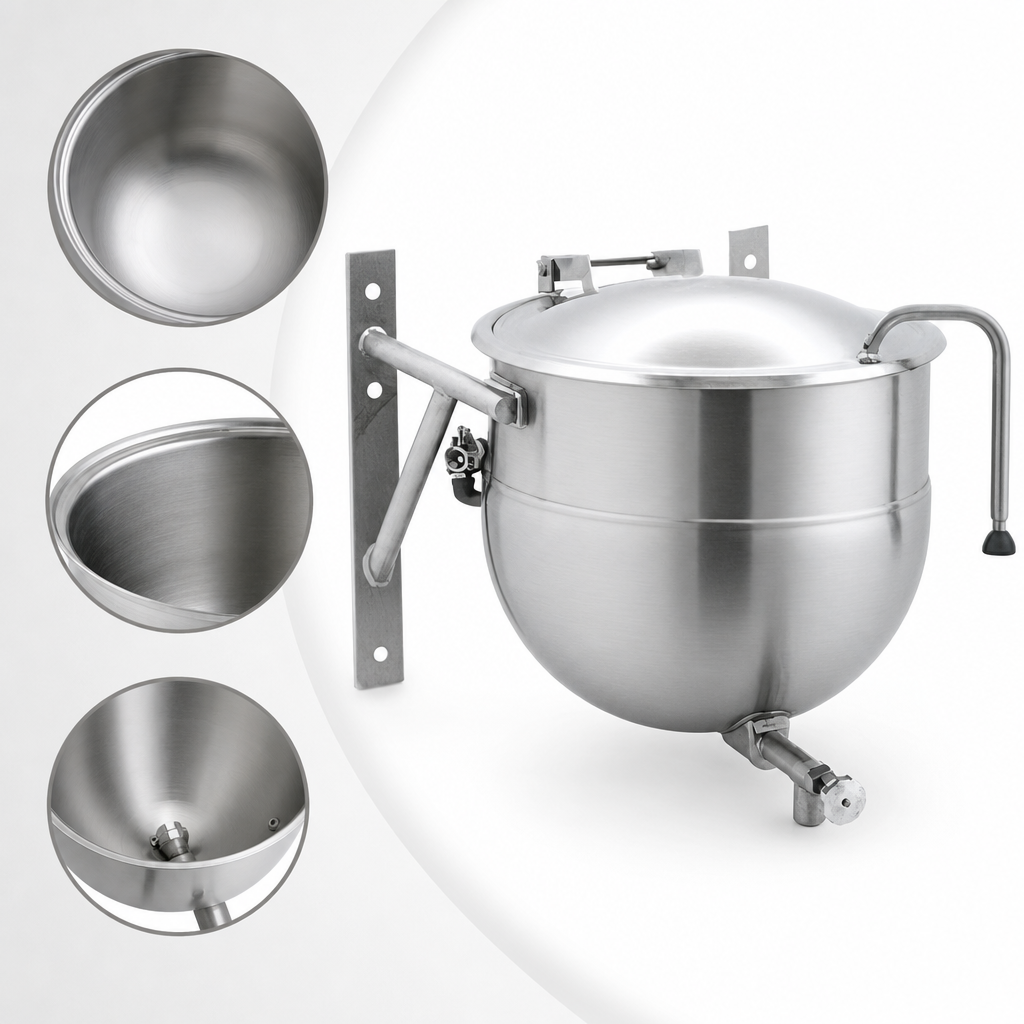

  • Seamless deep-drawn 304 stainless steel liner resists pitting and corrosion.

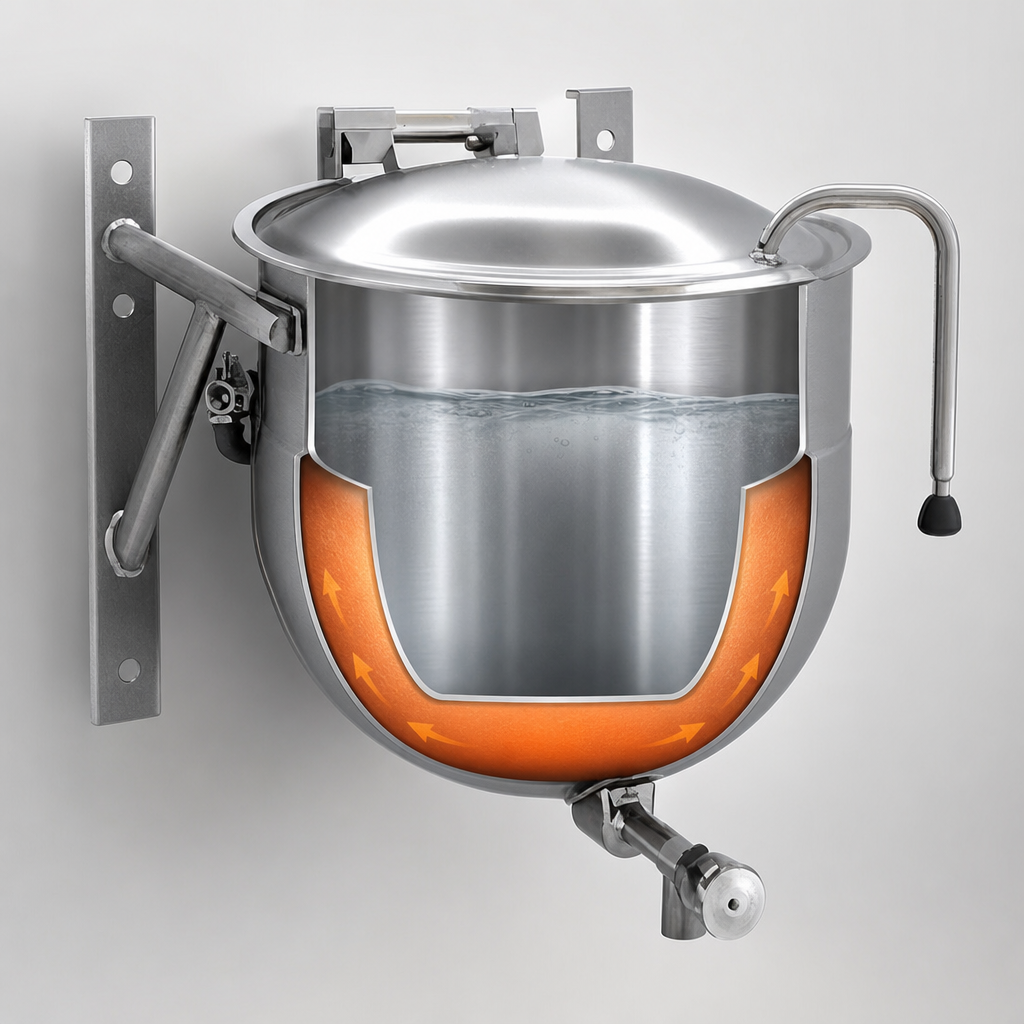

  • 2/3-jacketed body surrounds product with pressurized steam for rapid, even heating.
  • Factory-rated 30 psi operating pressure—connects directly to your house steam line.
  • Hygienic 2 in. compression draw-off valve with removable ¼ in. perforated disk strainer.
  • 304 stainless draw-off tube and welds for long-term leak-free service.
  • Heavy-duty stainless support arms seam-welded to the jacket; mounts to an in-wall carrier.
  • NSF-listed, ASME-code constructed, and backed by Legion’s 12-month parts & labor warranty.
Specifications
Model LTWT-10
Capacity 10 gal  /  38 L
Construction 304 SS liner & 304L SS 2/3 jacket, deep-drawn
Operating Pressure 30 psi (2.07 bar)
Draw-Off Valve 2 in. compression, 304 SS
Included Strainer Perforated disk, ¼ in. holes
Mounting Wall bracket with stainless support arms
Inside Diameter (A) 16 in. / 406 mm
Inside Depth (B) 14 in. / 356 mm
Approx. Rim Height* 49.8 in. / 1265 mm

*Rim height varies slightly with installation and draw-off configuration.

Popular Accessories (Sold Separately)
  • Single or double fill faucet with 12″ or 18″ swing nozzle
  • 48″ flexible spray hose assembly (vinyl or stainless)
  • Perforated basket, tri-basket, or nylon bag inserts for bulk cooking
  • Automatic water-filling meter
  • Kettle care kit for routine maintenance
Important: This unit requires an external direct-steam supply and a properly engineered wall carrier (available from Legion). Confirm steam pressure, condensate return, and structural support before ordering.

Standard warranty: 12 months from installation (15 months from ship date). Extended coverage available.

Features & Specs

Manufacturer

Legion

Shipping Weight

150.0lbs

Kettle Jacket

partial jacket

Base

wall mount

Capacity

5 - 15 gallon

Kettle Liner

304 stainless steel

Specifications

Stationary Direct Steam Kettle, 10-gallon, 304 stainless steel liner, 2/3 jacket, 2" draw-off valve with perforated 1/4" hole strainer, stainless steel construction, wall mounting stainless steel support arms seam welded to jacket, 30 psi
