Legion LTWC-80 Steam Kettles
Description

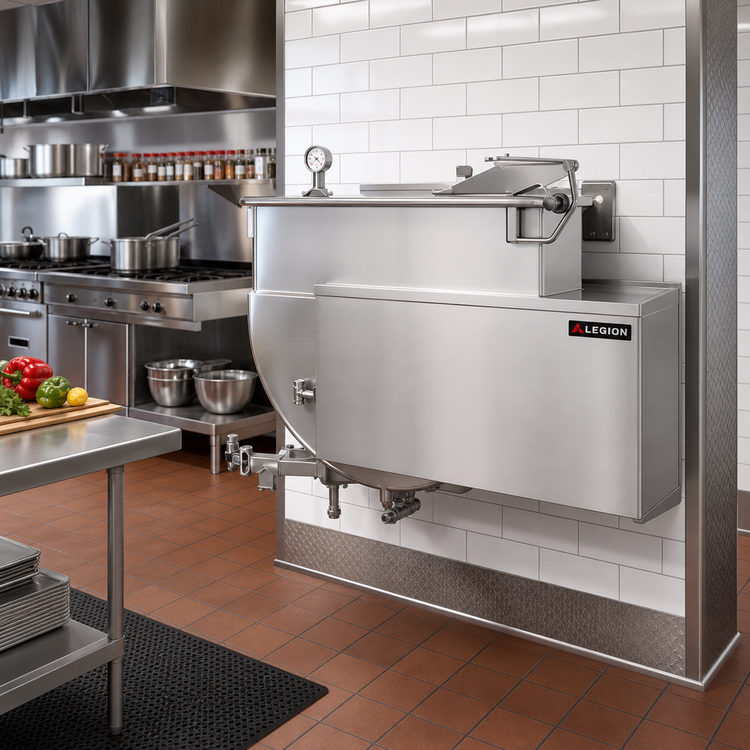

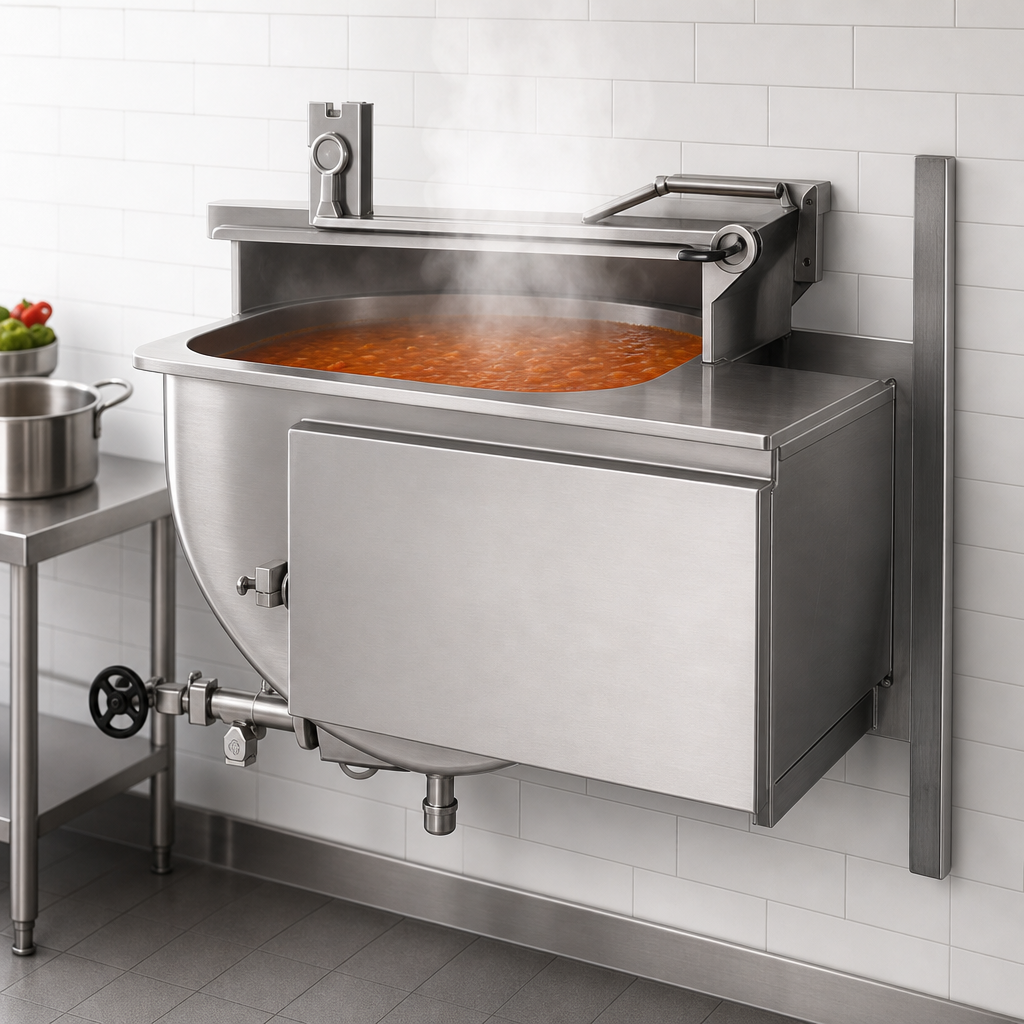

Legion LTWC-80 Direct Steam Kettle – 80 Gal
2/3-Jacketed • Wall-Mounted • 30 psiBuilt for high-volume kitchens that can’t compromise on speed, safety, or sanitation, the American-made Legion LTWC-80 delivers a full 80 gallons (303 L) of evenly heated capacity. Its wall-console mounting system keeps floors clear while rugged 304 stainless steel construction stands up to daily abuse.
Key Features

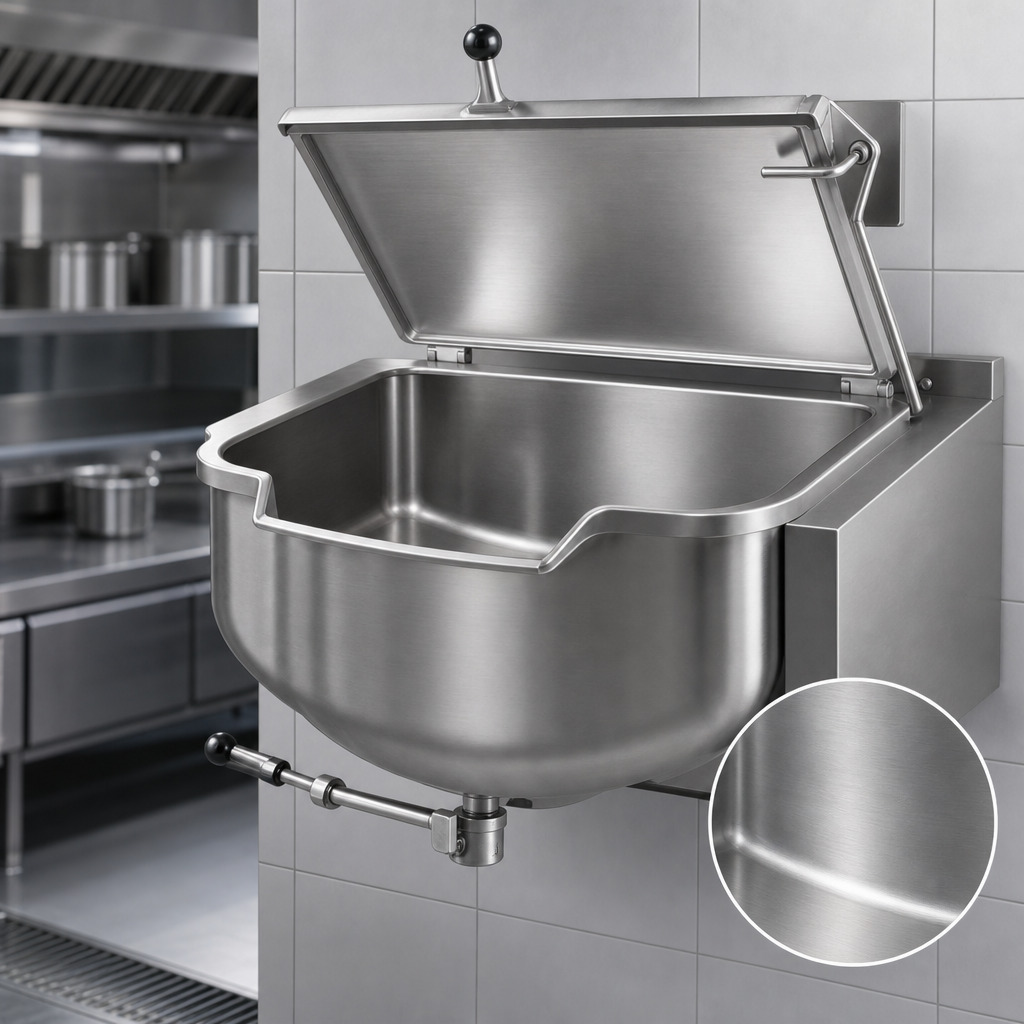

- Seamless deep-drawn 304 stainless steel liner eliminates interior weld seams.
- 2/3 jacketed design ensures fast, uniform heat transfer across the entire cook zone.
- 30 psi operating pressure for rapid start-ups and precise temperature control.
- 2″ compression draw-off valve with ¼″ perforated disk strainer prevents food particles from clogging the outlet.
- Actuator-assisted one-piece domed cover (304 SS) reduces operator effort and retains heat.
- Stainless support arms and reinforced wall-mount console boxes with rear plumbing connections for a cleaner work area.
- All wetted components—draw-off tube, valve, and welds—are 304 stainless for maximum corrosion resistance.
- Manufactured in the USA to meet or exceed ASME, NSF, and other applicable standards.
Performance Advantages
- Deep-drawn bowl design speeds cleanup and improves food safety.
- Jacket efficiency reduces overall steam consumption, lowering utility costs.
- Domed lid channels condensate back into the kettle—no dripping onto the rim or floor.
- Wide 2″ outlet minimizes wait time when transferring product or washing out the kettle.
Specifications
| Usable capacity | 80 gal / 303 L |
|---|---|
| Interior diameter (A) | 32.5 in (826 mm) |
| Interior depth (B) | 27.6 in (701 mm) |
| Overall height – cover closed (J1) | 78.9 in (2,004 mm) |
| Operating pressure | 30 psi (2.07 bar) |
| Steam inlet (Q) | ¾″ NPT |
| Steam outlet (R) | ½″ NPT |
| Draw-off valve | 2″ compression style, 304 SS |
| Jacket material | Seamless 304L stainless |
| Cover type | Actuator-assisted domed, 304 SS |
| Mounting | Wall-console with rear plumbing connections |
Dimensions taken from Legion factory specification sheet. Allow additional clearance for service access and cover swing.
Ideal Applications
- Central & commissary kitchens
- Correctional and military food service
- School nutrition programs
- Hotel, resort, and casino banquets
- Large-scale soup, sauce, stock, and pasta production
What’s Included
- Legion LTWC-80 kettle with 2″ draw-off valve & ¼″ perforated strainer
- Actuator-assisted domed stainless cover
- Reinforced wall-mount console boxes & hardware
- Factory-installed rear steam inlet and outlet
- Standard 12-month parts & labor warranty
Boost production, cut energy costs, and keep kitchen floors clear with the Legion LTWC-80—your new workhorse for reliable, high-volume cooking.
