Legion LTWC-60 Steam Kettles
Description
Legion LTWC-60 Stationary Direct Steam Kettle – 60 gal
2/3-jacketed • Wall-console mounted • Made in USABuilt for volume cooking, the Legion LTWC-60 delivers the speed of direct steam with the durability of all-stainless construction. A seamless 304 liner, heavy-duty 2/3 jacket and rear-plumbed wall consoles give your kitchen high output, easy cleaning and a clutter-free work zone—all at 30 psi operating pressure.
Key Features

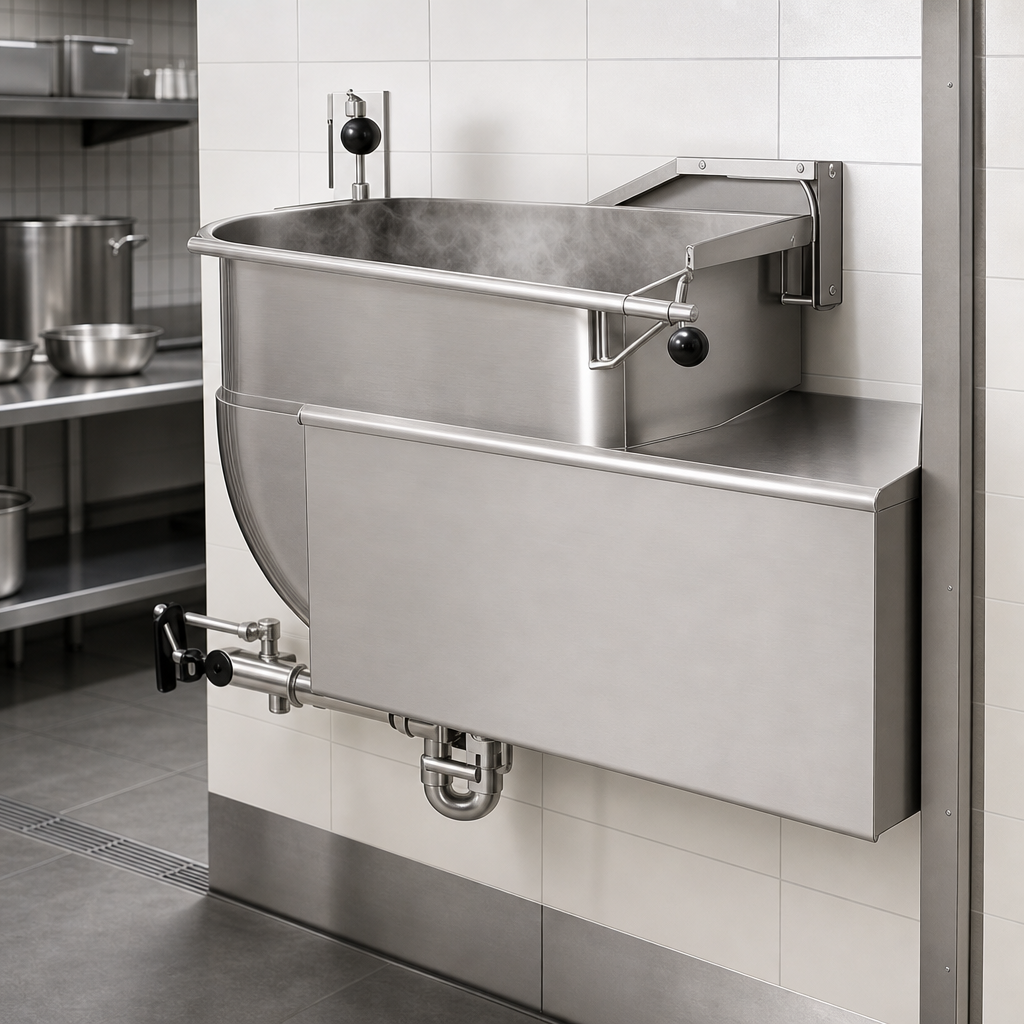

- 60-gallon (227 L) capacity—ideal for high-volume soups, sauces & stews

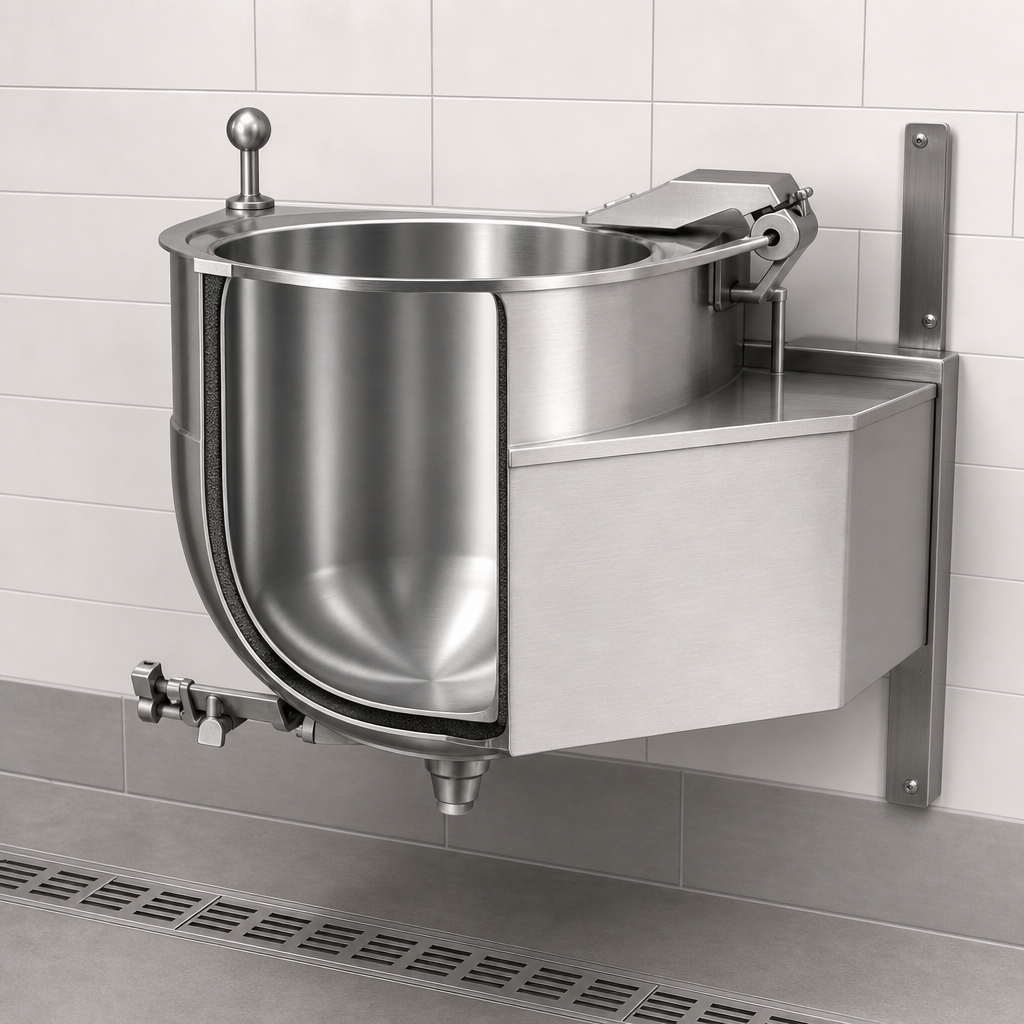

- Seamless deep-drawn 304 stainless steel kettle liner for maximum sanitation
- 304L stainless 2/3 jacket for fast, even heating with direct steam
- Actuator-assisted, one-piece domed stainless cover (stays where you set it)
- 2" 304 stainless compression draw-off valve with ¼" perforated strainer disk
- Wall-mount stainless console boxes with reinforced supports & rear steam connections
- 30 psi operating pressure, ASME certified
- Made, assembled & tested in the USA
Specifications
| Model | LTWC-60 |
|---|---|
| Capacity | 60 gal / 227 L |
| Construction | 304 stainless liner • 304L jacket • 304 welded support arms |
| Jacket Coverage | Two-thirds (2/3) of kettle body |
| Operating Pressure | 30 psi (2.07 bar) |
| Draw-off Valve | 2" compression type, 304 stainless, with ¼" hole strainer |
| Cover | One-piece, domed, actuator-assisted stainless steel |
| Mounting | Wall-console (reinforced stainless boxes, rear NPT connections) |
| Steam Inlet / Outlet | ½" NPT inlet (R) • ¾" NPT outlet (Q) |
| Interior Diameter / Depth | 29.5" Ø × 25.0" deep |
| Certifications | ASME, NSF & other applicable agency approvals |
| Warranty | 12 months parts & labor from installation |
Why Choose a Legion Direct Steam Kettle?
- Rapid, uniform heating eliminates hot spots and scorching
- Deep-drawn seamless liner simplifies cleaning and sanitation
- Rear-plumbed design keeps floors clear and work areas safer
- Made-in-USA quality backed by Legion’s full 1-year warranty
Need faucets, mixing agitators or other accessories? Legion offers a full line of factory-approved options to customize your LTWC-60. Contact us for details.
