Legion LTWC-50 Steam Kettles
Description

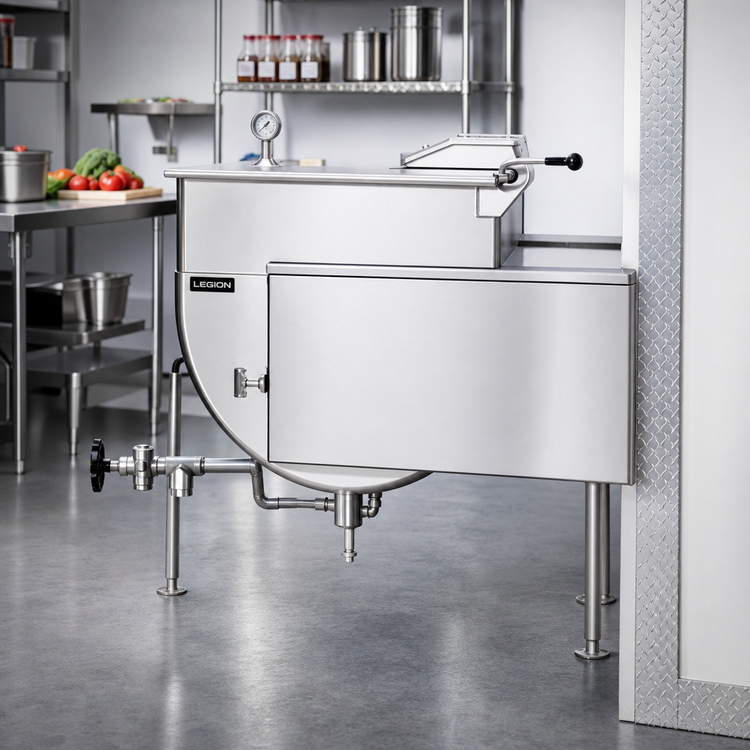

Legion LTWC-50 Stationary Direct Steam Kettle
50 gal (189 L) • 2⁄3 Jacketed • Wall-Console Mounted • 30 psiEngineered for demanding commercial kitchens, the LTWC-50 combines a generous 50-gallon capacity with energy-efficient direct steam heating. Its wall-mounted, console design clears valuable floor space while the seamless 304 stainless steel kettle and jacket deliver years of corrosion-resistant service.
Performance & Construction Highlights

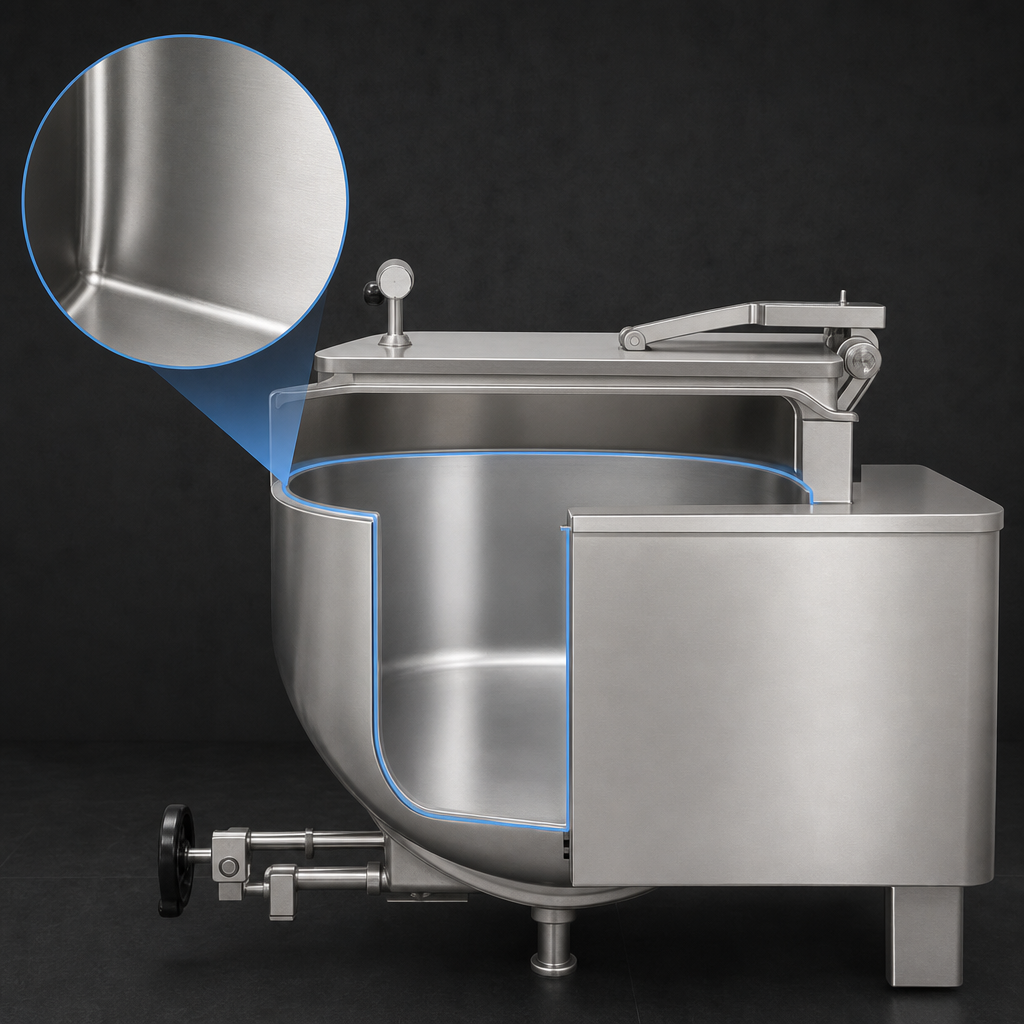

- Seamless deep-drawn 304 stainless steel kettle liner for superior sanitation and easy cleaning.

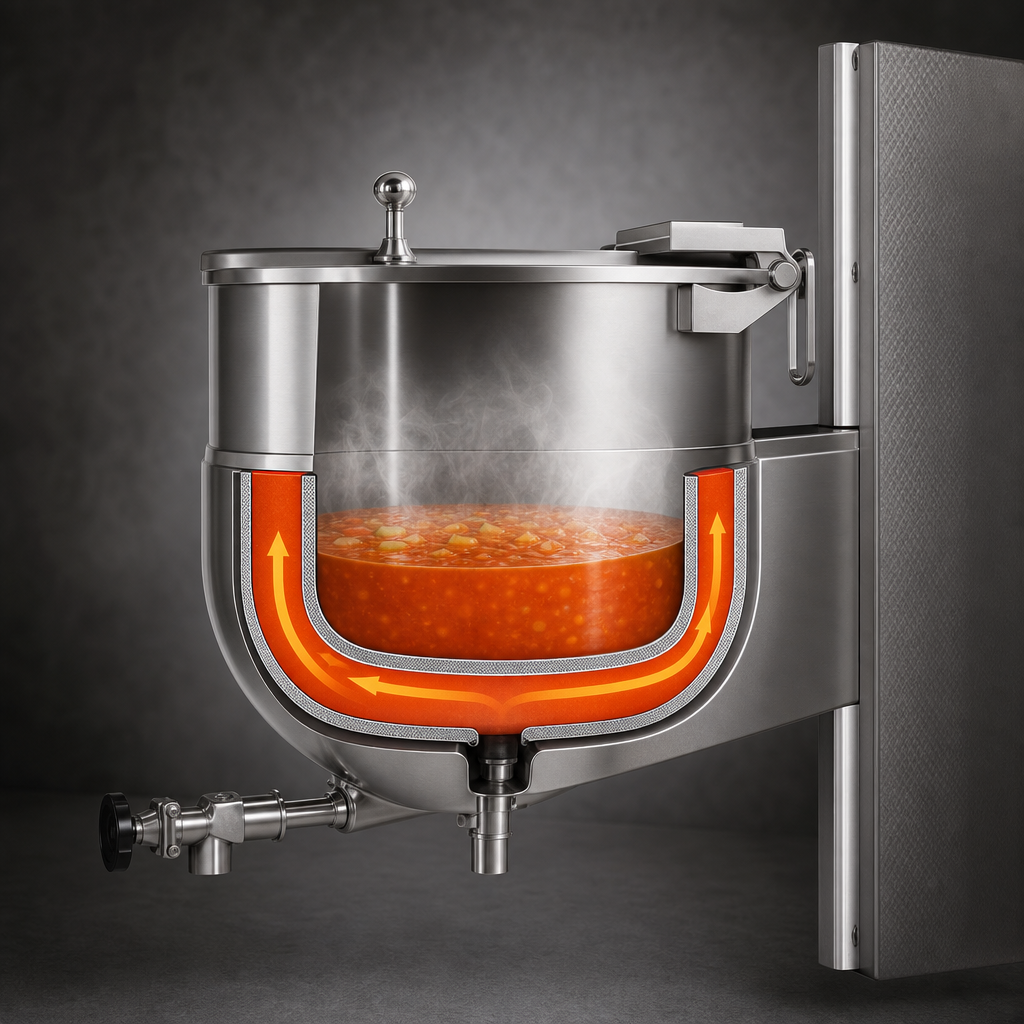

- 2⁄3 jacket design provides even, high-speed heat transfer—ideal for soups, sauces, stocks and more.
- Jacket rated at 30 psi operating pressure for rapid cook times and excellent temperature recovery.
- 2" 304 stainless compression draw-off valve with removable ¼" perforated disk strainer for quick, clog-free dispensing.
- Actuator-assisted, one-piece domed stainless cover (standard on 40–100 gal models) reduces operator fatigue.
- Fully welded 304 stainless support arms and reinforced wall-mount consoles with rear plumbing connections keep the work area clean and unobstructed.
- Made in the USA and built to meet or exceed ASME & NSF requirements.
Technical Specifications – Model LTWC-50
| Capacity | 50 gal / 189 L |
|---|---|
| Kettle Inside Diameter (A) | 29.5 in (749 mm) |
| Inside Depth (B) | 21.8 in (554 mm) |
| Overall Height (C) | 38.3 in (973 mm) |
| Front-to-Back (Wall) Projection (D) | 25.1 in (638 mm) |
| Steam Inlet | ¾" NPT (rear connection) |
| Condensate Outlet | ½" NPT (rear connection) |
| Operating Pressure | 30 psi (2.07 bar) |
| Draw-off Valve | 2" compression, 304 stainless |
| Cover Type | One-piece domed, actuator-assisted |
| Construction | All 304/304L stainless steel; seamless kettle & jacket |
Popular Accessories (sold separately)
- Single or double fill faucets with 12" or 18" swing nozzles
- 48" flexible spray-rinse hose assembly (vinyl or stainless)
- Tri-basket or single basket inserts for bulk cooking
- Lift-off or two-piece hinged cover configurations
- In-wall carrier kit for additional mounting support
