Legion LTWC-40 Steam Kettles
Description
Legion LTWC-40 Stationary Direct Steam Kettle – 40 Gal.
Wall-Console Mounted • 2/3 Jacketed • 30 psiDesigned for high-volume, high-performance kitchens, the LTWC-40 delivers rapid, even heating and effortless product transfer in a space-saving wall-mounted package. Its deep-drawn seamless 304 stainless liner, powerful 30 psi direct-steam jacket and 2″ draw-off valve combine to make large-batch cooking faster, safer and more consistent than ever.
Performance Highlights

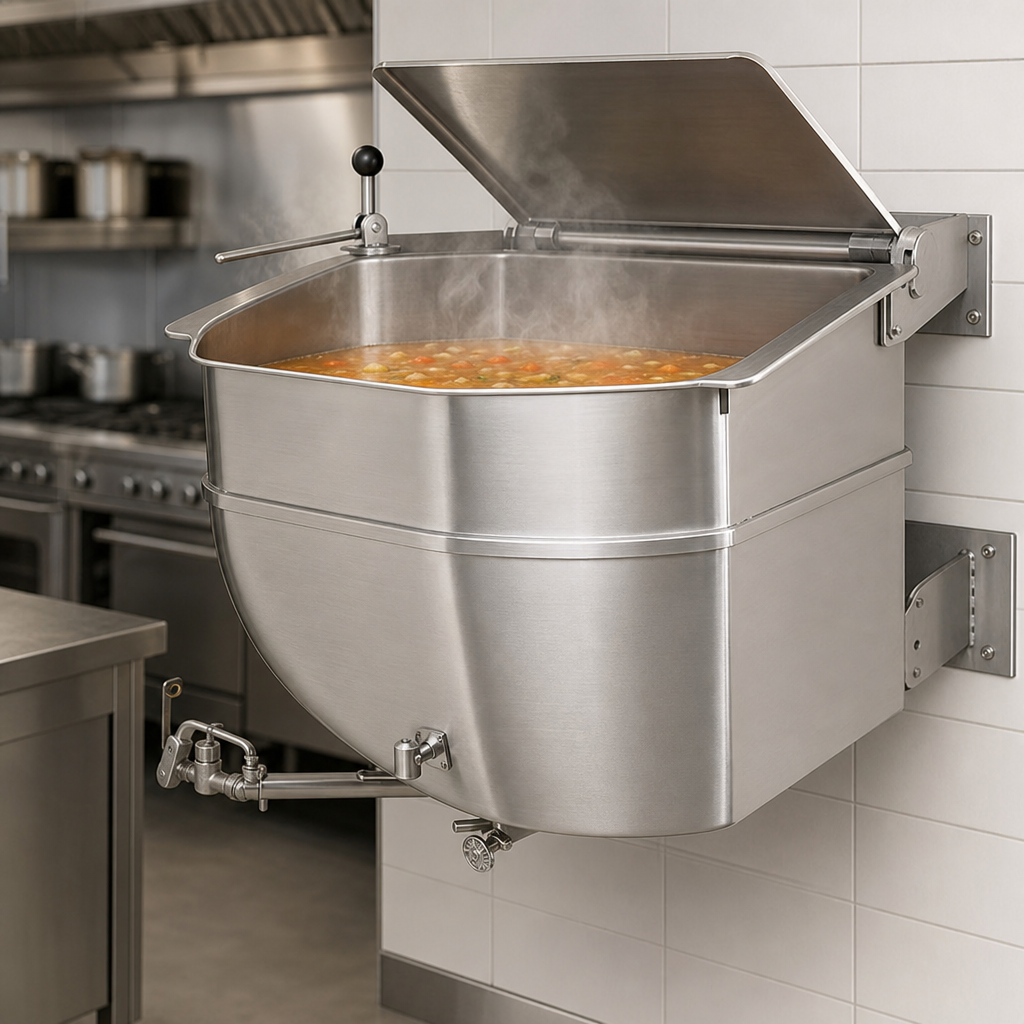

- 40-gallon (151 L) capacity—ideal for soups, sauces, stocks and pasta
- 2/3 jacket covers sidewalls and bottom for superior heat transfer
- 30 psi operating pressure tackles demanding production schedules
- Actuator-assisted, one-piece domed stainless cover reduces heat loss
- 2″ stainless compression draw-off valve with removable ¼″ perforated strainer for clog-free draining

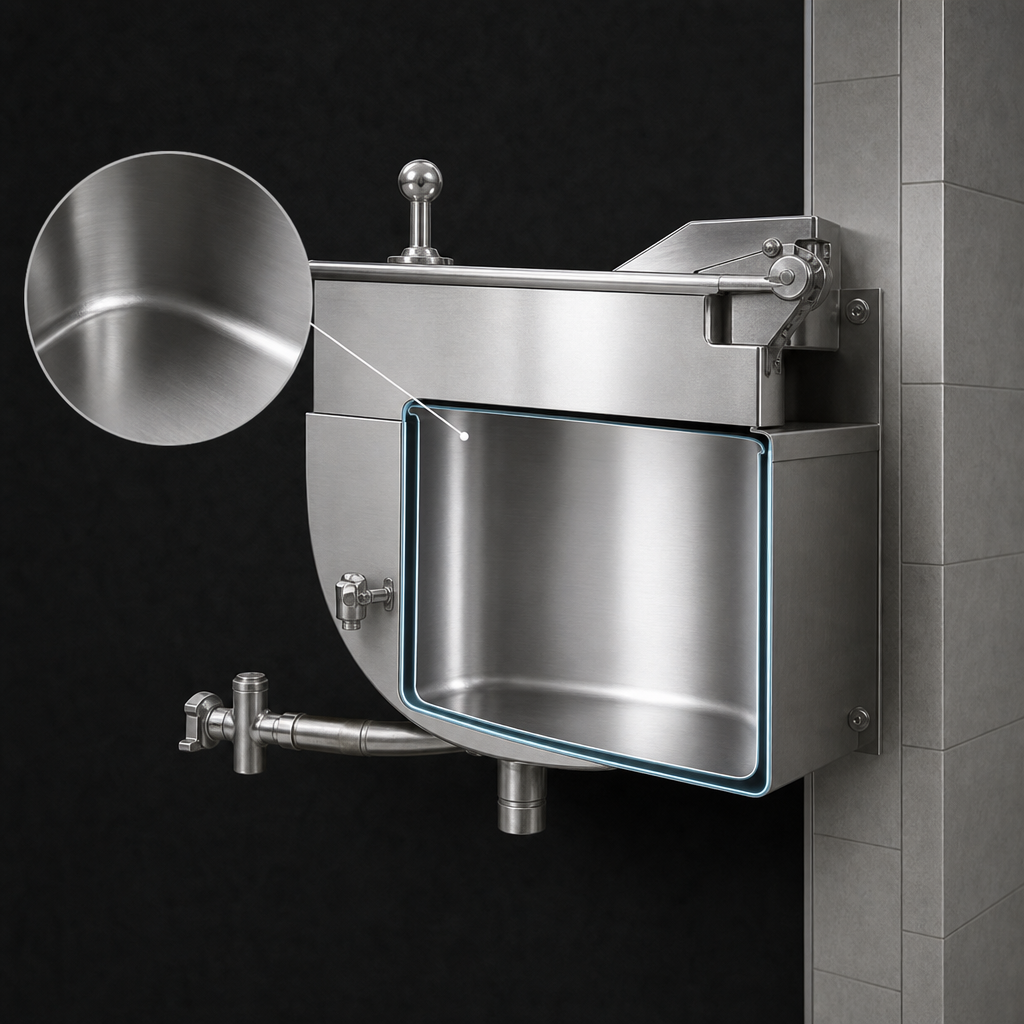

- Deep-drawn, seamless 304 stainless liner—no riveted seams to trap food soil
- 304 L stainless jacket and seam-welded support arms resist corrosion and impact
- Reinforced wall console with rear-plumbed steam & condensate connections keeps the floor clear
- Made in the USA and built to meet ASME, NSF and other applicable standards
Technical Specifications
| Model | LTWC-40 |
|---|---|
| Capacity | 40 gal / 151 L |
| Construction | Seamless 304 stainless liner & 304 L jacket |
| Jacket Coverage | 2/3 (sidewalls & bottom) |
| Operating Pressure | 30 psi (2.07 bar) direct steam |
| Draw-Off Valve | 2″ stainless compression type, ¼″ perforated strainer |
| Mounting | Wall console—stainless reinforced boxes, rear plumbing |
| Cover | One-piece actuator-assisted domed stainless lid |
| Inside Diameter (A) | 25.5 in (648 mm) |
| Inside Depth (B) | 22.3 in (566 mm) |
| Overall Height (J1) | 70.0 in (1778 mm) |
| Steam Inlet (Q) | ¾″ NPT |
| Condensate Outlet (R) | ½″ NPT |
| Origin | Made in USA |
Optional Upgrades & Accessories
- Single or double fill faucets with 12″ or 18″ swing nozzles
- 48″ flexible spray hose (vinyl or stainless)
- Automatic water-filling meter
- Tri-basket or single basket inserts & nylon bag inserts
- Pressure-reducing or air-eliminator valves
- Lift-off or two-piece hinged covers
- In-wall carrier for additional support
Includes 12-month limited parts & labor warranty. Extended coverage and custom configurations available—contact us for details.
