Legion LTWC-30 Steam Kettles
Description
Legion LTWC-30 | 30-Gallon Stationary Direct Steam Kettle

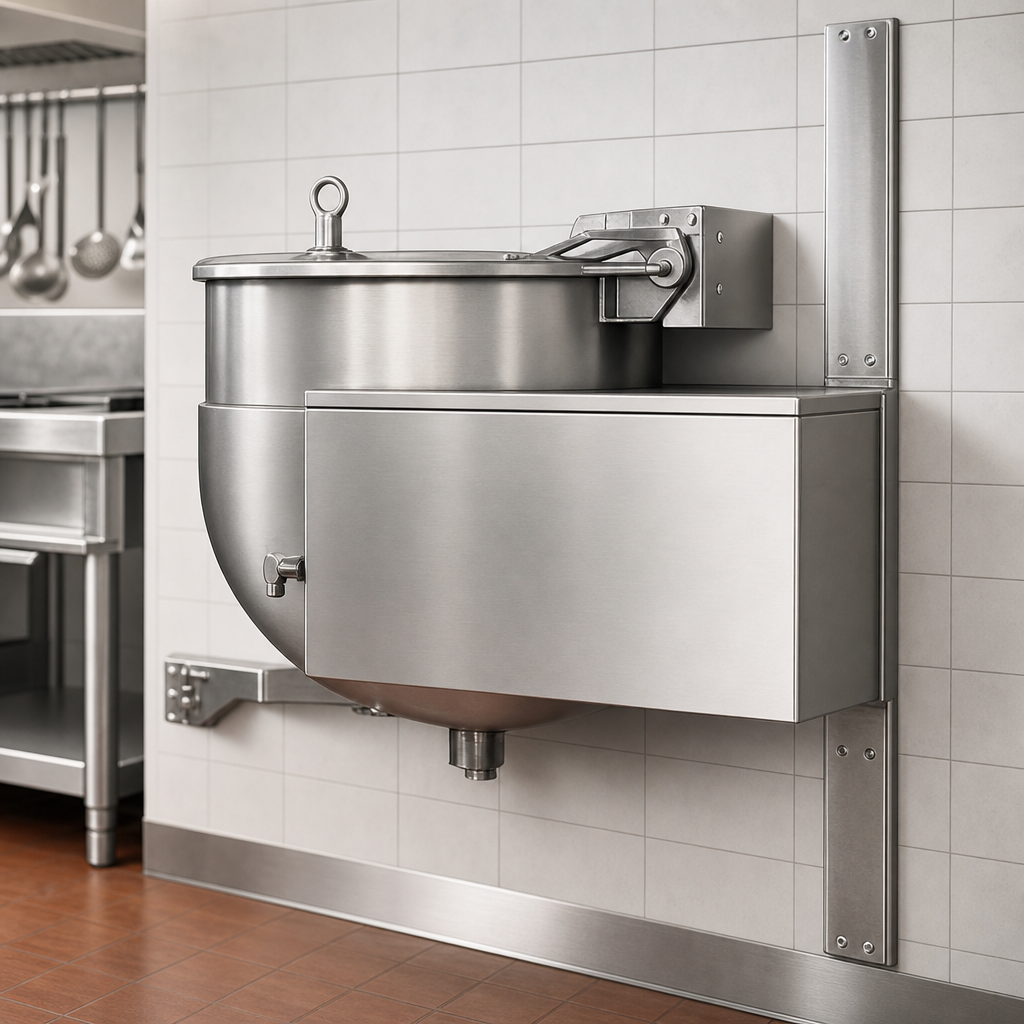

Wall-console mounted • 2/3 jacket • 30 psi operating pressureEngineered for production kitchens that refuse to compromise on speed, safety or sanitation, the Legion LTWC-30 lets you turn a dedicated steam supply into 114 litres of precisely heated soups, sauces, stocks and more—all while freeing up valuable floor space with its wall-mount console design.
Key Performance Benefits
- Seamless 304 stainless steel kettle liner is deep-drawn to eliminate food-trapping crevices and simplify cleaning.
- Energy-efficient 2/3 jacket surrounds the lower two-thirds of the kettle for faster heat-up and even temperature distribution.
- Large 2 in. compression-type draw-off valve dumps product quickly and is supplied with a removable 1/4 in. perforated disk strainer to keep solids out of the line.
- Rugged wall-mounted stainless-steel consoles include rear steam inlet/outlet plumbing for a clean, tamper-resistant installation.
- 30 psi operating pressure delivers powerful, responsive cooking while conforming to ASME pressure-vessel requirements.
- All wetted parts—liner, jacket, draw-off tube, valve and support arms—are 304 or 304L stainless steel for maximum corrosion resistance.
- Made in the USA and built to meet or exceed NSF, UL and other applicable agency standards.
At-a-Glance Specifications

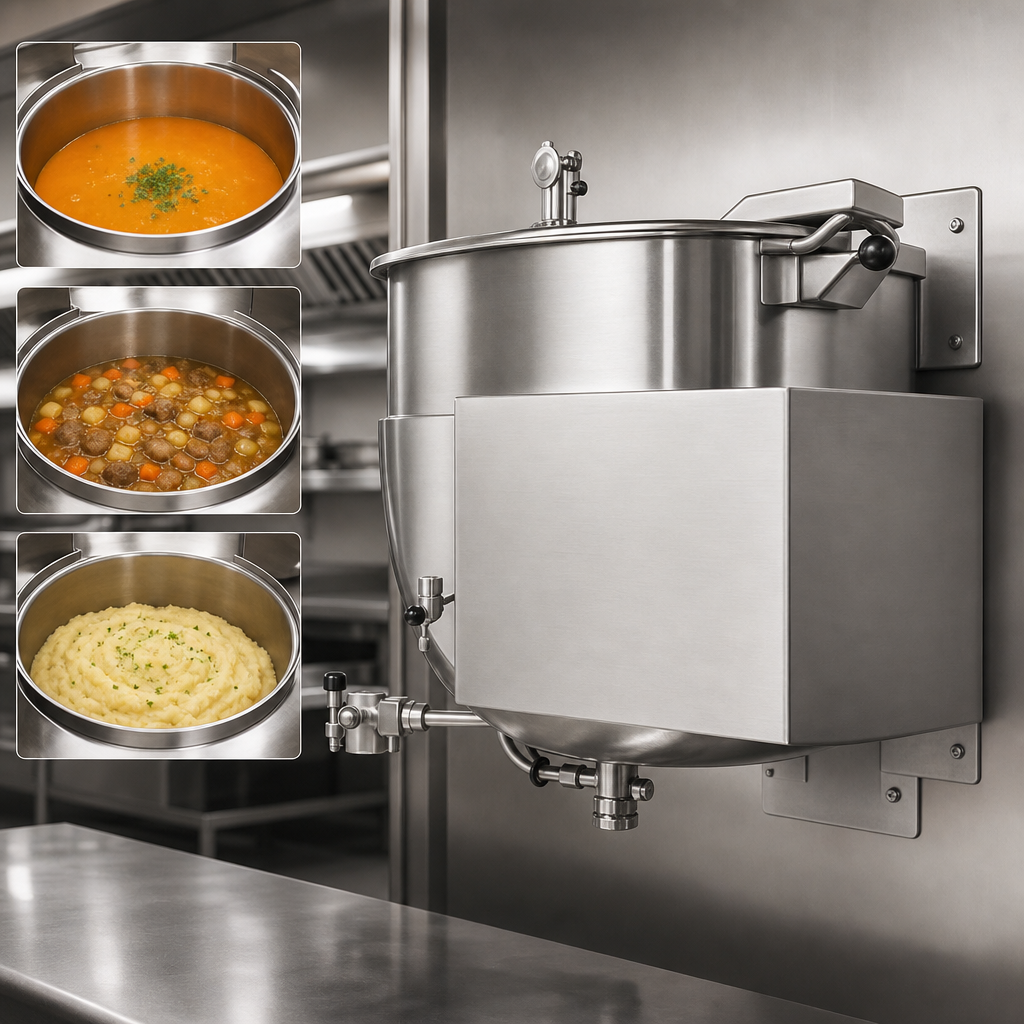

| Capacity | 30 gal / 114 L (fills ~576 8 oz servings) |
|---|---|
| Construction | Seamless 304 SS liner & 304L 2/3 jacket, seam-welded support arms |
| Mounting | Wall-console, stainless reinforced boxes with rear steam connections |
| Operating Pressure | 30 psi (2.07 bar) |
| Steam Connections | 3/4 in. NPT inlet (Q) • 1/2 in. NPT outlet (R) |
| Draw-off Valve | 2 in. compression type, 304 SS, with 1/4 in. perforated strainer |
| Inside Diameter (A) | 23.0 in. (584 mm) |
| Inside Depth (B) | 20.3 in. (516 mm) |
Popular Options & Accessories (sold separately)
- Single or double fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. flexible spray-rinse hose (vinyl or stainless)
- Lift-off or actuator-assisted cover (1-piece, sized for 30 gal)
- Automatic water-filling meter
- Basket, tri-basket or nylon bag inserts for pasta & stock production
- Air eliminator or pressure-reducing valve kits
Legion Industries warrants the LTWC-30 to be free from defects in materials and workmanship for twelve (12) months from installation when installed and operated as directed.
