Legion LTWC-20 Steam Kettles
Description

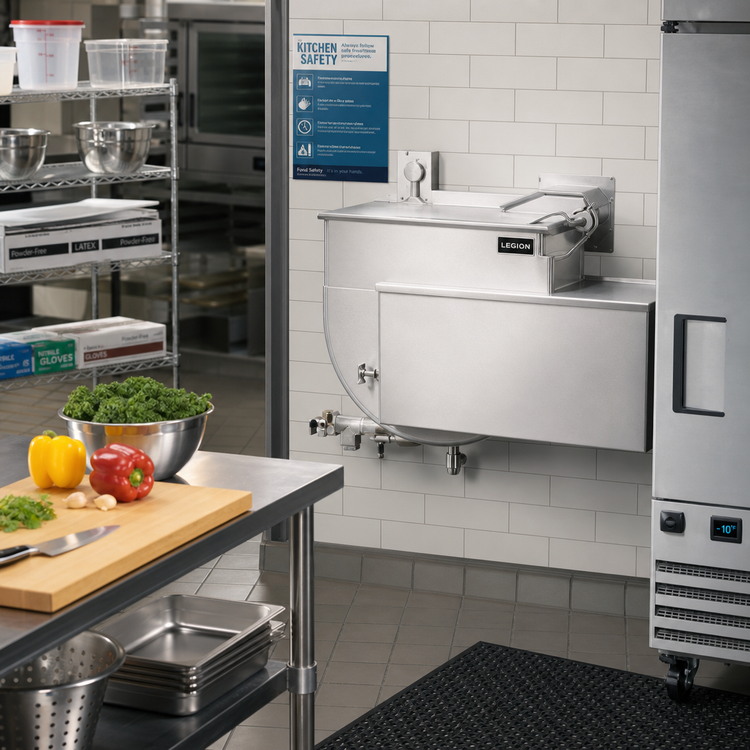

Legion LTWC-20 Stationary Direct Steam Kettle – 20 Gallon
Wall-Console Mounted | 2/3 Jacket | 30 psi | Made in USADesigned for busy commercial kitchens, the Legion LTWC-20 delivers rapid, even heating in a compact, wall-mounted footprint. Its seamless 304 stainless-steel liner and high-efficiency 2/3 steam jacket let you batch-cook soups, sauces, stocks and more—faster, safer and with unparalleled consistency.
Key Features
- Seamless deep-drawn 304 stainless-steel kettle liner for a smooth, easy-to-clean cooking surface.

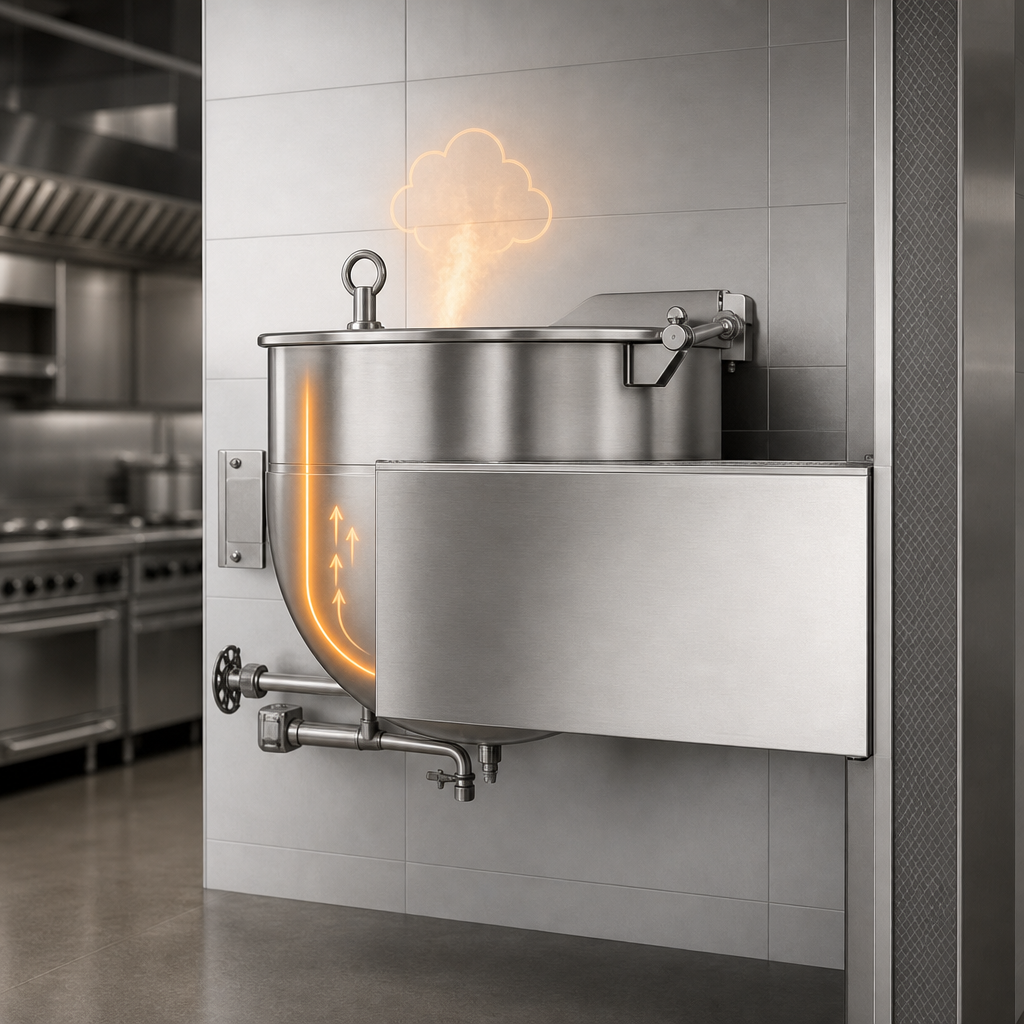

- 2/3 jacket design surrounds the lower two-thirds of the kettle for accelerated, uniform heating.
- 304 L stainless-steel jacket rated 30 psi to slash cook times and boost energy efficiency.
- Stainless-steel support arms seam-welded to the jacket for exceptional strength and rigidity.
- Wall-mounting console with reinforced stainless boxes keeps floors clear and houses rear steam/condensate connections.
- 2" 304 stainless-steel compression draw-off valve with removable ¼" perforated disk strainer for safe, clog-free portioning.
- Factory-installed plumbing within the console for a clean, professional installation.
- Built in the USA and manufactured to applicable ASME, NSF and other industry standards.
At-a-Glance Specifications
| Model | LTWC-20 |
|---|---|

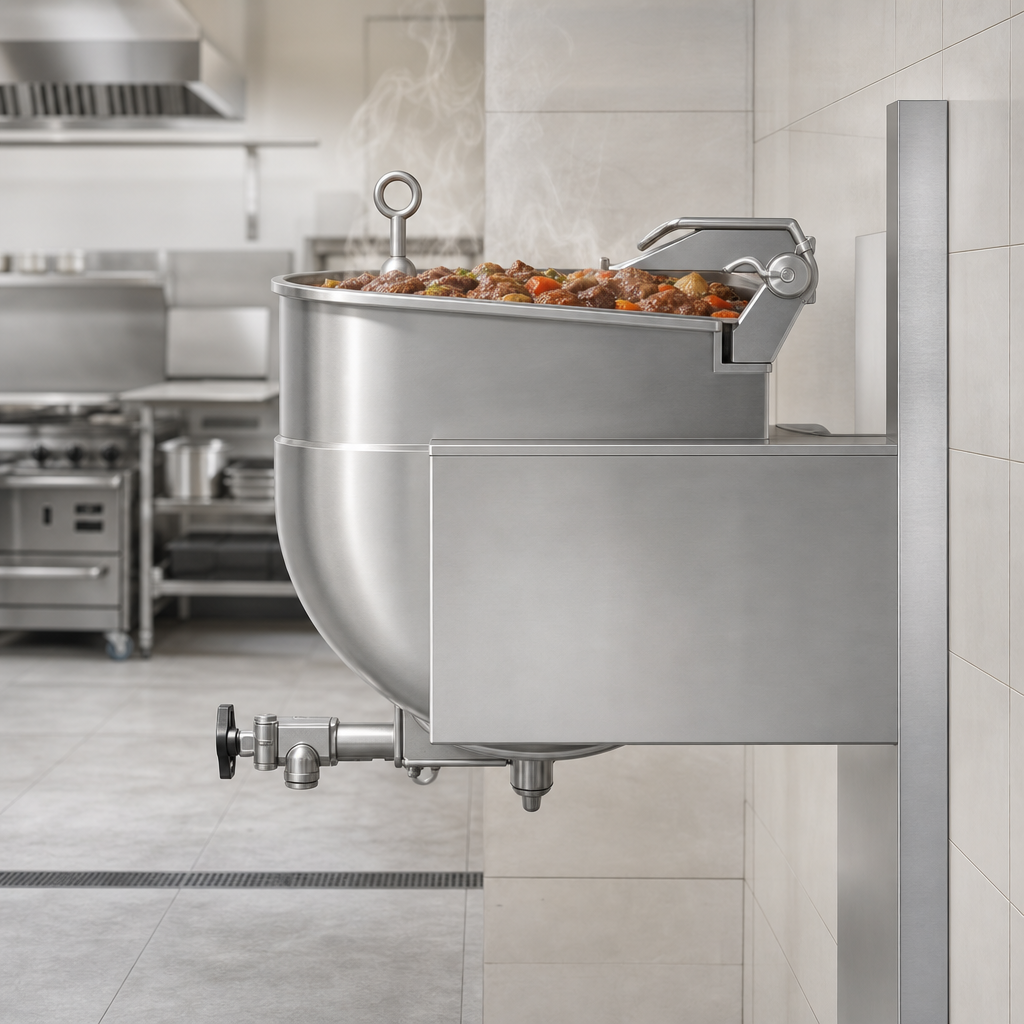

| Capacity | 20 gal / 76 L (net) |
| Construction | 304 stainless-steel liner & jacket, seam-welded support arms |
| Jacket Coverage | Two-thirds (2/3) of kettle body |
| Operating Pressure | 30 psi direct steam |
| Draw-off Valve | 2" compression type, 304 stainless |
| Strainer | ¼" perforated disk, removable |
| Mounting / Console | Wall-mounted stainless console with rear connections |
| Interior Diameter (A) | 22.0" / 559 mm |
| Interior Depth (B) | 16.0" / 406 mm |
| Overall Height (J1) | 64.0" / 1626 mm (to top of console) |
| Steam Inlet (Q) | ¾" NPT |
| Condensate Outlet (R) | ½" NPT |
| Country of Origin | USA |
Popular Options & Accessories (sold separately)
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose assembly (vinyl or stainless)
- Actuator-assisted lid for effortless opening
- Automatic water-filling meter
- Tri-basket or single basket inserts
- 1/8" perforated disk strainer
- Kettle care kit & measuring strip
Specifications are based on manufacturer’s data and are subject to change without notice. Verify all dimensions and utilities at the site prior to installation.
