Legion LTWC-100 Steam Kettles
Description

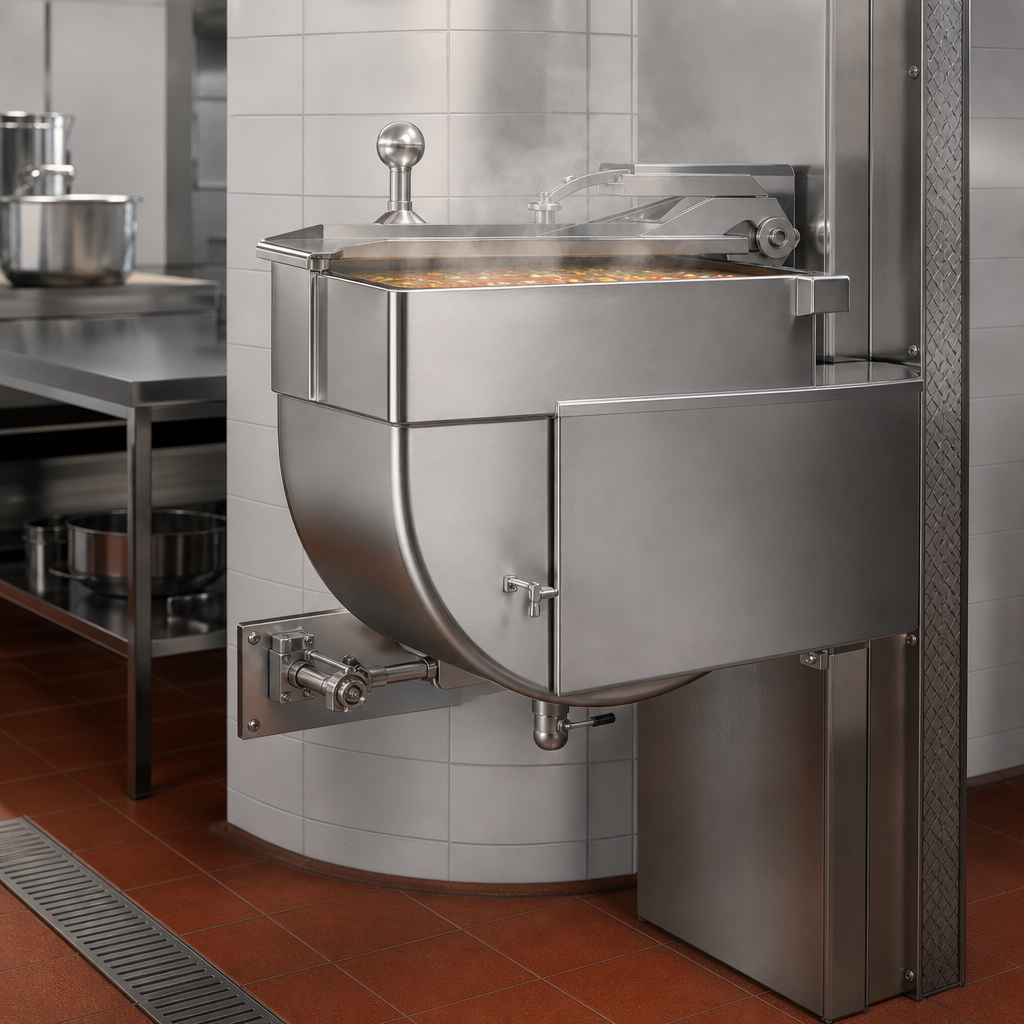

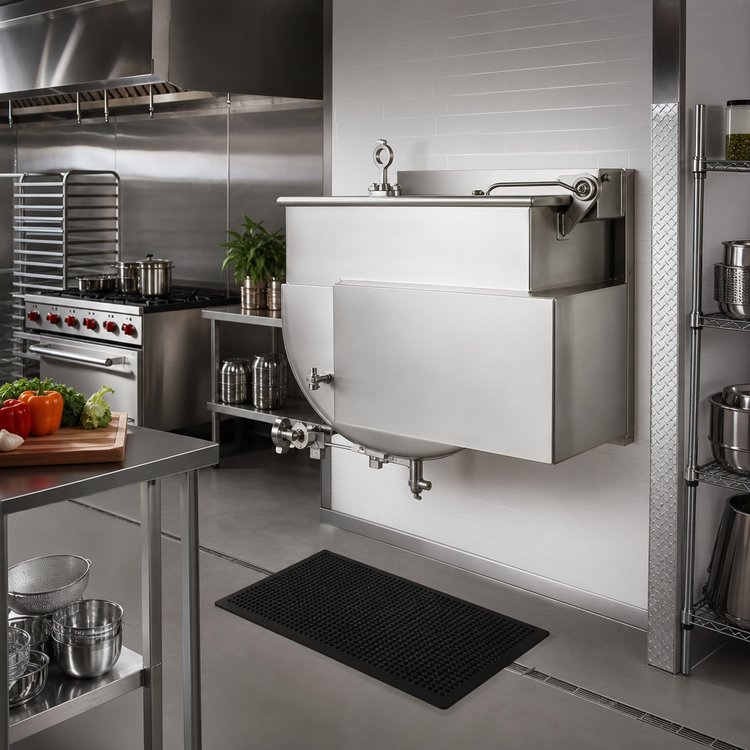

Legion LTWC-100 100-Gallon Stationary Direct Steam Kettle
Wall-Console Mounted • 2/3 Jacketed • Made in USAEngineered for high-volume, high-precision production, the LTWC-100 delivers 100 gallons (379 L) of consistent, steam-powered cooking capacity while maximizing floor space with its wall-console mount design. From soups and sauces to delicate custards, this rugged kettle pairs seamless 304 stainless craftsmanship with operator-friendly controls for years of dependable service.
Key Advantages
- Seamless, deep-drawn 304 stainless steel kettle liner eliminates crevices that trap food soil.
- 2/3 jacket surrounds the side and bottom for fast, even heat transfer.
- 30 psi operating pressure handles everything from slow simmers to rapid boils.

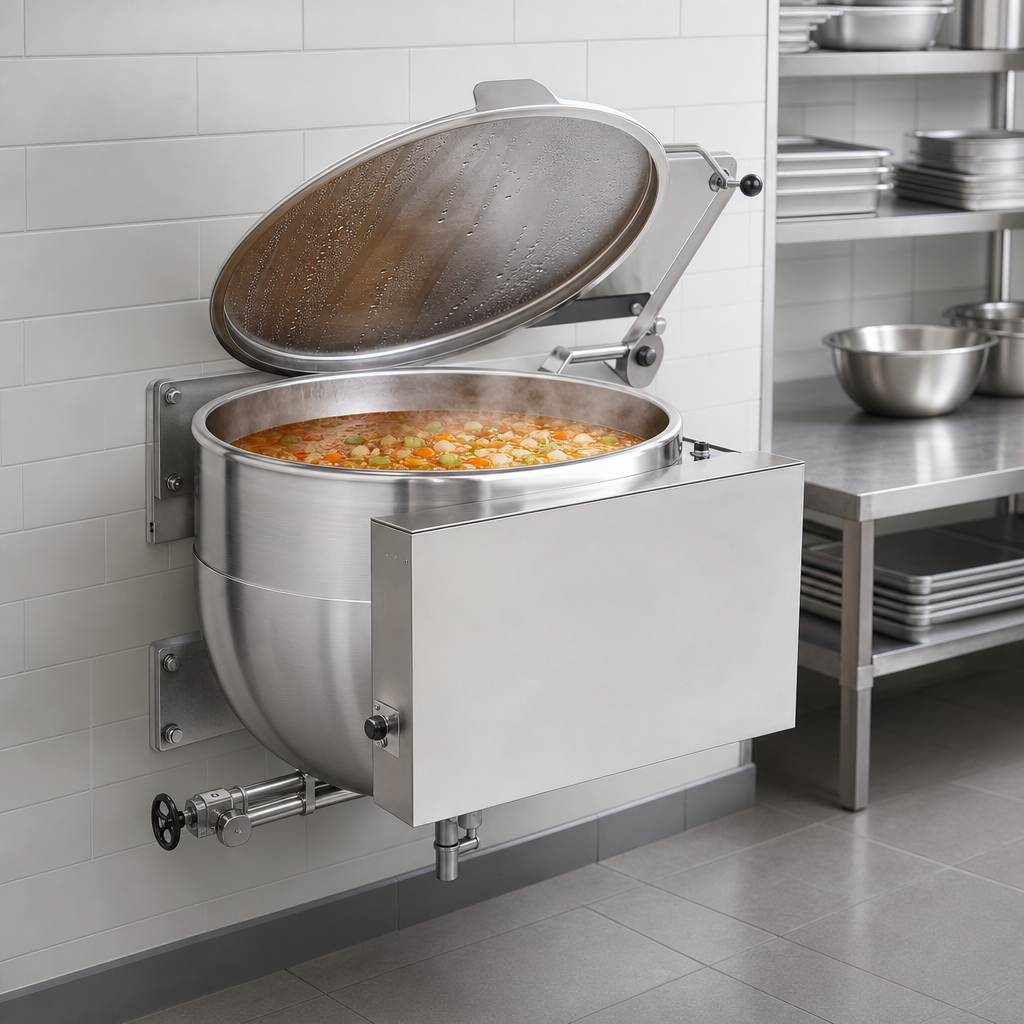

- Actuator-assisted, one-piece domed cover (included on 40–100 gal models) for effortless, single-hand operation.
- 2" compression draw-off valve with 1/4" perforated stainless strainer speeds batch change-outs while catching solids.
- Wall-mounted stainless reinforced console boxes keep plumbing & controls off the floor and out of the traffic lane.
- All wetted components—liner, jacket, support arms, draw-off tube & welds—are 304/304L stainless for maximum corrosion resistance.
- Built to ASME, NSF and other applicable standards; proudly manufactured in Waynesboro, GA.
What’s Included
- 100-gal stationary direct steam kettle with 2/3 jacket
- Factory-installed 2" compression draw-off valve
- Perforated disk strainer, 1/4" holes
- Actuator-assisted domed stainless steel cover
- Stainless wall console with rear steam inlet & condensate outlet connections
- Operator & installation manual
Dimensional Data
| Capacity | 100 gal / 379 L |
|---|---|
| Inside Diameter (A) | 39.0 in (991 mm) |
| Inside Depth (B) | 25.9 in (658 mm) |
| Overall Height (C) | 41.3 in (1,049 mm) |
| Front-to-Back (D) | 28.9 in (734 mm) |
| Console Height (J1) | 83.3 in (2,116 mm) |
| Console Height to Jacket Drain (J2) | 66.2 in (1,681 mm) |
| Steam Inlet (Q) | ¾" NPT |
| Steam Outlet/Condensate (R) | ½" NPT |
| Operating Pressure | 30 psi (2.07 bar) max |
| Draw-off Valve | 2" compression type, 304 SS |
| Net Weight | Consult factory |
Performance You Can Trust
Legion’s seamless deep-draw technology virtually eliminates leaks, while the full-wrap jacket reduces cook times and minimizes scorching. The rear-plumbed console streamlines utility hookups, keeping the front of house clean and unobstructed.
Popular Accessories (sold separately)
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose assembly
- Automatic water-filling meter
- Tri-basket or nylon bag inserts for bulk cooking
- Higher-pressure kits, pressure-reducing valves & air eliminator valves
Need assistance tailoring a kettle station to your workflow? Contact our team for expert guidance on mixing options, in-wall carriers, security packages, and more.
