Legion LTI-60 Steam Kettles
Description

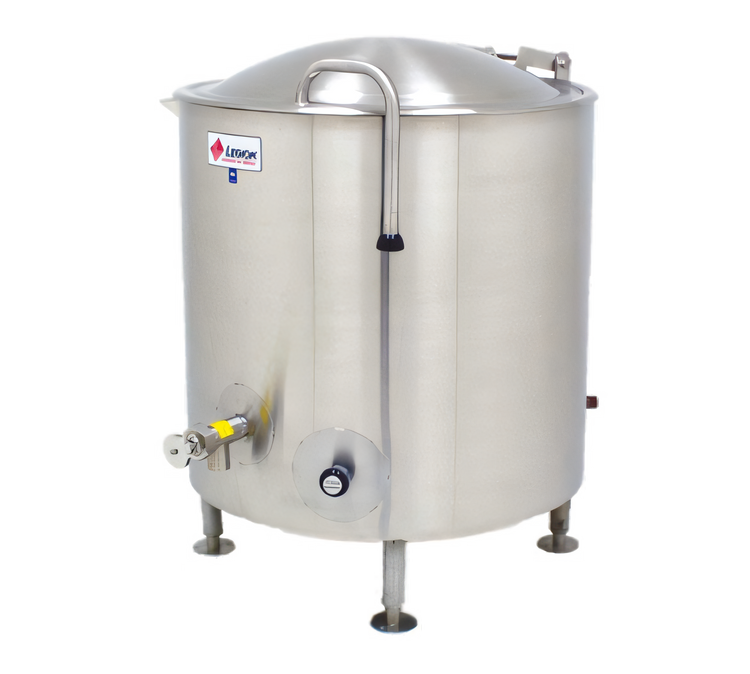

Legion LTI-60 Insulated Direct Steam Kettle – 60 gal
Stationary • 2/3 Jacketed • 304 Stainless Steel • Made in USAEngineered for high-volume kitchens that refuse to compromise on performance or safety, the Legion LTI-60 delivers 60 gallons of even, steam-jacketed heat in a rugged, fully insulated package. From hearty soups and scratch-made sauces to delicate custards, every batch benefits from Legion’s seamless deep-drawn liner and Insulated for Safety™ design.
Key Features
- 60 gal (227 L) working capacity
- Seamless 304 stainless steel kettle liner for fast clean-up and corrosion resistance

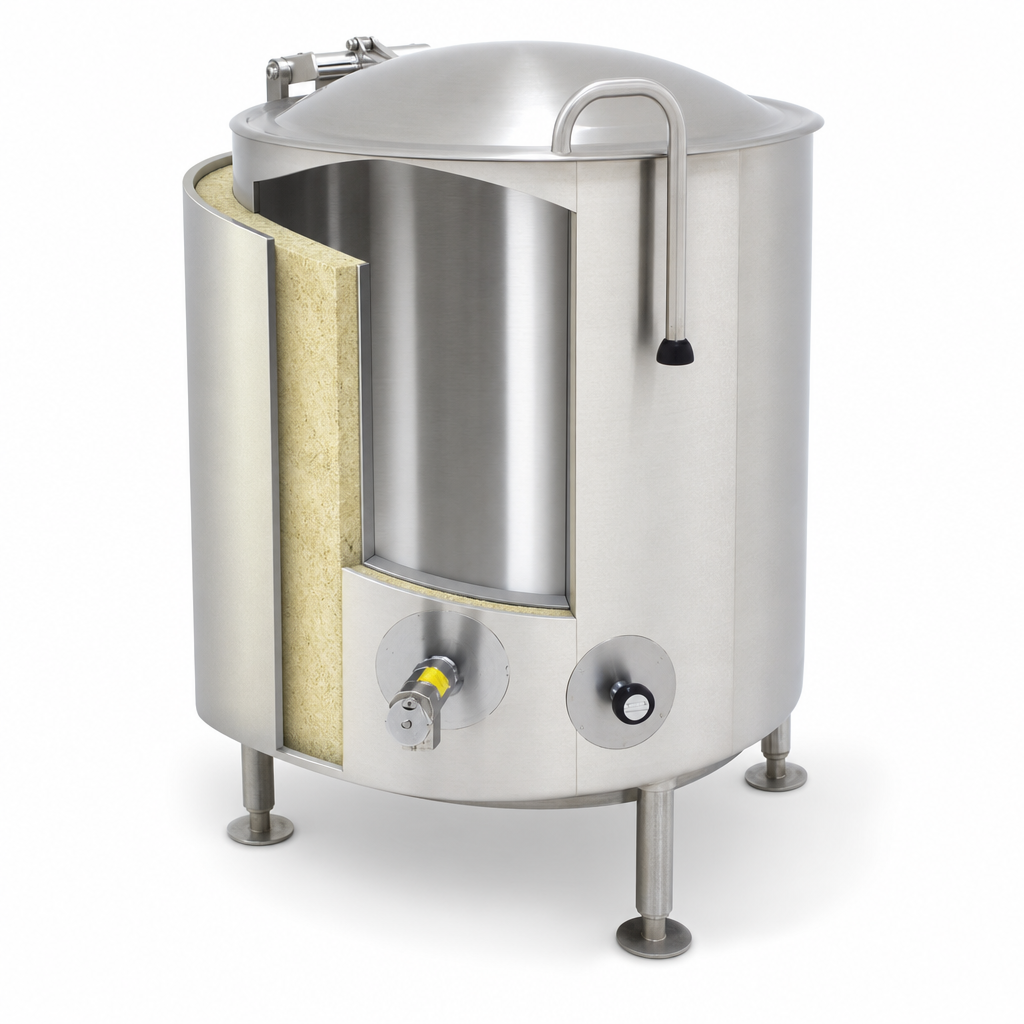

- 2/3 jacketed construction delivers uniform heat to sidewalls and bottom
- Full-body mineral-fiber insulation keeps exterior surfaces cooler and lowers energy use
- 2 in. 304 SS compression draw-off valve with ¼ in. perforated strainer for clog-free draining
- One-piece domed stainless steel cover – actuator assisted for easy, one-hand operation
- (4) 2 in. Ø stainless legs with reinforcing bracing and adjustable flanged feet
- Front-mounted steam control valve for precise temperature regulation
- Rear steam inlet & condensate return connections keep service lines out of the work zone
- ASME-code rated for 30 psi operating pressure
- Designed, fabricated & tested in Waynesboro, Georgia, USA
At-a-Glance Specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Liner Material | Seamless 304 stainless steel |
| Jacket Coverage | 2/3 (bottom & sidewalls) |
| Jacket Material | 304L stainless steel, deep-drawn |
| Outer Casing | Stainless steel, seam-welded |
| Insulation | Full-body mineral fiber |
| Operating Pressure | 30 psi (steam) |
| Draw-off Valve | 2 in. 304 SS compression type w/ ¼ in. perforated strainer |
| Cover | One-piece domed, actuator assisted |
| Mounting | (4) stainless legs, adjustable flanged feet |
| Approx. Dimensions* | 29.5 in. W × 25 in. D × 39.7 in. H |
| Steam Connections* | ¾ in. NPT inlet & ½ in. NPT condensate return (rear) |
*Dimensions and connection sizes taken from the manufacturer’s drawing for model LTI-60. Provide additional clearance for service and operation.
What’s Included
- Legion LTI-60 stationary steam kettle
- 2 in. compression draw-off valve with ¼ in. perforated strainer (installed)
- Actuator-assisted stainless steel cover
- Pre-mounted adjustable flanged feet
- Owner’s & installation manual
The Legion Advantage

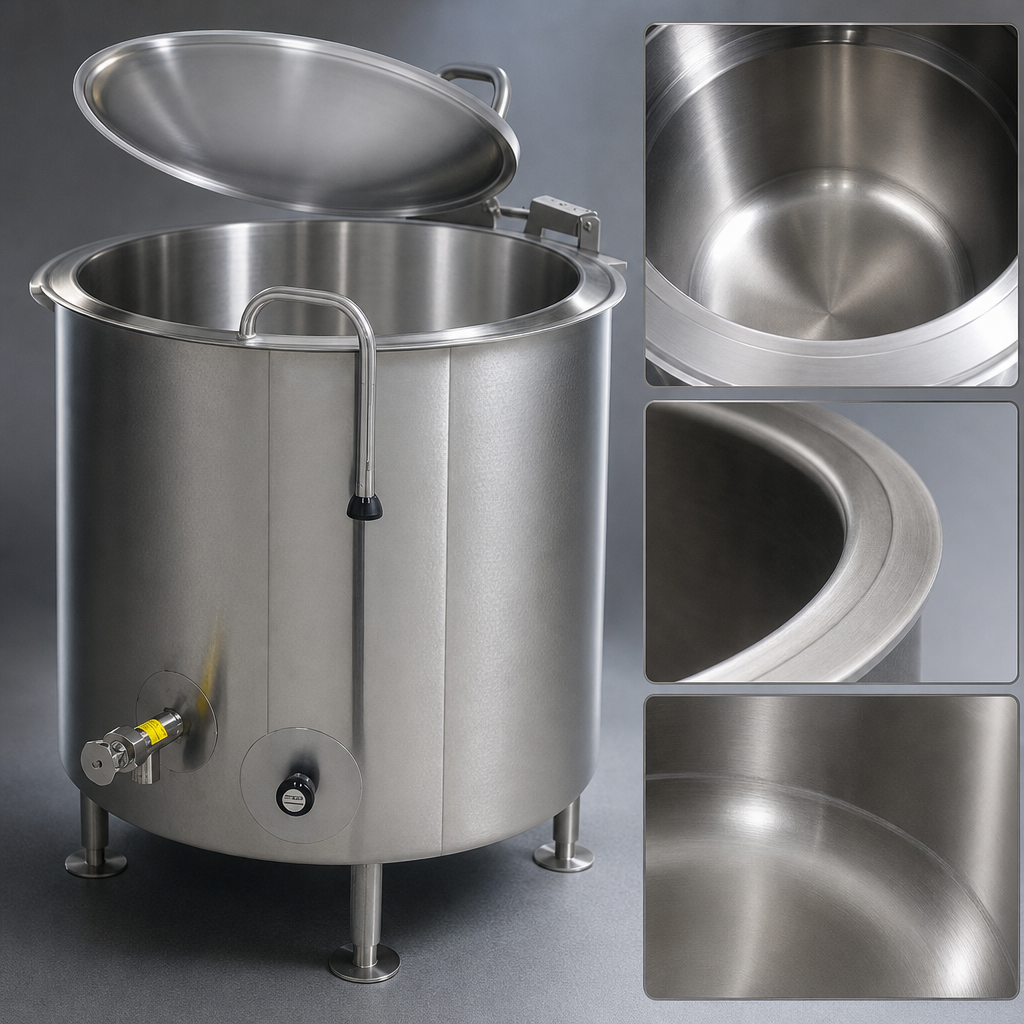

- Deep-drawn manufacturing eliminates interior welds for superior sanitation
- Insulated for Safety™ exterior reduces accidental burns and heat loss
- Built to meet or exceed ASME, NSF and other leading agency standards
- Supported by Legion’s U.S.-based technical service and parts network
Need accessories such as spray hoses, fill faucets or basket inserts? Contact us for factory-approved options compatible with the LTI-60.
