Legion LTI-40MV Steam Kettles

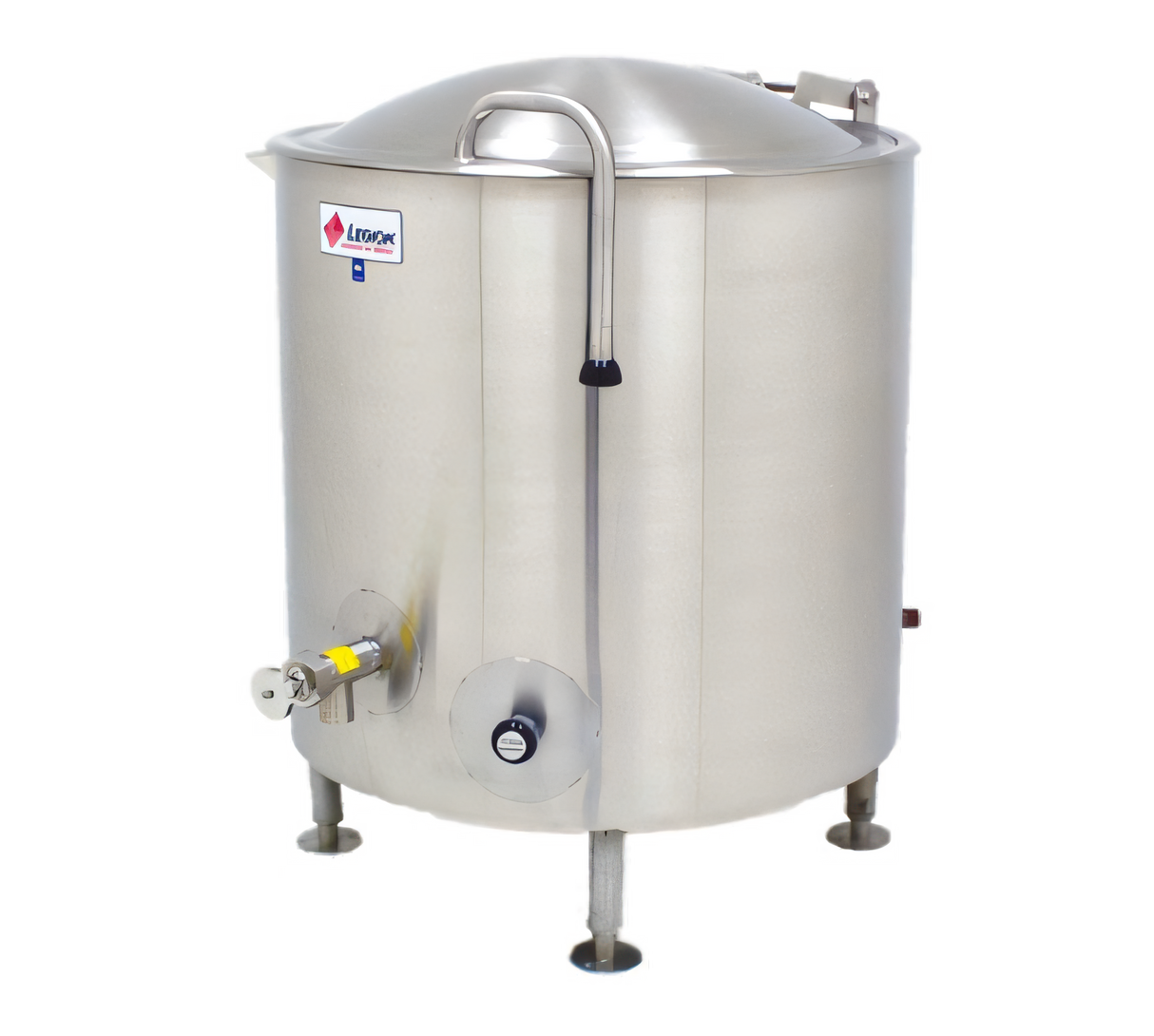

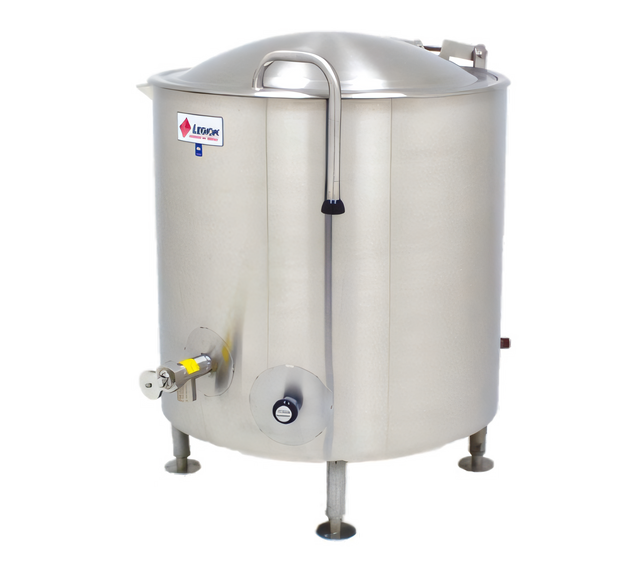

Legion 40-Gallon Stationary Direct Steam Kettle with Twin-Shaft Mixer

Engineered for heavy-volume production, this 40-gallon Legion Insulated Direct Steam Kettle delivers rapid, even heating and continuous hands-free mixing in one rugged, space-saving unit. A seamless 304 stainless liner, full-body insulation and a powerful two-speed twin-shaft agitator combine to boost kitchen throughput, cut energy costs and uphold the highest food-safety standards.

Why it Belongs in Your Kitchen

• 2/3 jacketed design ensures fast, uniform heat transfer with minimal scorching.
• Full-body Insulated for Safety™ casing keeps exterior surfaces cooler and reduces energy loss.
• Integrated MV mixer sweeps, scrapes and counter-rotates for lump-free sauces, soups and confectionery.
• Seamless deep-drawn 304 stainless liner and jacket resist pitting, flaking and flavor carry-over.
• 2" compression draw-off valve with ¼" perforated strainer speeds clean, controlled portioning.
• Domed, actuator-assisted stainless cover lifts effortlessly and sheds condensate away from product.
• Front-mounted steam control valve plus rear supply/condensate connections simplify installation.
• Four 2" diameter stainless legs with reinforcing bracing and adjustable flanged feet bolt securely to the floor.
• Built and ASME/NSF certified in the USA for long-term reliability and code compliance.

High-Performance Twin-Shaft Agitator

• Two-speed totally-enclosed gear motor (High: 46 RPM anchor / 120 RPM beater • Low: 23 RPM / 60 RPM).
• 304 stainless anchor agitator hugs kettle wall; removable nylon blades continuously scrape the surface.
• Counter-rotating stainless beater breaks up particulates for perfectly blended, lump-free results.
• Bayonet-mount shafts release in seconds for thorough cleaning or static kettle use.
• Actuator-assisted bridge lift with positive rim lock keeps tools clear for loading and sanitation.
• Safety interlock prevents high-speed starts when agitator is out of position.

Technical Specifications

Need a fill-faucet, spray hose, basket inserts or higher operating pressure? Contact us for factory options and accessories.
