Legion LTI-40 Steam Kettles
Description

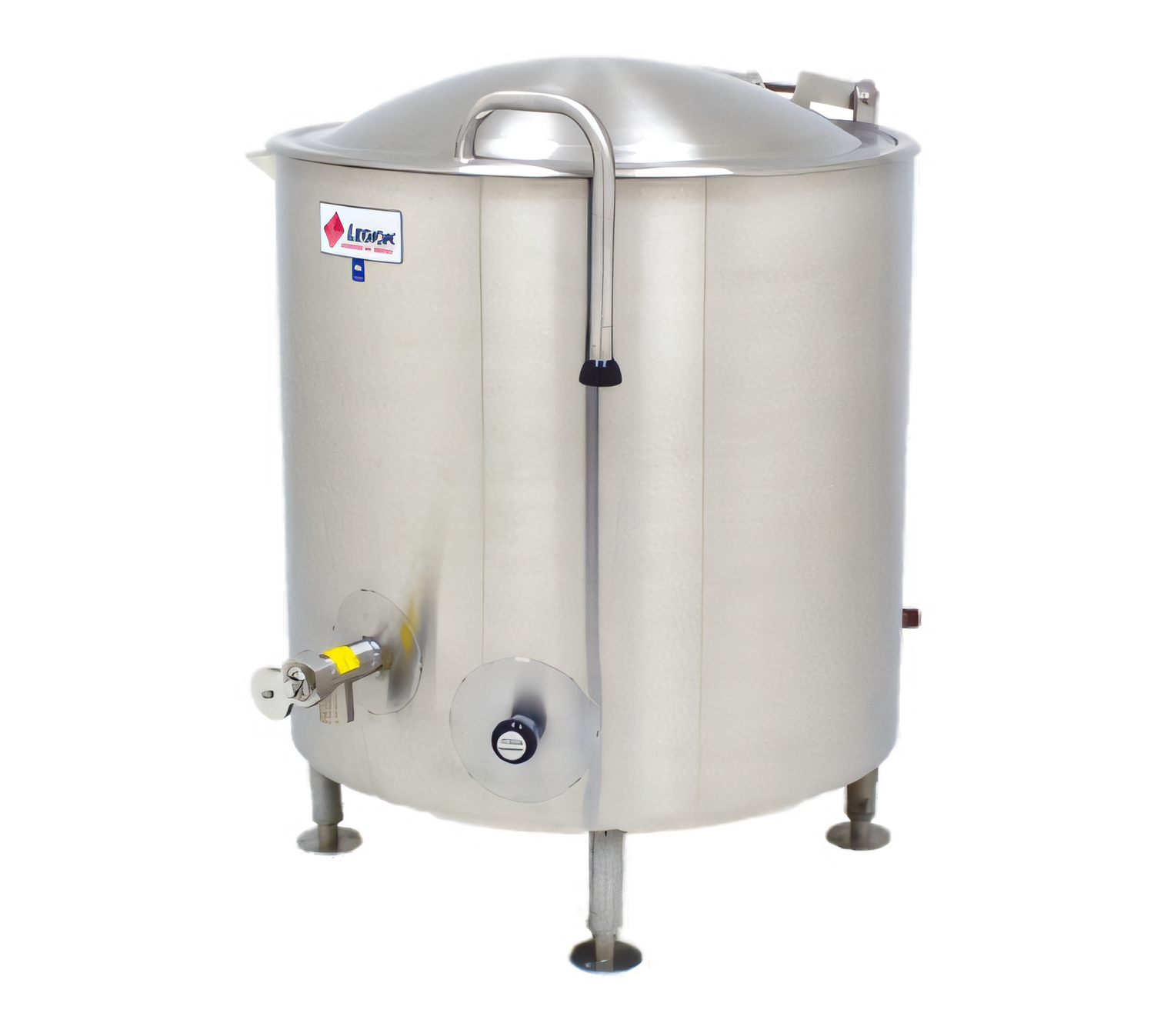

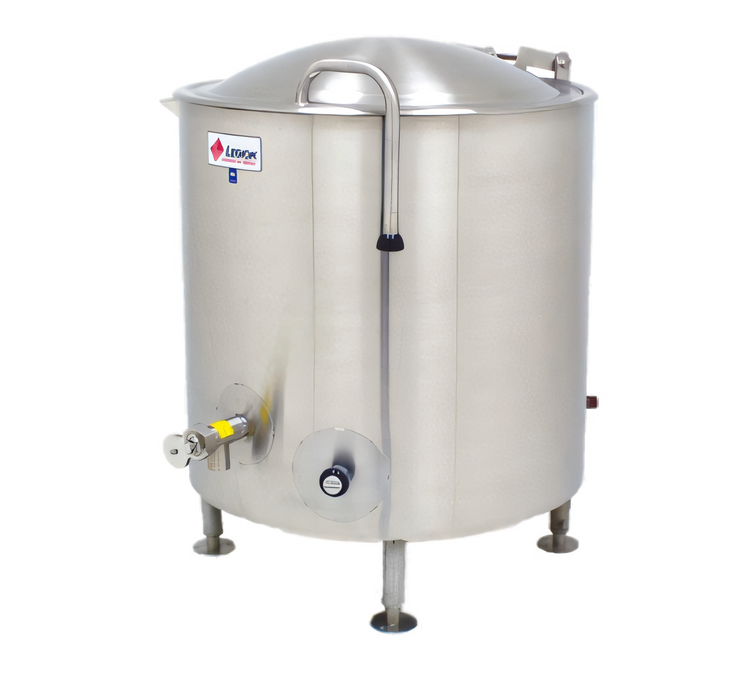

Legion LTI-40 Insulated Direct Steam Kettle – 40 Gal
Stationary • 2/3 Jacketed • Made in USAEngineered for high-volume, high-efficiency production, the 40-gallon Legion LTI-40 steam kettle delivers fast, even cooking with rock-solid durability. A seamless 304 stainless liner, full-body insulation and a front-mounted control valve make this “Insulated for Safety™” kettle a dependable centerpiece for soups, sauces, stocks and more.
Why Chefs Choose the LTI-40

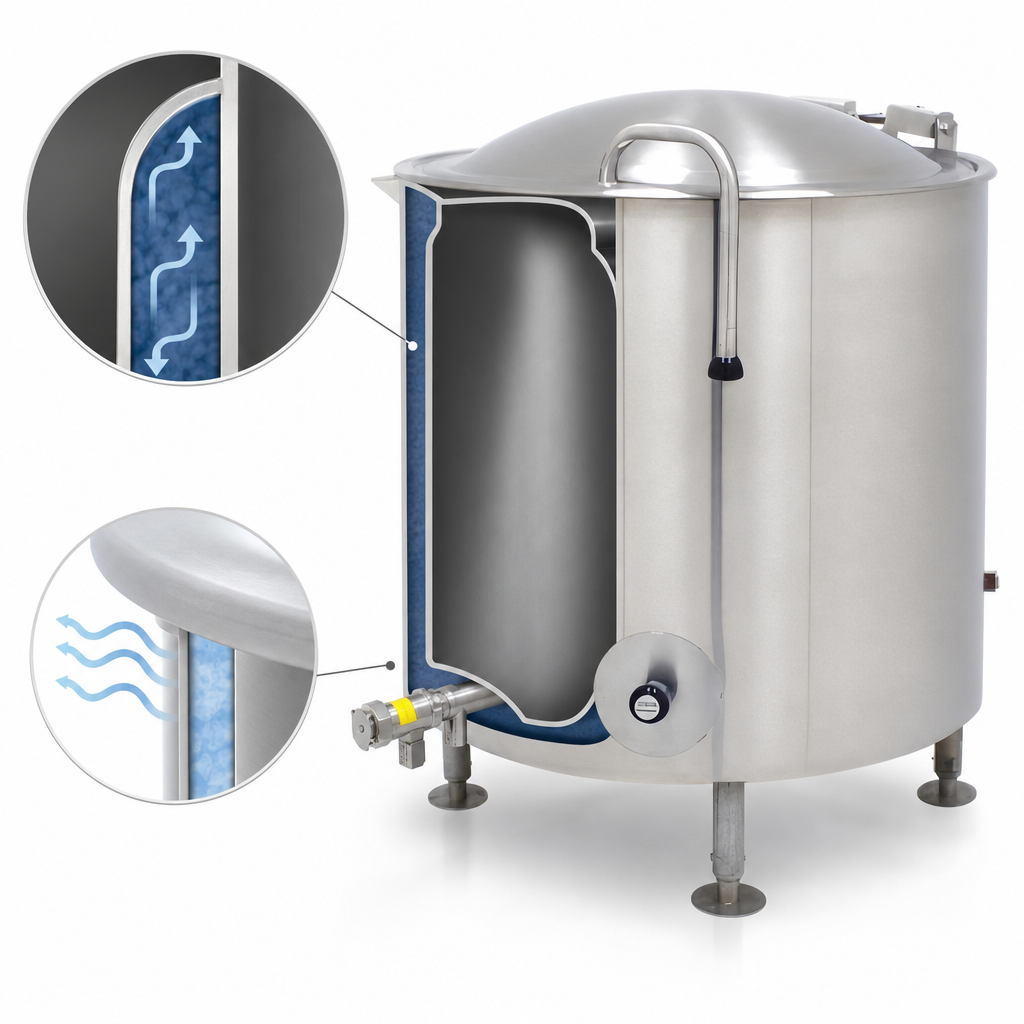

- 2/3 steam jacket surrounds the cooking zone for rapid heat-up and precise simmering.
- Full insulation keeps exterior surfaces cooler, reduces energy loss and protects staff.

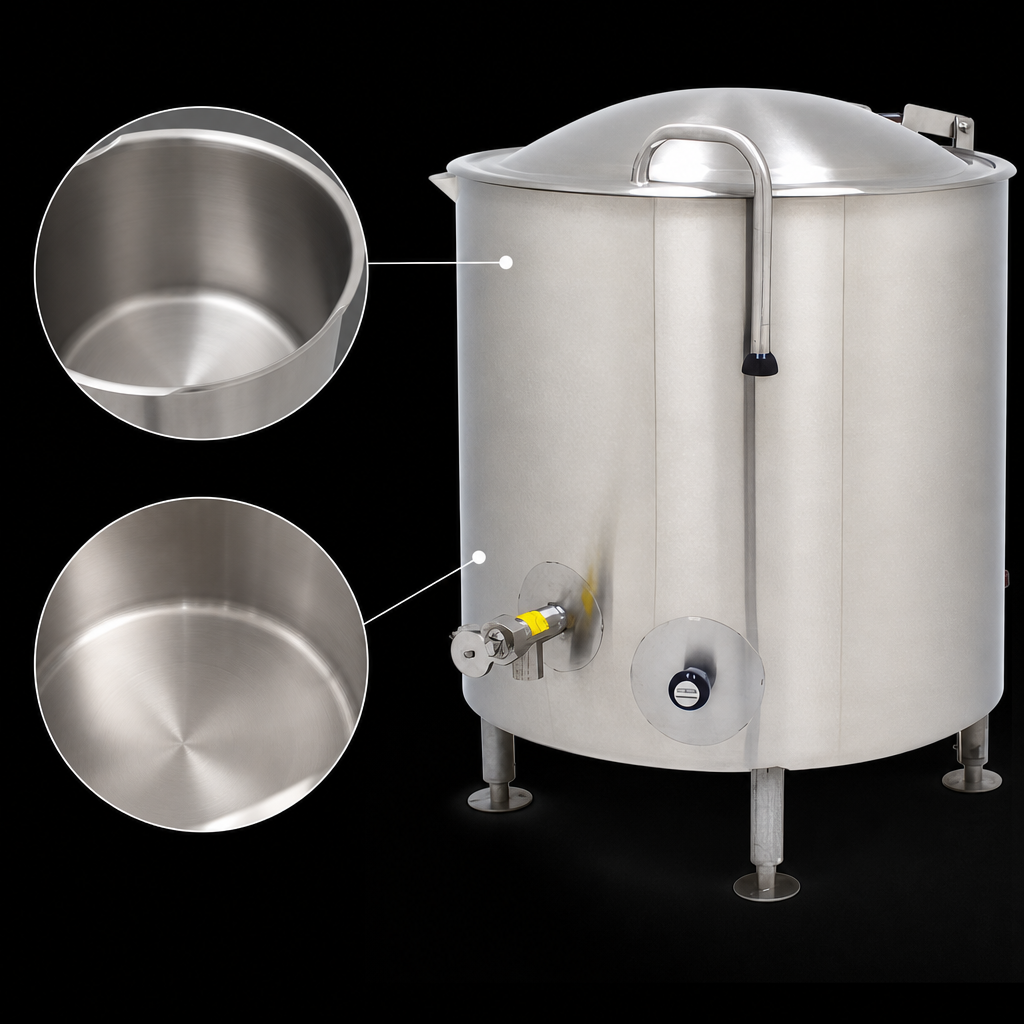

- Seamless deep-drawn 304 stainless liner cleans quickly and eliminates pitting “seams.”
- 304 stainless 2″ compression draw-off valve with ¼″ perforated disk strainer speeds portioning while trapping solids.
- Spring-assisted domed cover (included) opens effortlessly and directs condensation back into the kettle.
- Four 2″ diameter stainless legs with reinforcing bracing and adjustable flanged feet provide a rock-steady footprint.
- 30 psi working pressure for consistent performance on any approved low-pressure steam supply.
Standard Features
- Seamless 304 stainless kettle liner & jacket
- 304 stainless outer casing welded to radius lip
- Front-mounted manual steam control valve
- Rear ¾″ NPT steam inlet & ½″ NPT condensate return
- Actuator-assisted, one-piece cover
- Perforated ¼″ stainless disk strainer
- NSF & ASME code compliant; built in Waynesboro, GA
Technical Specifications
| Model | LTI-40 |
|---|---|
| Capacity | 40 gal / 151 L |
| Operating Pressure | 30 psi (2 bar) maximum |
| Jacket Coverage | 2/3 of kettle body |
| Draw-off Valve | 2″ compression type, 304 SS |
| Overall Height – rim (C) | 36.8″ / 935 mm |
| Overall Width – diameter (A) | 25.5″ / 648 mm |
| Floor to Rim | 32.4″ / 823 mm |
| Height – cover open (J1) | 72.2″ / 1834 mm |
| Steam Inlet | ¾″ NPT (rear connection) |
| Condensate Return | ½″ NPT (rear connection) |
| Net Weight | Approx. 370 lb / 168 kg |
Popular Accessories (sold separately)
- Single or dual-fill faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- 2-speed mixer/agitator assembly
- Lift-off or hinged covers, lockable security lid
- Single or tri-basket inserts, nylon bag insert with spreader ring
- Air eliminator or pressure-reducing valves
Installation & Warranty
Unit must be installed by a qualified steam technician in accordance with all local codes. Legion provides a standard 12-month parts & labor warranty (15 months from ship date). Extended warranty plans are available.
Always verify steam supply, floor reinforcement and clearances before ordering. Legion reserves the right to modify design or specifications without notice.
