Legion LTI-30MV Steam Kettles
Description

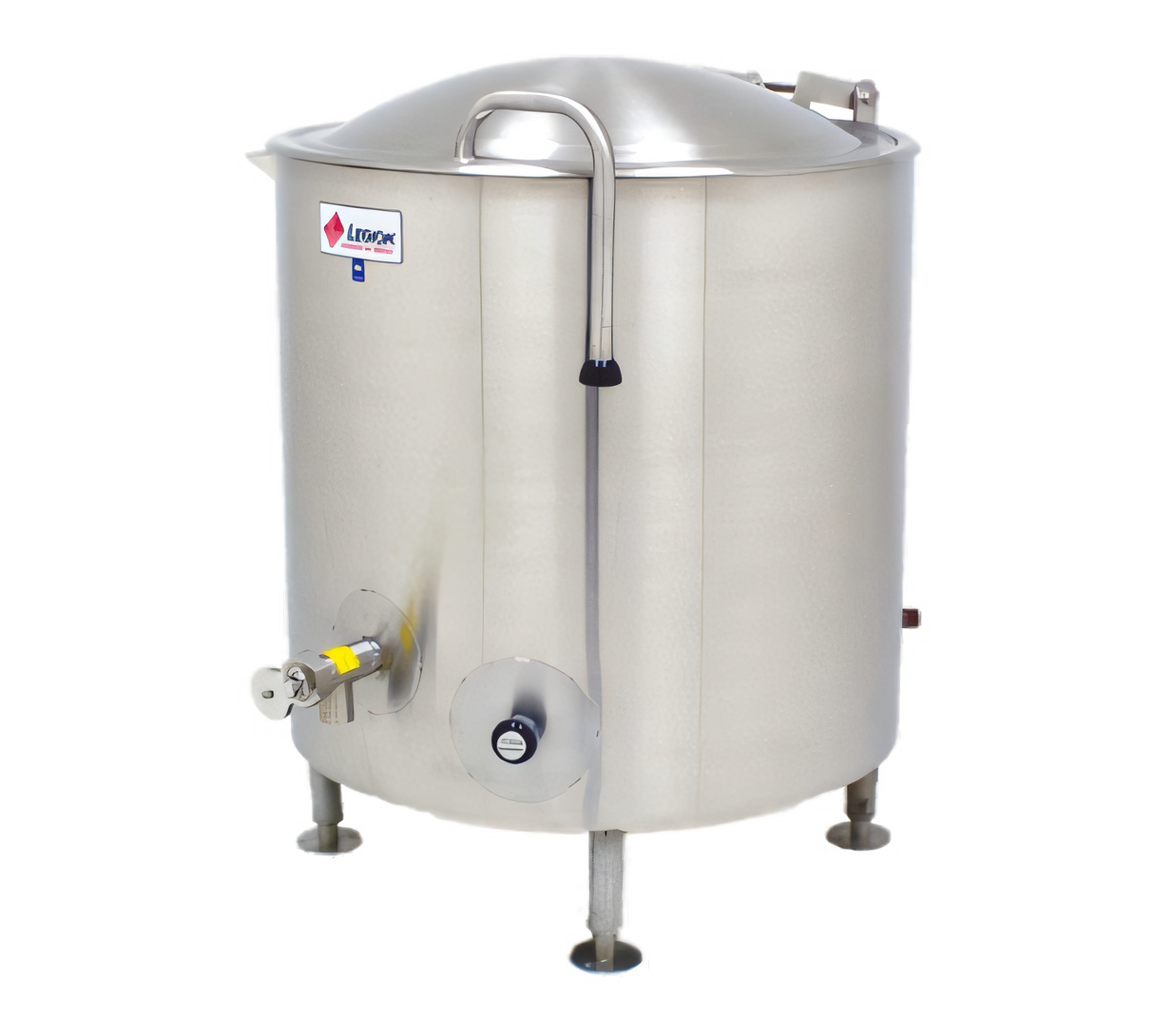

Legion LTI-30MV | 30-Gallon Stationary Direct Steam Kettle with Twin-Shaft Mixer
2/3 jacketed • fully insulated • 304 stainless steel • made in USALegion’s Insulated Direct series pairs rapid, even steam heating with the labor-saving power of an integrated mixer. The 30-gallon LTI-30MV is purpose-built for high-volume production of soups, sauces, gravies, custards and more, delivering rock-solid temperature control and hands-free agitation in one rugged, easy-to-clean package.
Performance & Construction Highlights
- Seamless 304 SS kettle liner with deep-drawn radius corners—no interior weld seams to trap food soil.
- 2/3 steam jacket (side & bottom) surrounded by full-body insulation to maximize efficiency and operator safety.
- Factory-installed 2″ compression draw-off valve with ¼″ perforated disk strainer—perfect for draining broths while retaining solids.
- Four 2″-diameter 304 SS legs with reinforcing bracing and adjustable flanged feet for rock-solid, sanitary floor mounting.
- 30 psi operating pressure, ASME code stamped, with front-mounted manual steam control valve for precise heat regulation.
Integrated Twin-Shaft Mixer
- Totally-enclosed two-speed gear motor (Low ≈ 23 RPM / High ≈ 46 RPM main agitator).
- 304 SS anchor-style main agitator conforms to kettle wall; removable nylon scraper blades continuously clean the surface.
- Counter-rotating 304 SS secondary beater breaks up lumps and promotes thorough mixing.
- Actuator-assisted bridge, agitator and scraper lift for effortless access and cleaning.
- Positive rim lock & safety interlock—prevents high-speed starts unless the bridge is fully engaged.
Key Specifications
| Specification | LTI-30MV |
|---|---|
| Capacity | 30 gal / 114 L |
| Construction | 304 SS liner, jacket, outer casing & legs |
| Jacket Coverage | 2/3 (side & bottom) |
| Operating Pressure | 30 psi (2.1 bar) |
| Draw-off Valve | 2″ compression type with ¼″ perforated strainer |
| Mixer Speeds | Low ≈ 23 RPM / High ≈ 46 RPM (main agitator) |
| Mixer Motor | Totally-enclosed gear motor | 115/208/230/460 V, 1 Ø or 3 Ø, 60 Hz (specify) |
| Approx. Footprint (W × D × H) | 29.6″ × 35.6″ × 56.9″ (to top of mixer bridge) |
| Certifications | ASME, NSF; built to UL, ETL, CSA & other applicable standards |
Popular Options & Accessories
- Single or double pantry faucet with 12″ or 18″ swing spout
- 48″ flexible spray hose assembly (vinyl or stainless)
- Automatic water-fill meter
- Lift-off or two-piece hinged covers
- Single or tri-basket inserts & nylon bag inserts
- Kettle care & maintenance kit
Steam generator/boiler, water, and utility connections are supplied by others. Consult local codes and a qualified installer to confirm utility requirements and clearances.
