Legion LTI-30 Steam Kettles
Description

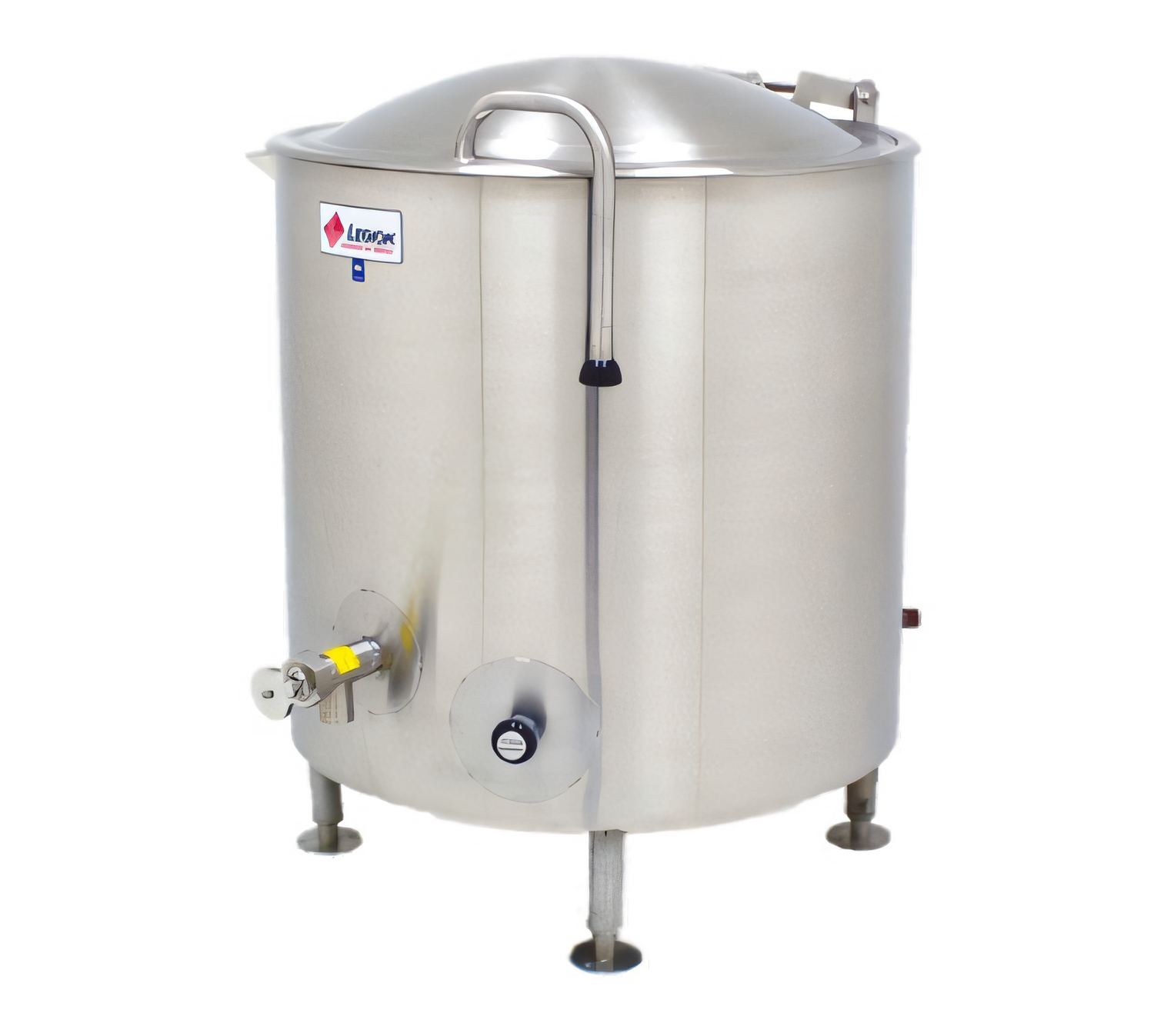

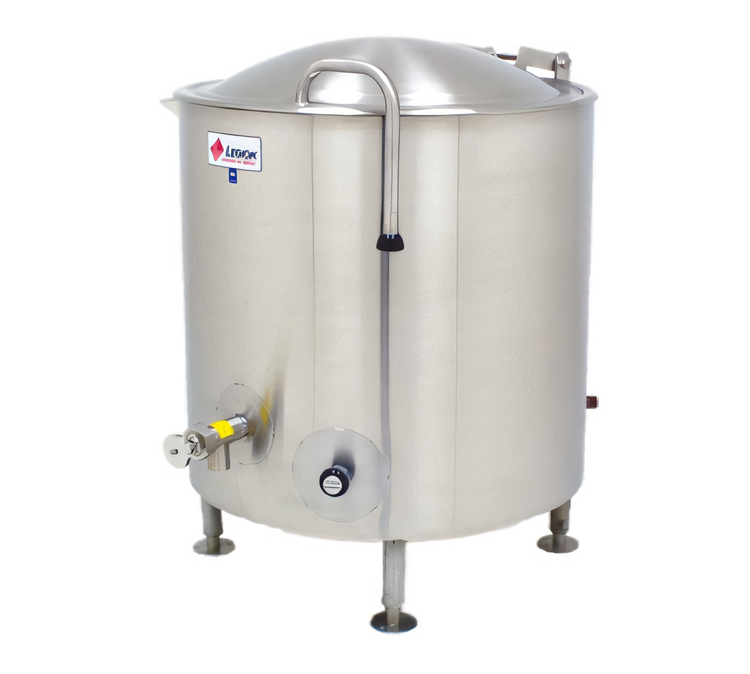

Legion LTI-30 Stationary Direct Steam Kettle – 30 Gal.
2/3-Jacketed • Fully Insulated • 304 Stainless SteelBuilt “Insulated for Safety™” and proudly made in the USA, the Legion LTI-30 delivers the speed, consistency, and labor-savings of steam cooking in a compact 30-gallon footprint—perfect for schools, healthcare, commissaries, and high-volume restaurants.
Key Features

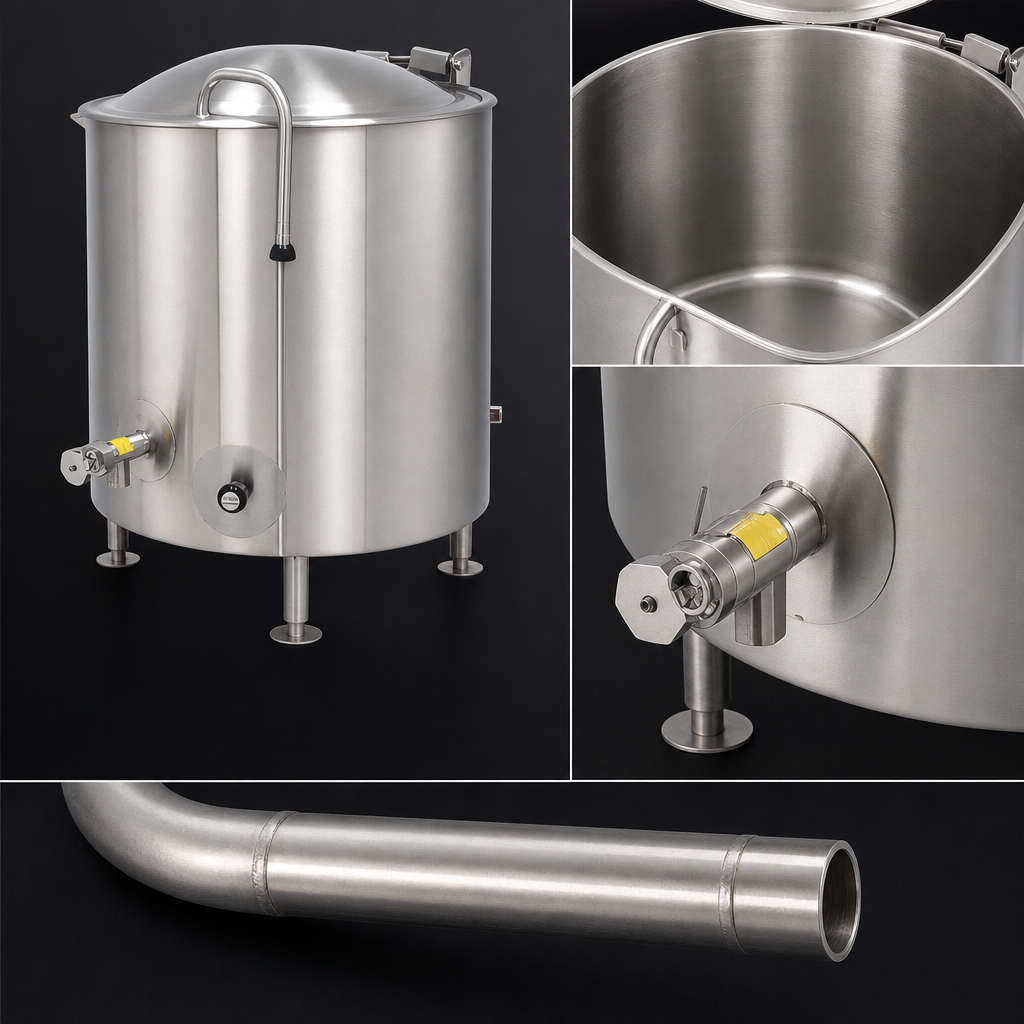

- Seamless deep-drawn 304 stainless steel kettle liner for superior sanitation & product release.
- 2/3 jacketed body surrounded by full-body fiberglass insulation—keeps heat in, kitchen temps down.

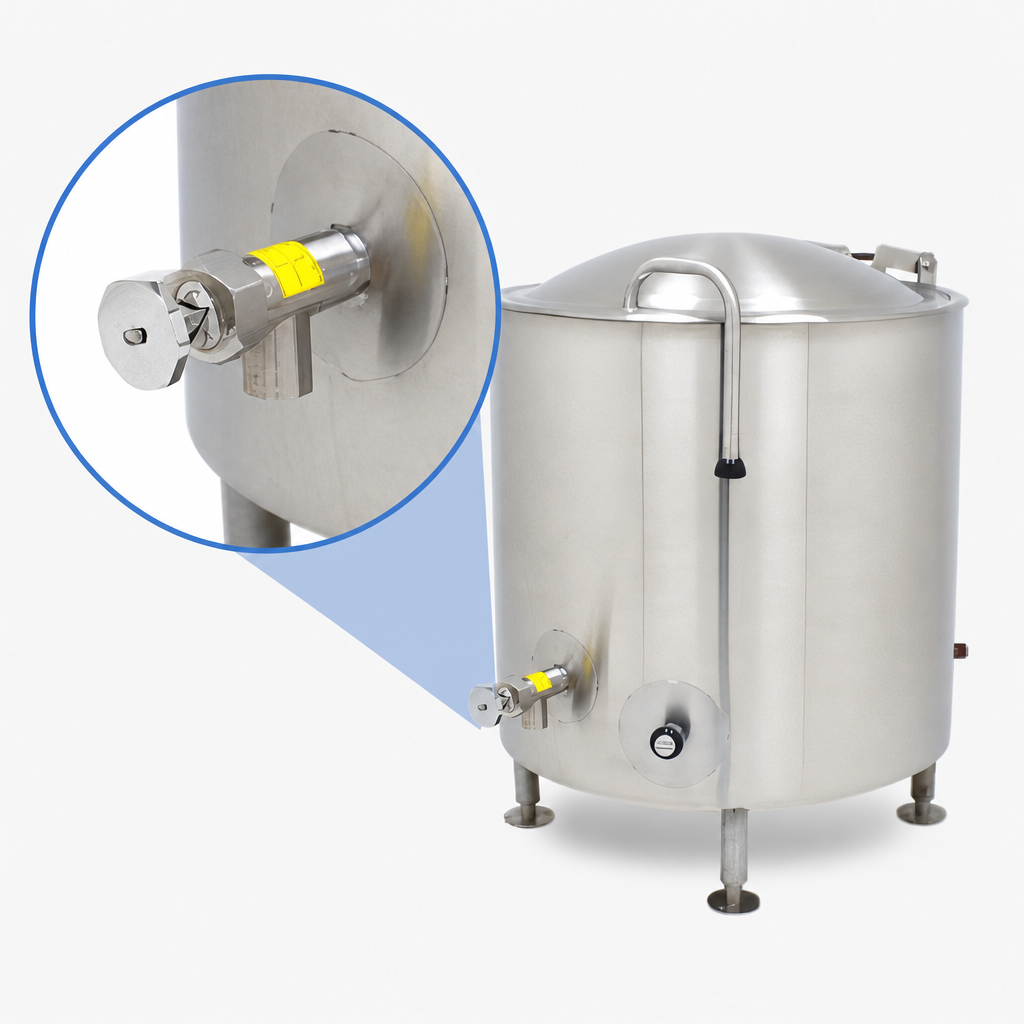

- 304 stainless 2" compression draw-off valve with removable 1/4" perforated strainer for safe, clog-free portioning.
- Rugged 304 stainless legs (4 × 2" Ø) with reinforcing bracing and adjustable flanged feet for easy bolting to floor.
- Front-mounted manual steam control valve—precise, responsive temperature control at your fingertips.
- Rear ¾" NPT steam inlet & ½" NPT condensate return keep utility lines out of the production zone.
- 30 psi operating pressure rated & ASME/NSF compliant.
At a Glance
| Model | LTI-30 |
|---|---|
| Capacity | 30 US gal • 114 L |
| Jacket Coverage | 2/3 kettle body |
| Operating Pressure | 30 psi (2.07 bar) |
| Liner Material | Seamless 304 stainless steel |
| Jacket / Casing | 304L stainless jacket & 304 stainless outer casing |
| Insulation | Full body, between jacket & outer casing |
| Draw-Off Valve | 2" compression type, 304 SS with 1/4" perforated disk strainer |
| Legs / Mounting | 4 × 2" Ø 304 SS legs, adjustable flanged feet |
| Steam Connections | ¾" NPT steam inlet, ½" NPT condensate return (rear) |
| Controls | Manual front steam control valve |
| Approx. Dimensions* | 23.0" W × 35.6" D × 29.6" H to rim |
| Country of Origin | Made in the USA |
Popular Options & Accessories
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- 1-piece actuator-assisted or 2-piece hinged stainless cover
- Mixer/Agitator, 2-speed
- Tri-basket or single basket inserts, nylon bag insert, draw-off drain hose
Important: This is a direct-steam kettle and requires a dedicated 30 psi external steam source (boiler), not included.
*See spec drawing for detailed dimensional data. Specifications subject to change without notice.
