Legion

Legion LTI-20 20-Gallon Insulated 2/3-Jacketed Direct Steam Kettle, Stationary Leg-Mounted

SKU: LTI-20
$7,972.63
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Legion New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

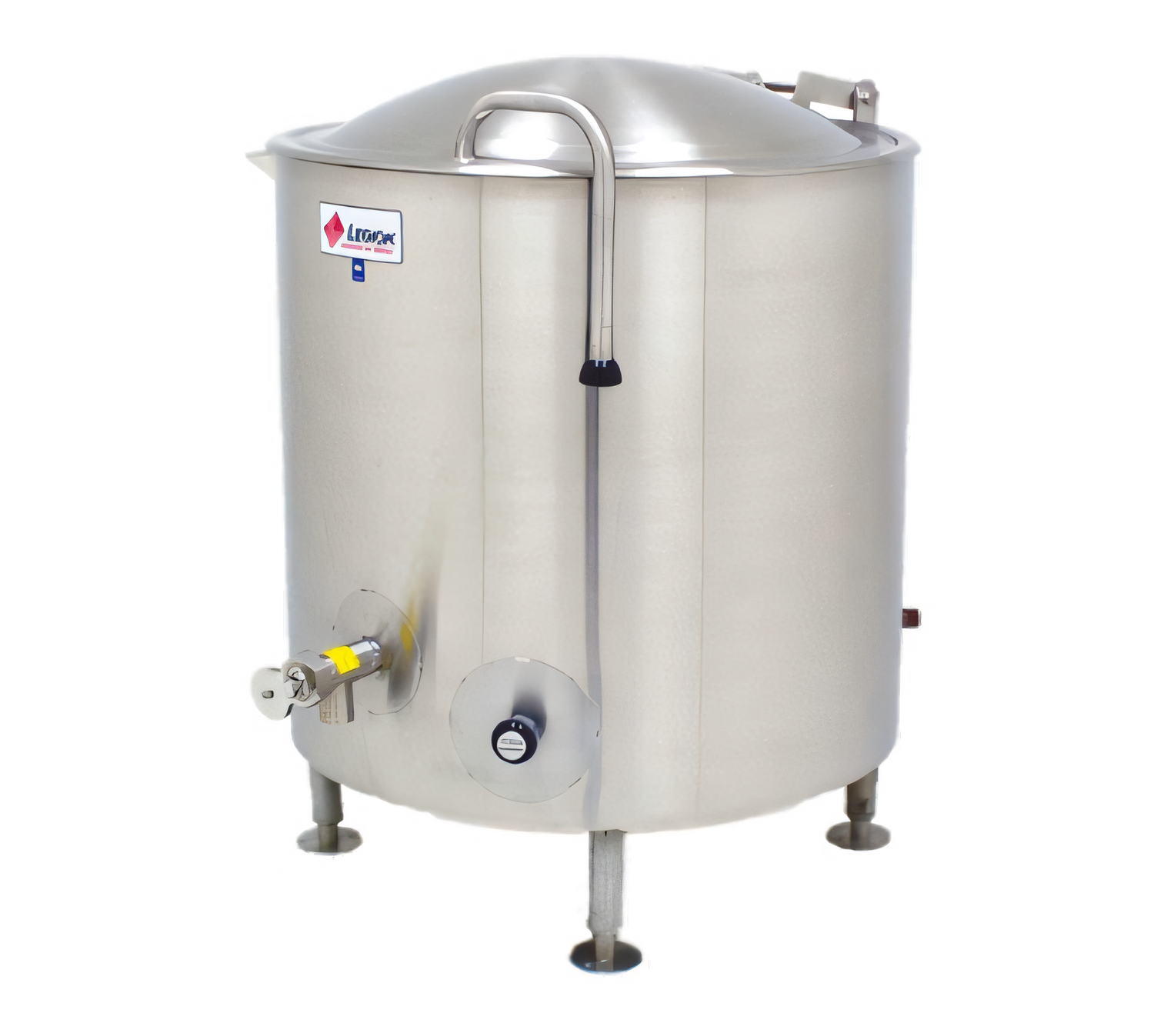

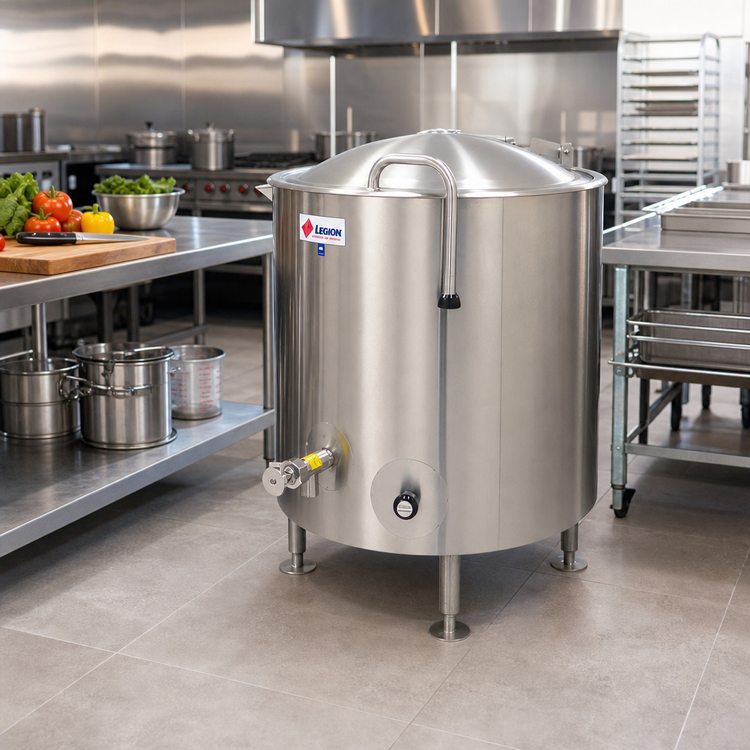

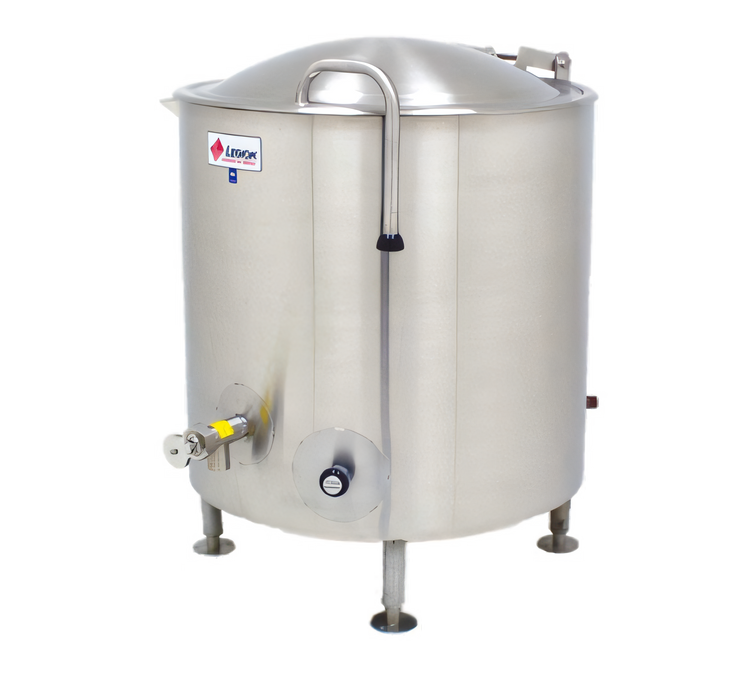

Legion LTI-20 20-Gallon Insulated 2/3-Jacketed Direct Steam Kettle, Stationary Leg-Mounted

304 Stainless Steel Liner, 2-Inch Draw-Off Valve, 30 PSI

This 20-gallon steam kettle pairs a rugged 304 stainless steel liner with full insulation and a 2-inch draw-off valve for safe, efficient batch cooking.

  • 20-gallon capacity is ideal for soups, sauces, stocks, and other batch-cooking applications.
  • Seamless deep-drawn 304 stainless steel liner and stainless steel construction support long-term durability.
  • 2/3-jacketed, fully insulated body helps retain heat and improve operator safety.
  • 2-inch compression draw-off valve includes a perforated 1/4-inch hole strainer for controlled draining.
  • Front-mounted steam control valve with rear steam supply and condensate connections simplifies operation and hookup.
  • Stationary, leg-mounted base with adjustable flanged feet provides stable floor installation.

Product Weight:

205.0 lb

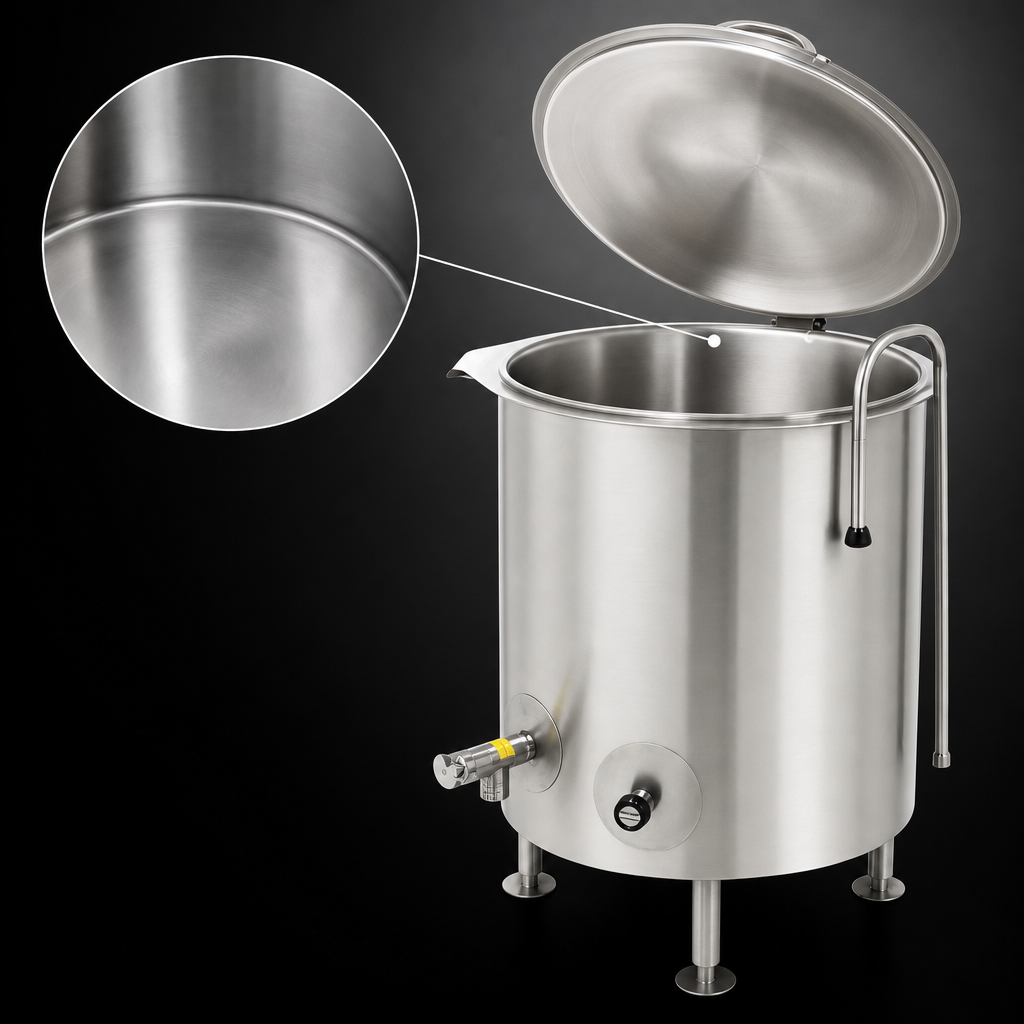

Seamless Deep-Drawn 304 Stainless Steel Liner

Durable, corrosion-resistant liner designed for commercial steam cooking applications.

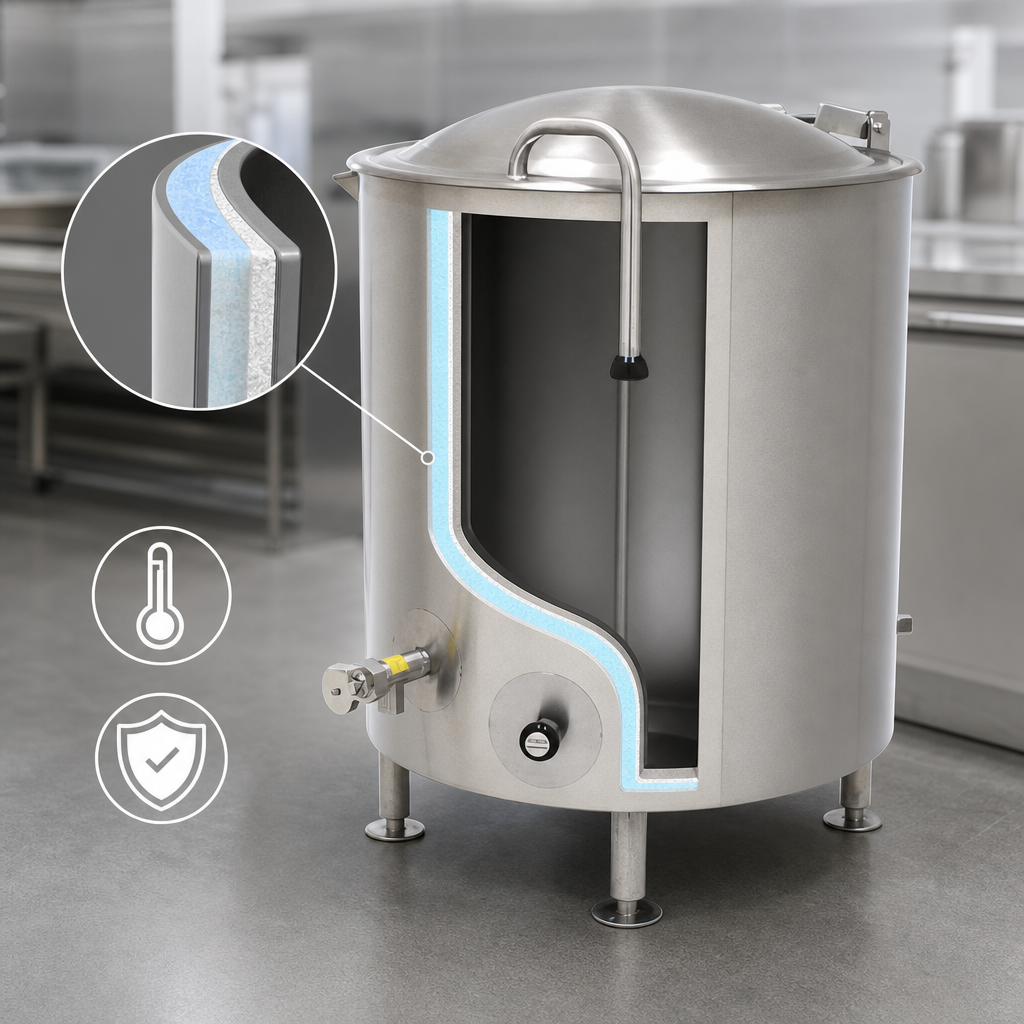

2/3-Jacketed, Fully Insulated Construction

Helps improve heat retention while reducing exterior surface temperatures.

304 Stainless Steel Jacket and Outer Casing

Stainless steel construction supports strength and long service life.

2-Inch Compression Draw-Off Valve

Provides controlled product discharge for batch cooking and draining.

Perforated 1/4-Inch Hole Strainer

Helps keep solids from entering the draw-off line.

Front-Mounted Steam Control Valve

Convenient valve placement for operating the kettle.

Rear Steam and Condensate Connections

Rear connections simplify steam supply and condensate hookup.

304 Stainless Steel Legs with Reinforcing Bracing

Adds support and stability to the stationary kettle base.

Adjustable Flanged Feet

Helps level the kettle during installation.

30 PSI Operating Pressure

Rated operating pressure for the direct steam kettle system.

Type Direct Steam Kettle
Style Stationary
Installation Type Floor Model
Capacity 20 Gallons
Material Stainless Steel
Interior Finish 304 Stainless Steel
Jacket Coverage 2/3 Jacketed
Base Quad-Leg
Operating Pressure 30 PSI
Country of Origin USA
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has a 20-gallon capacity.
It uses a seamless deep-drawn 304 stainless steel liner.
Yes. It has full body insulation between the kettle jacket and outer casing.
The kettle includes a 2-inch compression draw-off valve with a perforated 1/4-inch hole strainer.
The kettle operates at 30 PSI.
Yes. The documentation lists basket inserts, drain hoses, measuring strips, faucet options, and other accessories/options.
