Legion LTI-150 Steam Kettles

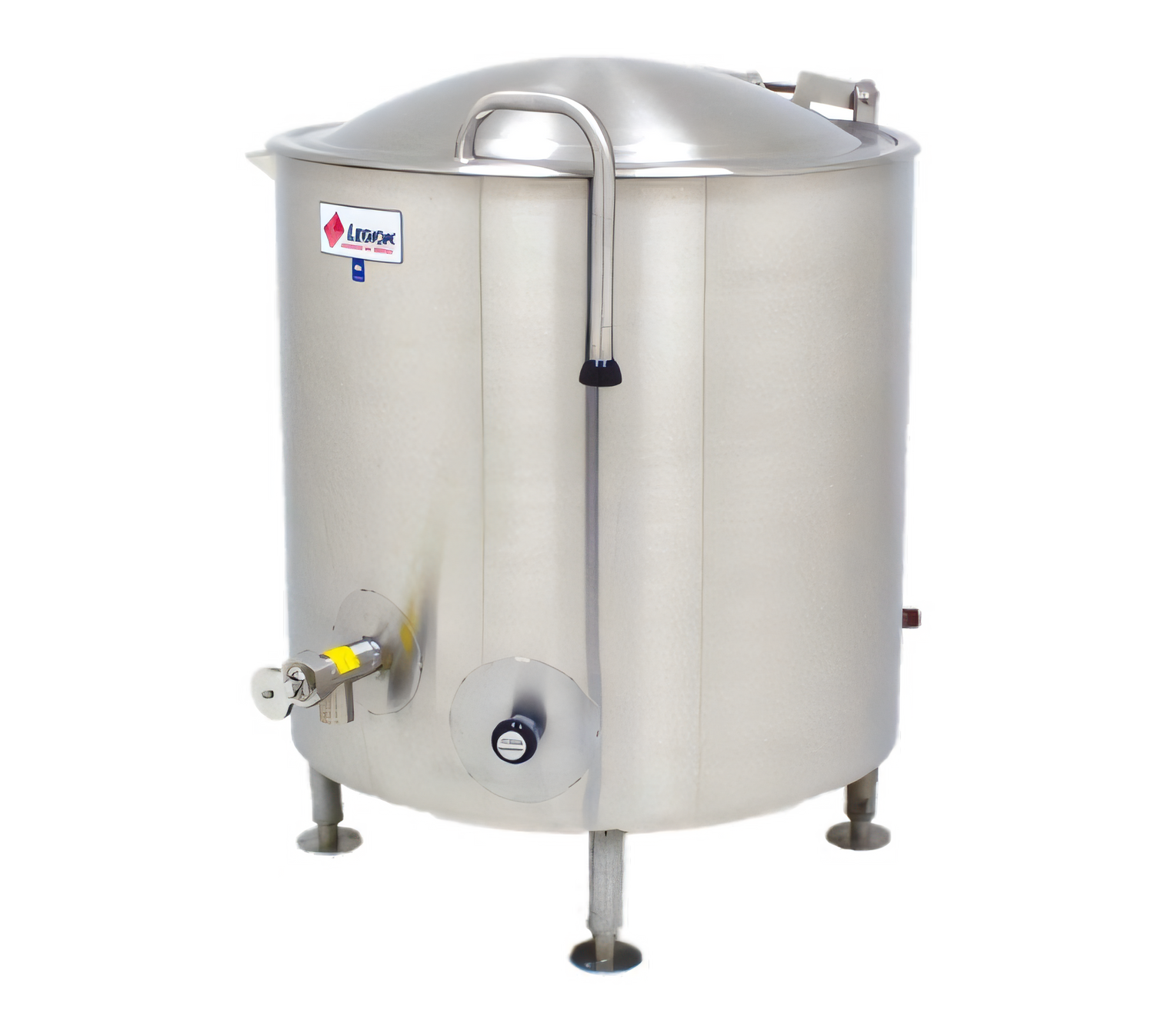

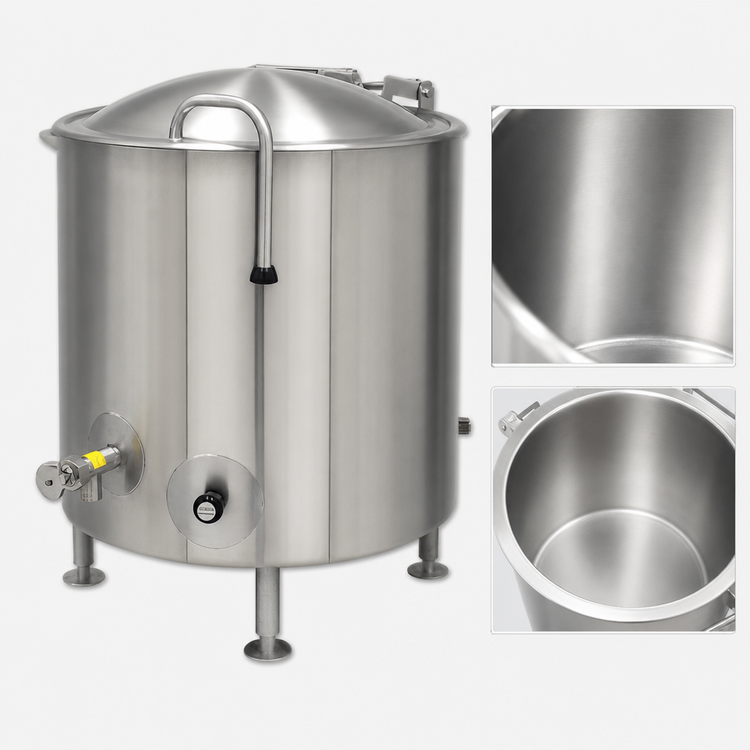

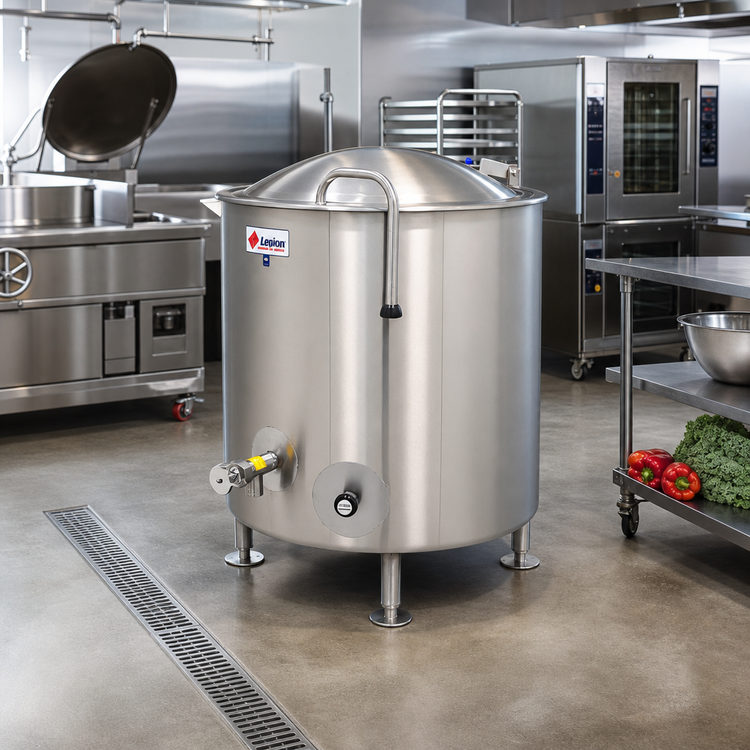

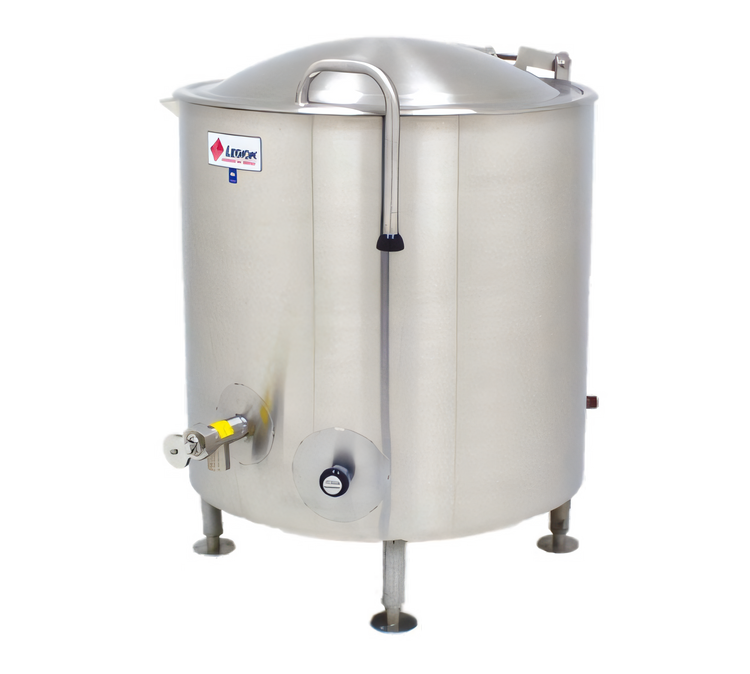

Legion 150-Gallon Insulated Direct Steam Kettle

Built for the demands of high-volume commercial kitchens, this 150-gallon direct steam kettle combines Legion’s signature Insulated for Safety™ construction with rugged all-stainless materials for years of reliable service and simpler sanitation.

Key features

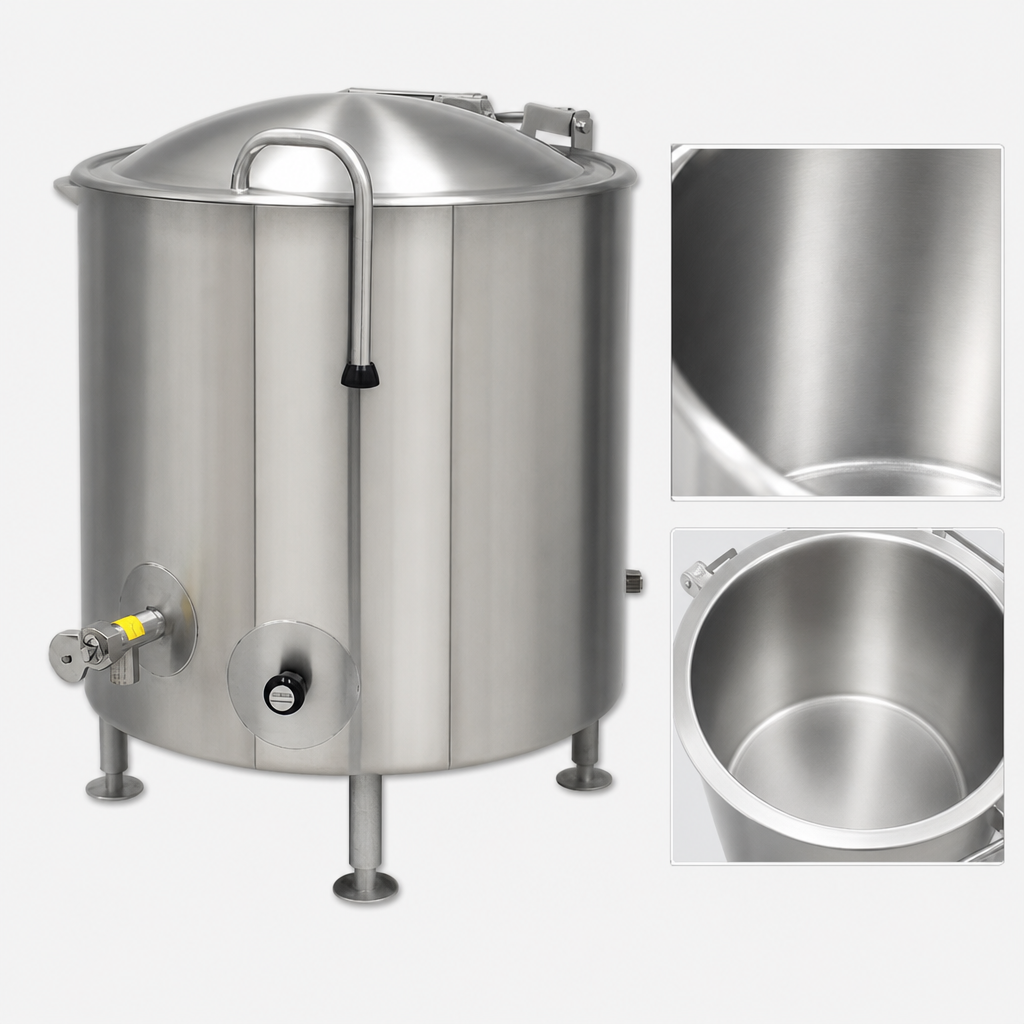

• Seamless deep-drawn 304 stainless steel liner – no interior weld seams to harbor food soil.

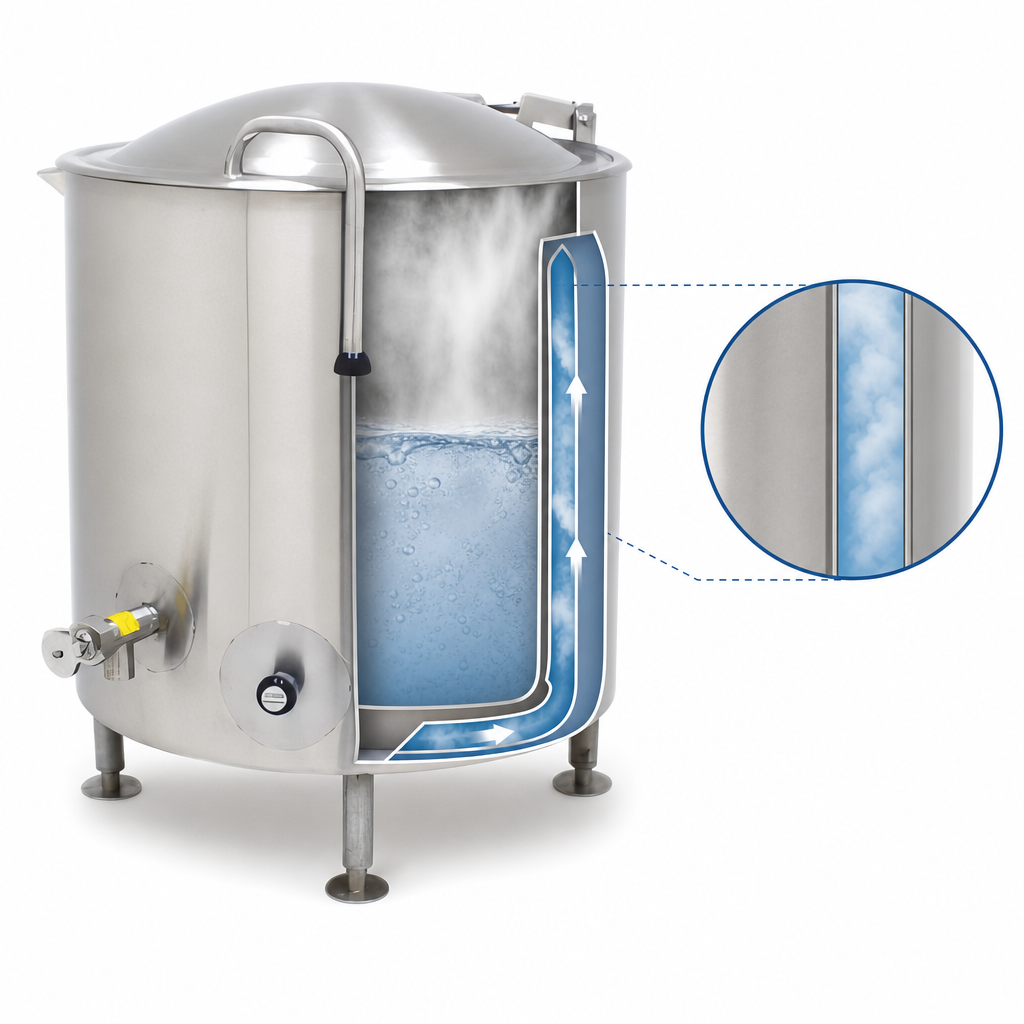

• 304L stainless 2/3 jacket delivers fast, even heat across side and bottom surfaces.
• Full-body high-temperature insulation keeps exterior surfaces cool and saves energy.
• Heavy-duty 2 in. compression draw-off valve (304 SS) with removable ¼ in. perforated disk strainer for smooth, clog-free draining.
• Four 2 in. diameter stainless legs with cross-brace reinforcement and adjustable flanged feet for secure floor anchoring.
• Front-mounted steam control valve gives operators fingertip regulation without reaching over hot zones.
• Rear connections for steam inlet and condensate return maintain a clean, obstruction-free front workspace.
• Fabricated, assembled and tested in the USA to comply with ASME, NSF, UL, ETL, AGA, CSA and CGA standards where applicable.

Technical specifications

Popular options & accessories (sold separately)

• Single or dual fill faucets with 12 in. or 18 in. swing nozzles
• 48 in. flexible spray hose (vinyl or stainless)
• Two-speed mixer/agitator assembly
• Actuator-assisted or two-piece hinged covers
• Automatic water-fill meter
• Air eliminator or pressure-reducing valves
• Basket, tri-basket & nylon bag inserts
• Draw-off drain hose & protection kits

Standard Legion warranty: 12 months from installation (15 months from ship date). Extended warranty coverage is available.
