Legion LTI-125 Steam Kettles
Description

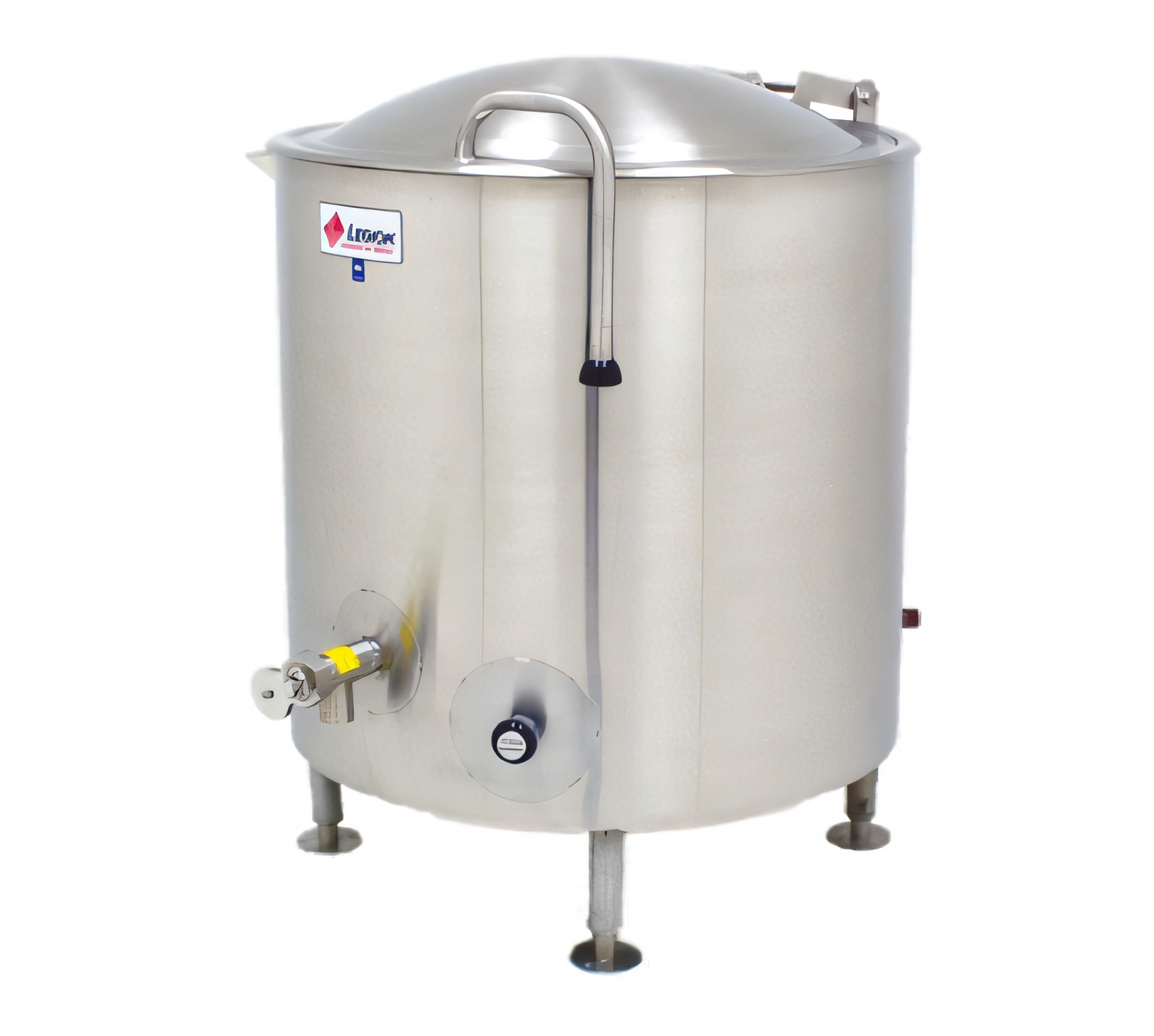

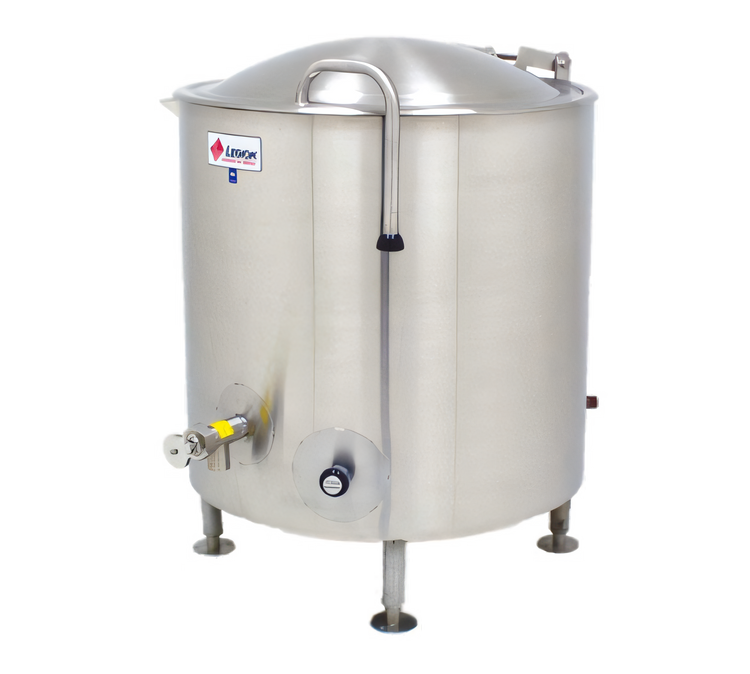

LTI-125 Stationary Direct Steam Kettle – 125 gal / 473 L
Legion • Made in USA • 30 psi ASME ratedBuilt for the largest production kitchens, the Legion LTI-125 delivers rock-solid reliability and exceptional heat transfer for soups, sauces, pasta, stocks and more. A seamless 304 stainless liner, 2/3 steam jacket and full-body insulation keep energy where it belongs—inside the kettle—while the 2 inch draw-off valve and actuator-assisted cover make high-volume batch work fast, safe and mess-free.
Standard Features

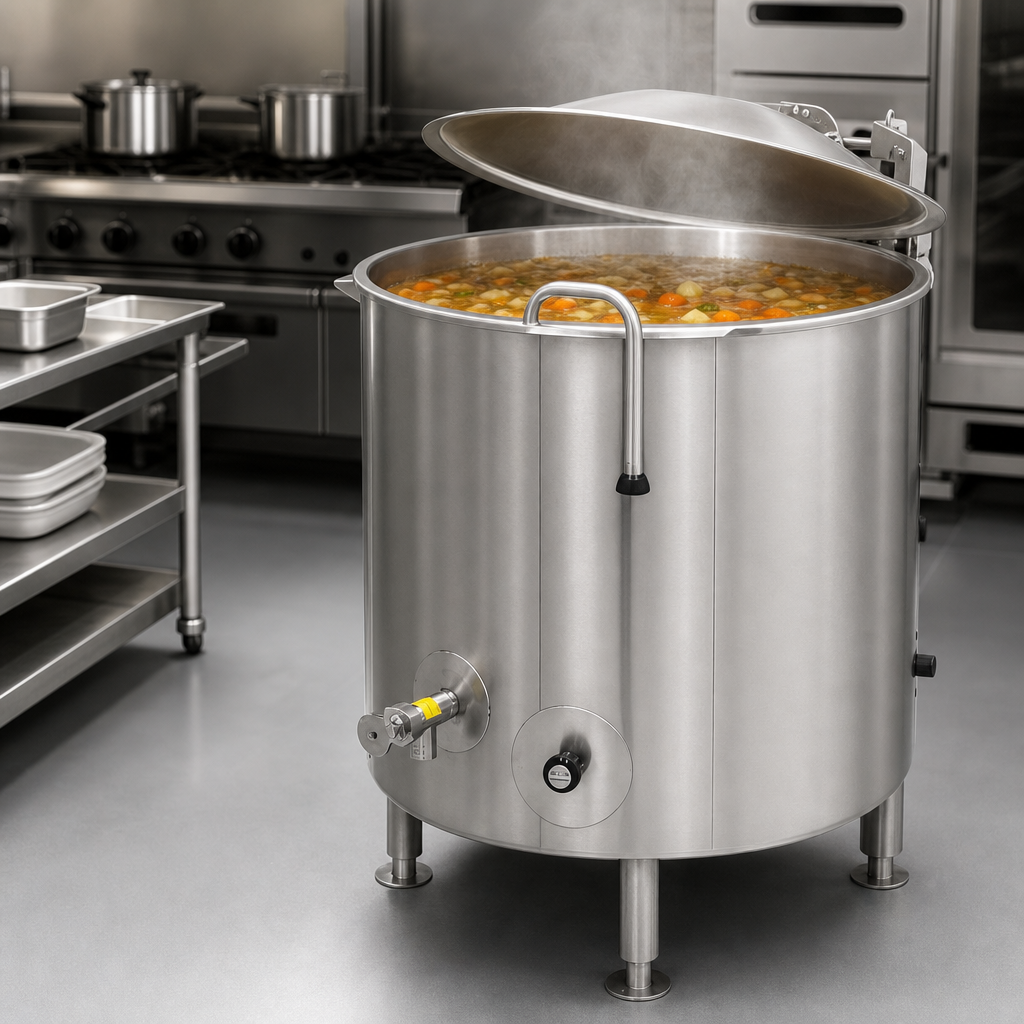

- 125 gallon (473 L) working capacity
- Seamless, deep-drawn 304 stainless steel kettle liner

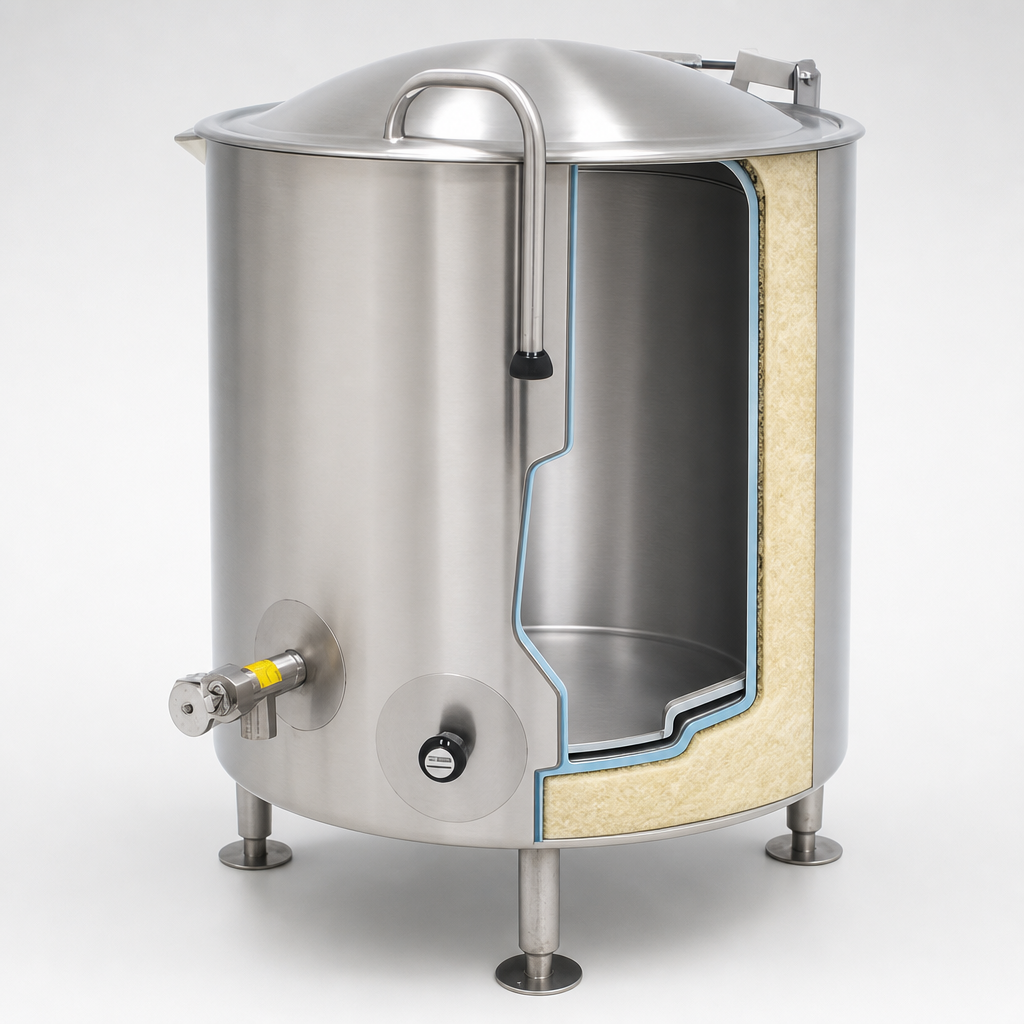

- 2/3 jacketed design in 304L stainless for rapid, even heating
- Full-body Insulated for Safety™ construction reduces heat loss & exterior temperature
- 30 psi operating pressure (ASME stamped)
- 2″ stainless compression draw-off valve with ¼″ perforated disk strainer
- Heavy-duty, one-piece stainless domed cover – actuator assisted for effortless lifting
- Four 2″ Ø stainless legs with cross-bracing & adjustable flanged feet
- Front-mounted steam control valve; rear steam inlet & condensate return
- NSF certified & built to meet or exceed UL, ETL, CSA and other agency standards
Dimensions & Connections
| Overall height (J1) | 94.8 in | 241 cm |
|---|---|
| Height to draw-off (J2) | 75.3 in | 191 cm |
| Inside vessel diameter (A) | 44.0 in | 112 cm |
| Inside vessel depth (B) | 26.3 in | 67 cm |
| Overall width – handle to valve (F) | 50.4 in | 128 cm |
| Minimum rear clearance (D) | 34.1 in | 87 cm |
| Steam inlet (Q) | ¾″ NPT |
| Condensate return (R) | ¾″ NPT |
| Shipping weight | ≈ 1,150 lb / 522 kg |
Why chefs choose Legion LTI-125
- Fast heat-up: 2/3 jacket offers 50 % more surface area than hemispherical kettles.
- Energy smart: thick mineral wool insulation slashes ambient heat and utility costs.
- Easy cleaning: seamless interior, sloped bottom, and sanitary welds rinse spotless.
- Safe transfers: standard perforated strainer keeps pasta or veg in the kettle when drawing off liquid.
- Built to last: heavy-gauge stainless throughout—no rivets, no plating, no compromise.
Popular Factory Options
- Automatic water-fill meter
- Single or dual fill faucet with 12″ / 18″ swing nozzle (wall or bracket mount)
- 48″ flexible spray hose assembly (vinyl or stainless)
- Mixer / agitator, 2-speed
- Tri-basket or nylon bag insert systems
- Higher operating pressure models
Contact our sales team for pricing and lead times on factory-installed options.
Warranty & Certifications
The LTI-125 is backed by Legion’s 12-month parts & labor warranty from date of installation (15 months from ship date). Extended warranty packages are available.
Manufactured in Waynesboro, GA, USA – Conforms to all applicable NSF, UL, ETL, CSA & ASME requirements.
