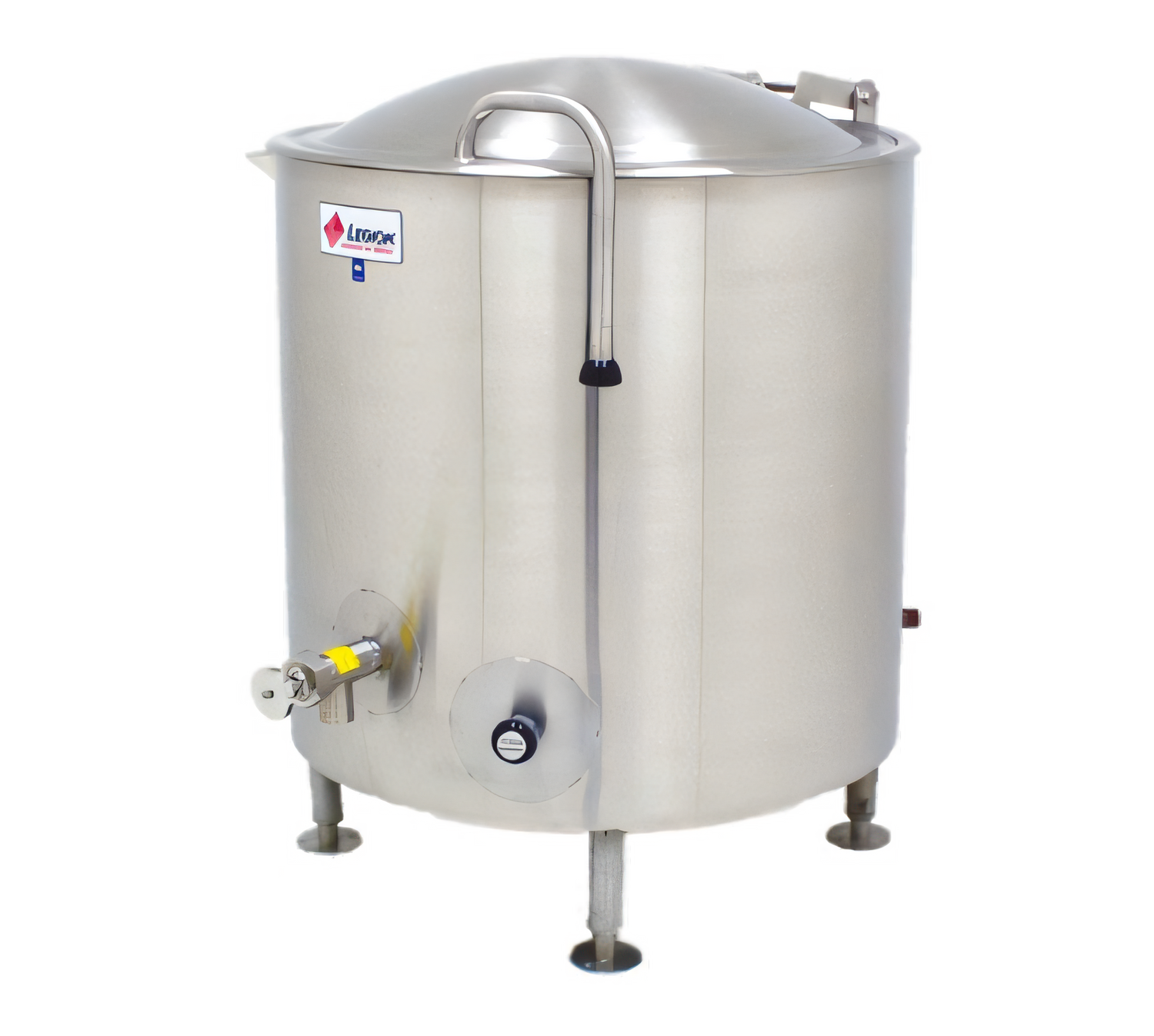

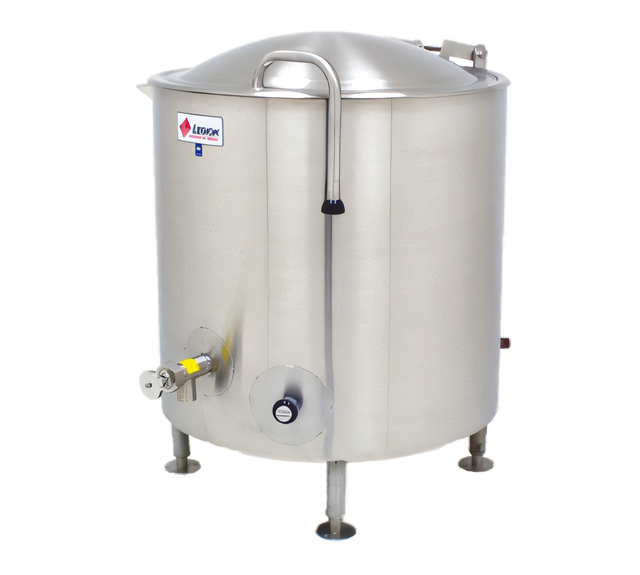

Legion LTI-100 • 100-Gallon Stationary Direct Steam Kettle with Twin-Shaft Mixer
2/3-Jacketed | Fully Insulated for Safety™ | 304 Stainless Steel | 30 psiBuilt in the USA for heavy-duty foodservice production, the Legion LTI-100 pairs a seamless 100-gallon steam kettle with an MV series twin-shaft agitator. The result is rapid, even heating plus hands-free mixing for flawless batches of soups, sauces, confectionery fillings and more—shift after shift.
Kettle Highlights
- Seamless deep-drawn 304 stainless steel liner—no interior weld seams to trap food soil.
- 2/3 jacketed sidewall & bottom for efficient heat transfer and reduced scorching.
- Full-body insulation keeps exterior surfaces cooler and slashes energy loss.
- 304 L stainless jacket, ASME code stamped, rated 30 psi.
- 2 in. front-mounted compression draw-off valve with ¼ in. perforated disk strainer.
- Four 2 in. diameter stainless steel legs with reinforcing bracing & adjustable flanged feet.
- Front steam control valve; rear steam inlet & condensate return for a clutter-free cook line.
- Heavy-duty stainless cover (optional two-piece hinged or lift-off styles available).
Integrated Twin-Shaft Mixer
- Enclosed aluminum bridge with totally-enclosed gear motor—built for 24/7 operation.
- Two-speed gearbox: 23 / 46 RPM main anchor agitator • 60 / 120 RPM secondary beater.
- 304 stainless anchor agitator contoured to kettle; removable nylon scraper blades sweep entire surface.
- Counter-rotating 304 stainless beater breaks up particulates for uniform product texture.
- Bayonet-mount shafts remove in seconds for cleaning or non-mixing use.
- Actuator-assisted bridge lift with positive rim lock and safety interlock to prevent high-speed starts while raised.
Key Specifications
| Model | Legion LTI-100 (with MV mixer) |
|---|---|
| Capacity | 100 gal. / 379 L |
| Construction | 304 stainless liner, jacket, outer casing, legs & fittings |
| Jacket Coverage | 2/3 (sidewall & bottom) |
| Operating Pressure | 30 psi steam |
| Draw-Off Valve | 2 in. compression type with ¼ in. perforated strainer |
| Agitator Motor | 2 HP (high) / 1 HP (low) gear-driven |
| Agitator Speeds | Main 23 / 46 RPM • Secondary 60 / 120 RPM |
| Overall Height | ≈ 89.4 in. (lid closed) |
| Diameter | ≈ 39 in. |
| Steam Inlet / Condensate | ¾ in. NPT (each) |
| Certifications | ASME, NSF, UL, ETL; Made in USA |
Why Choose Legion?
- Deep-drawn construction eliminates crevices—cleaner, stronger, longer lasting.
- Insulated for Safety™ design protects staff and maintains kitchen comfort.
- Backed by Legion’s world-class craftsmanship and U.S.-based support.
Need faucet assemblies, basket inserts, or other accessories? Contact us for a full list of factory-installed options.
Product Weight:
1220.0 lbFrequently Asked Questions
