Legion LTI-100 Steam Kettles
Description

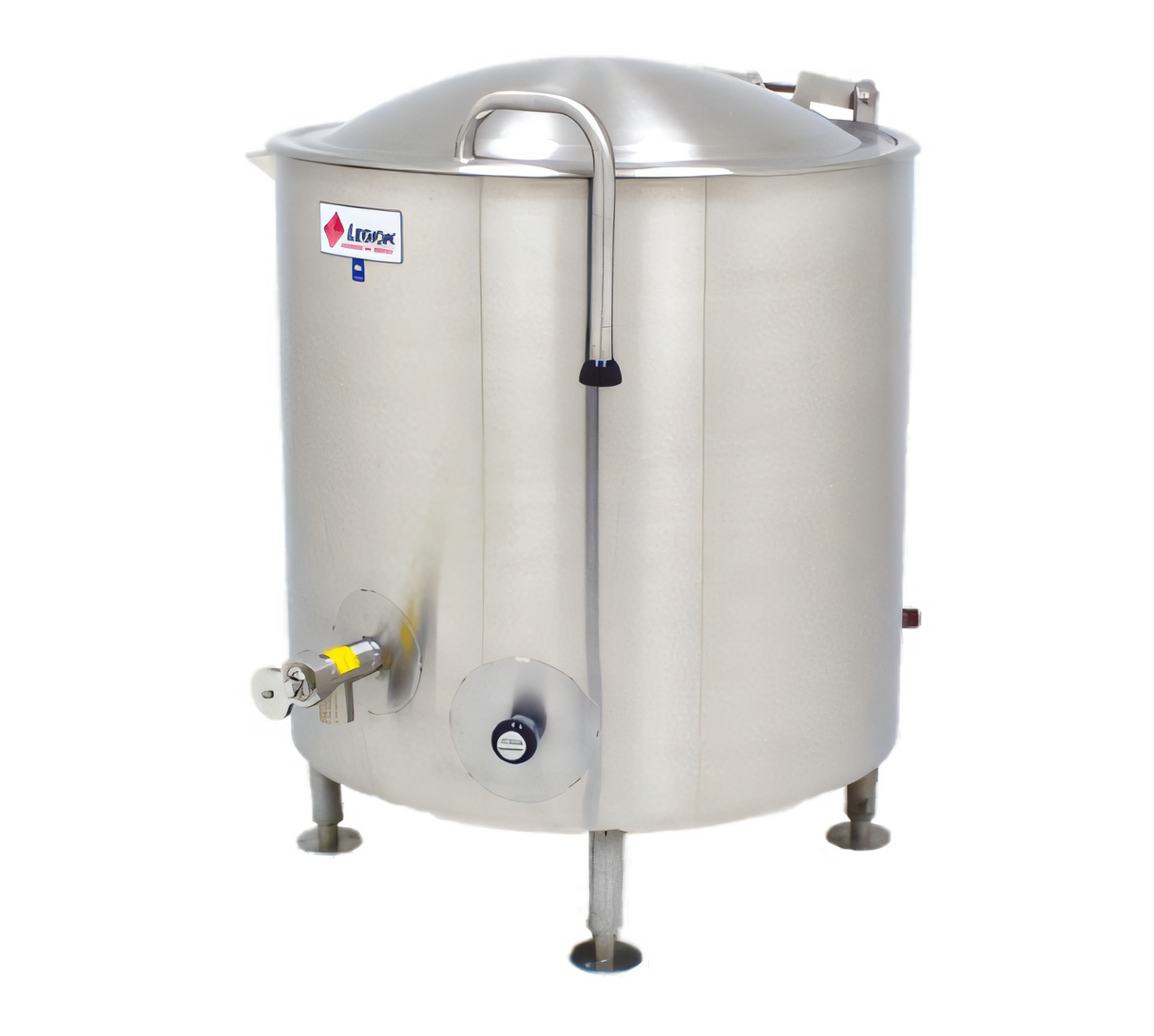

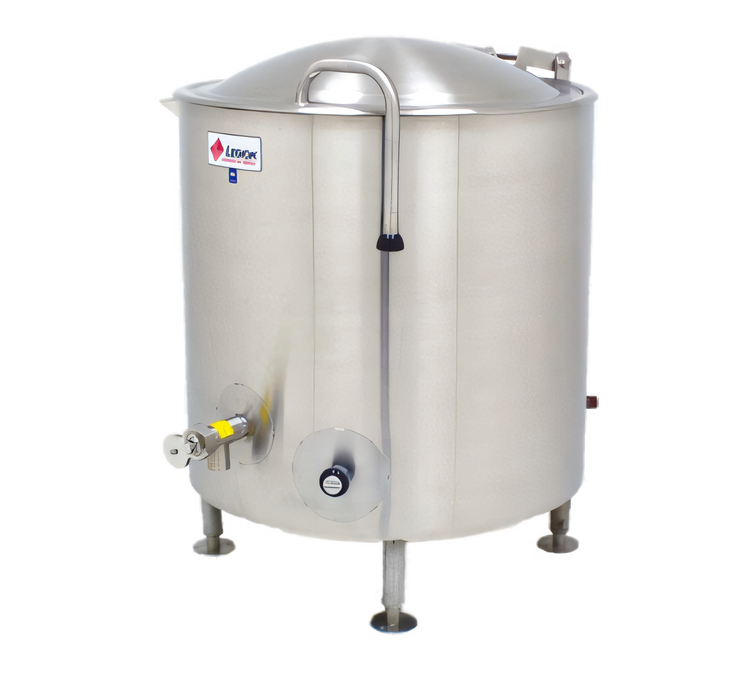

Legion LTI-100 Stationary Direct Steam Kettle – 100 gal
2/3-jacketed • fully insulated • 304 stainless steelEngineered for high-volume kitchens, the American-made Legion LTI-100 delivers 100 gallons (379 L) of consistent, steam-powered cooking capacity. Its seamless stainless build, heavy insulation and smooth, actuator-assisted cover make large-batch soups, sauces, stocks and more faster, safer and easier than ever.
Why You’ll Love It
- Seamless, deep-drawn 304 stainless kettle liner cleans quickly and resists pitting.

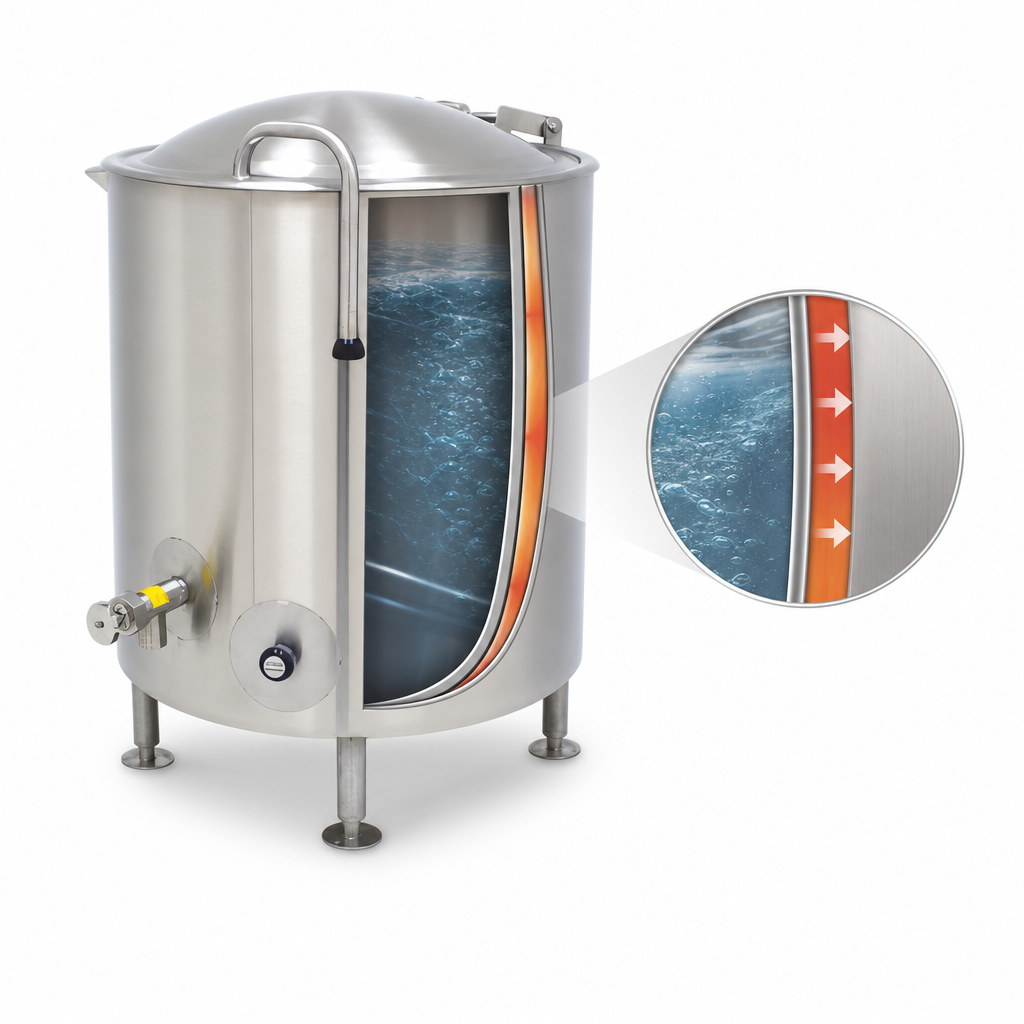

- 2/3 steam jacket (304L) distributes heat evenly and handles up to 30 psi.

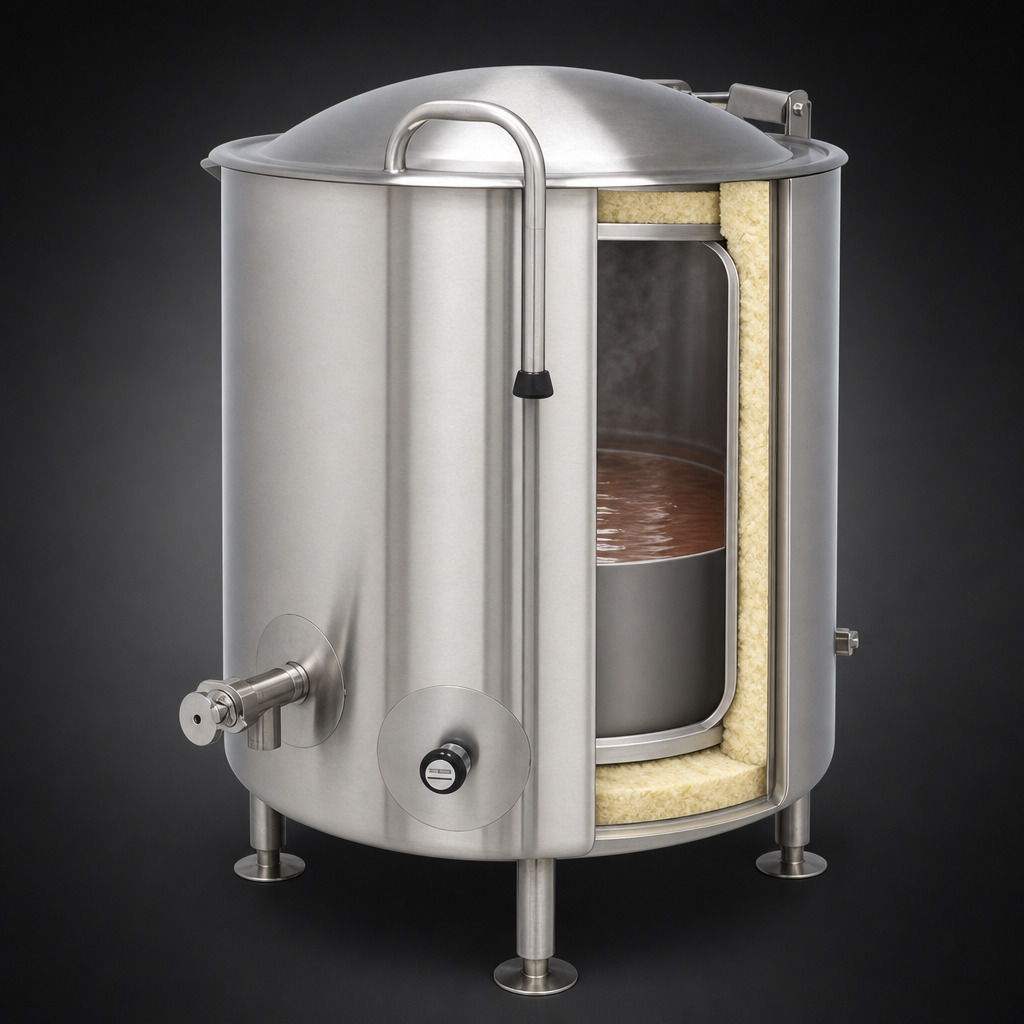

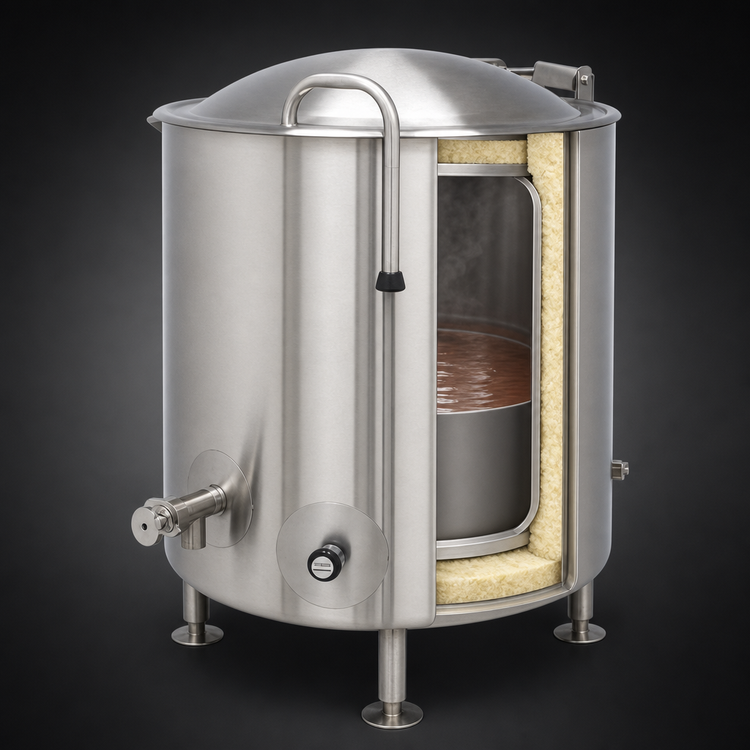

- Full-body insulation keeps energy in and exterior surfaces cool to the touch.
- 2″ 304 stainless compression draw-off valve with removable ¼″-hole perforated strainer for debris-free portioning.
- One-piece domed cover with actuator assist—open and close effortlessly while retaining heat and moisture.
- (4) reinforced 2″-diameter stainless legs with adjustable flanged feet for rock-solid, bolt-down installation.
- Front-mounted steam control valve for precise adjustment right where the operator needs it.
- Rear steam inlet & condensate return keep utility hook-ups out of the work zone.
- Built in the USA to meet or exceed ASME & NSF standards.
Technical Specifications
| Model | LTI-100 |
|---|---|
| Capacity | 100 gal | 379 L |
| Interior | Seamless 304 stainless, deep-drawn |
| Jacket | 2/3 coverage, 304L stainless |
| Operating Pressure | 30 psi (2.07 bar) max |
| Insulation | Full body, mineral fiber |
| Draw-off Valve | 2″ compression type, 304 stainless |
| Strainer | Removable disk, ¼″ perforations |
| Cover | One-piece domed, actuator-assisted, 304 stainless |
| Mounting | (4) stainless legs, adjustable flanged feet |
| Steam Connections | 1″ inlet | ¾″ condensate return (rear) |
| Overall Dimensions* | ≈ 39.0″ W × 31.6″ D × 45.7″ H |
| Construction | All-welded 304 stainless exterior with satin finish |
*Height measured to kettle rim; cover raised height will be greater.
Popular Accessories (sold separately)
- Single or double fill faucet kits (12″ or 18″ swing nozzles)
- 48″ flexible spray hose assembly – vinyl or stainless steel
- Air eliminator or pressure-reducing valves
- Tri-basket or single-basket inserts & nylon bag insert with spreader ring
- Measuring strip and kettle care kit
Standard warranty: 12 months parts & labor from installation (15 months from ship date). Extended coverage available—ask your Legion representative for details.
