Legion LTCRG-80 Steam Kettles
Description
Legion LTCRG-80 Self-Contained Gas Coffee Kettle
80-Gallon | Insulated Steam Jacket | Made in USABrew, hold and dispense up to 80 gallons of perfectly extracted coffee—or any large-batch hot beverage—with the Legion LTCRG-80. A fully insulated steam jacket, 125,000 BTU burner and precision recirculation system deliver rapid heat-up, even extraction and outstanding energy efficiency, while the integrated bag-hoist and 2″ draw-off valve keep serving lines moving at peak speed.
Key Features

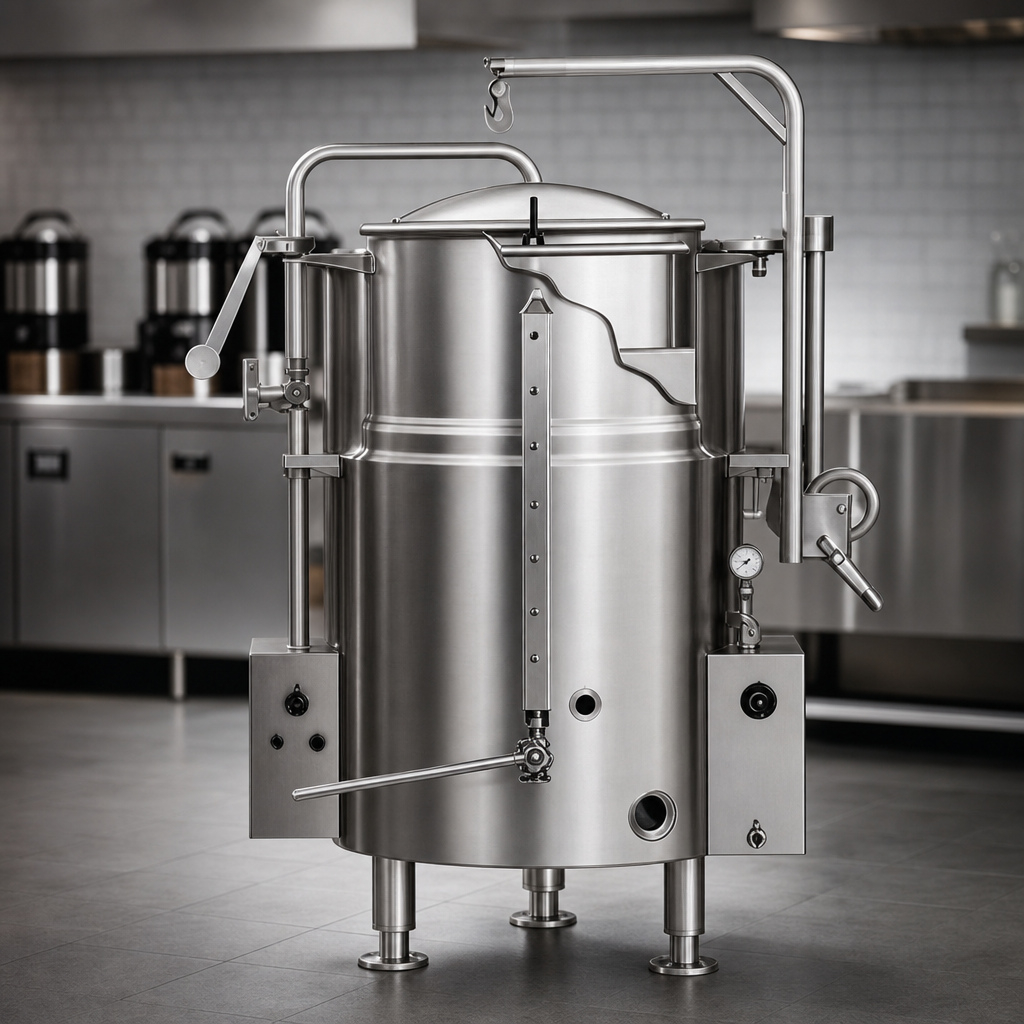

- 80 gal (303 L) deep-drawn kettle with 304 stainless liner
- Self-contained 125,000 BTU natural or LP gas-fired steam jacket

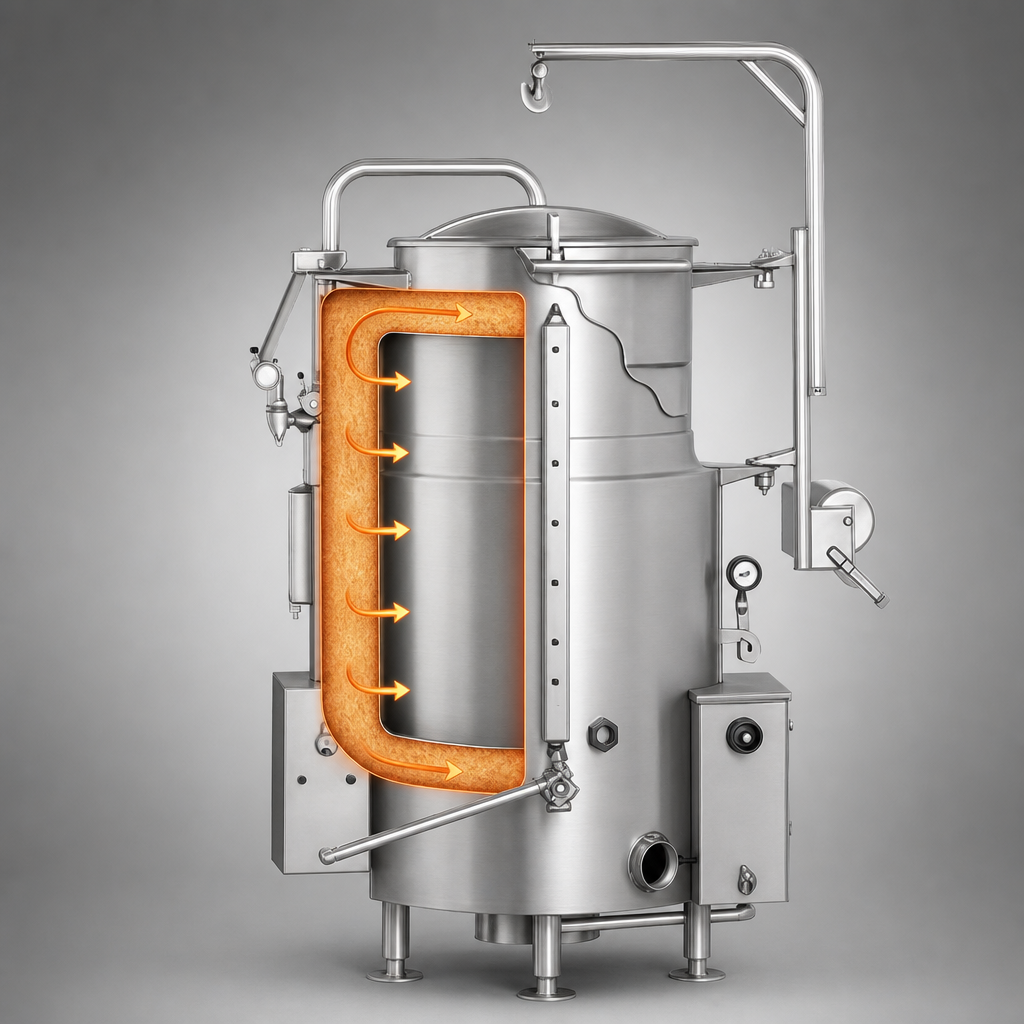

- Full-body thermal insulation for reduced heat loss and a cool exterior
- 2″ compression draw-off valve for fast, sediment-free dispensing
- One-piece 304 stainless, domed cover—hinged for effortless opening
- Recirculating pump with automatic timer or manual override
- Graduated, break-resistant sight glass—check volume at a glance
- Canvas filter bag with stainless spreader ring & gridded riser basket
- Integrated bag-removal hoist—no heavy lifting required
- Comprehensive safety suite:
- Thermostatic temperature control
- 30 psi ASME relief valve & pressure gauge
- Automatic low-water cut-off
- Flame-failure safety pilot
- Tri-leg base with adjustable flanged feet—bolt directly to the floor
- ½″ NPT water fill coupling for quick jacket refills
- NSF & ASME certified; built to UL/CSA standards
At-a-Glance Specifications
| Model | LTCRG-80 |
|---|---|
| Capacity | 80 gal / 303 L |
| Heat Source | Natural or LP Gas, 125,000 BTU /hr |
| Gas Connection | ½″ IPS — Natural 5–7″ W.C. / LP 12–14″ W.C. |
| Electrical (Pump) | 115 V, 60 Hz, 1 ph, 1 A |
| Overall Height | 60.8″ (154 cm) to top of cover |
| Diameter (Footprint) | 35.3″ (90 cm) |
| Shipping Weight | ≈ 950 lb / 431 kg |
| Construction | 304 SS jacket & outer shell; 304 SS liner |
What’s Included
- LTCRG-80 coffee kettle with tri-leg base & flanged feet
- Dome cover with handle
- Recirculation pump assembly
- Canvas coffee bag, stainless frame & spreader ring
- Gridded riser basket & bag-removal hoist
- Owner’s / installation manual
Need automatic water metering, stainless mesh filters or other custom options? Reach out—our food-service specialists will tailor a system for your exact workflow.
