Legion LTCRG-60 Steam Kettles
Description
Legion 60-Gallon Gas Coffee Kettle
Self-Contained • Insulated Steam Jacket • Made in USABrew up to 960 eight-ounce cups of rich, perfectly extracted coffee in a single batch. Engineered for high-volume foodservice operations, this 60-gallon Legion kettle combines rugged all-stainless construction with automatic controls that take the guesswork out of large-scale brewing.
Why It Belongs in Your Kitchen
- Built for Capacity: 60 gal (227 L) vessel delivers consistent results for banquets, stadiums, prisons, and commissaries.
- 125,000 BTU Gas Burner: Fast heat-up—with natural or propane gas—keeps turnaround times short.

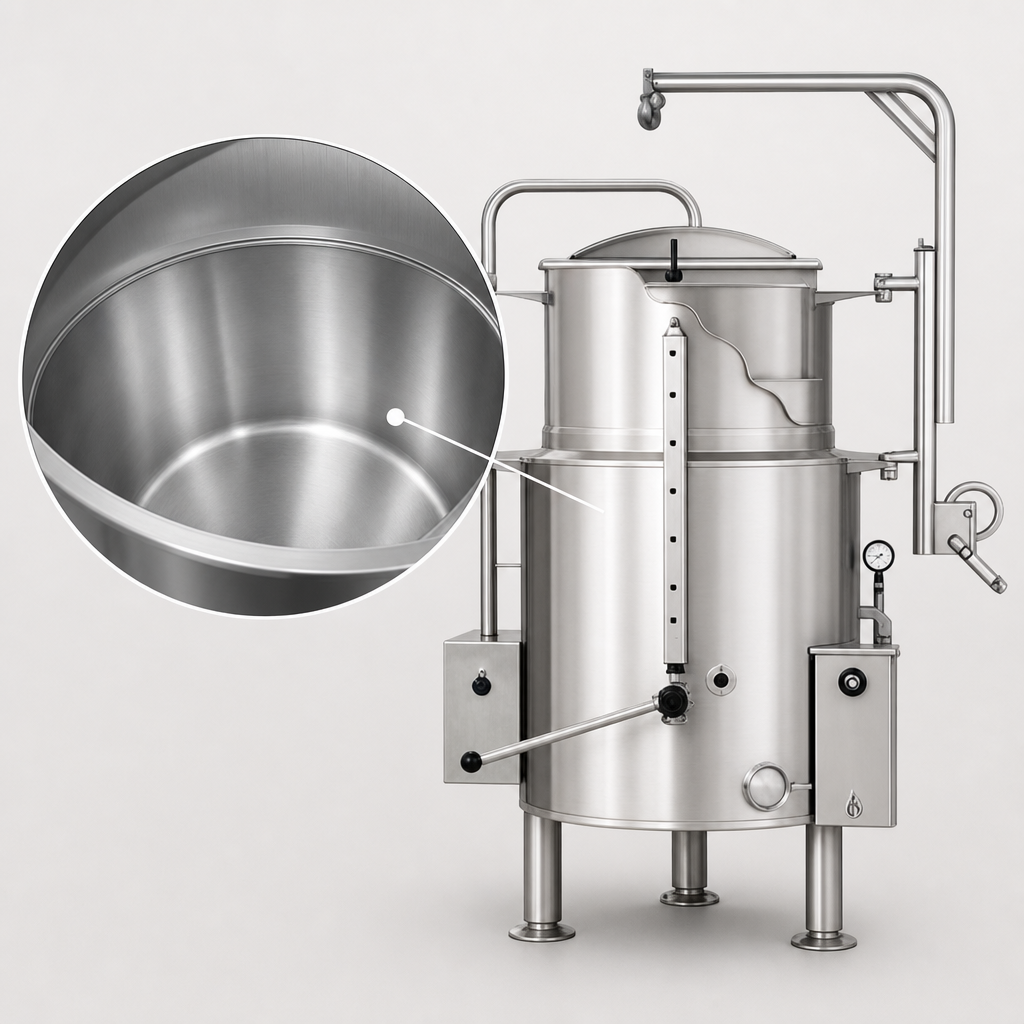

- Deep-Drawn 304 SS Liner: One-piece kettle body resists pitting and is easy to keep sanitary.

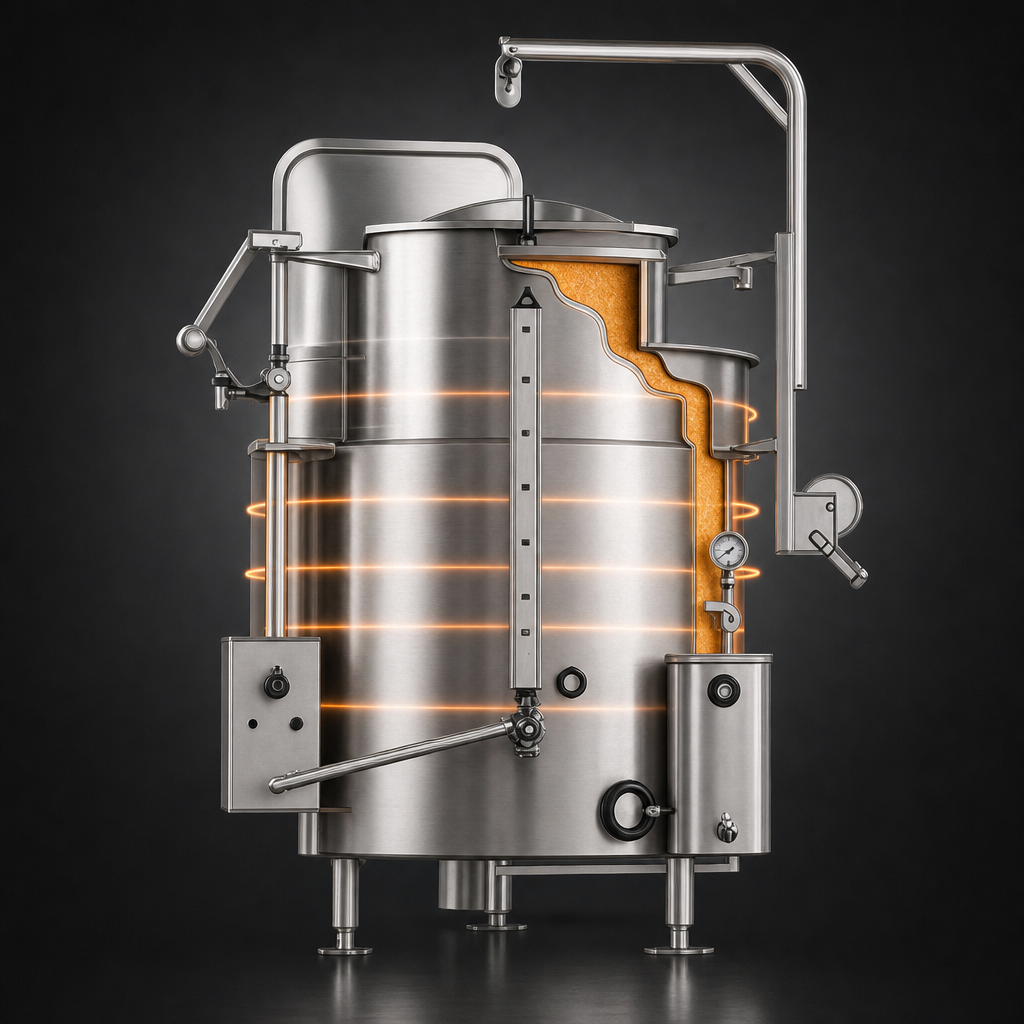

- Fully Insulated Steam Jacket: Minimizes energy loss and protects staff from hot surfaces.
- 2″ Stainless Draw-Off Valve: Quickly dispense finished coffee or rinse out grounds without clogging.
- Programmable Recirculating Pump: Automatic timer plus manual override ensure thorough extraction every time.
- Complete Brewing Kit Included: Graduated sight-glass, canvas filter bag with stainless spreader ring, and hoist for safe bag removal.
- Kettle Protection System: 30 psi safety valve, low-water cut-off, pressure gauge, thermostat and safety pilot keep operation worry-free.
- Tri-Leg Base with Flanged Feet: Heavy-duty 304 SS frame provides rock-solid stability and easy floor anchoring.
Technical Specifications
| Capacity | 60 gal | 227 L | ≈960 8 oz cups |
|---|---|
| Heating Source | Natural or Propane Gas, 125,000 BTU/hr |
| Gas Connection | 1/2″ NPT (IPS) |
| Steam Jacket | Self-contained, insulated, 30 psi max working pressure |
| Electrical (Pump & Controls) | 115 V, 1-phase, 60 Hz, 1 A · 1/3 HP motor |
| Draw-Off Valve | 2″ sanitary, compression-type, 304 SS |
| Construction | 304 SS liner, jacket & outer shell; seam-welded control console; domed cover |
| Included Accessories | Canvas brew bag & frame, bag hoist, sight glass, water fill connection, adjustable flanged feet |
| Overall Dimensions (W × D × H) | 40.5″ × 31.3″ × 76.0″ (refer to dimensional drawing below) |
Certifications & Compliance
- ASME-certified steam jacket
- NSF listed for sanitation
- UL & ETL gas safety approvals
- Manufactured in Dallas, Pennsylvania, USA
When you need big-batch coffee that tastes as good as it smells, count on Legion’s 60-gallon gas kettle to do the heavy lifting—safely, efficiently, and consistently.
