Legion LTCRG-40 Steam Kettles
Description

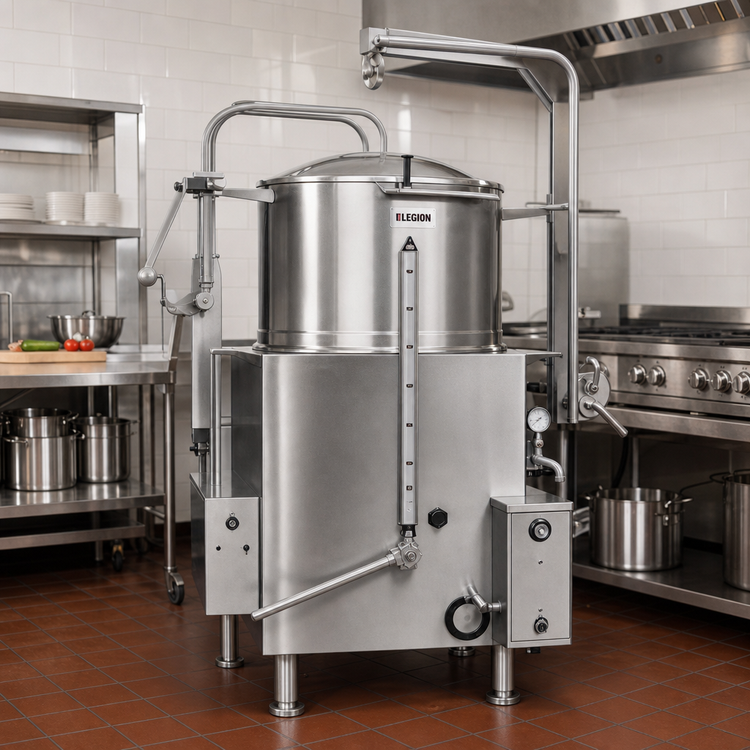

Legion 40-Gallon Gas Coffee Kettle – Model LTCRG-40
Self-contained • Insulated steam jacket • Made in the USABrew, hold and dispense up to 40 gallons (151 L) of rich coffee with the durability and precision chefs expect from Legion. The LTCRG-40 combines a fully jacketed, gas-fired kettle with an integrated recirculating pump, bag hoist and sight glass—delivering a complete, high-volume coffee system in one rugged footprint.
Why You’ll Love It
- 120,000 BTU gas burner brings full batches to temperature fast while maintaining gentle, even heat.

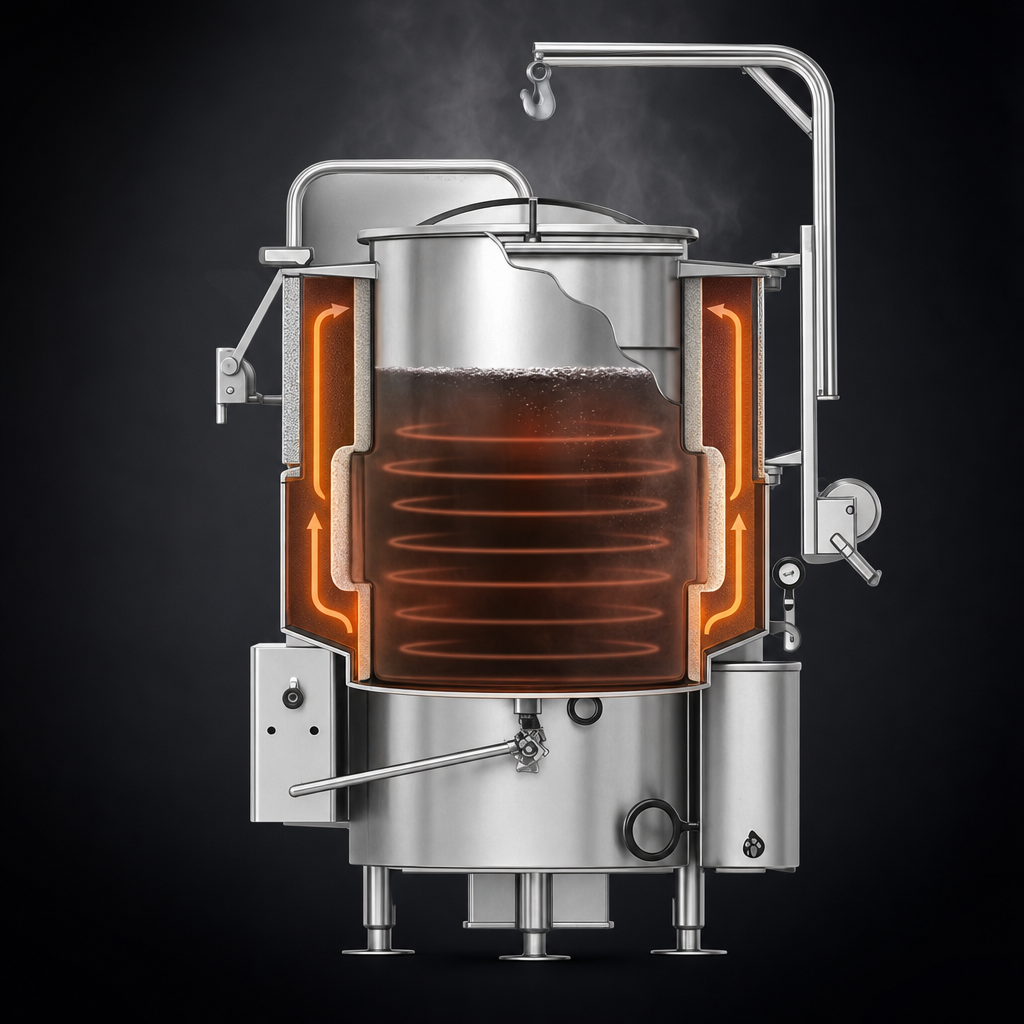

- Insulated 304 SS steam jacket retains heat and slashes energy loss.

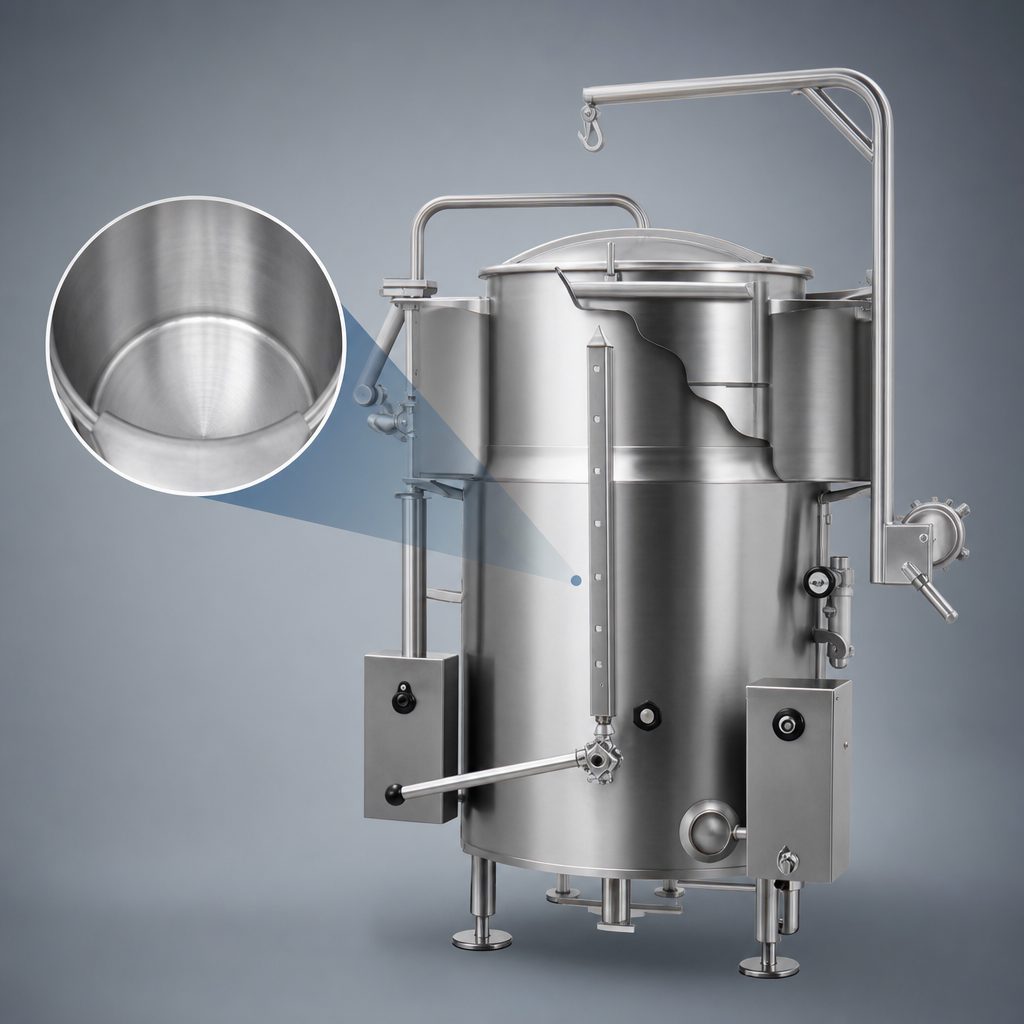

- 304 SS deep-drawn liner with a 2" compression draw-off valve for easy, high-flow dispensing.
- Recirculating pump with automatic timer and manual override for consistent extraction.
- Dome cover, gridded riser basket, canvas coffee bag & stainless spreader ring all included—no extra accessories required.
- Graduated, break-resistant sight glass lets staff monitor brew level at a glance.
- Built-in bag hoist saves labor and keeps operators clear of hot brew.
- Kettle protection package: 30 psi safety valve, pressure gauge, thermostat, low-water cut-off & safety pilot control.
- Adjustable flanged tri-legs secure the unit to the floor for rock-solid stability.
Technical Specs
| Capacity | 40 gal / 151 L |
|---|---|
| Energy Source | Natural gas (120,000 BTU) | Propane (110,000 BTU) |
| Gas Connection | ½" IPS, supply pressure 5-7" W.C. (NG) or 12-14" W.C. (LP) |
| Electrical (pump) | 115 V, 1 Ph, 60 Hz, 1 A |
| Overall Dimensions (WxDxH) | 35.5" W × 53.8" D × 70.8" H (cover closed) |
| Steam Jacket Pressure | Rated 30 psi maximum |
| Construction | 304 SS liner & jacket, seam-welded outer casing and control console |
| Standard Accessories | Dome cover, canvas brew bag & frame, bag hoist, sight glass, recirculation pump |
| Origin | Manufactured in Dallas, PA, USA |
| Certifications | ASME, NSF, CSA (gas) |
| Warranty | 12-month parts & labor (see Legion Limited Warranty for details) |
Perfect For
- Universities & stadium concessions
- Military & correctional foodservice
- Large banquet halls & hotels
- Central kitchens & commissaries
Need a different capacity, automatic water meter or security package? Contact our team for factory-configured options.
