Legion LTCRG-100 Steam Kettles
Description
Legion 100-Gallon Gas Coffee Kettle
Model LTCRG-100 • Self-Contained • Made in USABrew, hold, and dispense up to 100 gallons (379 L) of richly-flavored coffee with the durability and efficiency food-service pros expect from Legion. A fully insulated steam jacket, powerful 125,000 BTU burner, and recirculating pump with automatic timer work together to deliver consistent results shift after shift.
Why you’ll love it

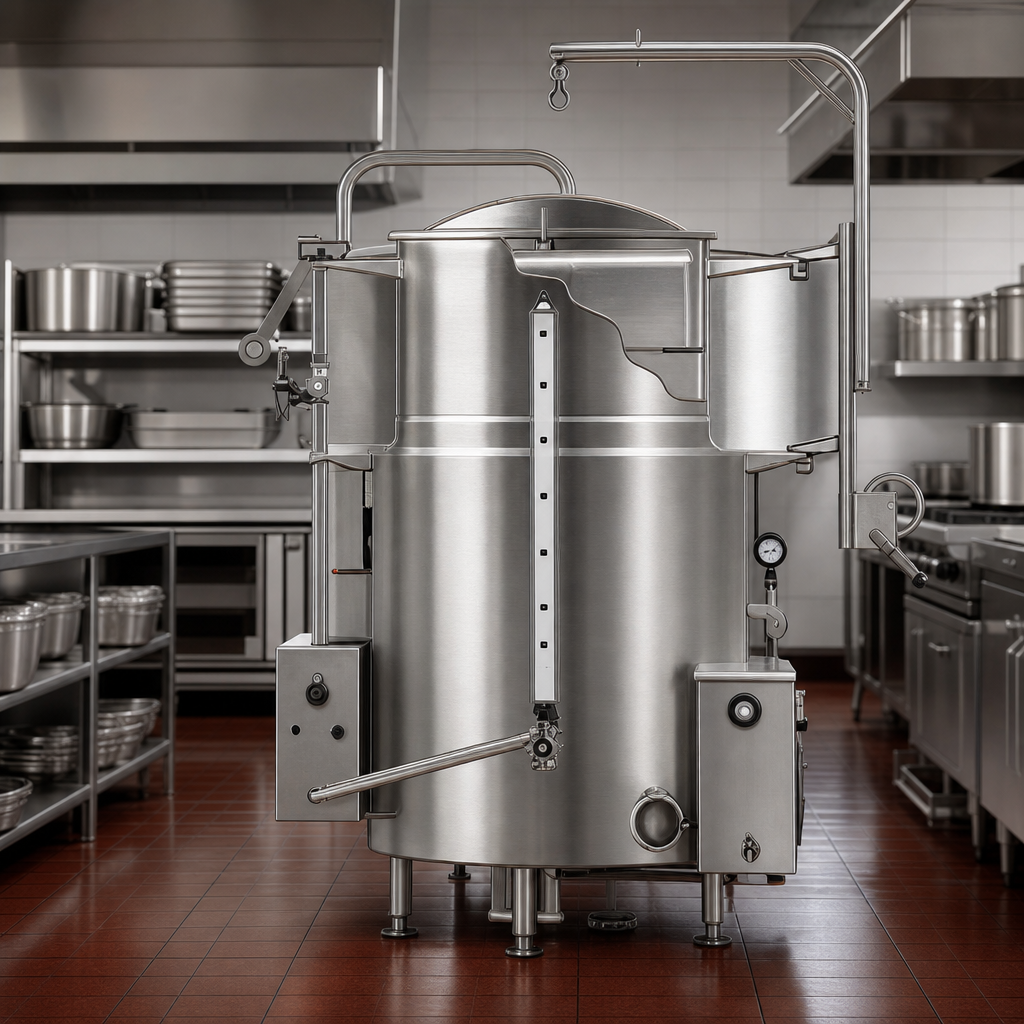

- Massive capacity – serves high-volume cafeterias, commissaries, stadiums, and corrections facilities.
- 304 stainless steel liner and jacket for exceptional corrosion resistance and easy sanitation.
- 2" sanitary draw-off valve quickly empties or portions product without clogging.

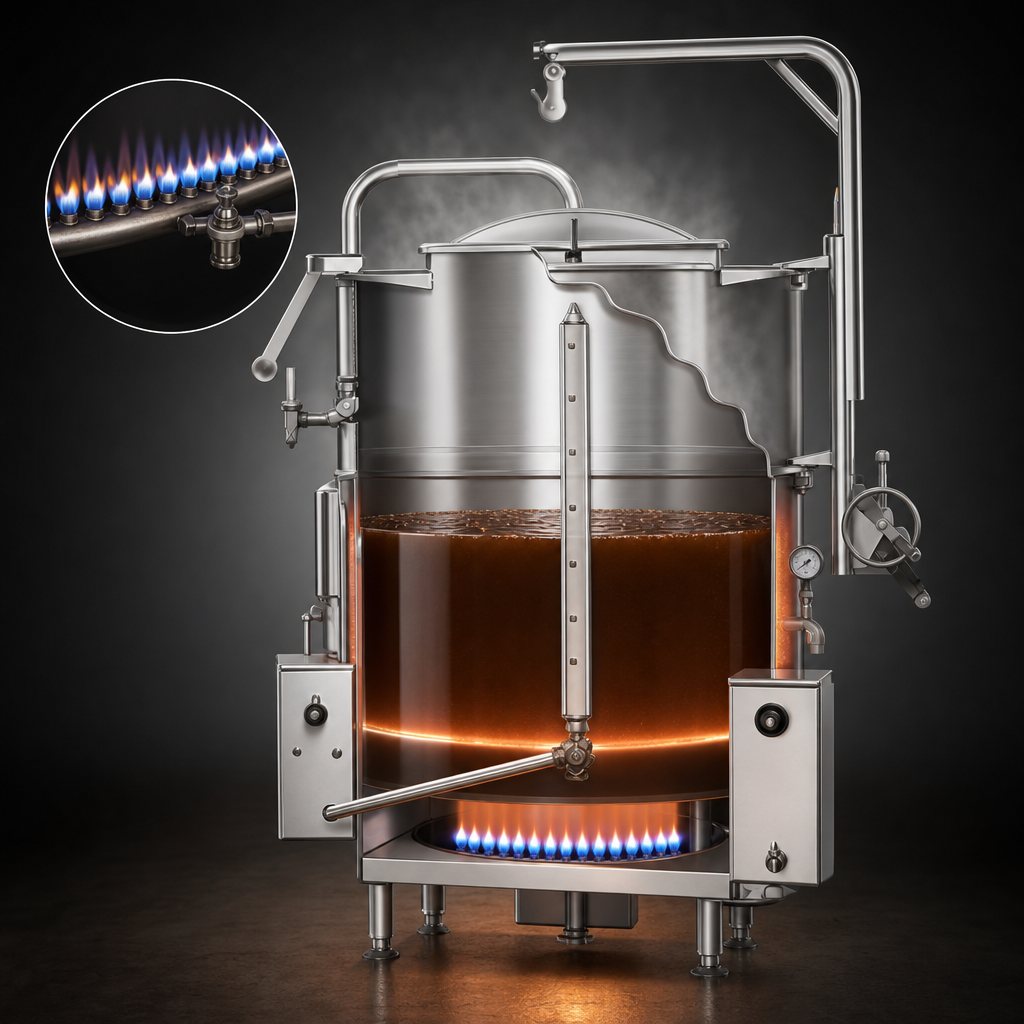

- 125,000 BTU gas-fired system reaches brewing temperature fast and holds it steady.
- Recirculating pump with automatic timer/manual override keeps grounds in gentle motion for uniform extraction.
- Dome cover + hoist lets one operator raise the brew bag safely and drip-dry over the kettle.
- Sight glass shows real-time brew level—no guesswork, no wasted product.
- Auto pilot & safety package – electronic ignition, 30 psi safety valve, low-water cut-off, and pressure gauge protect your crew and investment.
- Four-leg stainless base with flanged feet anchors securely to the floor for NSF & local code compliance.
- Full-body insulation cuts energy use and keeps the exterior cool to the touch.
Technical specifications
| Capacity | 100 gal / 379 L |
|---|---|
| Heat source | Natural or propane gas, 125,000 BTU/hr |
| Kettle liner | 304 stainless, deep-drawn |
| Steam jacket | Self-contained, insulated, 30 psi max |
| Draw-off valve | 2" compression-type, 304 stainless |
| Recirculation pump | 1/3 HP, 115 V, 1 Ph, 1 A; automatic timer / manual control |
| Overall height | ≈ 84 in H with cover closed |
| Footprint (W × D) | ≈ 63.4 in × 38.3 in |
| Water connection | ½ in NPT fill coupling |
| Included accessories | Canvas brew bag with stainless spreader ring, hoist frame, graduated sight glass |
| Certifications | NSF, ASME, CSA & other applicable approvals |
At-a-glance operation
- Load grounds into the supplied canvas bag and secure with the stainless spreader ring.
- Fill kettle with water using the ½ in water connection and sight glass for precision.
- Close the domed lid, start the auto pilot, and set the brew timer.
- The pump gently recirculates, maximizing flavor extraction.
- When the timer sounds, lift the bag with the integrated hoist, allow to drain, then open the 2" valve to serve or transfer.
Need a different capacity, automatic water meter, or security package? Reach out—Legion offers a full menu of factory-installed options.
