Legion LTCRE-100 Steam Kettles
Description

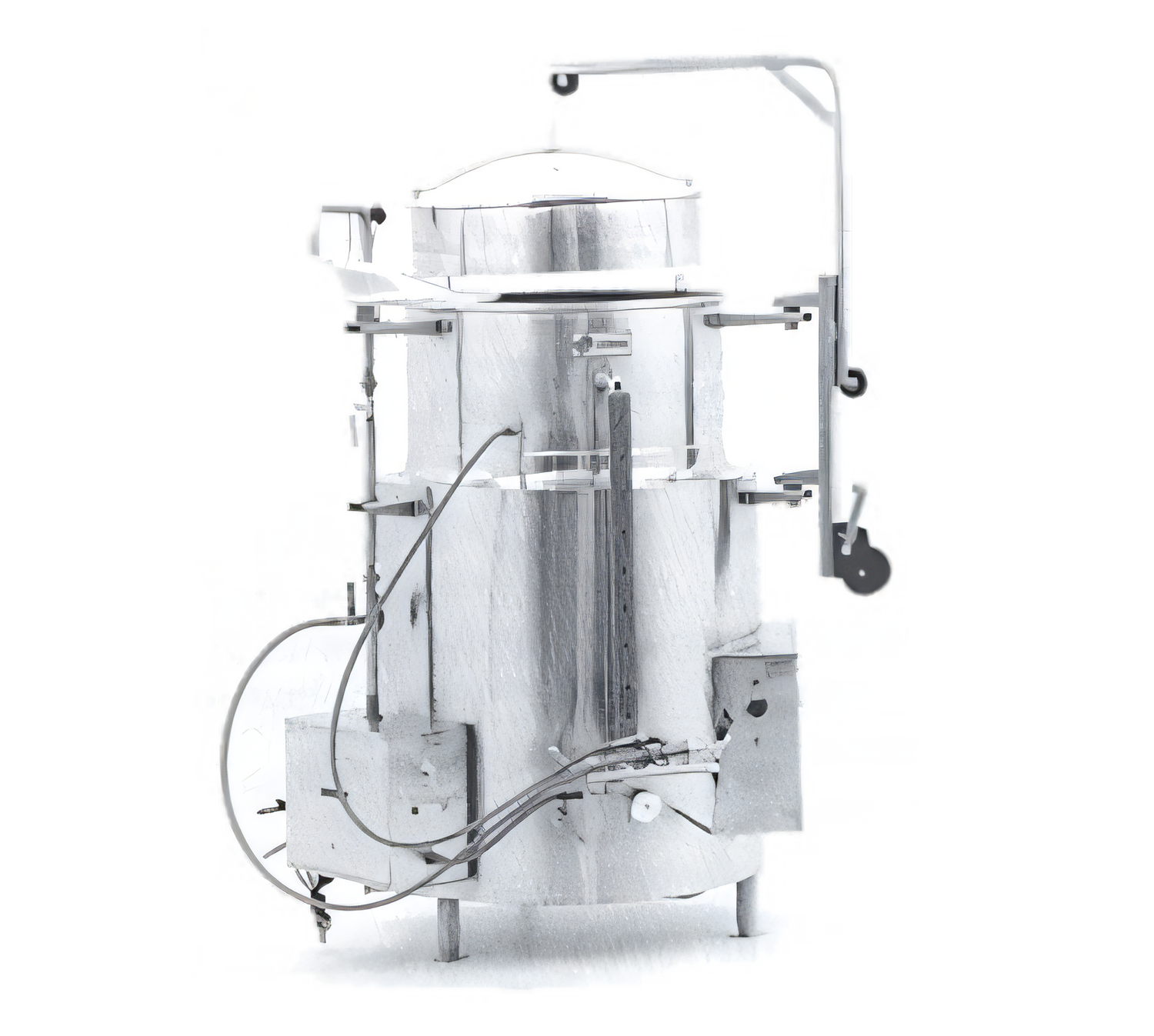

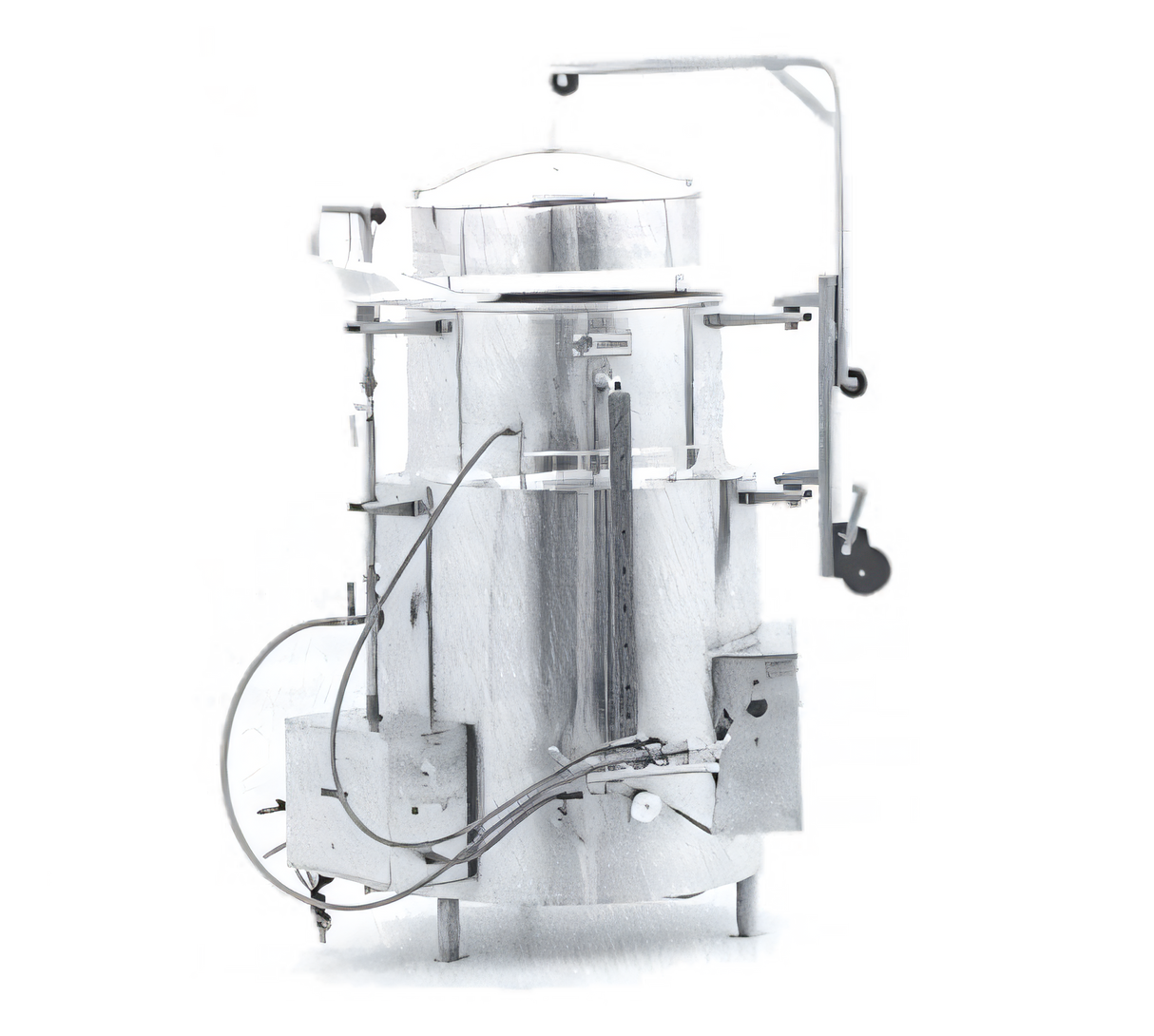

Legion LTCRE-100 Electric Insulated Coffee Kettle
100 gal (379 L) • 2/3 steam jacket • 36 kW • Made in USABrew, hold and effortlessly dispense high-volume coffee with the commercial workhorse trusted by institutions, correctional facilities and catering operations across the country. Built on Legion’s Insulated-for-Safety™ deep-drawn kettle platform, the LTCRE-100 delivers 100 gallons of perfectly extracted coffee while keeping operators protected from heat and steam.
Why This Kettle Stands Out
- Industry-leading 304 stainless liner and jacket for maximum corrosion resistance.
- Fully insulated 2/3 steam jacket reduces ambient heat loss and saves energy.
- Integrated recirculating pump with automatic timer guarantees even extraction.
- Graduated sight glass shows real-time brew level—no more guesswork.
- Canvas coffee bag, stainless spreader ring & gridded riser basket included.
- Bag hoist system allows safe, hands-free removal of heavy wet coffee grounds.
- One-piece domed cover prevents condensate drip-back and directs steam away from operators.
- Four 2" diameter stainless legs with adjustable flanged feet add rock-solid stability.
- Legion’s “Insulated for Safety™” design keeps exterior surface temperatures low.
What’s in the Box
- LTCRE-100 100-gal insulated steam-jacketed kettle
- 304 stainless 2" compression draw-off valve & tube
- Recirculating pump with automatic timer & manual override
- Canvas coffee bag with stainless spreader ring
- Gridded riser basket
- Integrated bag removal hoist
- Break-resistant sight glass assembly
- 304 stainless domed cover with lift handle
- Water fill connection (½" NPT)
Technical Specifications
| Capacity | 100 gal / 379 L |
|---|---|
| Heating input | 36 kW electric, self-contained |
| Operating pressure | 30 psi (steam jacket) |
| Kettle construction | Deep-drawn 304 & 304L stainless; seam-welded |
| Draw-off valve | 2" 304 SS compression with tube & welds |
| Controls | Stainless console; automatic timer, manual pump control, power & indicator lights |
| Exterior insulation | Full fiberglass wrap with stainless cladding |
| Legs / base | 4 × 2" Ø 304 SS legs with reinforced bracing & adjustable flanged feet |
| Electrical (amps/leg) |
208 V 1Φ 173 A | 208 V 3Φ 100 A 240 V 1Φ 150 A | 240 V 3Φ 86.6 A 380 V 3Φ 54.7 A | 415 V 3Φ 50.1 A 440 V 3Φ 47.2 A | 480 V 3Φ 43.3 A |
| Overall dimensions (in.) | A 32.5 B 42.5 C 61.8 D 38.3 E 18.5 F 62.0 H 16.0 J 83.3 S 24.5 T 63.4 U 33.6 W 23.1 |
| Certifications | ASME, NSF, UL & CSA compliant |
| Country of origin | United States |
Popular Options (sold separately)
- Elevated swing-arm draw-off faucet
- Remote coffee fill assembly
- Stainless mesh cloth coffee filter
- Draw-off hose kit (6 ft)
- Lockable lid & control cover (security package)
- Replacement cloth coffee bag & spreader ring
Need a different size? Capacities from 40 – 150 gal are available—search “Legion LTCRE Series” in our store.
