Legion LTCR-80 Steam Kettles
Legion LTCR-80 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Legion LTCR-80 Steam Kettles
Description

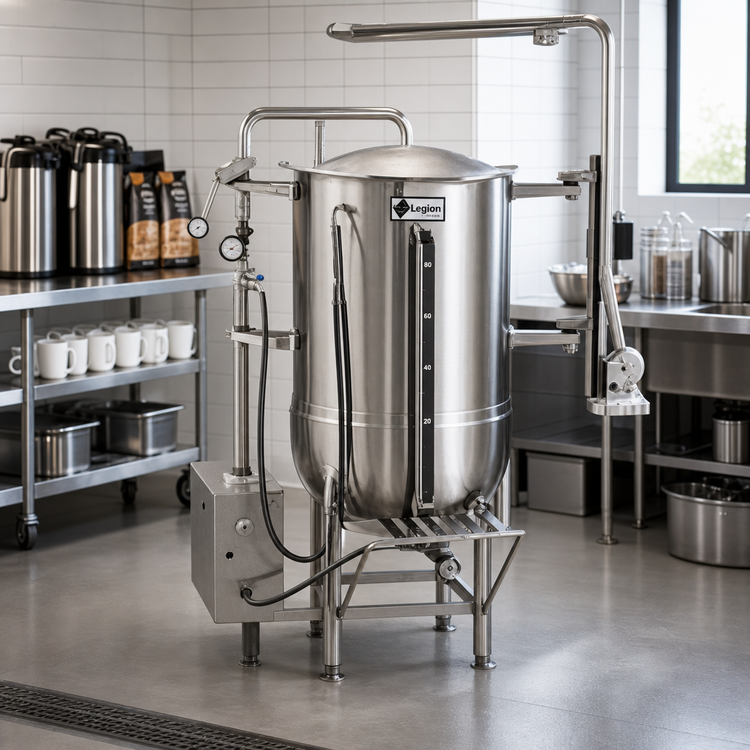

Legion LTCR-80 Direct Steam Coffee Kettle – 80 Gallons
2/3-Jacketed • Floor-Mounted • Made in USABrew up to 1,440 eight-ounce servings of rich, consistent coffee in a single batch. The Legion LTCR-80 combines a rugged 304 stainless construction with a steam-jacketed design, precision recirculation and an integrated hoist system—bringing you an industrial coffee solution that’s built to run dawn to dusk.
Key Features
- 80-gallon (303 L) capacity for high-volume production.

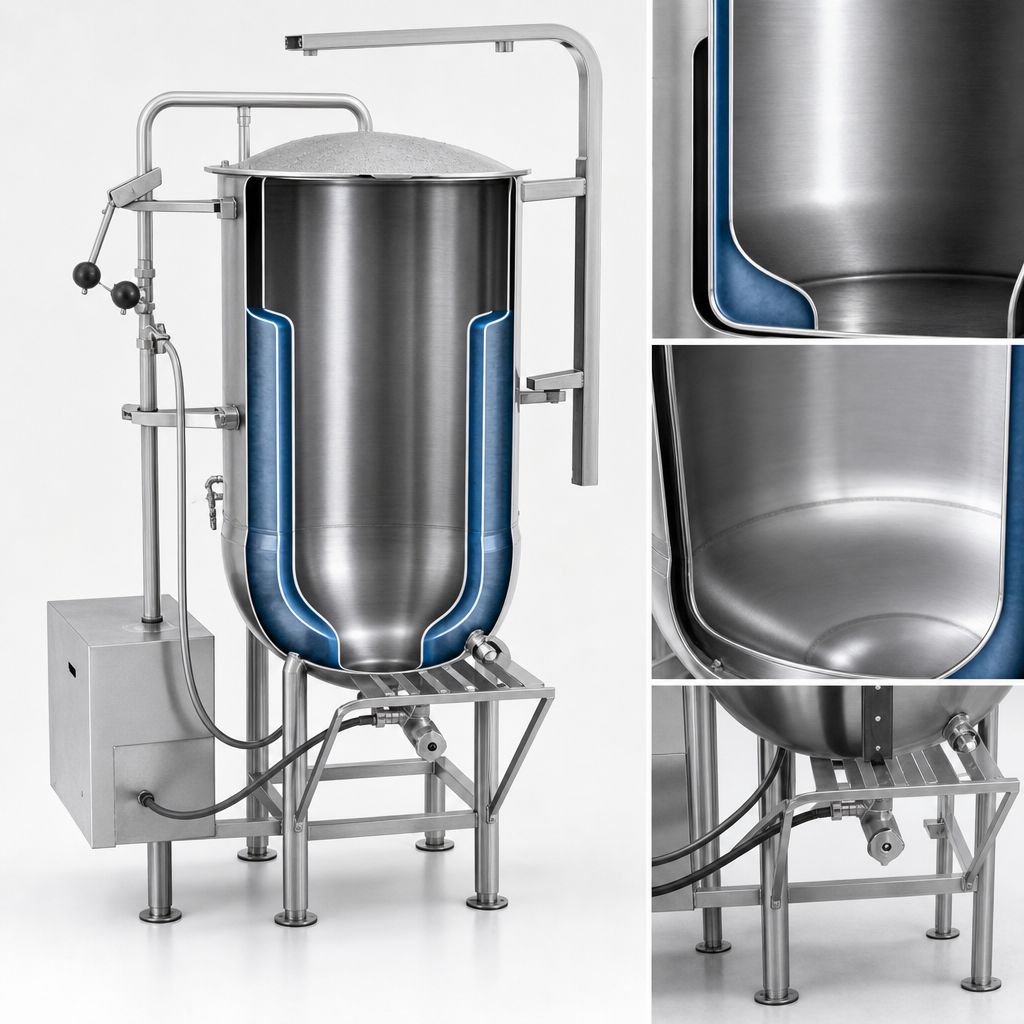

- 2/3 steam jacket rated at 30 psi ensures rapid, even heating.

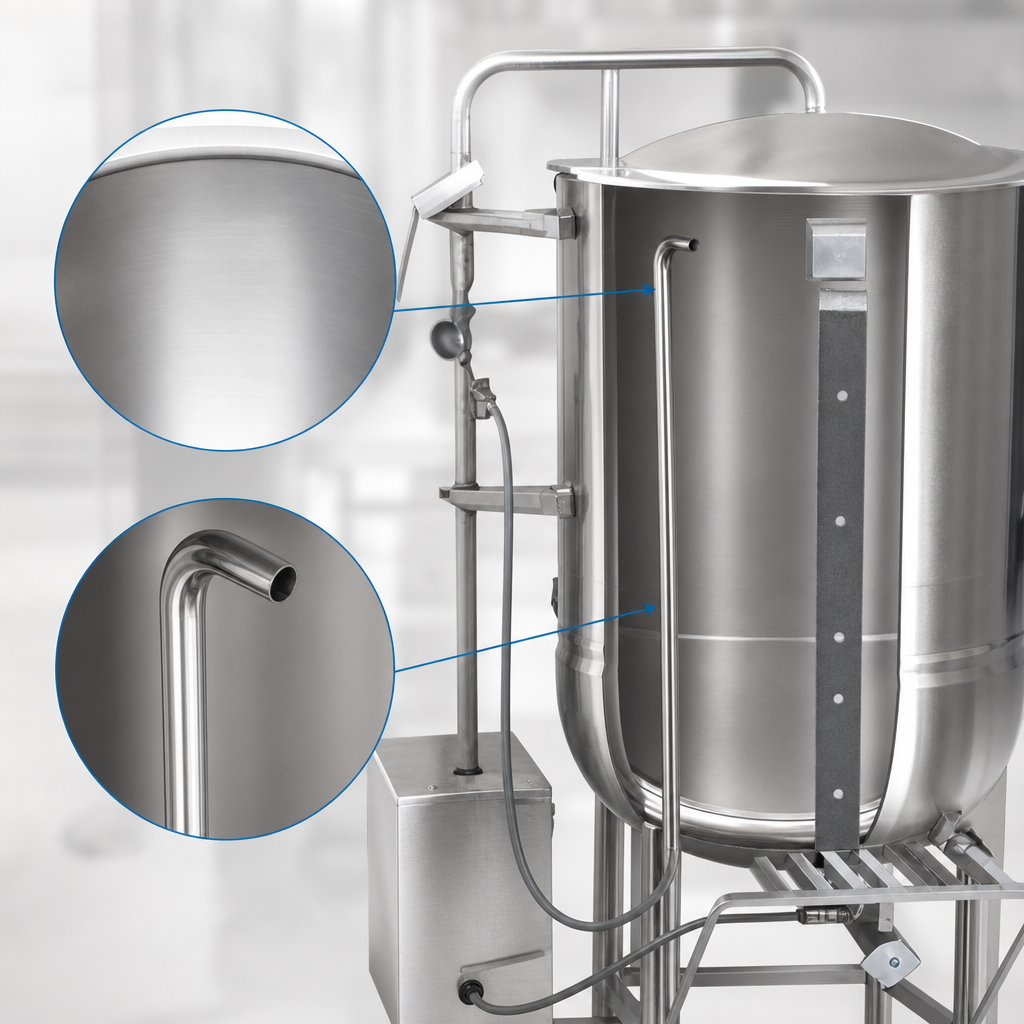

- 304 stainless steel liner, draw-off tube and jacket for maximum corrosion resistance.
- Heavy-duty recirculating pump with automatic timer & manual override for uniform extraction.
- Graduated, break-resistant sight glass shows real-time coffee level.
- One-piece domed cover retains heat and minimizes splash.
- Gridded riser basket with canvas coffee bag & stainless spreader ring for optimum grounds control.
- Integrated bag-hoist mechanism allows safe, effortless grounds removal.
- Water fill connection speeds batch turn-around.
- Four 2 in. diameter stainless legs with reinforced bracing and adjustable flanged feet for rock-solid installation.
What’s in the Box
- LTCR-80 direct steam kettle body
- Recirculating pump & control console
- Canvas coffee bag with stainless frame & spreader ring
- Bag removal hoist assembly
- 2 in. compression draw-off valve
- Domed stainless cover
Technical Specifications
| Model | LTCR-80 |
|---|---|
| Capacity | 80 gal. (303 L) |
| Operating Pressure | 30 psi |
| Jacket Type | 2/3, direct steam |
| Construction | 304 stainless liner, jacket, draw-off tube & legs |
| Motor (pump) | 1/3 HP | 115 V/1-ph/5.2 A • 220 V/1-ph/3.2 A • 208/230/460 V/3-ph options |
| Overall Height (J) | 74.3 in. |
| Overall Width (F) | 59.0 in. |
| Overall Depth (A) | 29.5 in. |
| Steam Inlet / Condensate | ¾ in. NPT / ½ in. NPT |
| Water Fill | ½ in. NPT coupling |
| Certification | ASME, NSF (built to applicable standards) |
Perfect For
- Central kitchens & commissaries
- Hotels, resorts & convention centers
- Correctional and military facilities
- Stadiums, arenas & large event venues
Covered by Legion’s 12-month parts & labor warranty from date of installation (15 months from ship date). Extended coverage available.
