Legion LTCR-60 Steam Kettles
Description

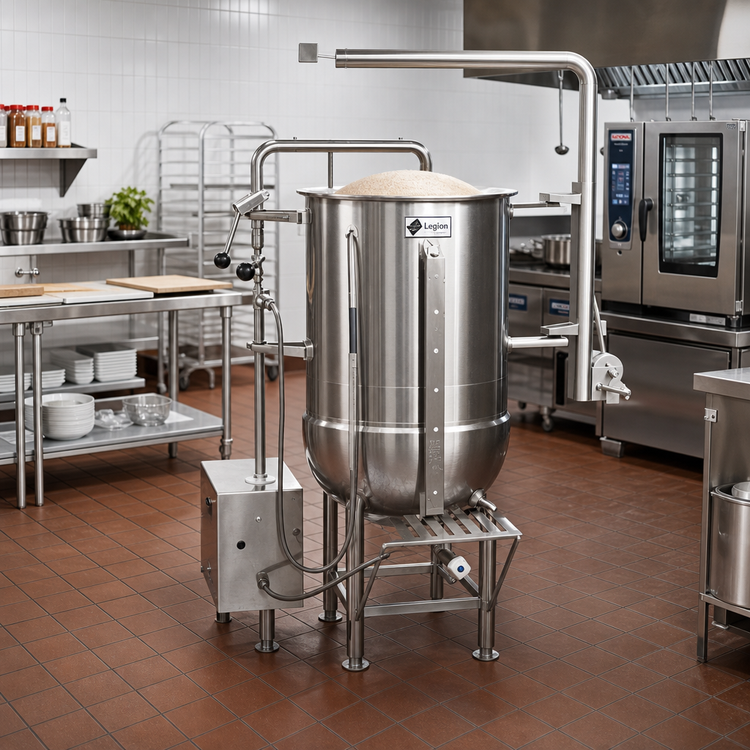

Legion LTCR-60 Direct Steam Coffee Kettle – 60 Gallon
2/3-Jacketed • Floor-Mounted • Made in USABrew up to 60 gallons (227 L) of smooth, full-bodied coffee with industrial speed and precision. The LTCR-60 combines Legion’s deep-drawn stainless construction with a programmable recirculation system, giving stadiums, correctional facilities, hotels and commissaries a workhorse kettle that delivers consistent, large-batch coffee service day after day.
Why You’ll Love It

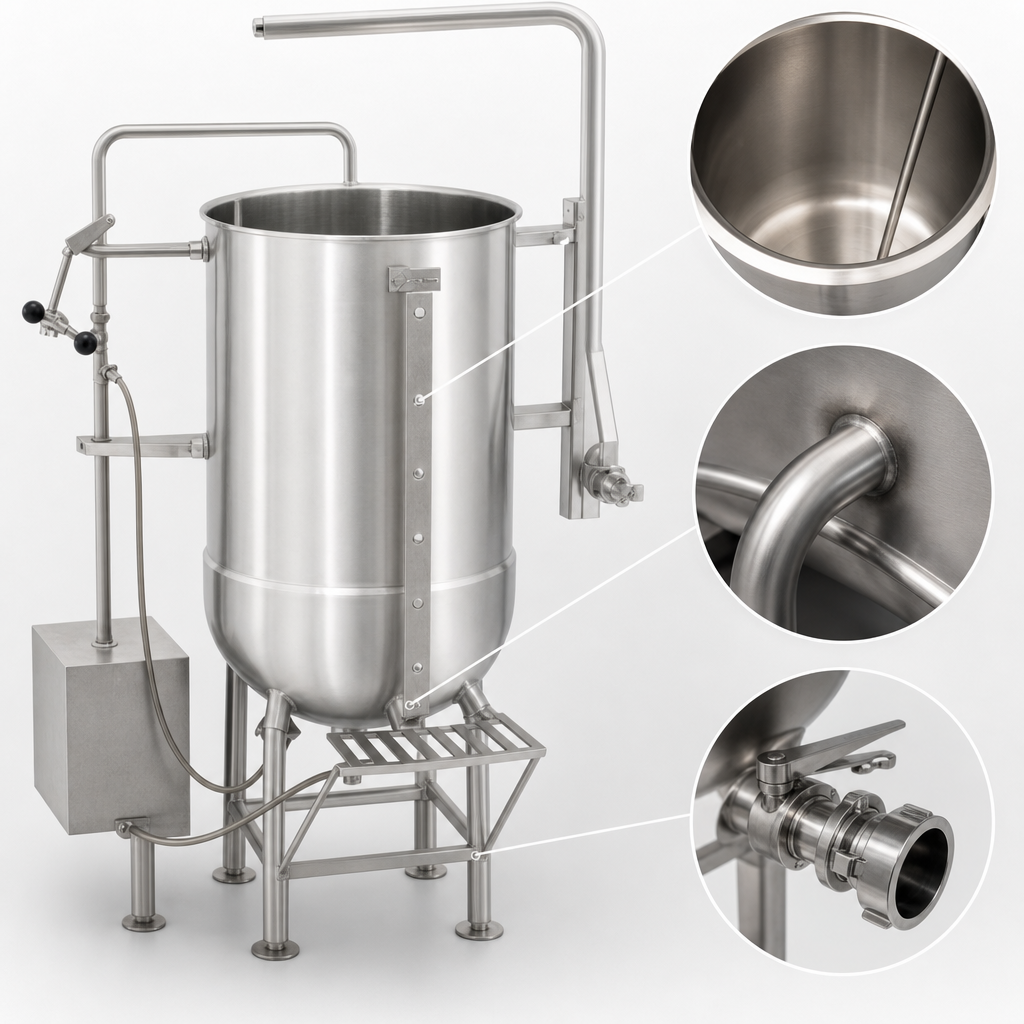

- 304 SS deep-drawn kettle liner resists pitting, corrosion and off-flavors.

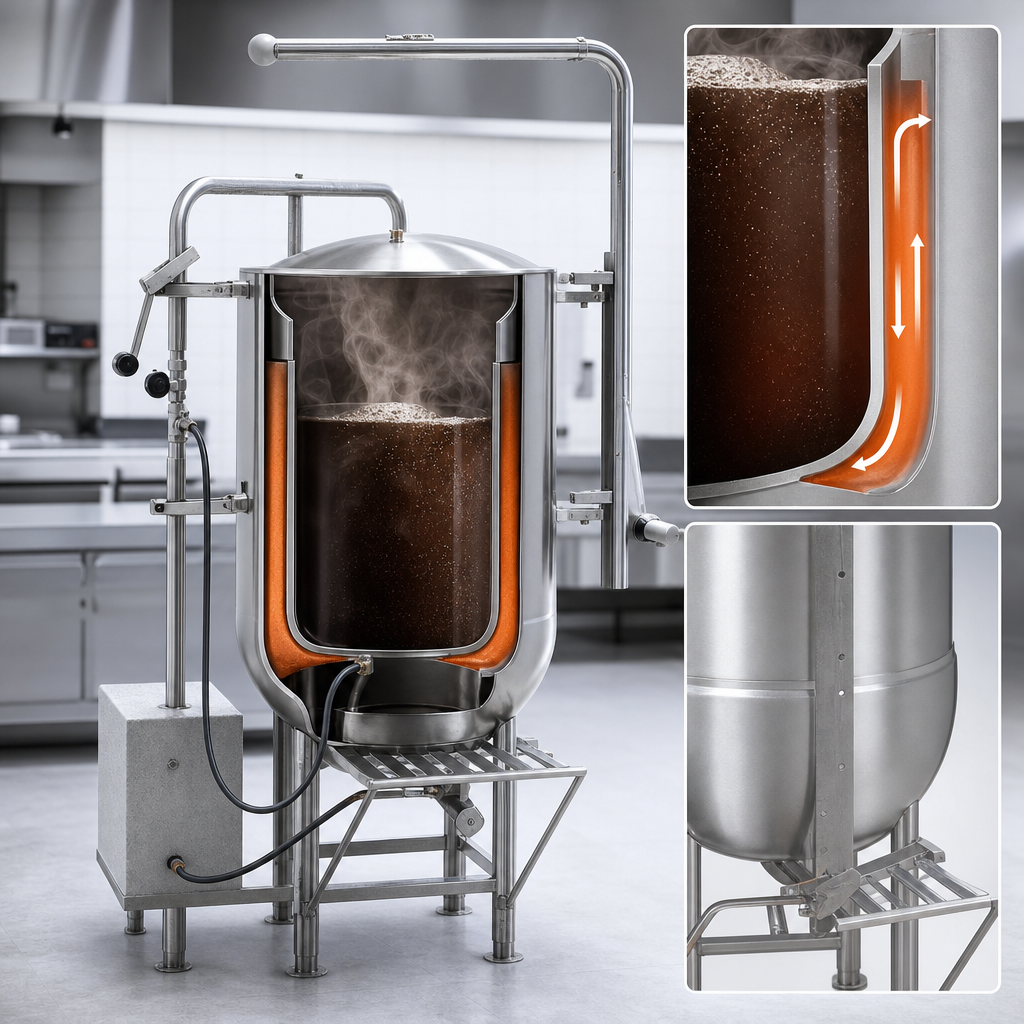

- 2/3 jacketed design cooks evenly with direct 30 psi steam—no hot spots.
- 2" 304 SS compression draw-off valve for smooth, clog-free dispensing.
- Recirculating pump with automatic timer & manual controls for optimal extraction.
- Break-resistant graduated sight glass shows coffee level at a glance.
- One-piece domed cover keeps heat in and condensation out of your brew.
- Heavy-duty gridded riser basket with canvas coffee bag & stainless spreader ring.
- Integrated bag-removal hoist minimizes operator lifting and turnaround time.
- Four reinforced 304 SS legs with adjustable flanged feet for rock-solid, code-compliant installation.
- Seam-welded 304 SS control console protects electronics from splashes and cleaning chemicals.
Brew System Components (Included)
- Canvas coffee bag with frame (washable & reusable)
- Stainless spreader ring to maintain even grounds distribution
- Bag hoist & hanger for quick drain and removal
- ½" NPT water fill connection—plumb once, brew all day
Technical Specifications
| Model | LTCR-60 |
|---|---|
| Capacity | 60 gal / 227 L (approximately 960 8-oz cups) |
| Heat Source | Direct external steam, 30 psi max |
| Jacket Coverage | 2/3 kettle sidewall |
| Liner & Welds | 304 stainless steel, deep-drawn |
| Jacket Material | 304L stainless steel |
| Draw-Off Valve | 2" 304 SS compression type |
| Controls | Automatic recirculation timer with manual override |
| Pump Motor | 1/3 HP, 115 V/1-ph (other voltages available) |
| Overall Height | 73.3 in / 1,862 mm (lid closed) |
| Overall Width | 52.9 in / 1,344 mm |
| Overall Depth | 58.0 in / 1,473 mm |
| Certifications | ASME, NSF & applicable local codes |
| Warranty | 12-month parts & labor (extended plans available) |
Popular Options & Accessories
- Elevated ½" swing faucet for remote dispensing
- Stainless mesh cloth coffee filter (washable)
- Remote coffee fill plumbing kit
- Draw-off drain with 6 ft hose
- Security packages: lockable lid, control cover & tamper-proof hardware
Legion Industries builds every LTCR kettle in Waynesboro, GA, using U.S.-sourced stainless steel. Each unit is thoroughly tested prior to shipment for worry-free start-up.
