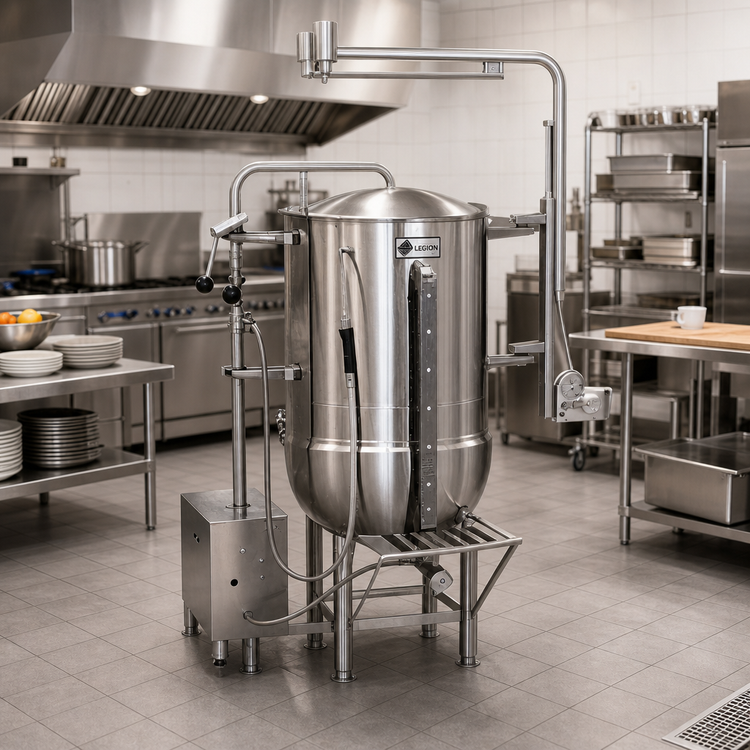

Legion LTCR-40 Direct Steam Coffee Kettle — 40 Gallons

Engineered for institutions, banquet kitchens and correctional facilities that serve coffee by the gallon, the LTCR-40 combines Legion’s deep-drawn stainless craftsmanship with a powerful direct-steam jacket, integrated recirculation pump, and labor-saving bag hoist. Brew up to 40 gallons of rich, consistent coffee in a single, streamlined batch.

Key Features

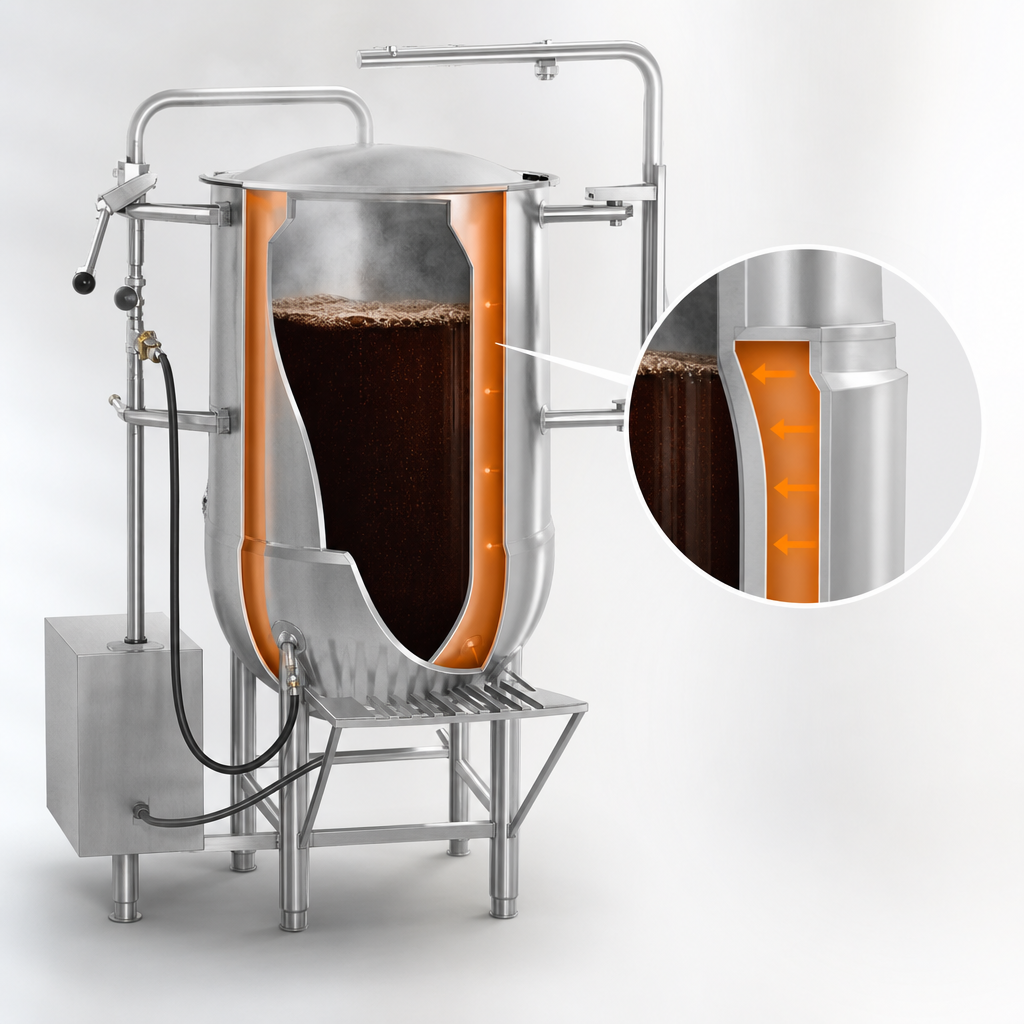

• 40 gal (151 L) 2/3-jacketed kettle specifically designed for bulk coffee extraction

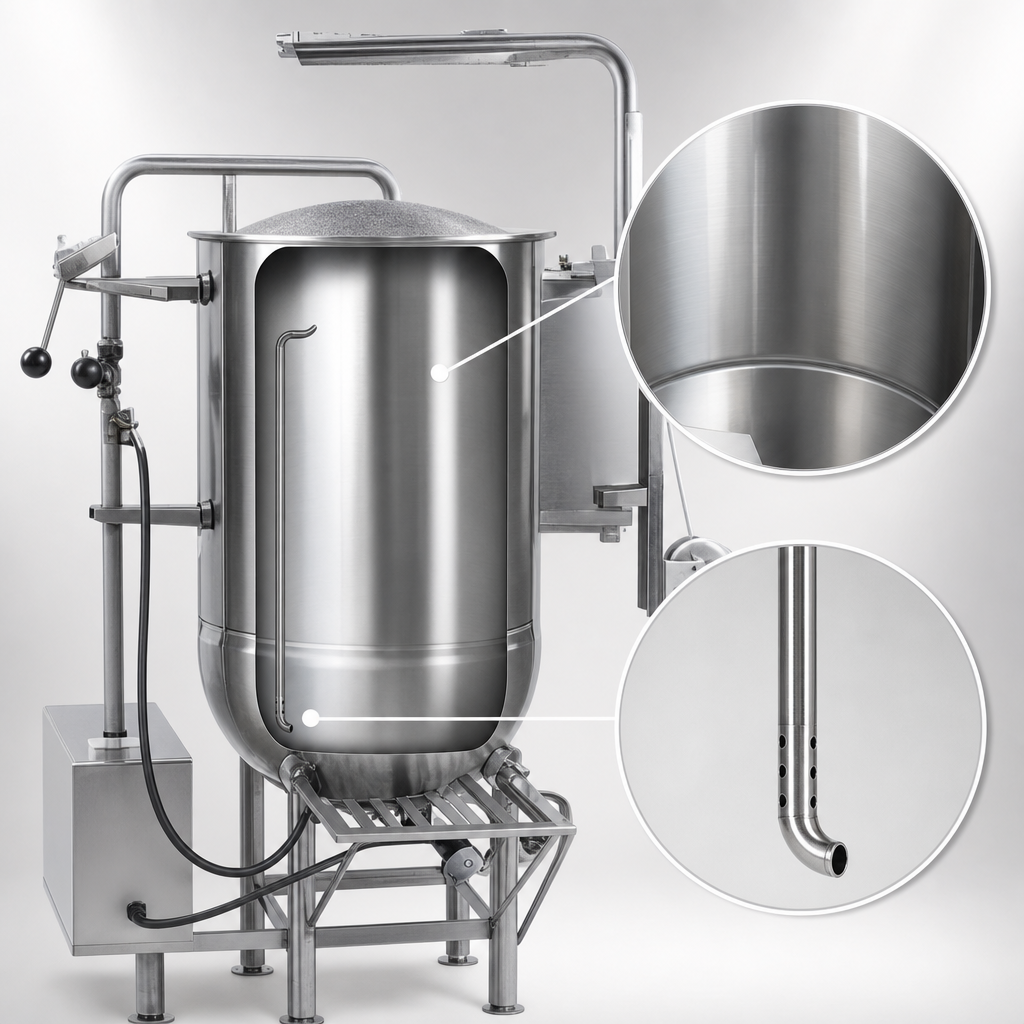

• 304 stainless steel deep-drawn liner, draw-off tube & 2 in. compression valve
• 30 psi direct-steam jacket delivers rapid, even heat to cut brew times
• Recirculating pump with automatic timer plus manual override for perfect extraction
• One-piece 304 stainless domed cover keeps heat in & condensation off the grounds
• Graduated, break-resistant sight glass for instant volume verification
• Gridded riser basket, canvas coffee bag & stainless spreader ring included
• Integrated bag hoist for safe, no-mess removal of spent grounds
• Robust tri-leg base (4 × 1 5/8 in.) with reinforced bracing & adjustable flanged feet
• Made in the USA; built to ASME & NSF standards

Performance Advantages

• Deep-drawn, seam-free kettle interior prevents coffee-oil build-up and simplifies cleaning
• Full 2 in. draw-off valve speeds dispensing and resists clogging from grounds
• Automatic recirculation ensures uniform flavor without manual stirring
• Direct-steam design eliminates the need for internal burners or electrical elements

Specifications

What’s Included

• LTCR-40 direct steam coffee kettle
• Canvas coffee bag with stainless spreader ring
• Bag hoist assembly
• Installation & operation manual

Looking for a lockable lid, elevated draw-off faucet, or other custom options? Contact us — Legion can build to your exact specification.
