Legion LTCR-150 Steam Kettles

LTCR 150-Gallon Direct Steam Coffee Kettle

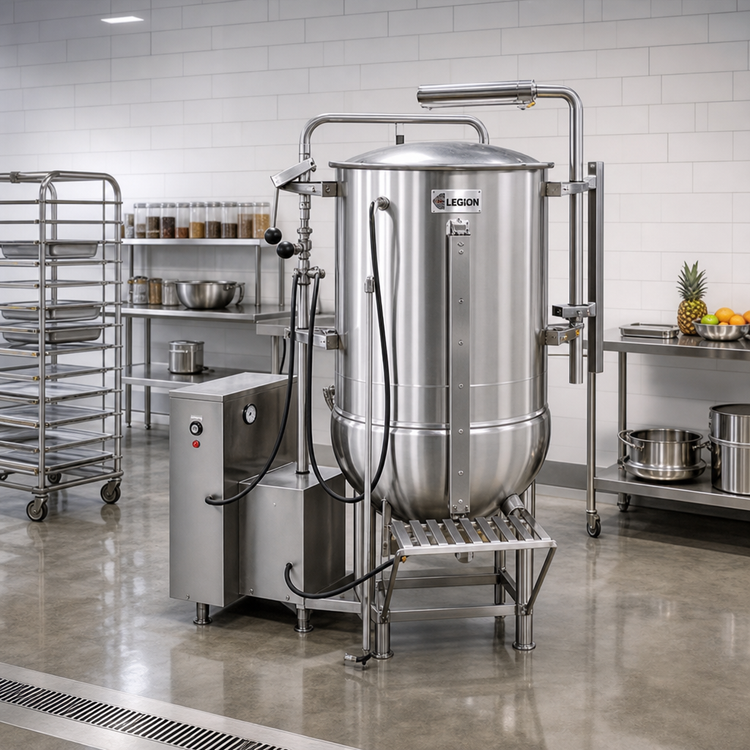

Brew, circulate and dispense up to 150 gal (568 L) of perfectly extracted coffee in one rugged, easy-to-operate station. Legion’s LTCR direct steam kettle delivers industrial durability with barista-level precision—ideal for commissaries, correctional facilities, stadiums and high-volume foodservice kitchens.

Key Features

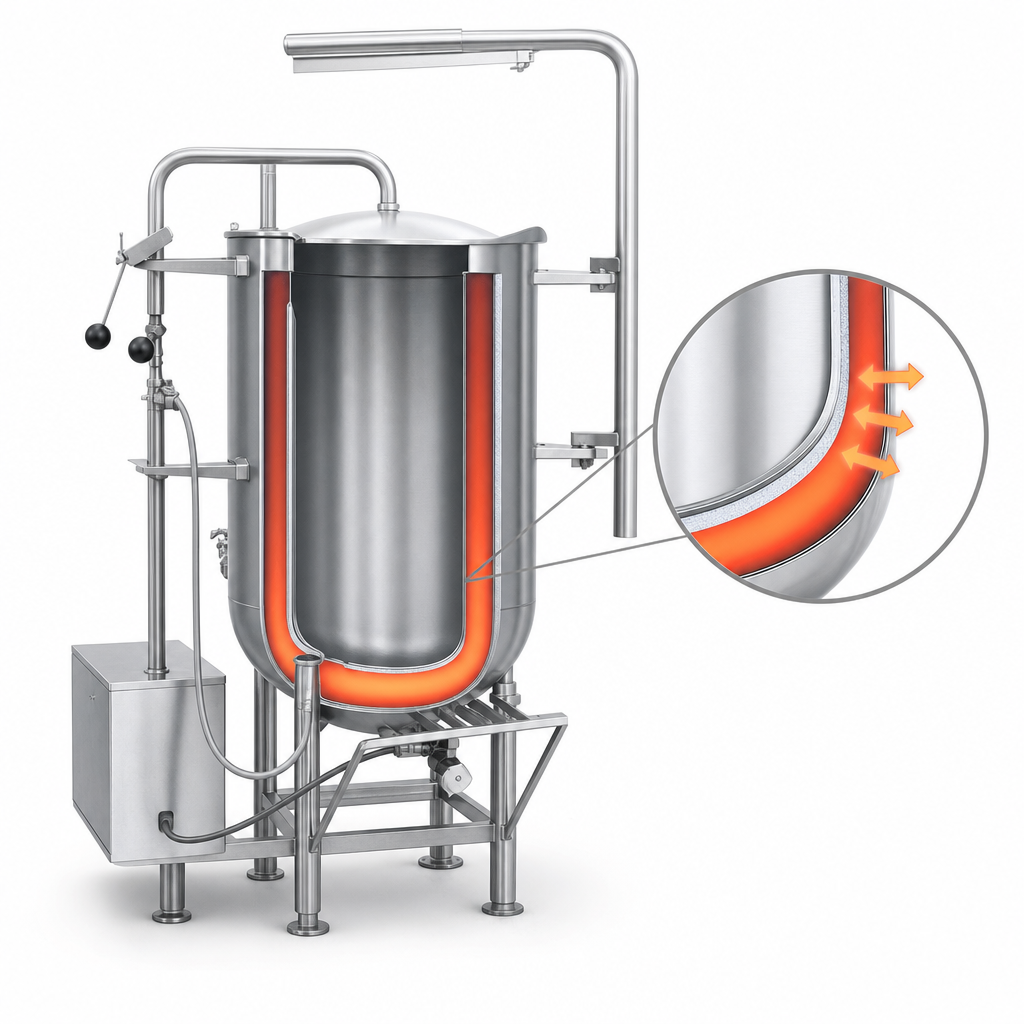

• 150-gallon, 2/3 steam-jacketed kettle rated 25 psi operating pressure.
• Food-grade 304 stainless-steel liner, draw-off tube & welds for long-term corrosion resistance.
• Full-port 2 in. compression draw-off valve—fast, clog-free dispensing.
• One-piece 304 stainless domed cover to lock in heat and aroma.
• Recirculating brew pump with automatic timer plus manual override for consistent extraction.
• Graduated, break-resistant sight glass—quickly check volume at a glance.
• Gridded riser basket with canvas coffee bag & stainless spreader ring for large-batch grounds management.
• Integrated hoist simplifies removal of heavy, saturated coffee bags.
• Stainless four-leg frame (2 in. Ø legs) with reinforced bracing and adjustable flanged feet for secure floor mounting.
• ½ NPT water fill coupling speeds kettle refills between batches.
• Built to NSF, ASME & UL standards in Waynesboro, GA.

Construction & Materials

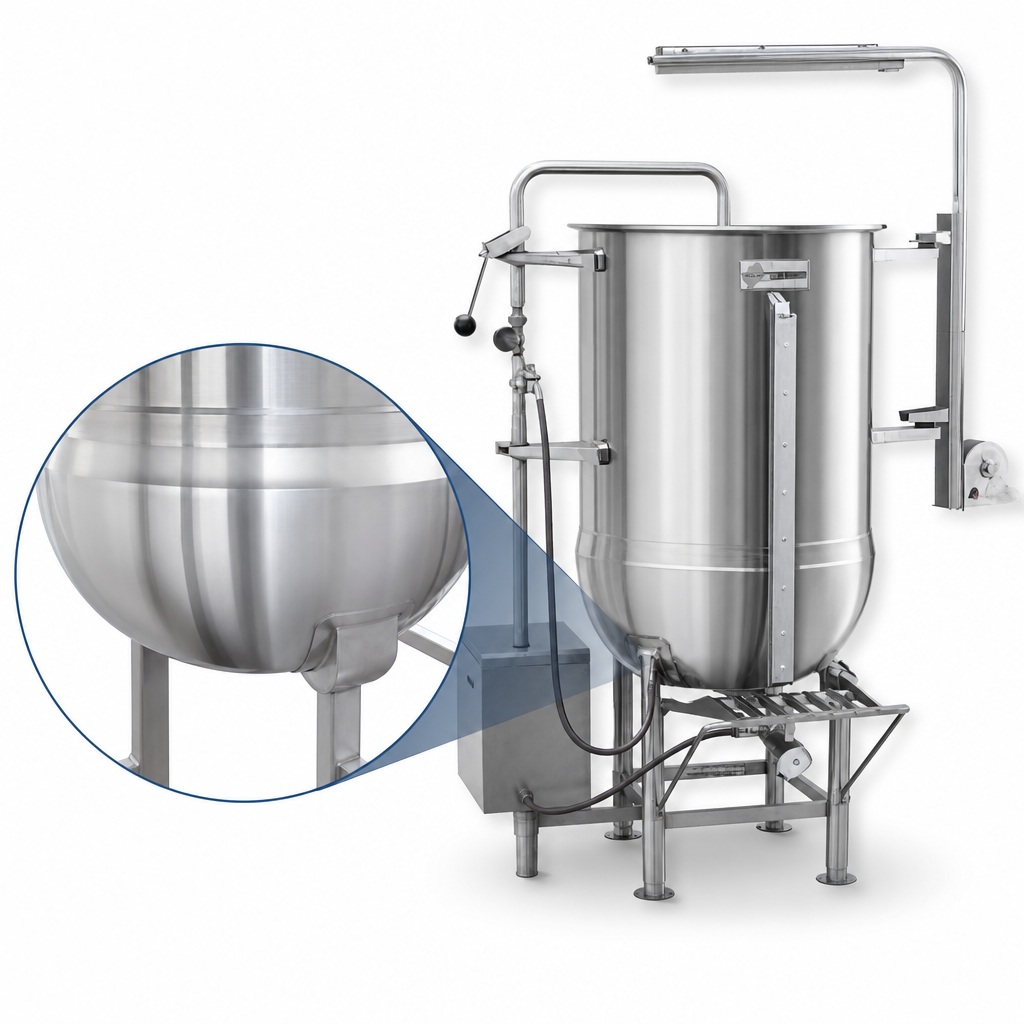

• Deep-drawn kettle body—no rolled or riveted seams.
• 304L stainless steam jacket for uniform heat transfer.
• Seam-welded 304 stainless control console protects electronics from steam & splashes.
• Leg sockets welded directly to jacket for lifetime alignment.

Performance Benefits

• Direct steam provides rapid, even heating—cutting batch times by up to 30 %.
• Automatic recirculation prevents stratification for uniform strength every pour.
• Full-port draw-off delivers smooth, particle-free flow—perfect for filling airpots or transfer tanks.

Specifications

Included Accessories

• Canvas coffee bag with stainless spreader ring
• Bag-hoist lifting system
• Water supply connection kit

Need a different capacity, elevated draw-off faucet or security package? Contact our team for custom configurations built to order.
